ULVAC FERROELECTRIC ETCHER

Cluster Plasma Tools - Metal

Like New Condition
System installed in October of 2007, decommission in Feburary of 2008. Used in a R&D application

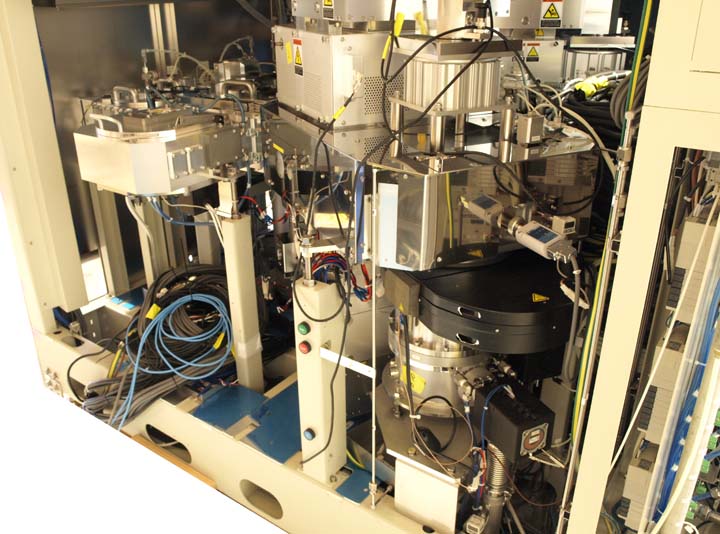

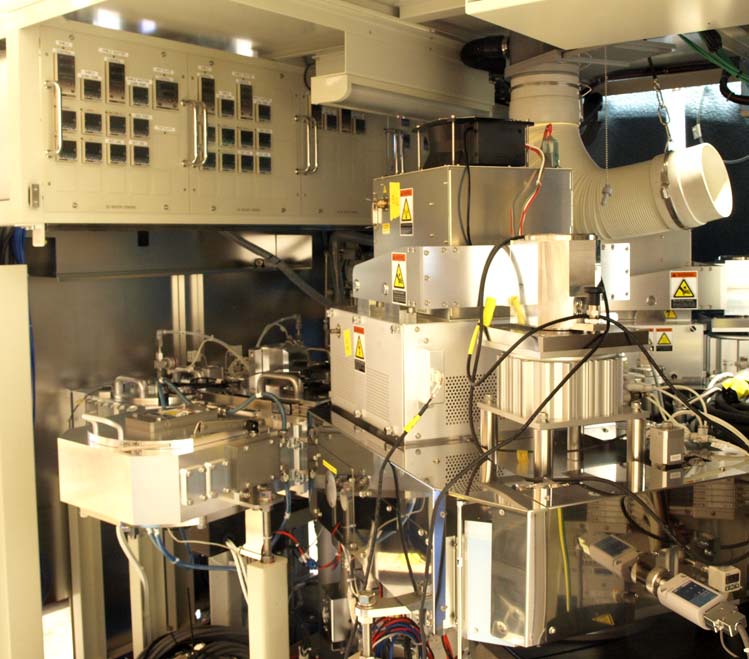

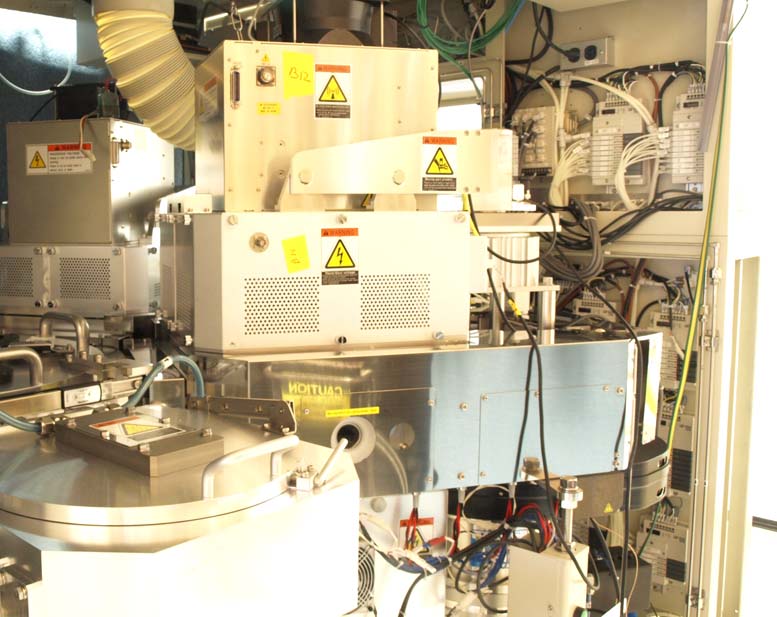

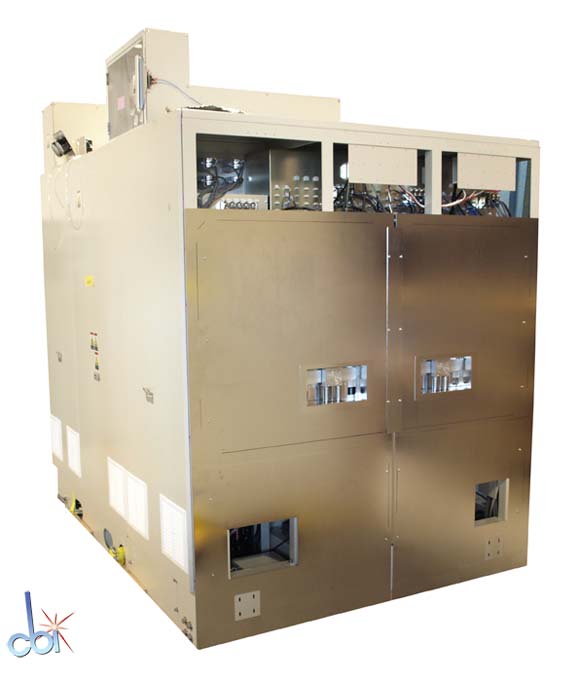

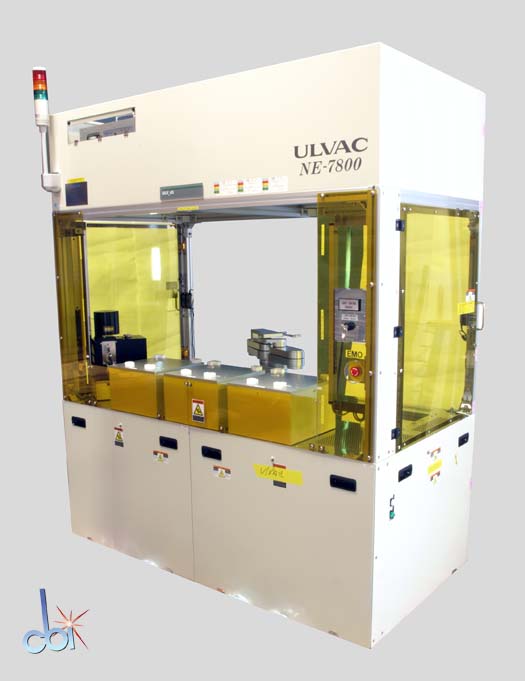

The Ulvac NE 7800 is a high-temperature, high-density plasma etching system utilizing an Inductive Super Magnetron source (ICP with magnetic field).

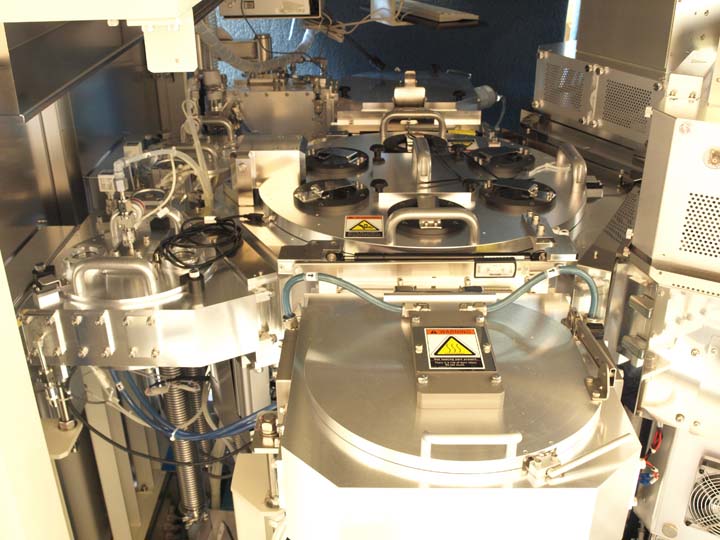

The NE 7800 is a dual load locked, cassette to cassette system designed for both R&D and production applications.
Outstanding metal etching process stability for Pt/Ir/magnetic films and difficult to etch materials such as FeRAM and MRAM devices.

1 unit @ Best Price

Make: Ulvac

Model: NE 7800 Ferroelectric Etcher

Item ID: 126704

Manufacturer	Ulvac
Model	NE 7800 Ferroelectric Etcher
Wafer Size Range
Minimum	150 mm
Maximum	200 mm
Set Size	200 mm
Number of Chambers	4
Process Capabilities	Ta, FeRAM, RRAM, MRAM
Chamber 1 Description	Preheat Chamber IR heater Range: 200 to 600 deg C

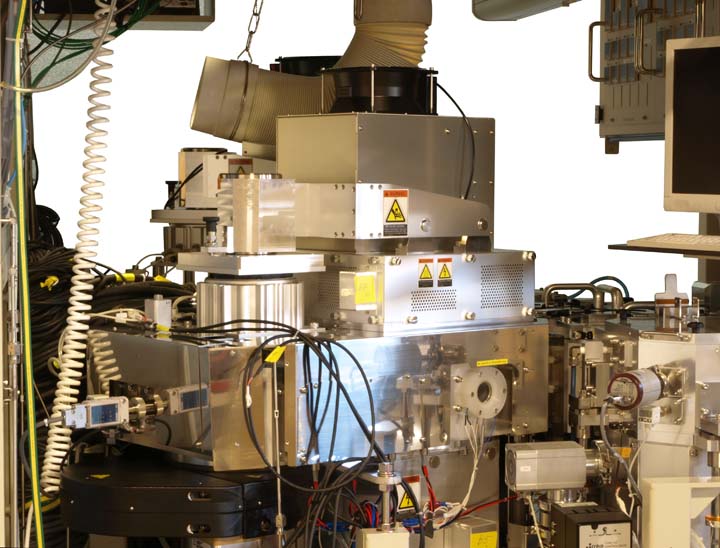

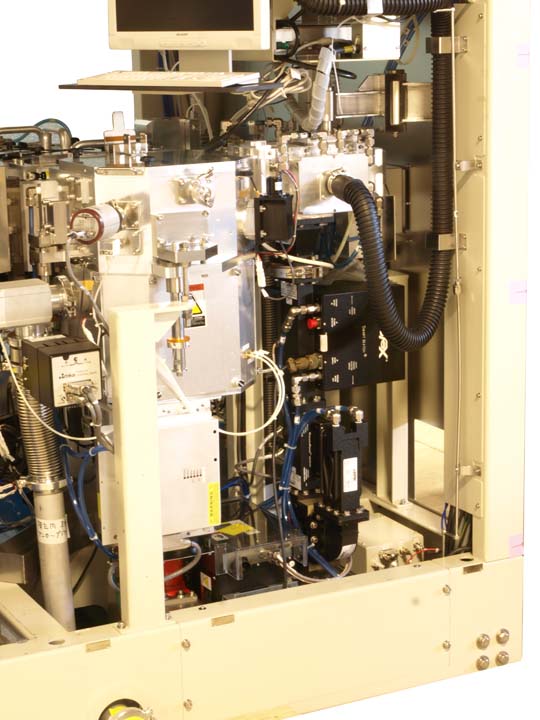

Chamber 2 Description	ISM ICP Etch ESD Chuck, 450C, He BS Cooling Bias power: 2000W, 400 KHz Antenna power: 3000W, 13.56 MHZ UTM 1400FW/DIK Turbo Pump Ebara ESR20N Dry Pump Gases: Ar, O2, SF6, C4F8, HBr, CL2, BCl3, CHF3
Chamber 3 Description	ISM ICP Etch ESD Chuck, He BS Cooling Bias power: 2000W, 400 KHz Antenna power: 3000W, 13.56 MHZ UTM 1400FW/DIK Turbo Pump Ebara ESR20N Dry Pump Gases: Ar, O2, SF6, C4F8, HBr, CL2, BCl3, CHF3
Chamber 4 Description	Microwave Ashing Chamber Heated Chuck, 280C Bias power: 600W, 13.56 MHz Microwave power: 3000W, 2.45 GHz Endpoint detection Ebara ESR200WN Dry Pump Gases: 02, 02, H2/N2, CF4, N2
External Cooling	Water Cooled

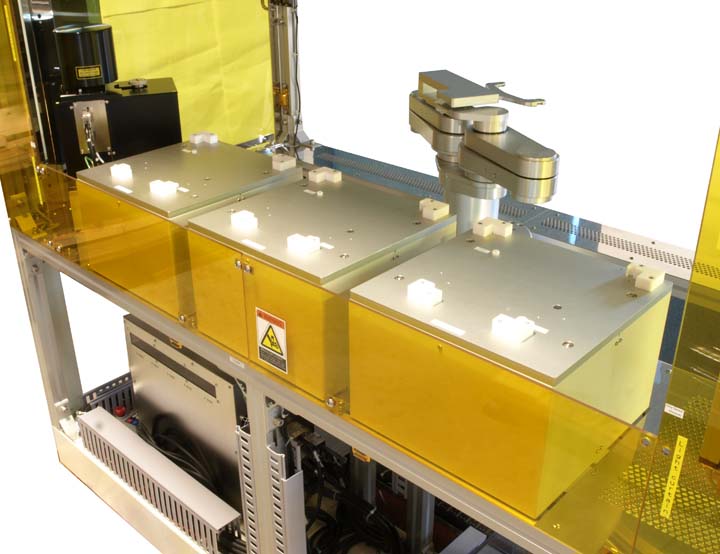

Other Information	(3) Cassette load ports (2) SMC Corp Model HRZ002 Chiller-Etch Chambers (1) Ebara ESR20N dry pump, loadlock/xfer mod
Power Requirements	208 V 220.0 A 60 Hz 3 Phase
Condition	Like New
