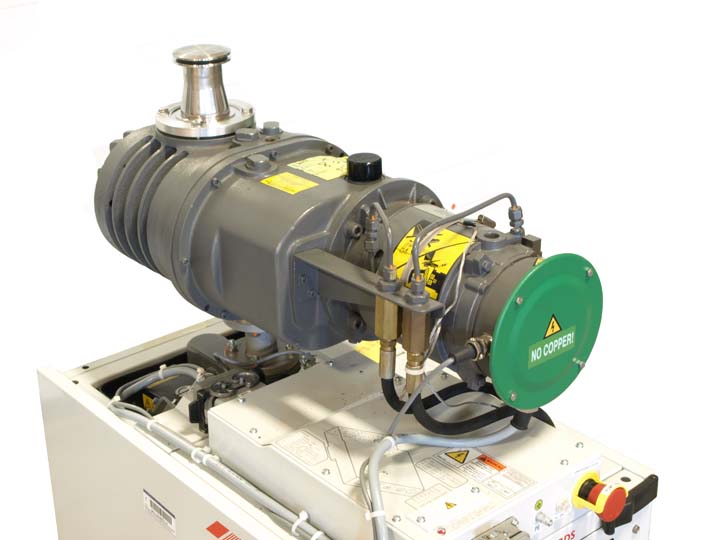

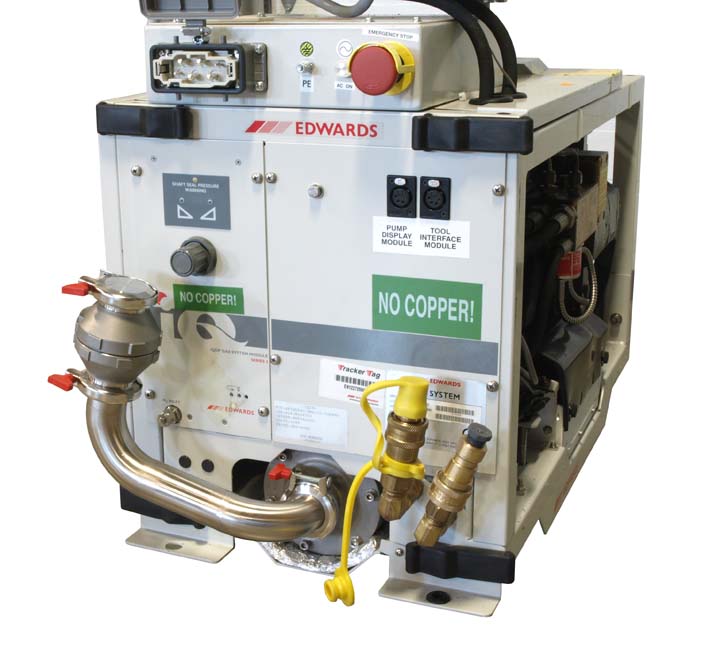

EDWARDS VACUUM IQDP DRY VACUUM PUMPING SYSTEM 171 CFM
Vacuum Pumping Systems
Vacuum Pumping System
2 unit s @ Best Price
Make: Edwards
Model: IQDP40/QMB250
Item ID: 133831
| Manufacturer | Edwards |
| Model | IQDP40/QMB250 |
| Dry Pump | YES |
| Pumping Speed | 171.0 CFM (4,832.0 l/m) |
| Ultimate Pressure | 0.15E-2(En) torr (0.20E-2 mbar) |
| Inlet Flange | ISO-K 63.0 mm (2.480 in) |
| Exhaust Flange | KF 40.0 mm (1.575 in) |
| Backing Pump Model | iQDP40 |
| Roots Pump Model | QMB250 |
| Accessories | Shaft seal pressure warning |
| Other Information | Water Cooled |
| Power Requirements | 208 V 60 Hz 3 Phase |
| CE Marked | YES |
| Exterior Dimensions | |
| Width | 34.000 in (86.4 cm) |
| Depth | 17.000 in (43.2 cm) |
| Height | 34.500 in (87.6 cm) |
| Weight | 620 lb (281 kg) |
