ITEM ID: 207153

ADVANCED ENERGY RF GENERATOR POWER SUPPLY 1500 W 13.56 HZ

Radio Frequency Generator

1 unit @ Best Price

MAKE: Advanced Energy

MODEL: Apex 1500/13

CATEGORY: Radio Frequency (RF) Generators

SPECS

Manufacturer Advanced Energy
Model Apex 1500/13
Description Radio Frequency Generator
Rated Power Output 1500 Watts
Frequency 13.56
Scale MHz
Interface I/O Port
Interface 2 RS 232
External Cooling Water Cooled
Accessories

Power cord with Hubbell 30A 250V 3 phase 4 wire plug included

Other Information

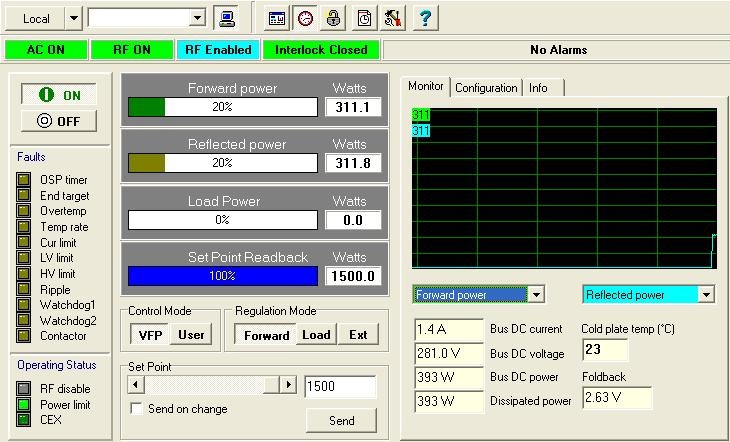

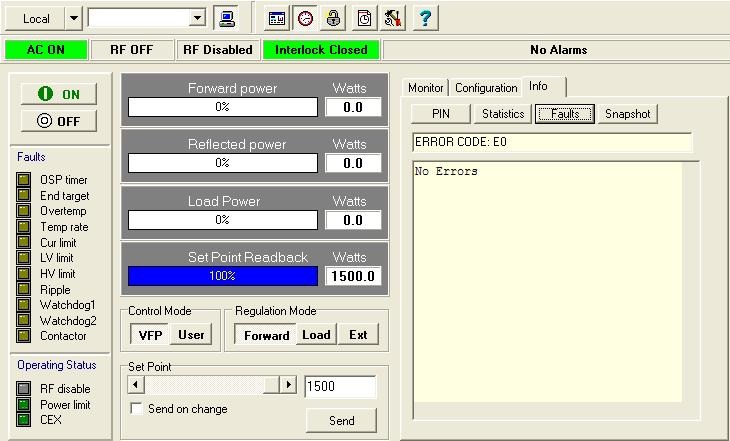

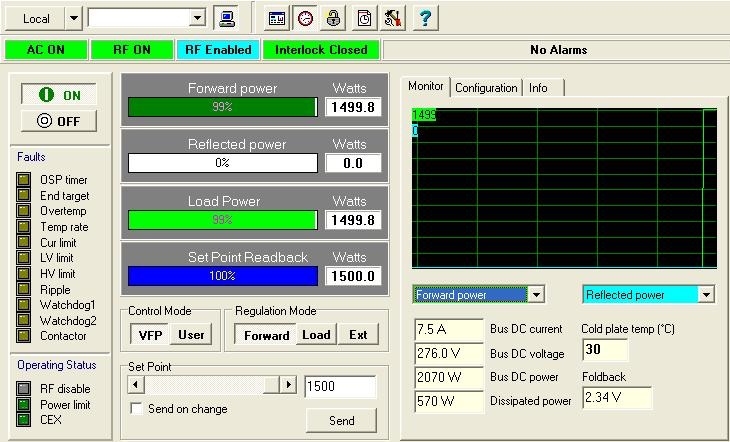

Tested, see last 6 pictures in the "... other images" link above

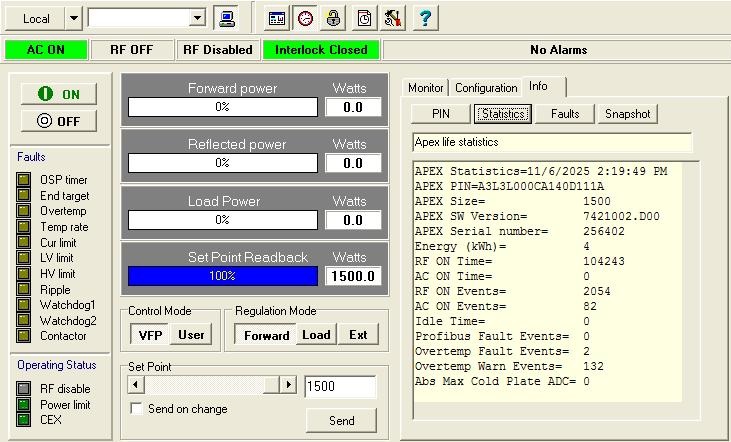

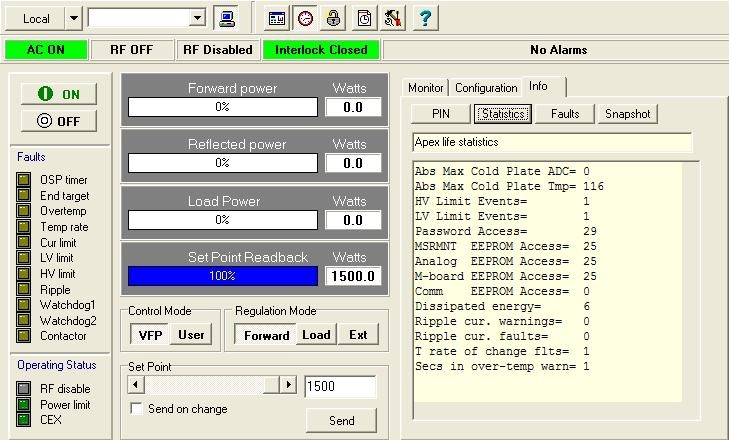

Time in statistic screen is in seconds.

On power-up 25 pin user port is active.

Windows 2000 Virtual Front Panel software available.

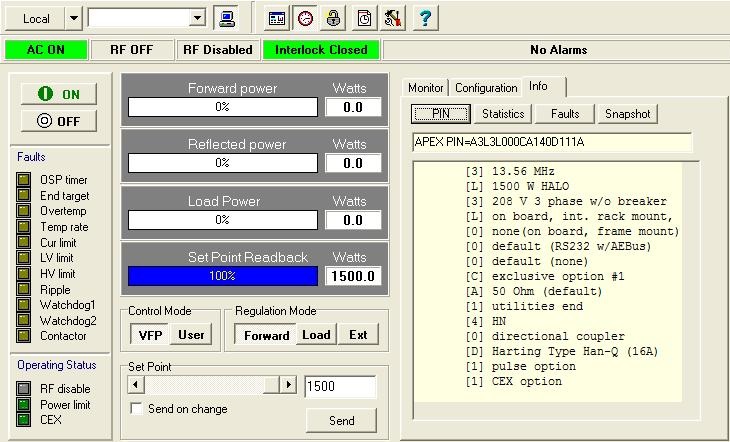

Full P/N: A3L3L000CA140D111A

Output frequency: [3] 13.56 MHz
Power output: [L] 1500 W HALO
Input voltage: [3] 208 V 3 phase w/o breaker
Package: [L] on board, int. rack mount, 4 handles (LED w/4H)
Panel: [0] none(on board, frame mount)
Serial I/O: [0] default (RS232 w/AEBus)
Serial port 2: [0] default (none)
Analog I/O: [C] exclusive option #1
Output Impedance: [A] 50 Ohm (default)
On-board RF con: [1] utilities end
Output Connector: [4] HN
RF Measurement: [0] directional coupler
AC Power Input: [D] Harting Type Han-Q (16A)
Pulsing: [1] pulse option
CEX: [1] CEX option
H2O Fittings: [1] 3/8 NTP female
Custom Config: [A] standard configuration

Power Requirements 208 V 6.8 A 50/60 Hz 3 Phase
CE Marked YES
Condition Excellent
Exterior Dimensions
Width 10.500 in (26.7 cm)
Depth 17.500 in (44.5 cm)
Height 5.250 in (13.3 cm)
Weight 37 lb (17 kg)
