CASCADE TEK TVO-2 VACUUM OVEN 220C

Vacuum Ovens

Automatic Pump down with Watlow F4 Process Controller

3 unit s @ Best Price

Make: Cascade TEK

Model: TVO-2

Item ID: 239781

Manufacturer	Cascade TEK
Model	TVO-2
Maximum Temperature	220 ºC (428 ºF, 493 ºK)
Heat/Cool Controls
Control Type	Programmable
Overtemperature Protection	YES
Interface	RS 232
Controller Manufacturer/Model	Watlow F4S
Capacity/Volume Box	1.70 cu ft (0.05 cu m)
Chamber Size
Width	12.00 in (30.48 cm)
Depth	20.00 in (50.80 cm)
Height	12.00 in (30.48 cm)

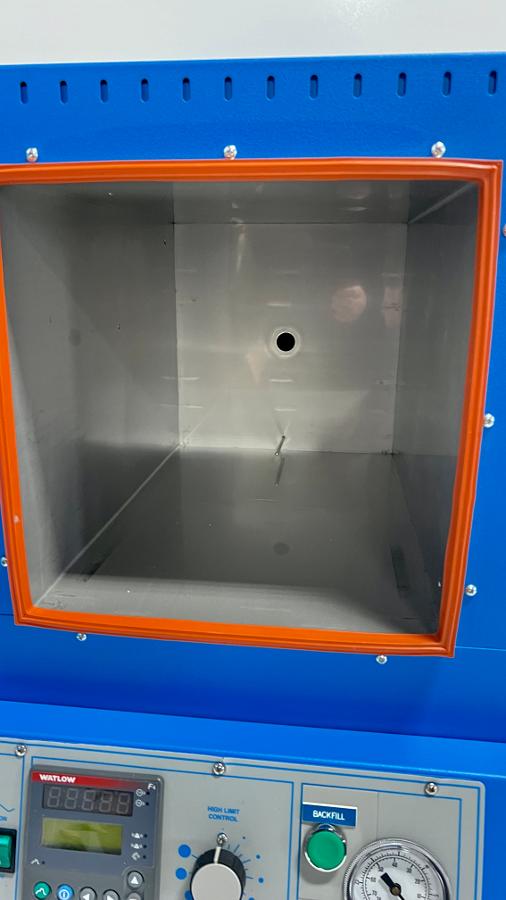

Chamber Characteristics
Chamber Construction	Stainless steel
Viewing Window	YES

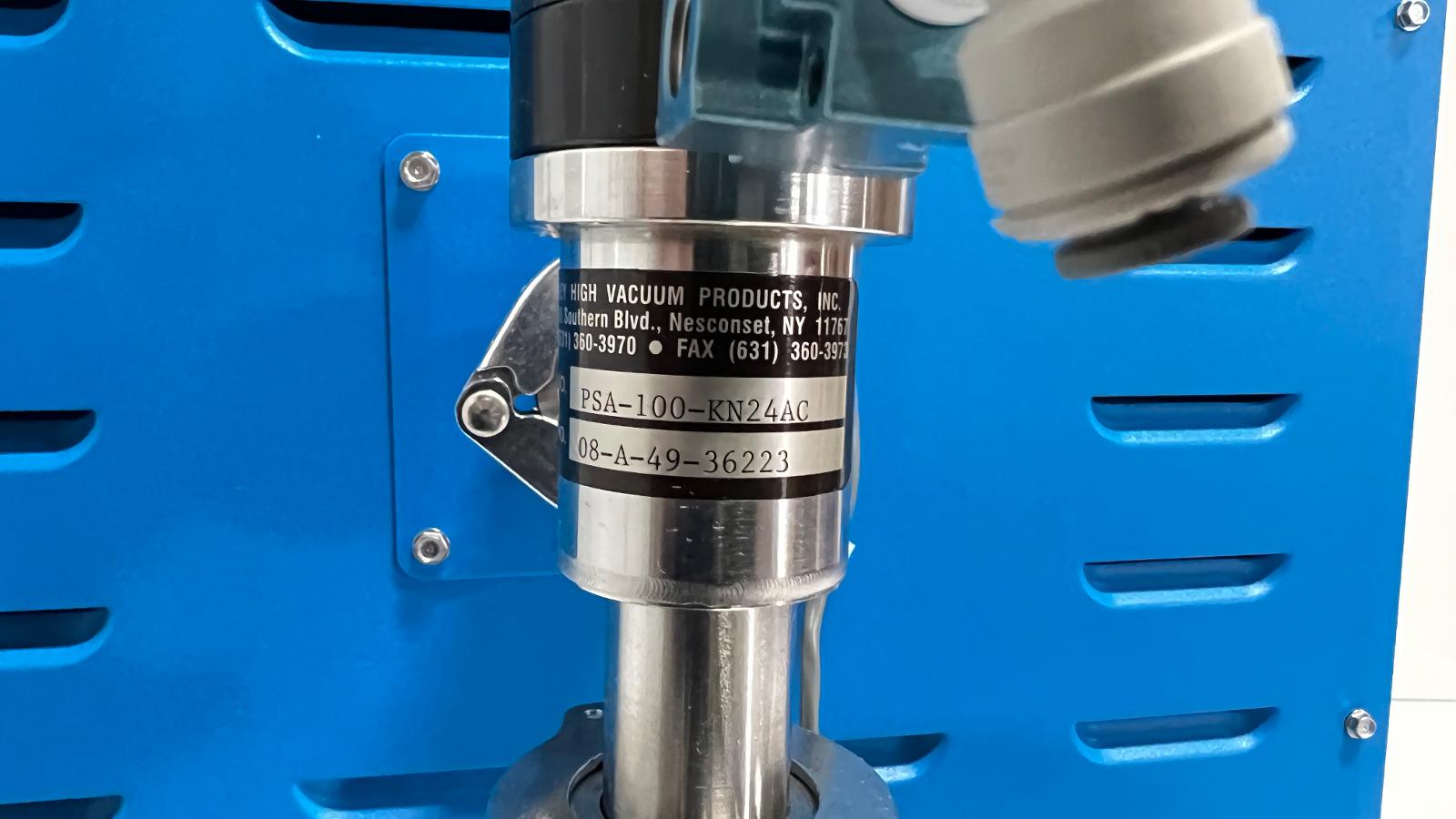

Other Information	Minimum temperature 5º C above ambient Compressed air 60 psi required for operation Vent solenoid (push button controlled) Profile stop button (to abort running profile) Over-Temperature Safety Thermostat Mechanical vacuum gauge F4S controller capable of 256 possible ramp steps in as many as 40 variable-length, nameable profiles. Guided setup and programming software Watview for Windows XP https://www.watlow.com/-/media/documents/software-and-demos/executables/watview0906.ashx Profile controlled vacuum pump outlet Profile controlled vacuum electro-pneumatic valve, 1" Optional vacuum pump (not included) Oven has two power cords- one for the oven, another for the vacuum pump

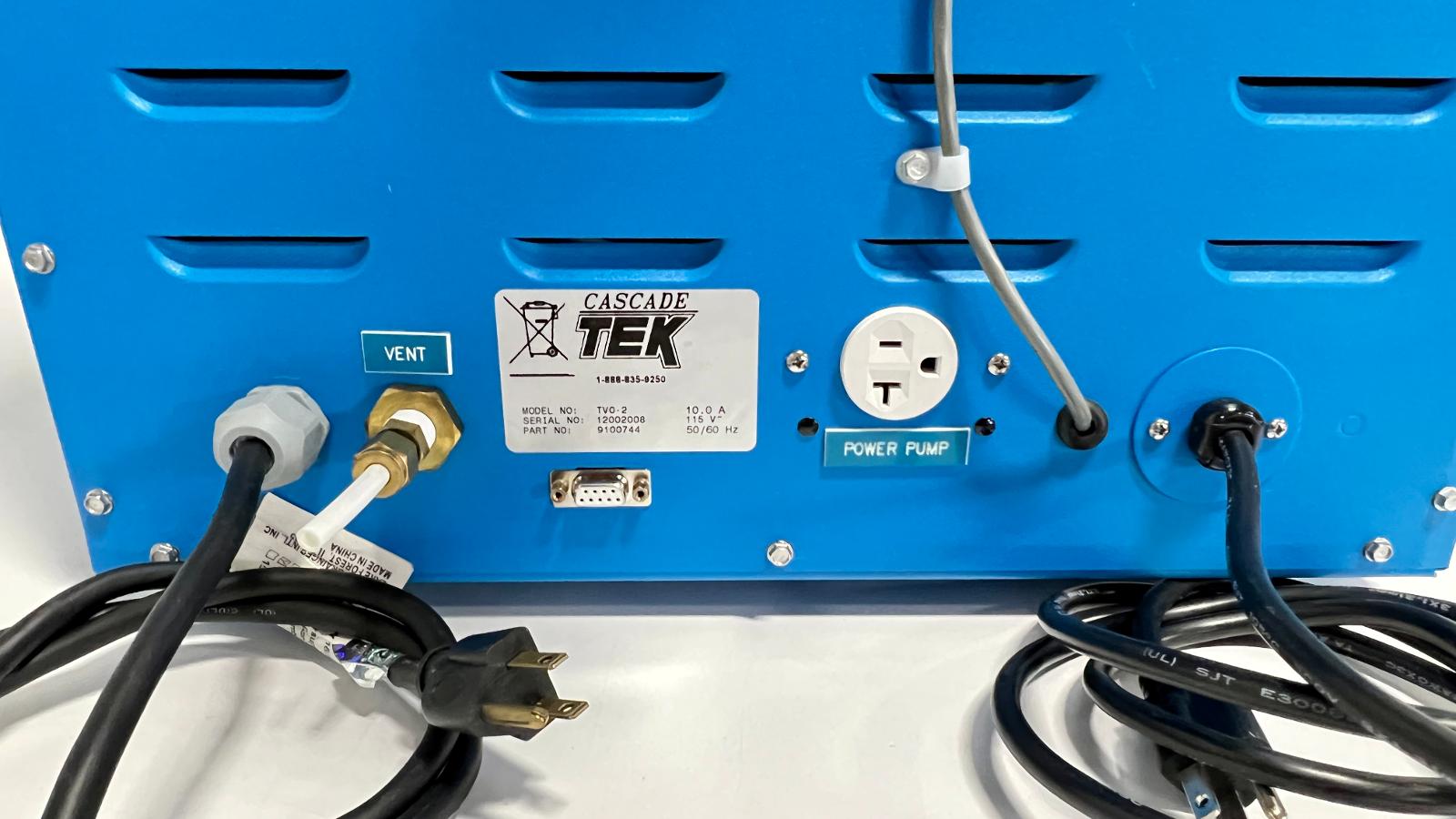

Power Requirements	115 V 10.0 A 13.0 A(2) 50/60 Hz 1 Phase
Exterior Dimensions
Width	18.750 in (47.6 cm)
Depth	26.500 in (67.3 cm)
Height	24.500 in (62.2 cm)
