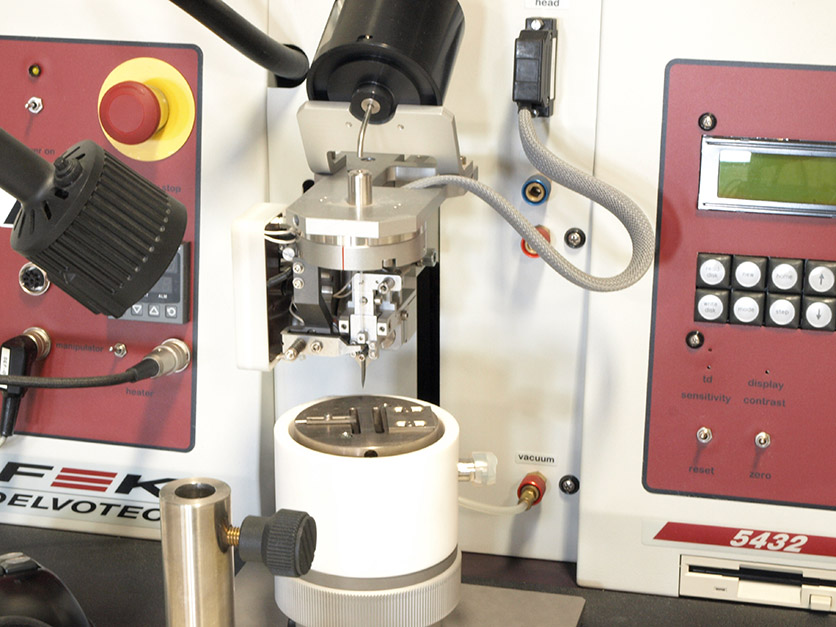

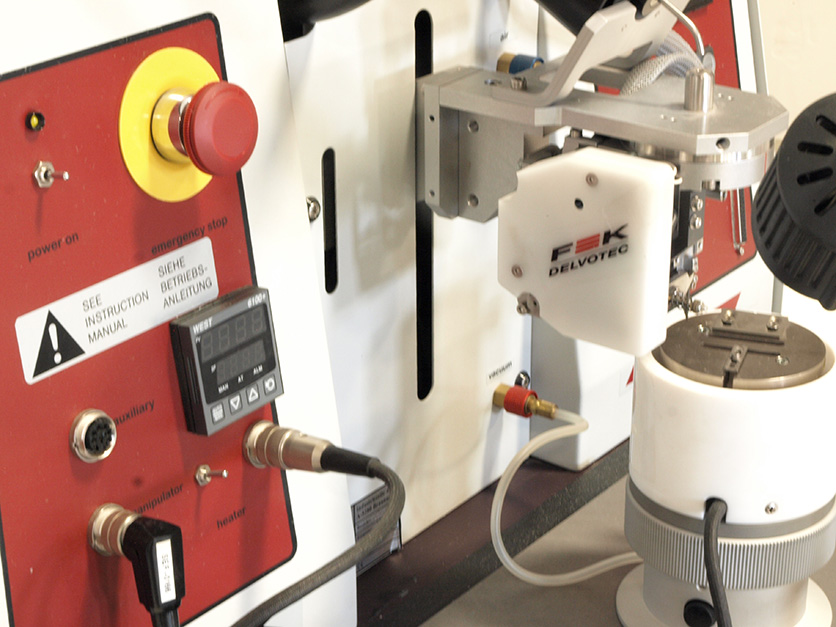

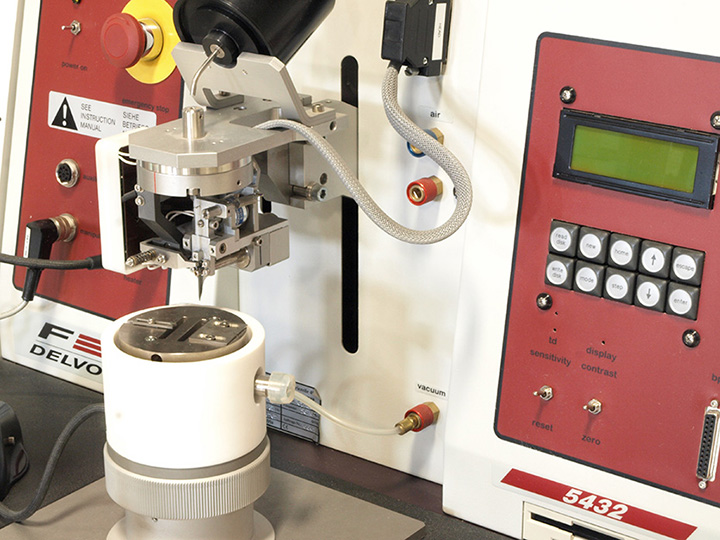

F&K DELVOTEC AUTOMATIC WEDGE BONDER

Automatic Wedge Bonders

Automatic Wedge Bonder

1 unit @ Best Price

Make: F&K Delvotec

Model: 5432

Item ID: 161528

Manufacturer	F&K Delvotec
Model	5432
Description	Automatic Wedge Bonder
Other Information	Wire Types: 20 to 75 Micron Gold and Aluminum Ribbon 30 to 250 Micron Bond Head: 90 Degree Wire Feed Electronic Touchdown Sensing for every bond Programmable Output Ultrasonic System, 0 to 5 Watt 100 KHz Programmable Bond Force 15 to 150 cN Working Area: Y Axis, 50mm Z Axis, 50mm 2.5 Micron Resolution Standard Work Height 136mm (Mid Z Stroke) X/Y Manipulator from 5 x 5 mm to 18 x 18 mm Equivalent Manipulator Step-Down 1:2 to 1:7 Operating Modes: Semi-Automatic, Automatic, Multi-Wire Step Mode For Program Debug Loops: Standard Rectangular, Standard Triangular, Single Reverse, Double Reverse Stitch; Table Tear Program Storage: Up to 50 Individual Wires Per Program, 250 Programs Per 3.5" Floppy Disk
Power Requirements	115/ 230 V 50/60 Hz 1 Phase
Exterior Dimensions
Width	26.000 in (66.0 cm)
Depth	29.000 in (73.7 cm)
Height	17.000 in (43.2 cm)
