HUGHES PARALLEL GAP/OPPOSED WELD HEAD/POWER SUPPLY

Sealing/Welding Systems

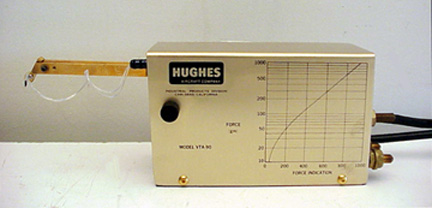

Parallel Gap Opposed Weld Head with Power Supply

1 unit @ Best Price

Make: Hughes

Model: VTA90

Item ID: 586

Manufacturer	Hughes
Model	VTA90
Description	VTA 90 w/HTT 600 Power Supply
Maximum Rating	.17 KVA
Maximum Rating	20 watt-sec
Weld Force Minimum	0.22 lb (0.10 kg)
Weld Force Maximum	2.01 lb (0.91 kg)
Weld Head Type	Opposed
Electrode Holder Type	Parallel Gap
Power Leads	Opposed
Power Supply Included	YES

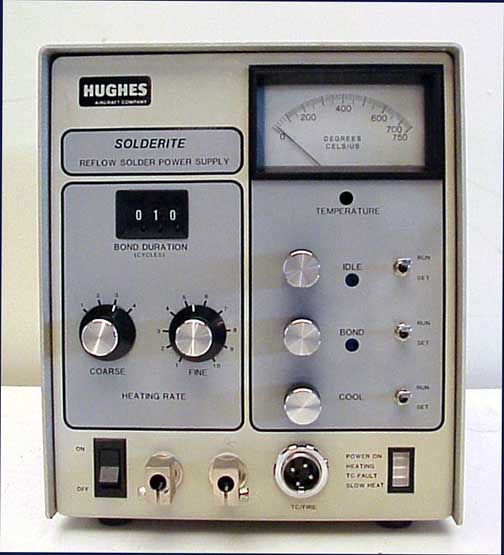

Power Supply Model	HTT-600
Foot Pedal Included	YES
Other Information	Flexline foot pedal Electrode stroke: 0.25" Electrode holder: 0.125 x 0.078" Digital thumbwheel duration timer Coarse and fine temperature heat rate adjustment 0 to 750°C analog temperature meter Does not come with base plate. Soldering tip is NOT included
Power Requirements	115 V 8.0 A 50/60 Hz 1 Phase
Condition	Excellent
Exterior Dimensions
Width	2.500 in (6.4 cm)
Depth	7.500 in (19.1 cm)
Height	4.000 in (10.2 cm)
Weight	12 lb (5 kg)
