TEMESCAL E-BEAM EVAPORATOR, 6 POCKET
Electron Beam Evaporators
E Beam Evaporator
1 unit @ Best Price
Make: Temescal
Model: BJD-1800
Item ID: 87979
| Manufacturer | Temescal |
| Model | BJD-1800 |
| Description | E Beam Evaporator, 7cc Crucible |
| Vacuum System | Cryo Pumped |
| Load Lock Included | No |
| E Beam Power Supply | |
| Power Supply Type | Triode Tube |
| High Voltage Minimum | 8 kV |
| Number of Guns Controlled | 1 |
| Electron Source Type | Six Pocket |
| Crucible Size | 7.00 cc (0.43 cu in) |
| Vacuum System |
|
| Substrate Heaters | Yes |
| Film Thickness Monitor | Yes |
| Residual Gas Analyzer | No |
| Accessories | Includes |

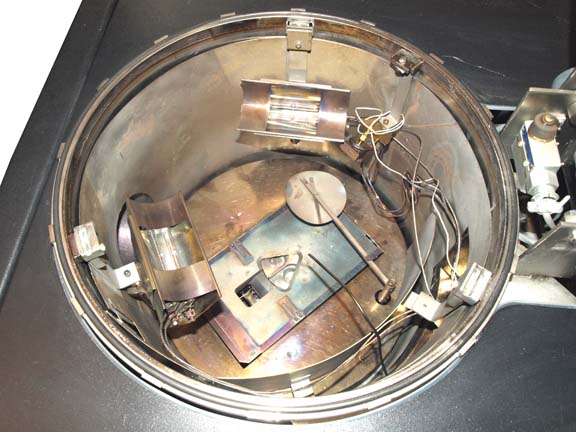

| Other Information | 18" in diameter x 9" high stainless steel substrate dome chamber |
| Power Requirements | 208 V 70.0 A 60 Hz 3 Phase |
| Exterior Dimensions | |
| Width | 60.000 in (152.4 cm) |
| Depth | 44.000 in (111.8 cm) |
| Height | 56.000 in (142.2 cm) |
