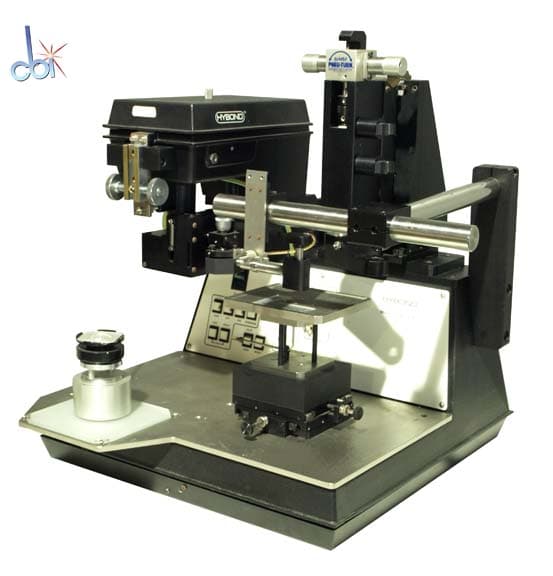

Hybond EDB 140A Semiautomatic Epoxy Die Bonder

Quoted on requestWorking & warranted
Condition
Used See details
Brand
Hybond
MPN
EDB 140A
SKU
43059
Availability
1 in stock
Make Inquiry

Shipping, sale coverage & payments

Shipping:
Ships from Scotia, NY. Method, cost and timing confirmed on your quote. Shipping policy
Lead Time:
We’ll confirm exact timing when we send your quote.
Sale Coverage:
Working & Warranted: 90-day warranty. View terms
International Orders:
Case by case; export controls may affect eligibility. Contact us
Payments:
Credit card via Stripe, or purchase order. Payment Information
Independent Reseller:
Capovani is not an authorized distributor or representative of the original manufacturer.
Capovani Brothers Inc.

Shop with confidence

Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani

Item description

Features

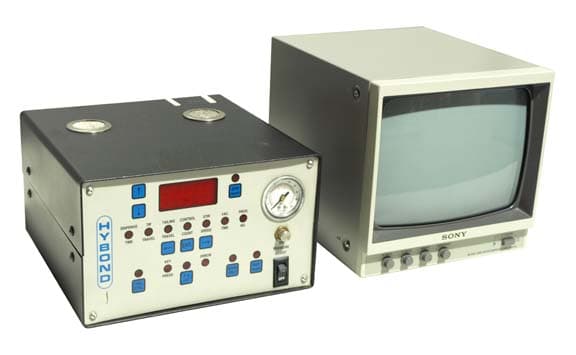

Black & White CCTV System

Package depth sensor for consistent & precise bond line thickness

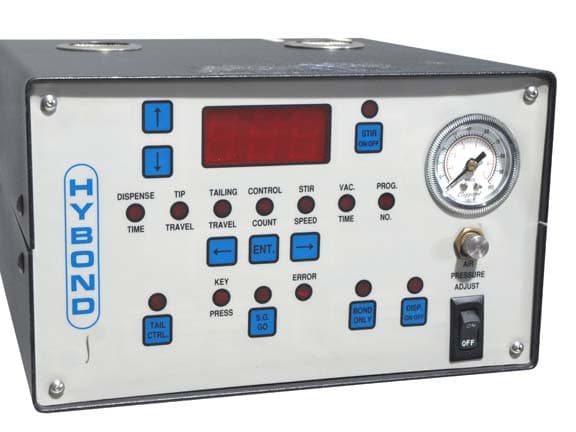

Programmable dispense control unit

Storage for up to 99 dispense programs

Manual X-Y alignment

PLC Control

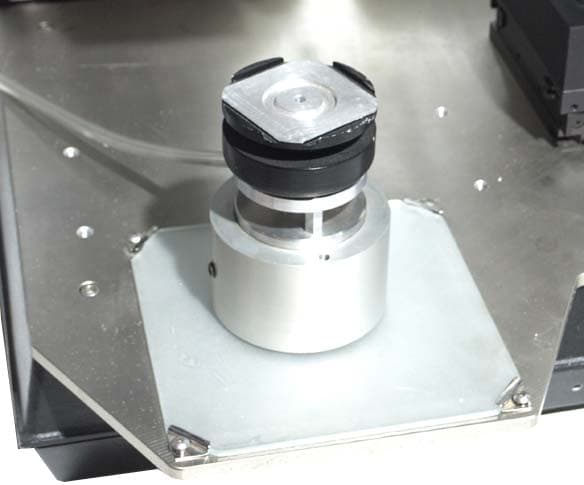

Waffle pack / loose die pickup pedestal

Pitch & Roll adjustments for bond head

Manual & Semiautomatic operation modes

Dispense Materials: Epoxy. Bonder is capable of doing conductive silver glass; option not included available from Hybond

Bond Time Range: 7 to 15 seconds

Bond Force Range: 15 to 50 grams

Bondable Die Size Range: 6 x 6 mils (152 x 152 5m) to 750 x 750 mils (1,9 x 1,9 5m)

Placement Accuracy: 1 1 mil (25,4 5m) standard

Bond Line Accuracy: 1.0.5 mil (1m12,7 l5m)

Bond Head Movement: Motorized, rotational, w/ fixed pick-up and placement points

Bond Actuation: By opto-switch at fixed height. Cycle initiated by footswitch

Z Axis Travel / Vertical Bonding Window: 0.5 in (1.20 cm) / 0.125 to 0.500 in. (0,31 to 1,20 cm)

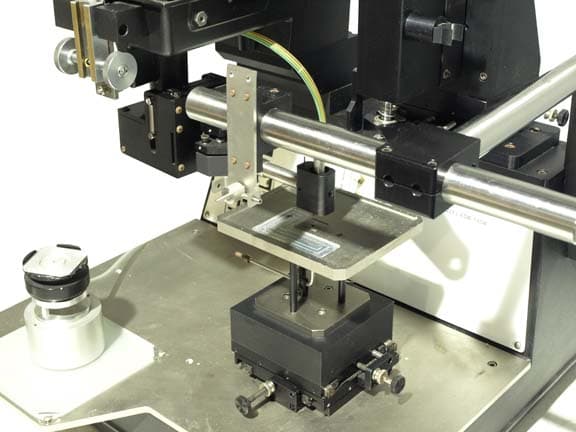

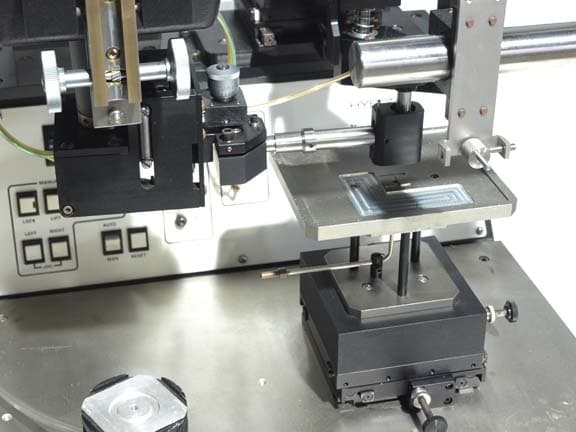

Table Motion: manual, with thumbscrew adjustments (standard)

Technical specifications

Power Requirements115 V 5.0 A 60 Hz 1 Phase

Exterior Dimensions

Width22.000 in (55.9 cm)
Depth24.000 in (61.0 cm)
Height24.000 in (61.0 cm)

Condition & testing notes

Previously in service and offered for secondary-market resale.
