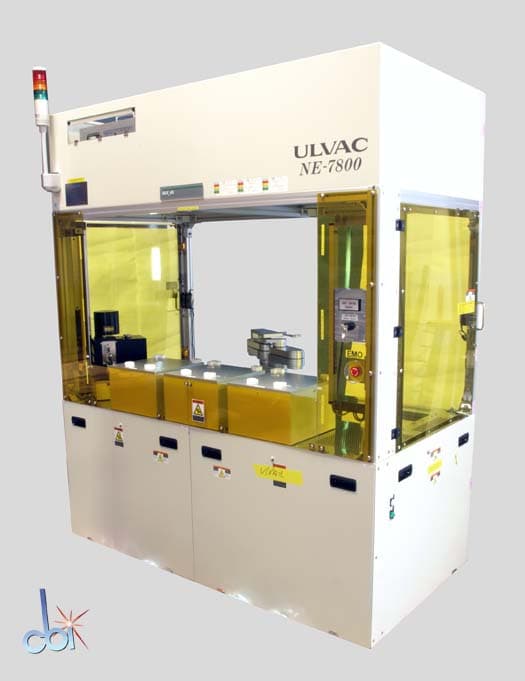

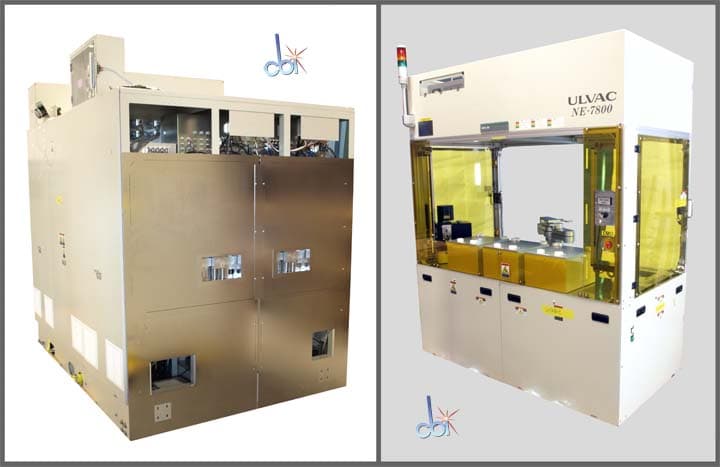

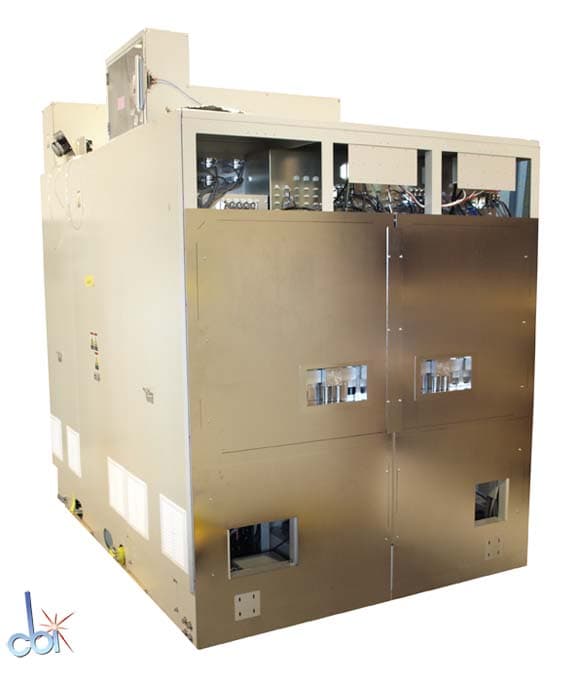

Ulvac NE 7800 Dry Etching System
Quoted on requestWorking & warranted
- Condition
- Used See details
- Brand
- Ulvac
- MPN
- NE 7800 Ferroelectric Etcher
- SKU
- 126704
- Availability
- 1 in stock
Shipping, sale coverage & payments
- Shipping:
- Ships from Scotia, NY. Method, cost and timing confirmed on your quote. Shipping policy
- Lead Time:
- We’ll confirm exact timing when we send your quote.
- Sale Coverage:
- Working & Warranted: 90-day warranty. View terms
- International Orders:
- Case by case; export controls may affect eligibility. Contact us
- Payments:
- Credit card via Stripe, or purchase order. Payment Information
- Independent Reseller:
- Capovani is not an authorized distributor or representative of the original manufacturer.
Shop with confidence
Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani
Item description
System is in like new condition.
System installed in October of 2007, decommission in February of 2008. Used in a R&D application.
Weight and dimensions listed below are estimated.

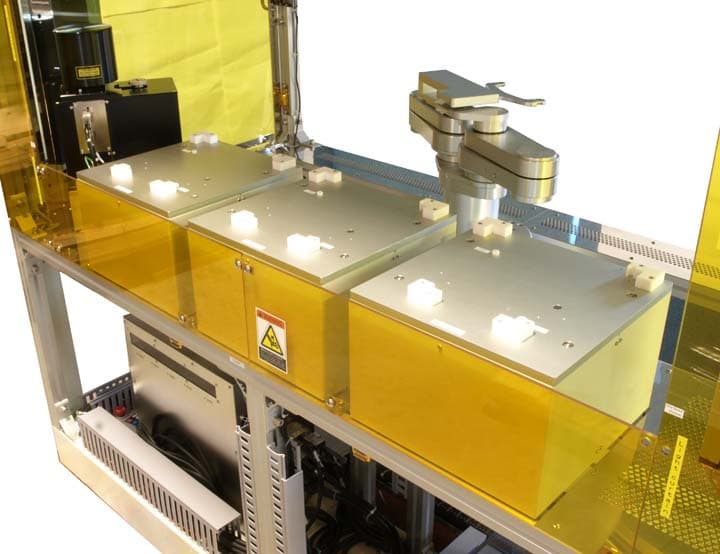

(3) Cassette load ports
(2) SMC Corp Model HRZ002 Chiller-Etch Chambers
(1) Ebara ESR20N dry pump, load lock/xfer mod
Technical specifications

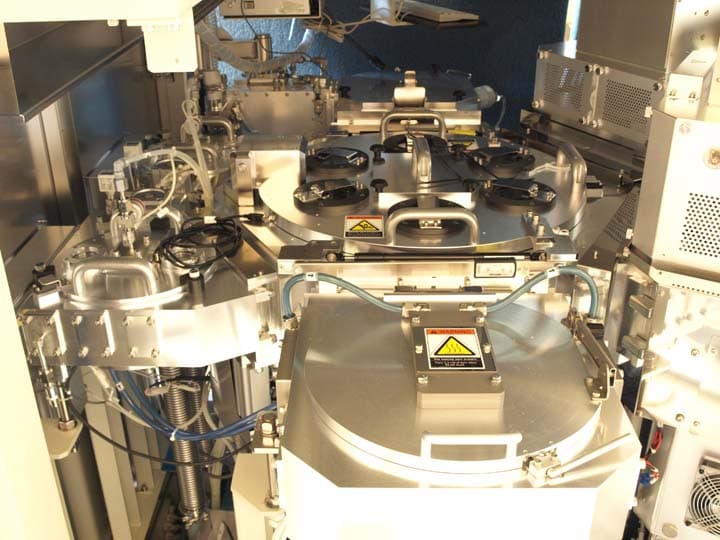

| Number of Chambers | 4 |
| Process Capabilities | Ta, FeRAM, RRAM, MRAM |
| Chamber 1 Description | Preheat Chamber IR heater Range: 200 to 600 deg C |

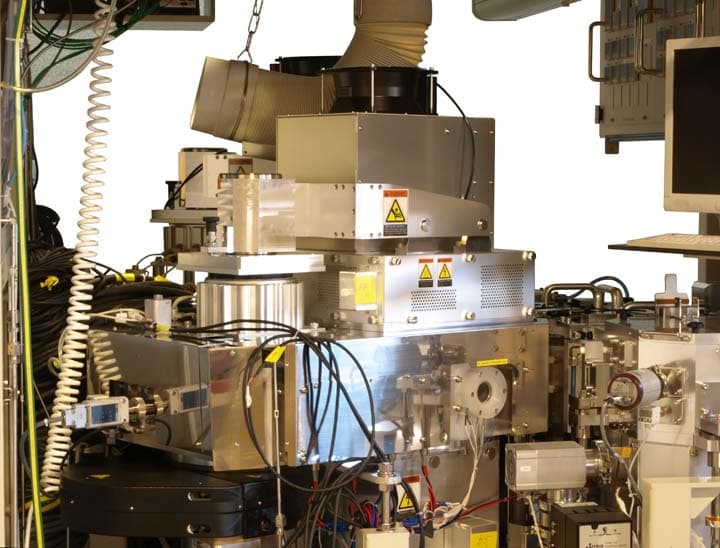

| Chamber 2 Description | ISM ICP Etch ESD Chuck, 450C, He BS Cooling Bias power: 2000W, 400 KHz Antenna power: 3000W, 13.56 MHZ UTM 1400FW/DIK Turbo Pump Ebara ESR20N Dry Pump Gases: Ar, O2, SF6, C4F8, HBr, CL2, BCl3, CHF3 |
| Chamber 3 Description | ISM ICP Etch ESD Chuck, He BS Cooling Bias power: 2000W, 400 KHz Antenna power: 3000W, 13.56 MHZ UTM 1400FW/DIK Turbo Pump Ebara ESR20N Dry Pump Gases: Ar, O2, SF6, C4F8, HBr, CL2, BCl3, CHF3 |
| Chamber 4 Description | Microwave Ashing Chamber Heated Chuck, 280C Bias power: 600W, 13.56 MHz Microwave power: 3000W, 2.45 GHz Endpoint detection Ebara ESR200WN Dry Pump Gases: 02, 02, H2/N2, CF4, N2 |
| External Cooling | Water Cooled |
| Power Requirements | 208 V 220.0 A 60 Hz 3 Phase |
Wafer Size Range
| Minimum | 150 mm |
| Maximum | 200 mm |
| Set Size | 200 mm |
Exterior Dimensions & Weight
| Width | 39 in (99 cm) |
| Depth | 120 in (305 cm) |
| Height | 68 in (173 cm) |
| Weight | 5000 lbs (2300 kg) |
Condition & testing notes
Previously in service and offered for secondary-market resale.
