FULL DESCRIPTION of Item 187162

in Servo Hydraulic
Item ID: 187162

Offered 1 Offered at Best Price

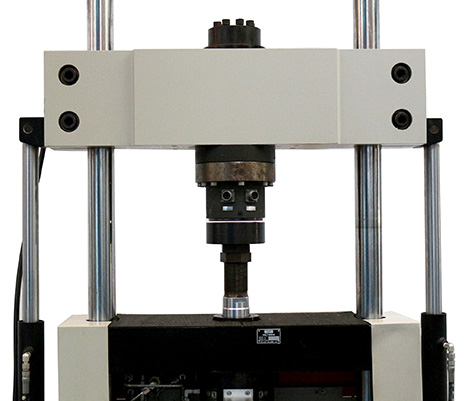

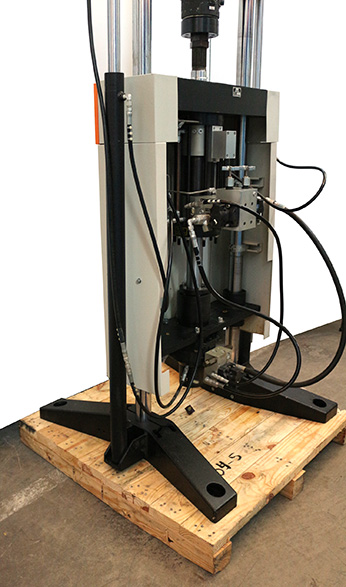

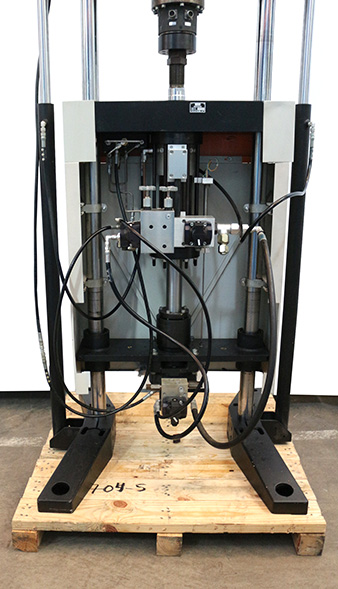

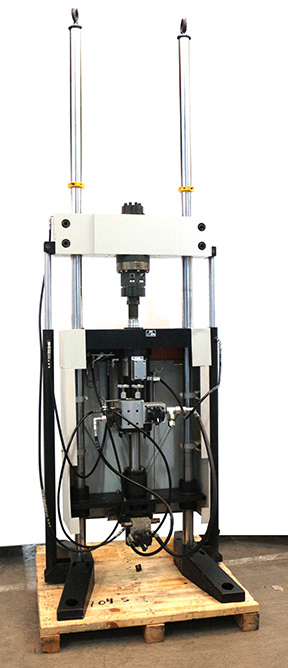

INSTRON AXIAL TORSIONAL TEST FRAME

Axial Torsional Test Frame - Frame Only

INSTRON AXIAL TORSIONAL TEST FRAME
  Click to see additional image(s)... other images

Location: Scotia, New York, United States
Unit Price Unstated
Number of Units 1
Manufacturer Instron

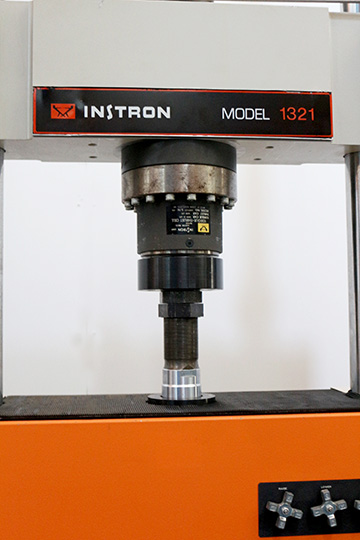

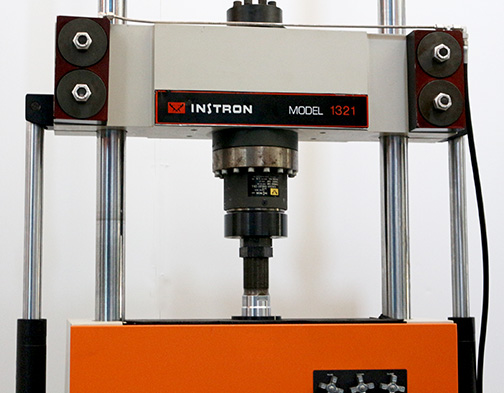

Model 1321
Load Frame Model: A484.193     Load Capacity: 22,000.00  lb  (97,868.54 N)     Lifts and Locks: Hydraulic Lifts & Locks
Actuator Model: AW3548-2
Actuator (2) Model: 26R-5 2V
Load Cell Model: 6467-105
Controller

None

Accessories

Hydraulic accumulator Model: A440-4

Other Information

Torque Thrust Load Cell: Model 6467-105, torque cap: 3000 in lb, Thrust cap 6000 lb.
Rotac (now Micromatic) rotary actuator:  Model: 26R-5 2V, 3000 psi

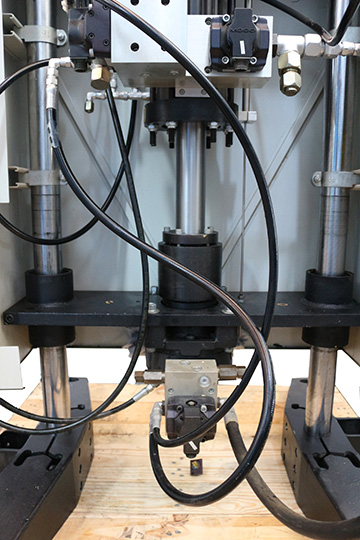

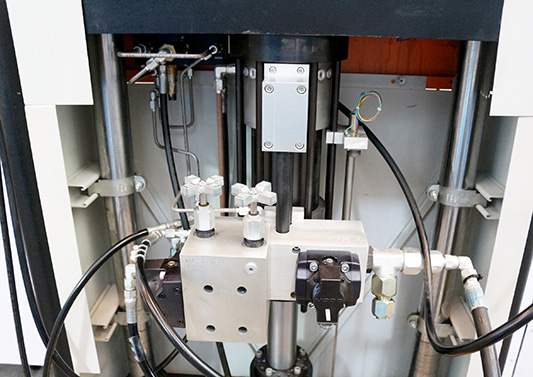

(3) Moog Model 760-553A Servo Valves.


Shipping & Handling:

Unless otherwise stated, all items will be fully tested and sold with our standard ninety day warranty, which is described in our terms and conditions.
Our standard procedure is to service the equipment as orders are placed. Lead times can vary depending on the item.
Domestic and International shipments: Ex Works, Scotia, NY. All freight cost estimates are for dock to dock service only.
Any additional services, i.e. lift-gate, inside or residential delivery, must be requested at the time of sale and will be billed accordingly.
CBI is not responsible for any damage incurred during shipment. It is the buyer's responsibility to inspect packages for damage and to note any damage on bill of lading.
Please feel free to call us with any questions. (Phone: 518.346.8347, 844-833-8347, Fax: 518.381.9578).
