Item ID: 225313

Offered 1 Offered at Best Price

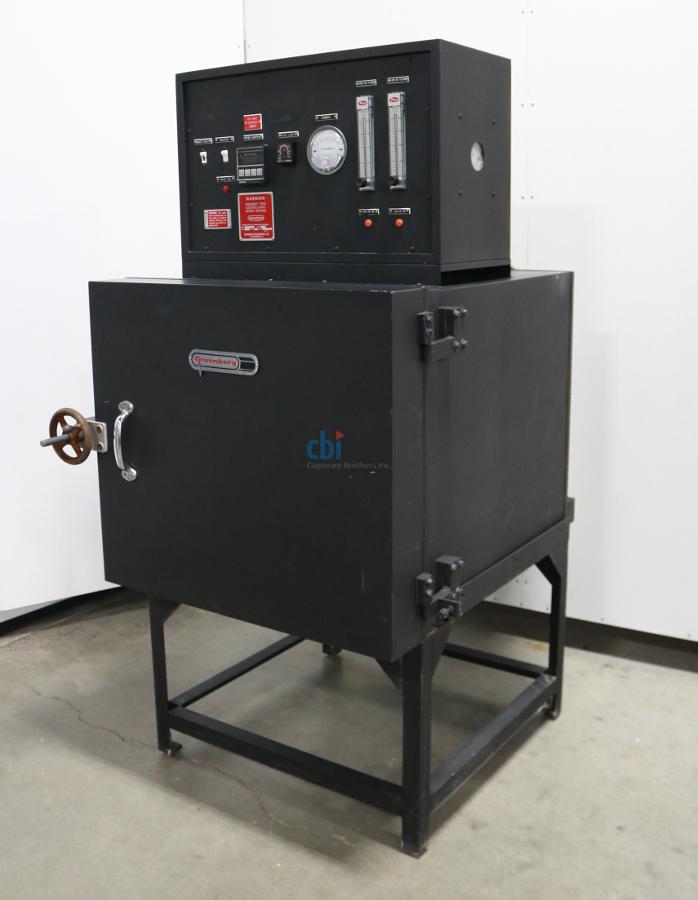

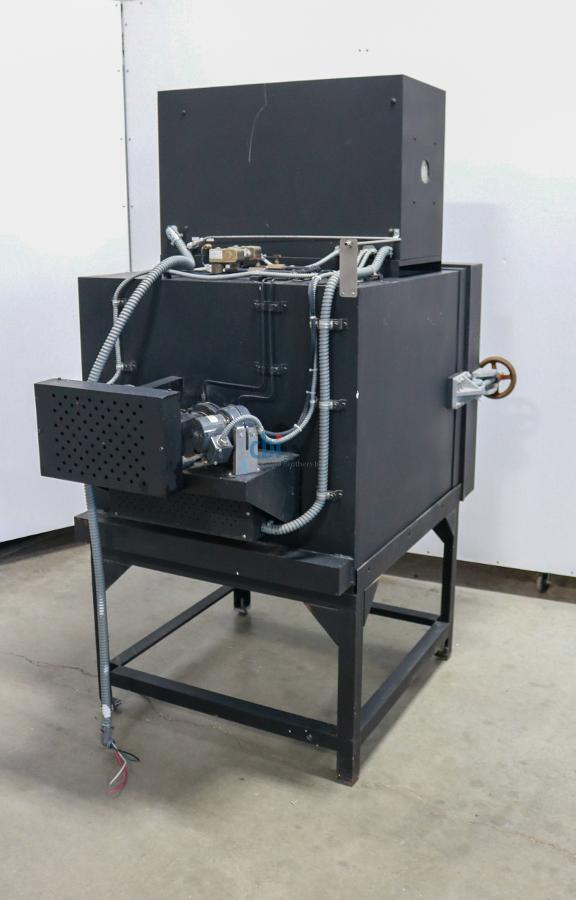

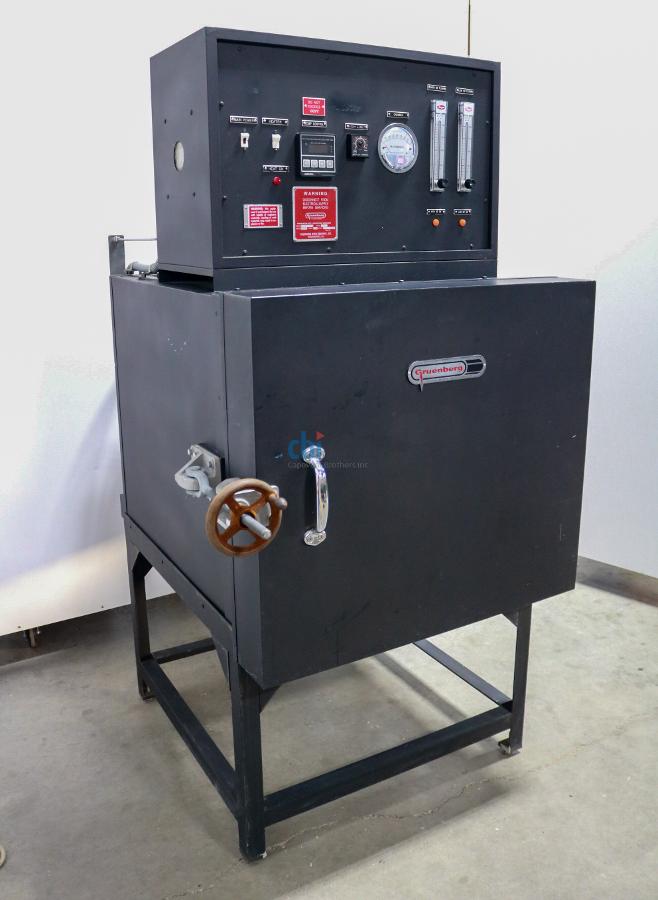

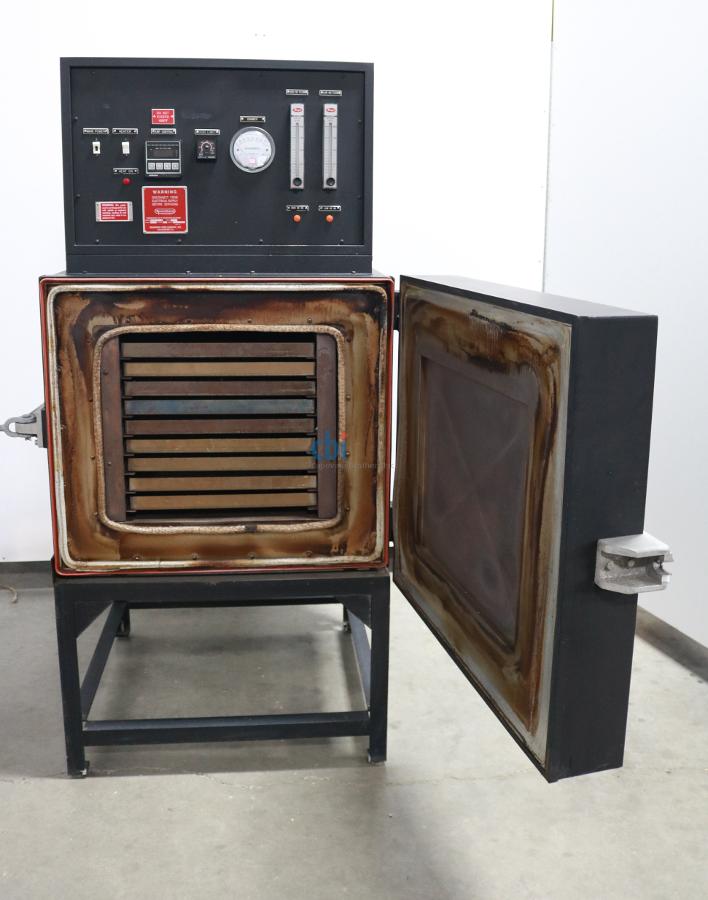

Industrial Cabinet Inert Gas Oven

In addition to this Gruenberg B100CN46, Capovani Brothers Inc stocks a wide range of used laboratory and industrial ovens, including convection, both gravity and mechanical, large batch, inert gas, solvent drying, clean room, burn in and vacuum. Typical manufacturers include Blue M, Despatch, Grieve, Lab-Line, Lindberg, Napco, Precision Scientific, Sheldon, VWR Scientific and Yield Engineering. To view our complete stock of used ovens, visit our Ovens category.

All of our used ovens are refurbished and functionally tested prior to shipping. When selecting a used laboratory or industrial oven be aware that the input voltage will effect performance. Learn more about Input voltage and our oven refurbishment process

This used oven and all the other used and refurbished semiconductor, scientific, and laboratory equipment listed on this website are owned by Capovani Brothers Inc. and stored at our facility in Scotia, NY.

Sell us your used, surplus or idle assets! Send us your surplus equipment list

  Click to see additional image(s)... other images

Location: Scotia, New York, United States
Unit Price Unstated
Number of Units 1
Manufacturer Gruenberg
Model B100CN46
Maximum Temperature 538  ºC  (1,000 ºF, 811 ºK)
Heat/Cool Controls
  Control Type Programmable
  Overtemperature Protection YES
  Chart Recorder None
Capacity/Volume Box 4.63  cu ft  (0.13 cu m)
Chamber Size
  Width 20.00  in  (50.80 cm)
  Depth 20.00  in  (50.80 cm)
  Height 20.00  in  (50.80 cm)
Number of Gas Inputs 1
Size of Gas Input 1/4"
Type of Flow Control Manual

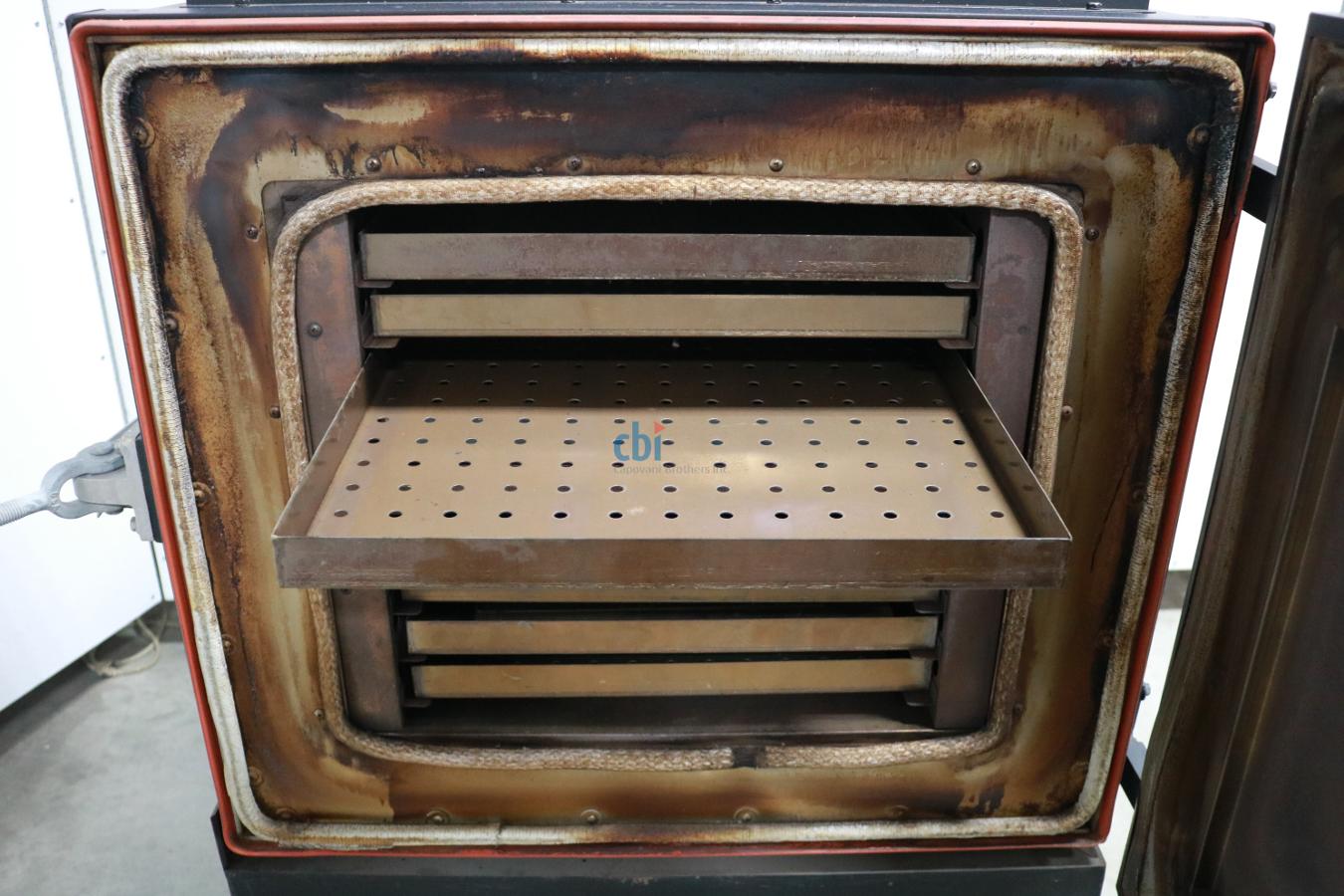

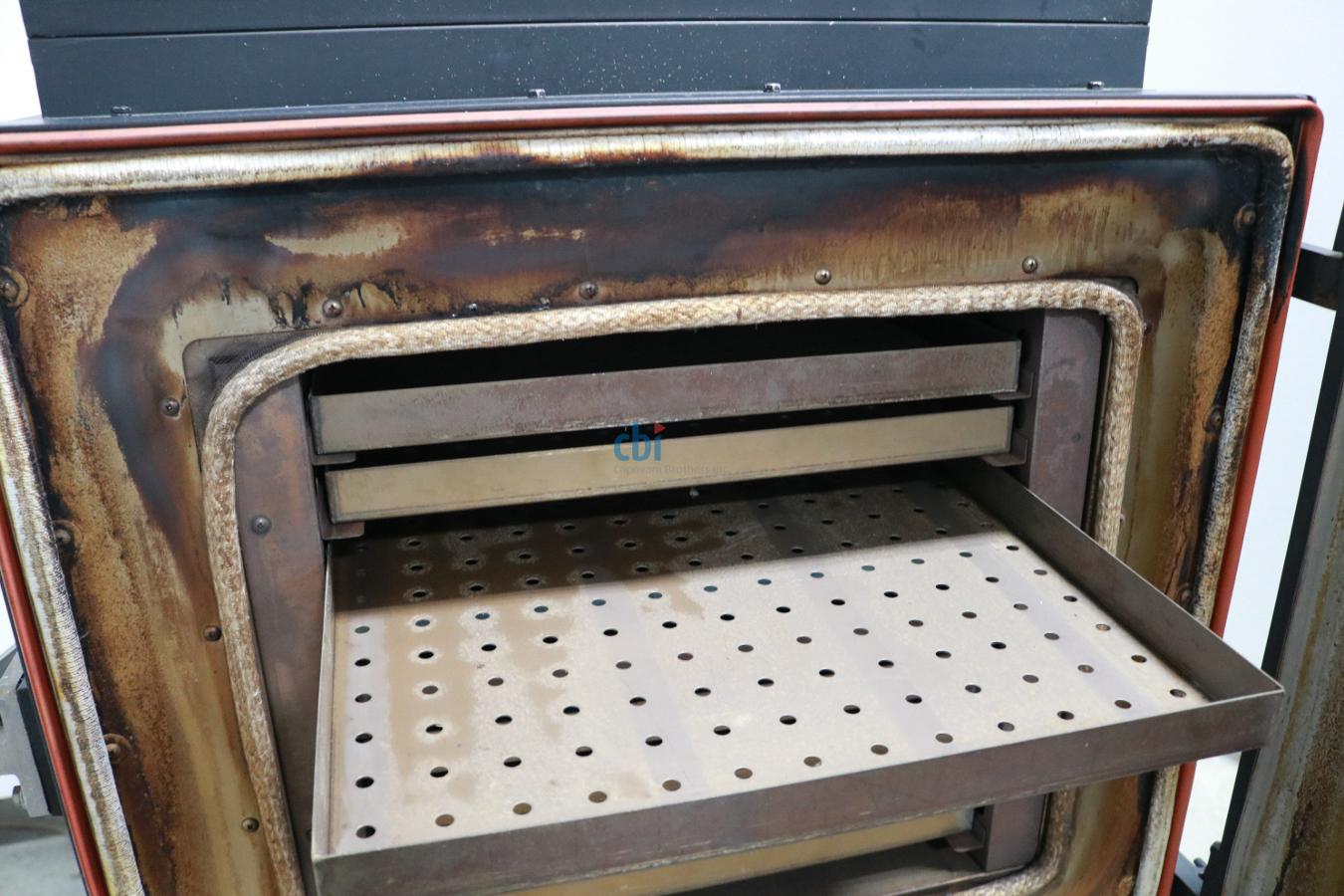

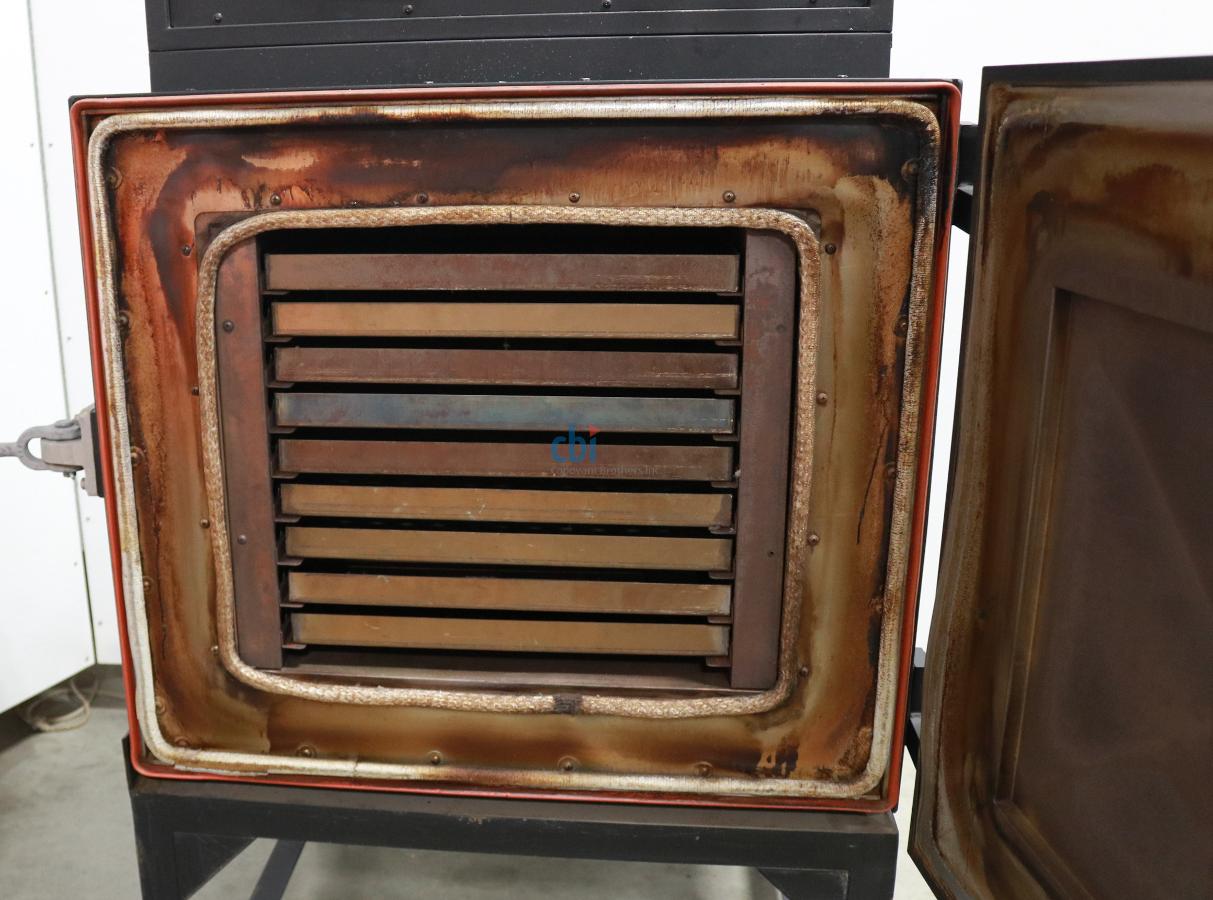

  • Contains 9 shelves

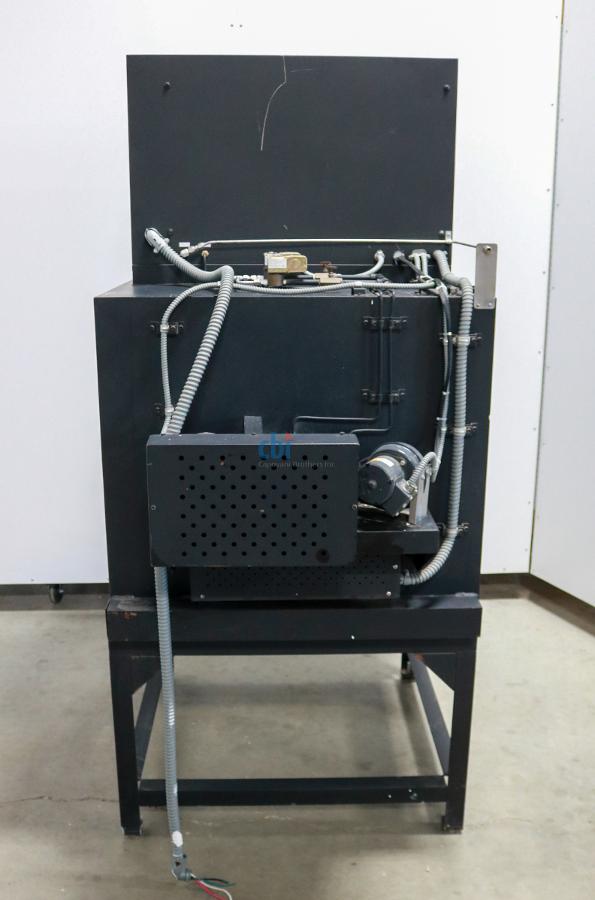

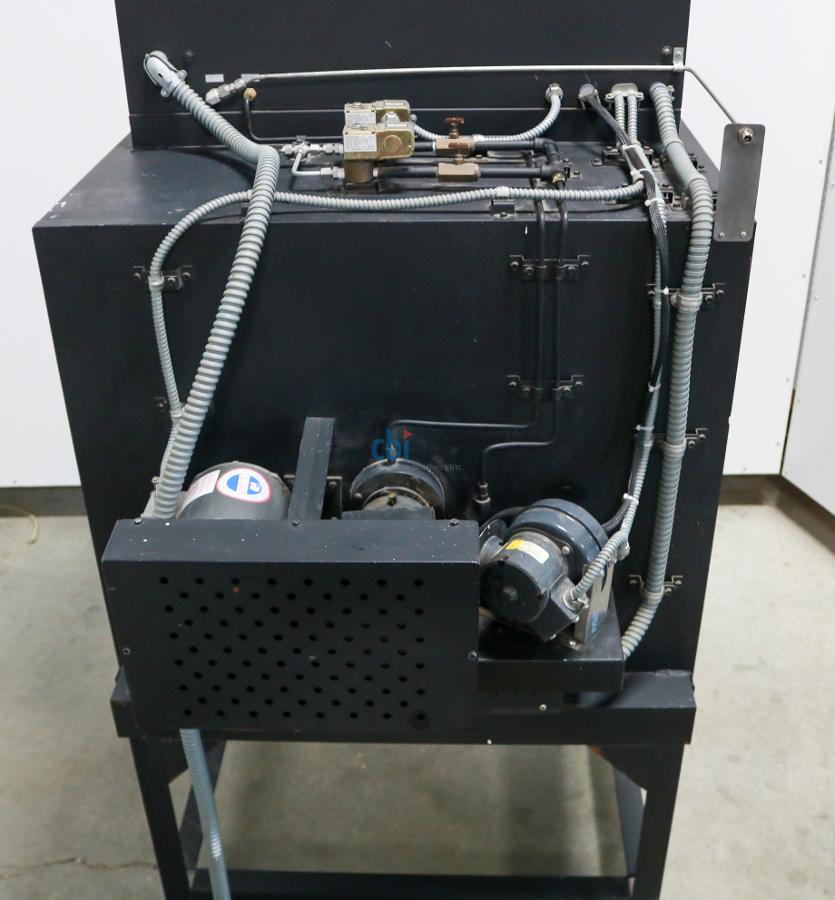

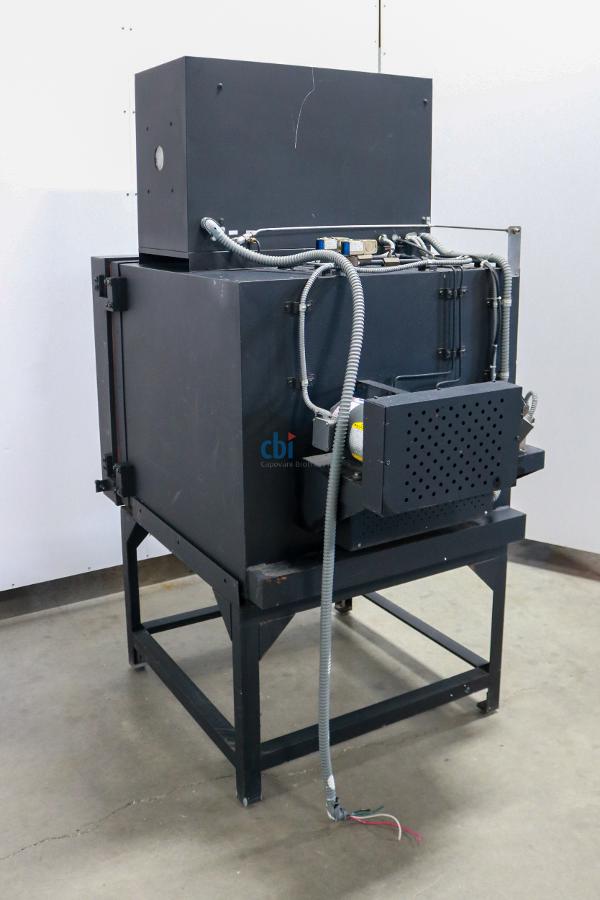

  • Circulation Fan is mounted in the rear wall plenum

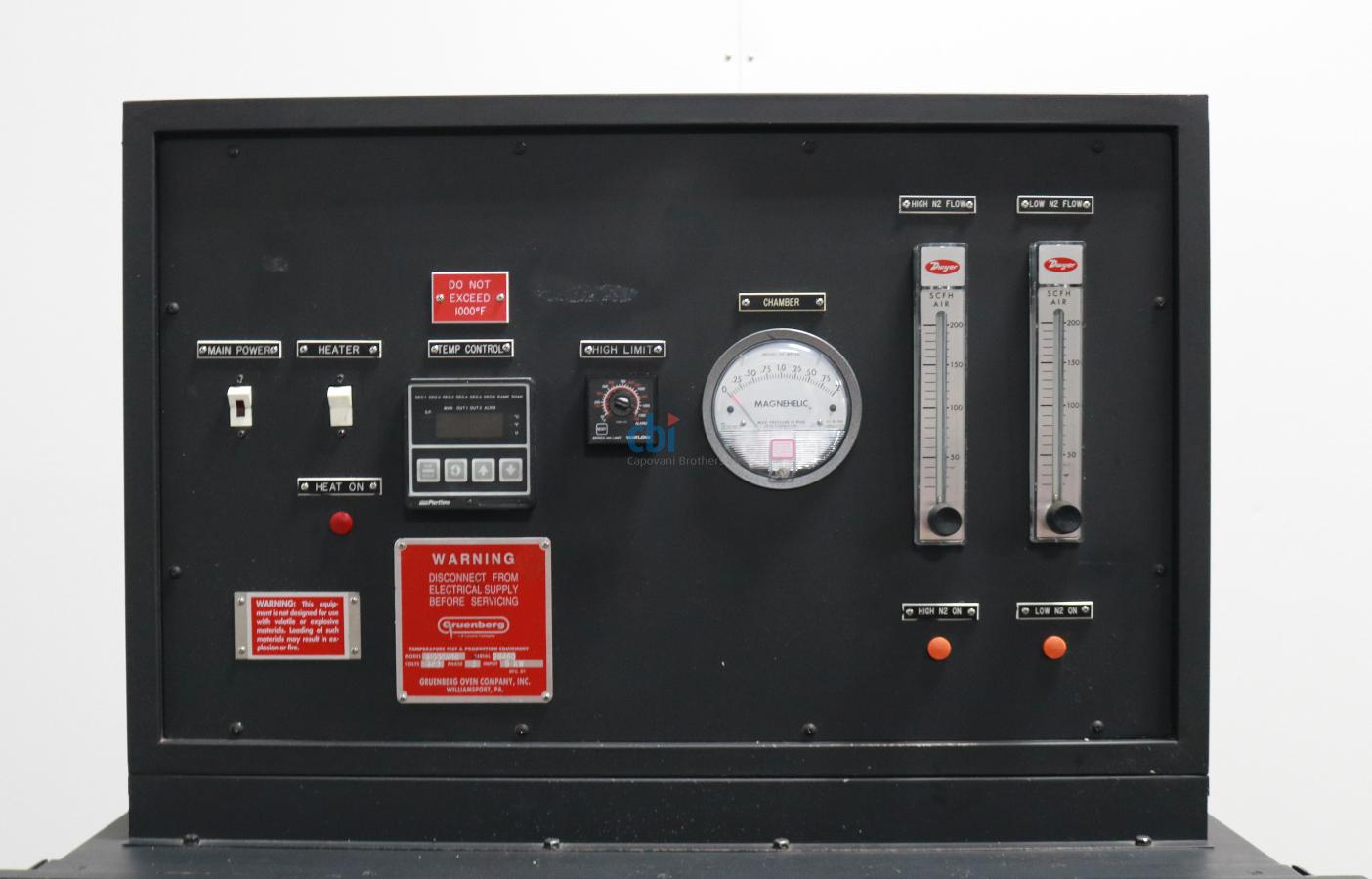

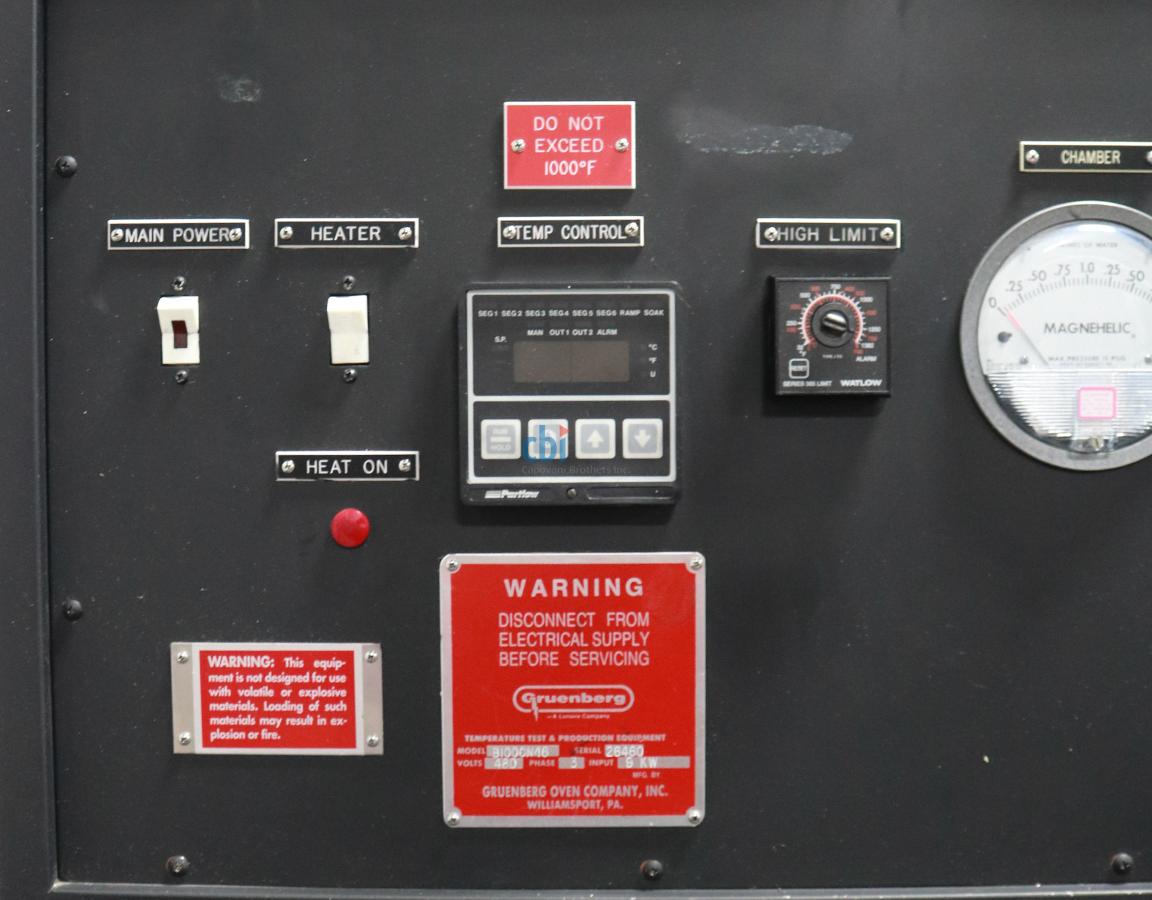

  • Partlow Temperature Controller
  • Watlow Series 385 High Limit Controller

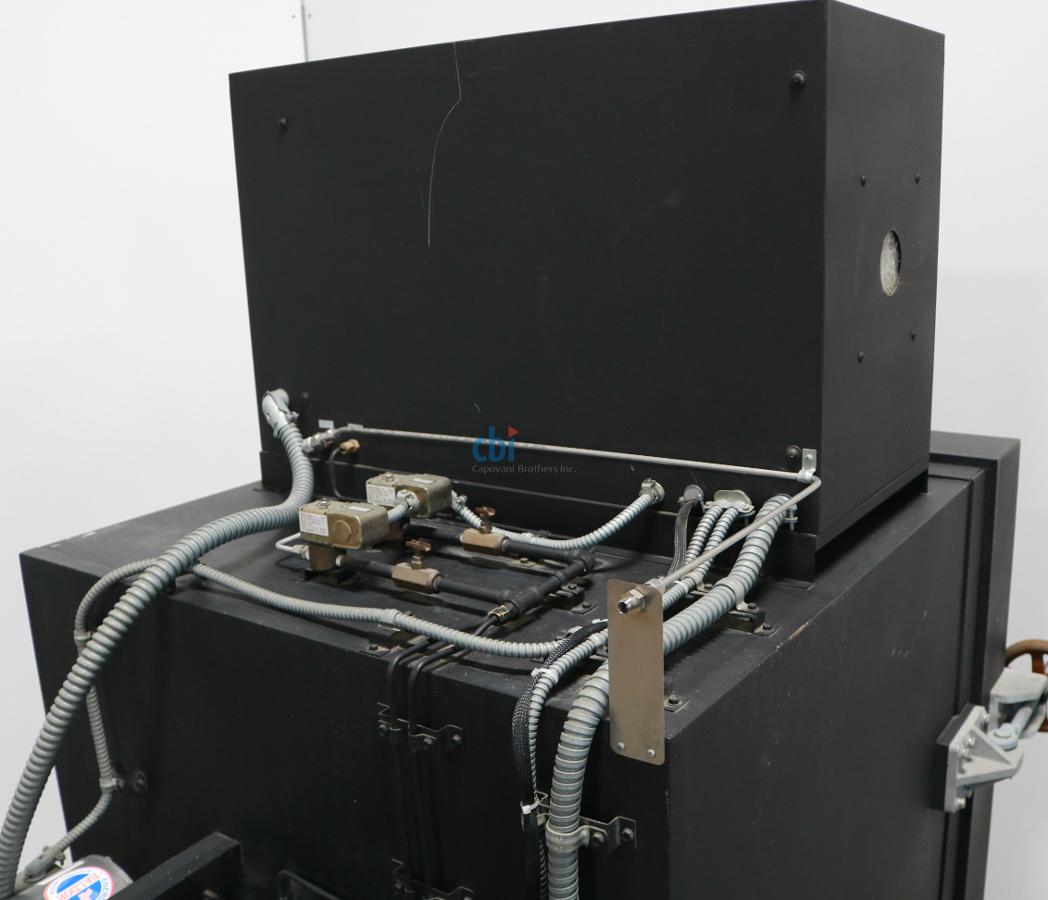

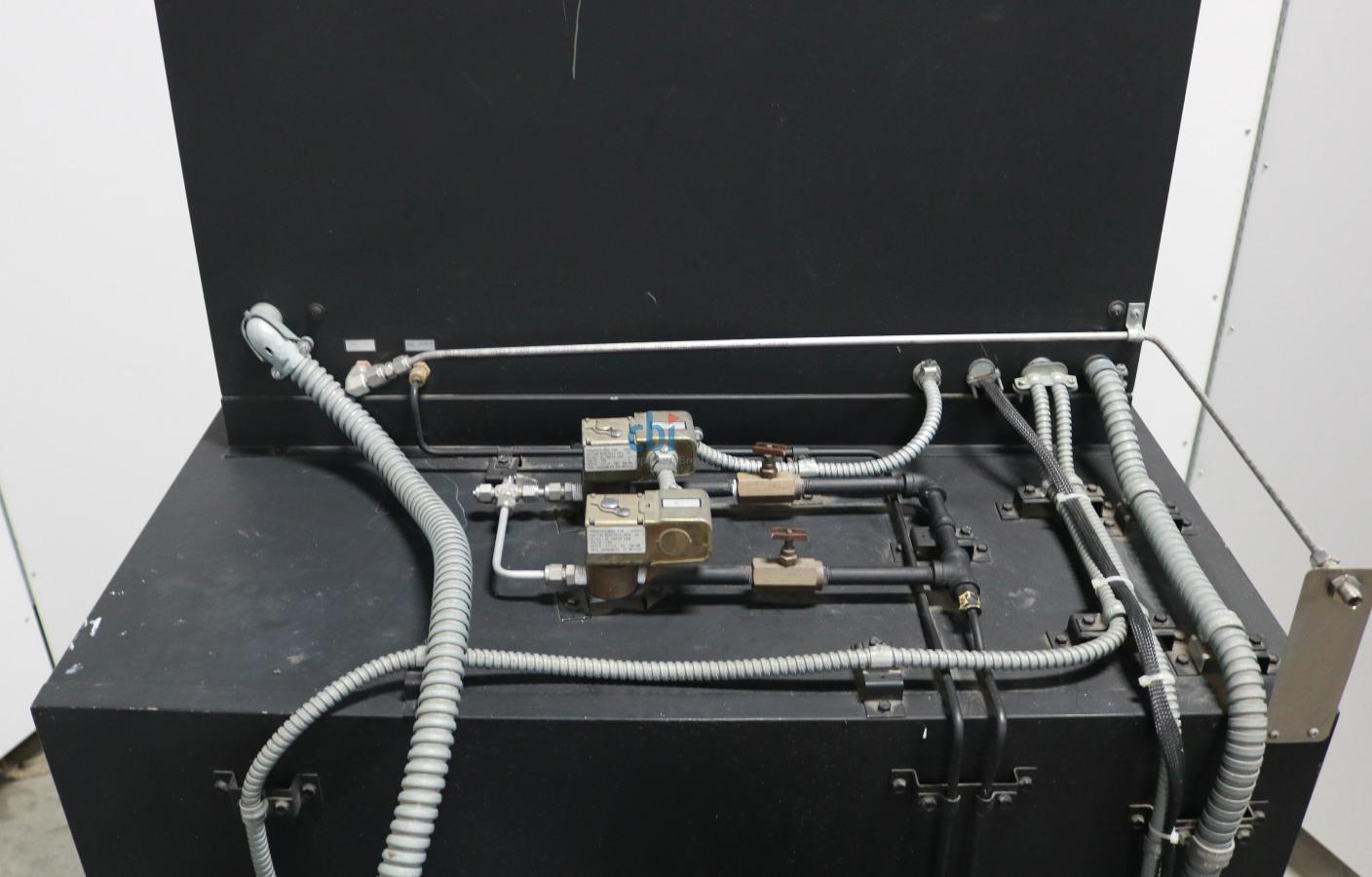

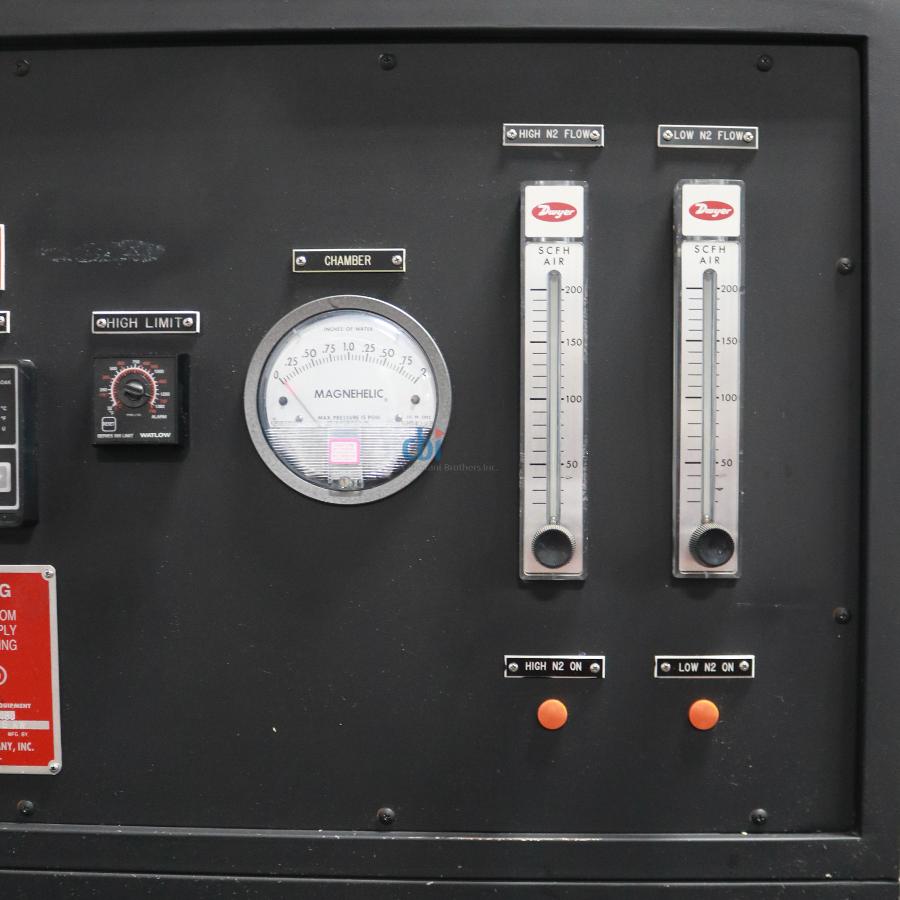

  • Adjustable High & Low N2 Flow Meters for the Nitrogen Purge System
  • Magnehelic Differential Pressure Gauge CAT. NO. 2002
Other Information

Partlow Temperature Controller: Up to 8 profiles can be programmed. Each profile can contain up to six segments. Each segment contains a ramp and a soak operation.

Magnehelic Differential Pressure Gauge: Measures 0 - 2 PSIG on the chamber.

Power Input 9 KW

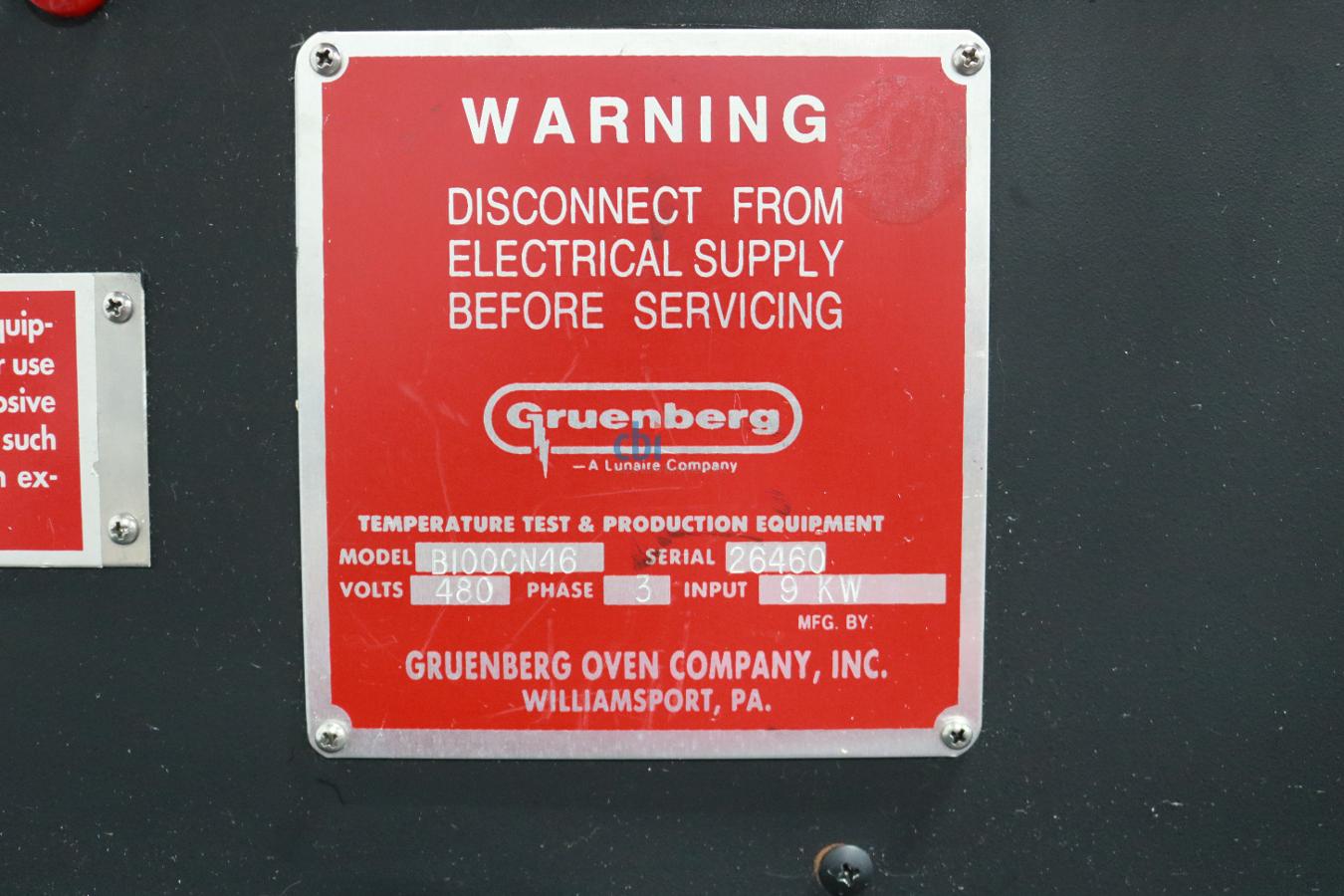

Power Requirements 480 V     20.0 A     60 Hz     3 Phase
Exterior Dimensions
  Width 40.000  in  (101.6 cm)
  Depth 60.000  in  (152.4 cm)
  Height 72.000  in  (182.9 cm)
Weight 1,220  lb  (553 kg)
