in Box Furnaces
Item ID: 243618

Offered 1 Offered at Best Price



In addition to this Custom Controlled Atmosphere, Capovani Brothers Inc stocks a wide range of used and refurbished box furnaces. Typical manufacturers include Blue M, Centorr, CM Furnaces, Cress Mfg., Lindberg, Mellen and Thermolyne. To view our complete stock of used box furnaces visit our Box Furnace category.

This used box furnace and all the other used and refurbished semiconductor, scientific, and laboratory equipment listed on this website are owned by Capovani Brothers Inc. and stored at our facility in Scotia, NY.

Sell us your used, surplus or idle assets! Send us your surplus list

  Click to see additional image(s)... other images

Location: Scotia, New York, United States
Unit Price Unstated
Number of Units 1

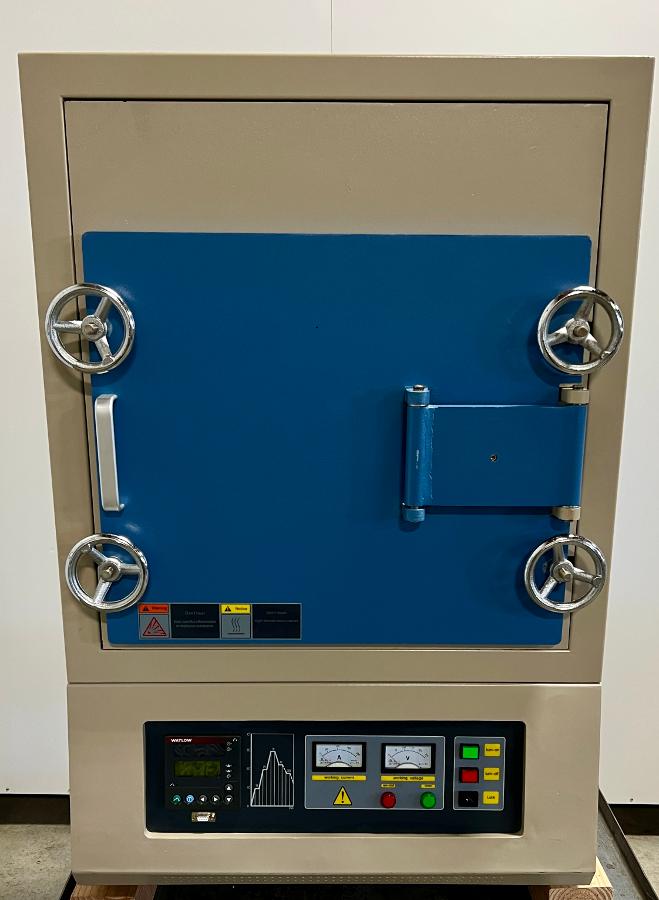

Manufacturer Custom
Model Controlled Atmosphere
Maximum Temperature 1,700  ºC  (3,092 ºF, 1,973 ºK)
Temperature Control
  Control Stability ± 1.000 ºC
Heat/Cool Controls
  Control Type Programmable
  Interface RS 232

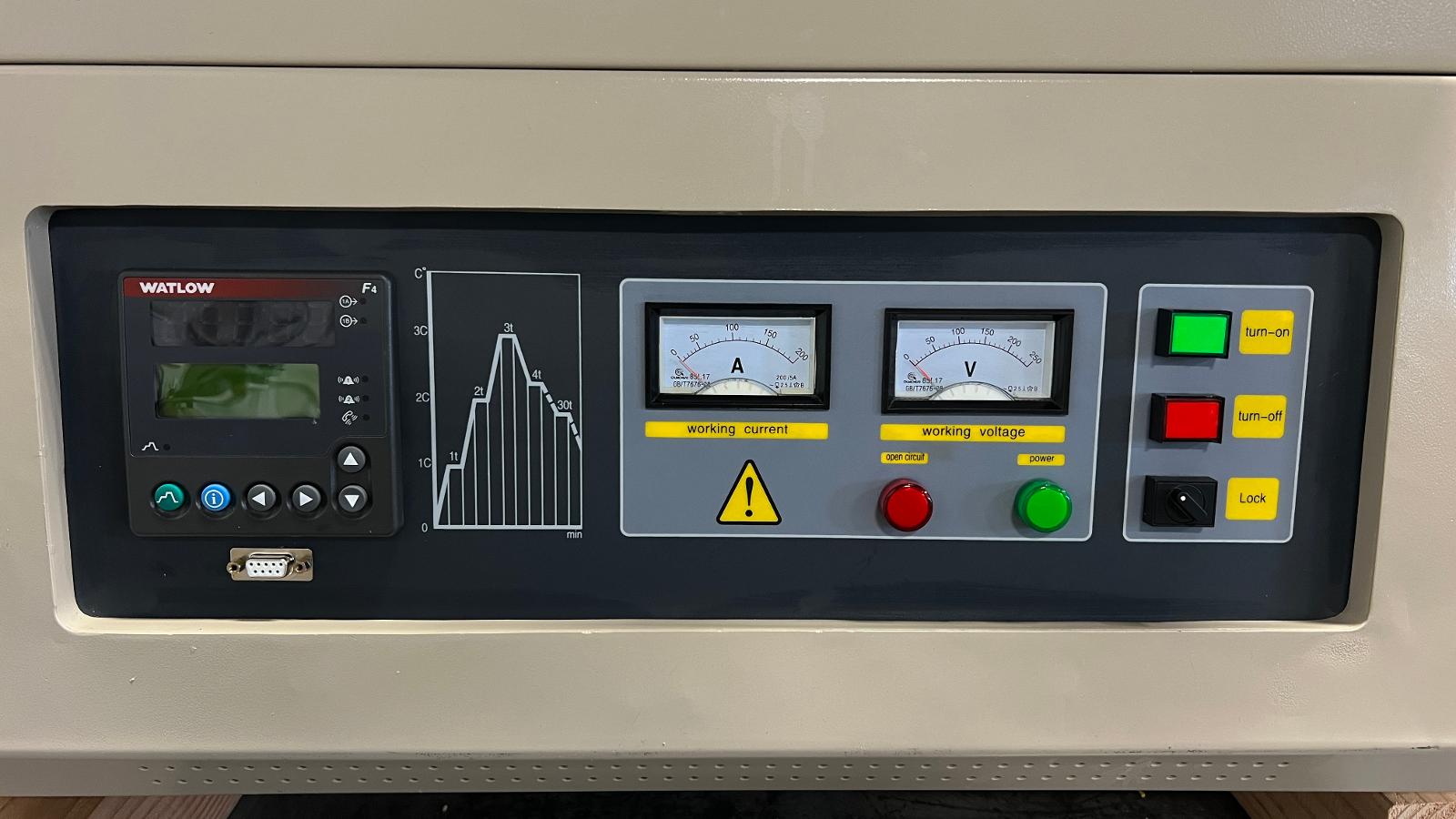

  Controller Manufacturer/Model Watlow F4
External Cooling Forced Air Cooled
Capacity/Volume Box 0.61  cu ft  (0.02 cu m)
Chamber Size
  Width 9.45  in  (24.00 cm)
  Depth 11.81  in  (30.00 cm)
  Height 9.45  in  (24.00 cm)
Thermocouple Type Type B
Number of Gas Inputs 2
Other Information
  • 1600°C continuous operation
  • 1700°C (3092°F) in air
  • 1650°C (3002°F) in N2
  • Furnace is currently set for 1600°C maximum temperature in the controller configuration
  • Vacuum pump is not included

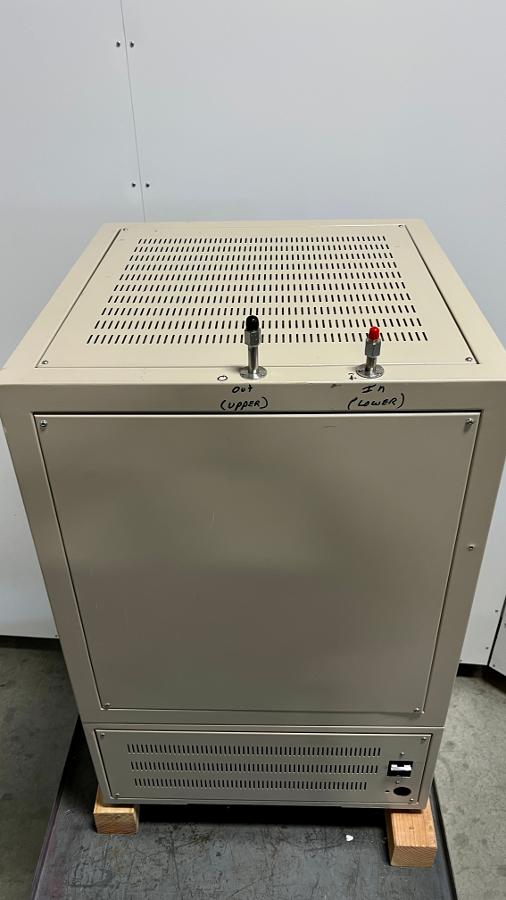

  • Evacuation port 3/8" Swagelok
  • Inert gas port 1/4" Swagelok

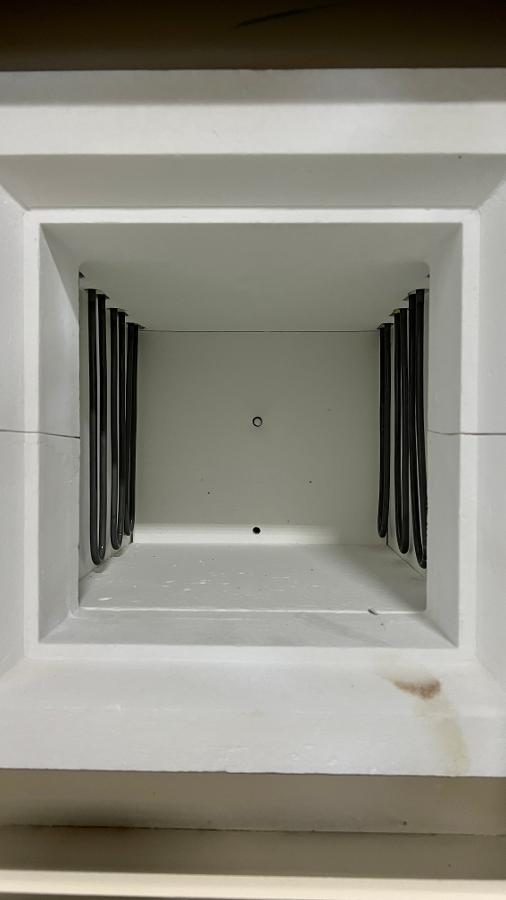

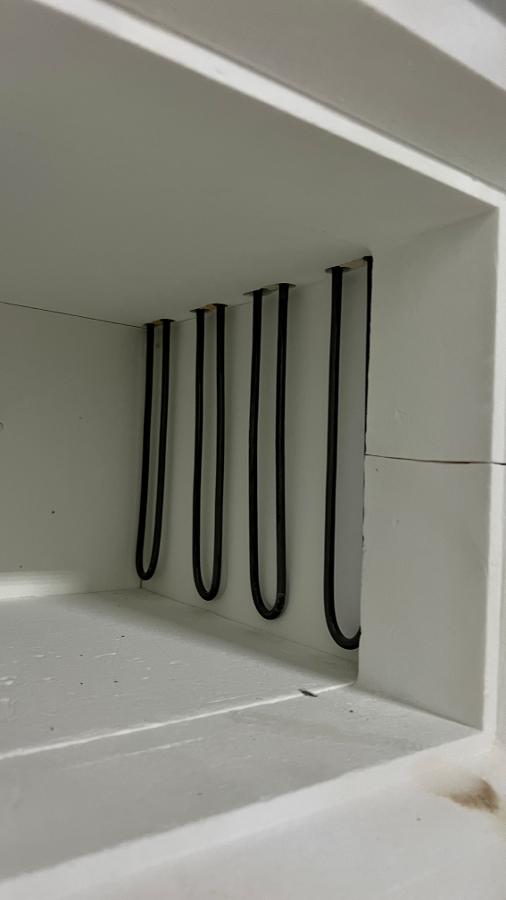

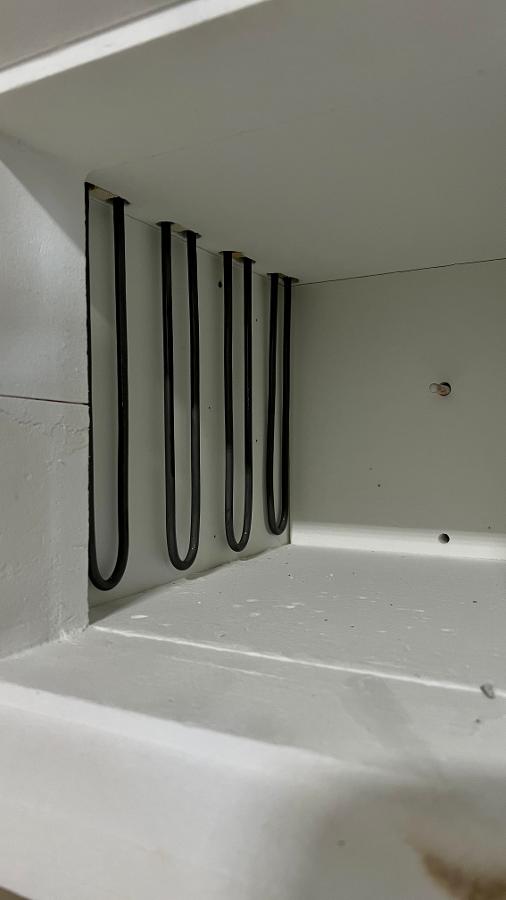

  • 6x MoSi2 Heating Elements
  • Maximum heating/cooling rate 10°C/min up to 1400°C, 5°C/min 1400-1700°C

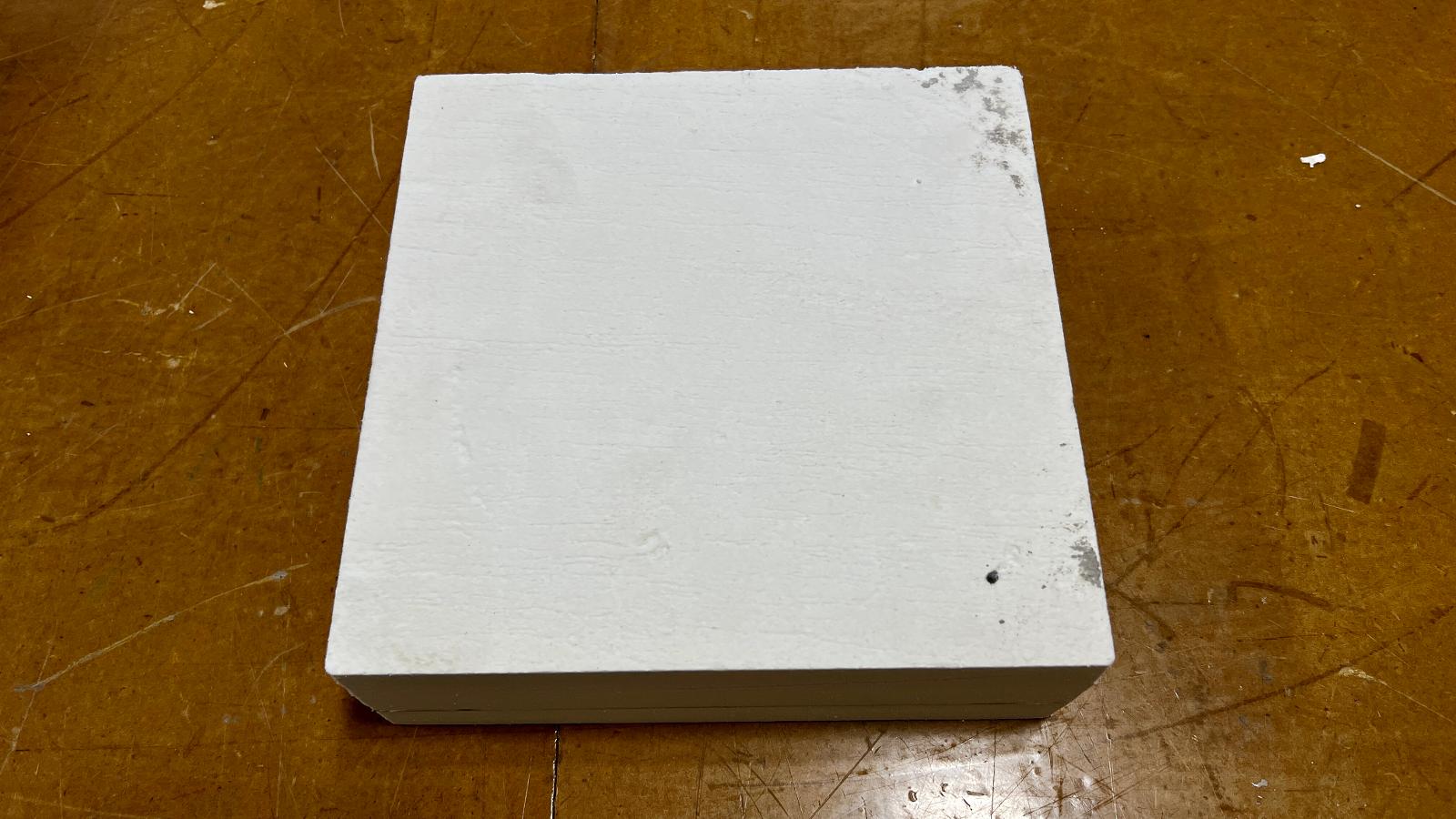

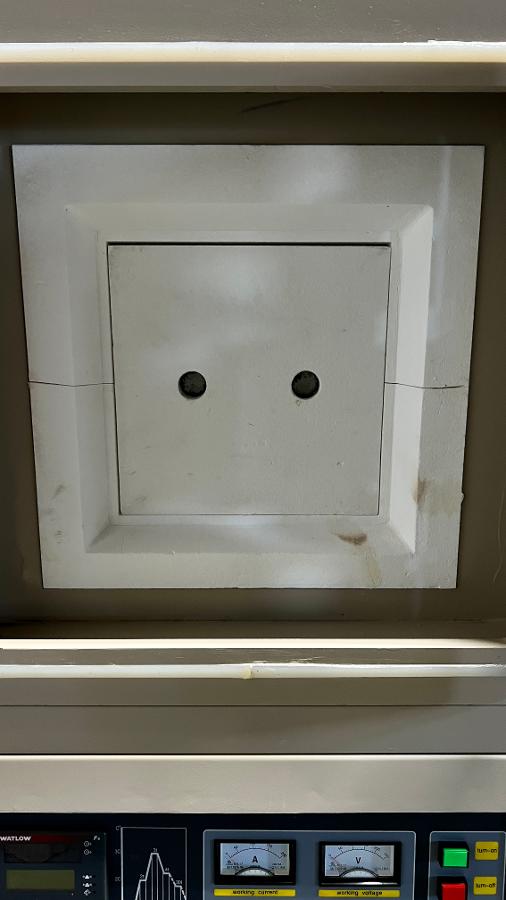

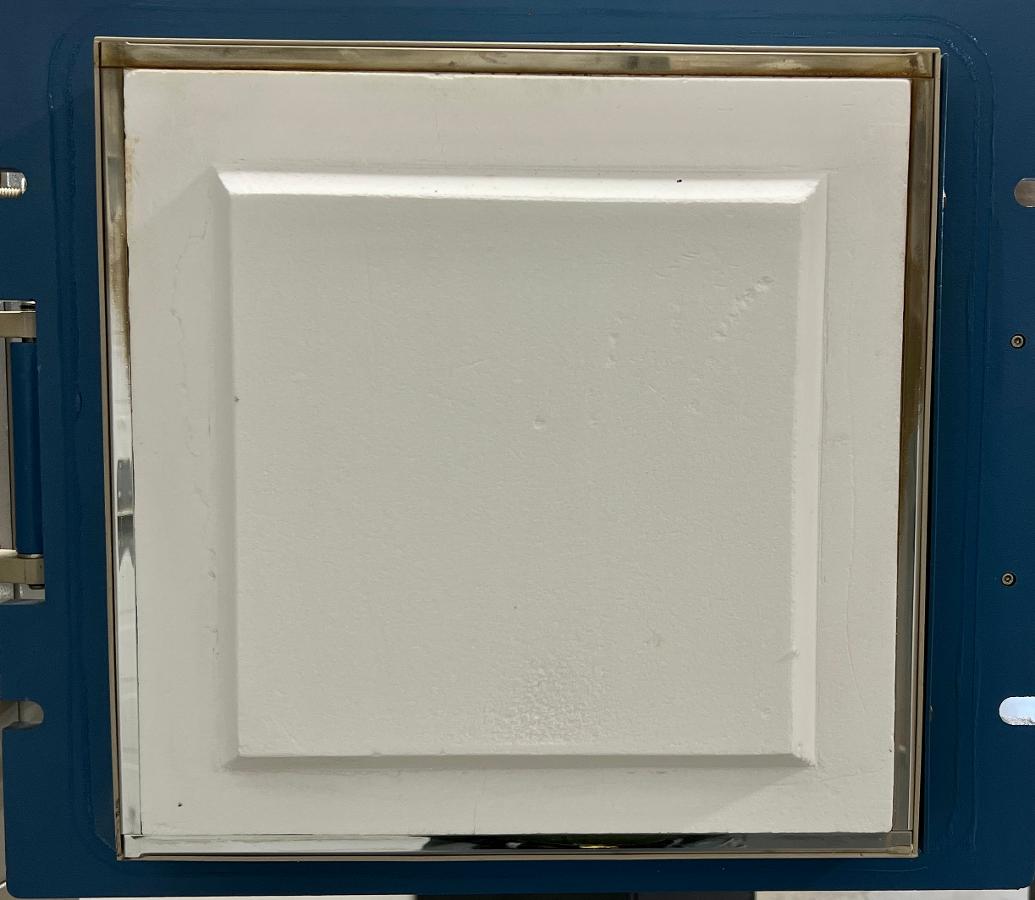

  • The refractory block must be installed before closing the door (included)
  • Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating
  • 4 sample profiles preloaded into the controller
Power Requirements 200-240 V     50.0 A     1 Phase
Condition Excellent

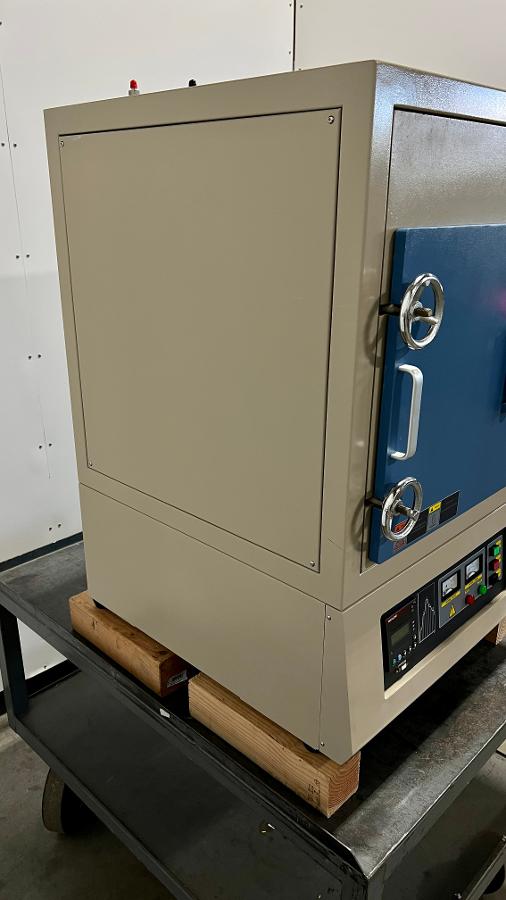

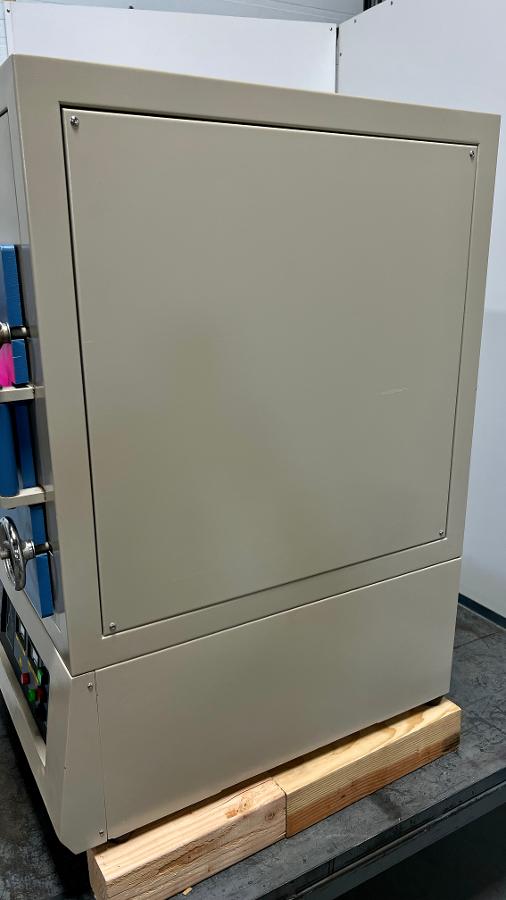

Exterior Dimensions
  Width 27.000  in  (68.6 cm)
  Depth 31.000  in  (78.7 cm)
  Height 40.500  in  (102.9 cm)
Weight 690  lb  (313 kg)
