in Positioning Controllers
Item ID: 5442

Offered 1 Offered at Best Price


4 Axis Stepper Motion Controller

Newport Model MM3000-4

  Click to see additional image(s)... other images

Location: Scotia, New York, United States
Unit Price Unstated
Number of Units 1
Manufacturer Newport
Model MM3000-4
Description 4 Axis Stepper Motion Controller

New in original carton
GPIO port
Joy stick port
RS 232-C port

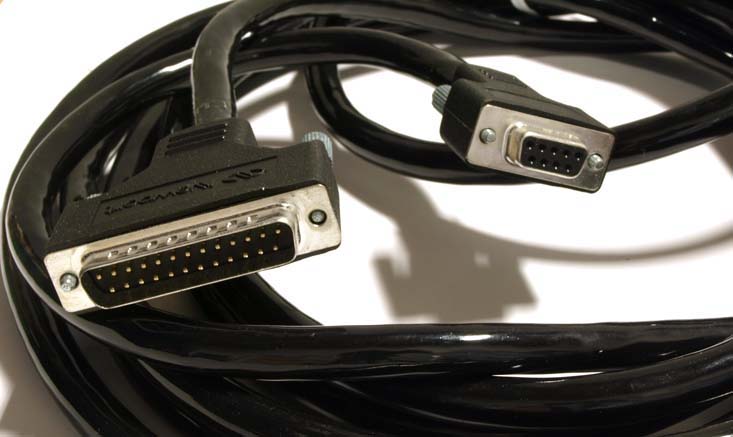

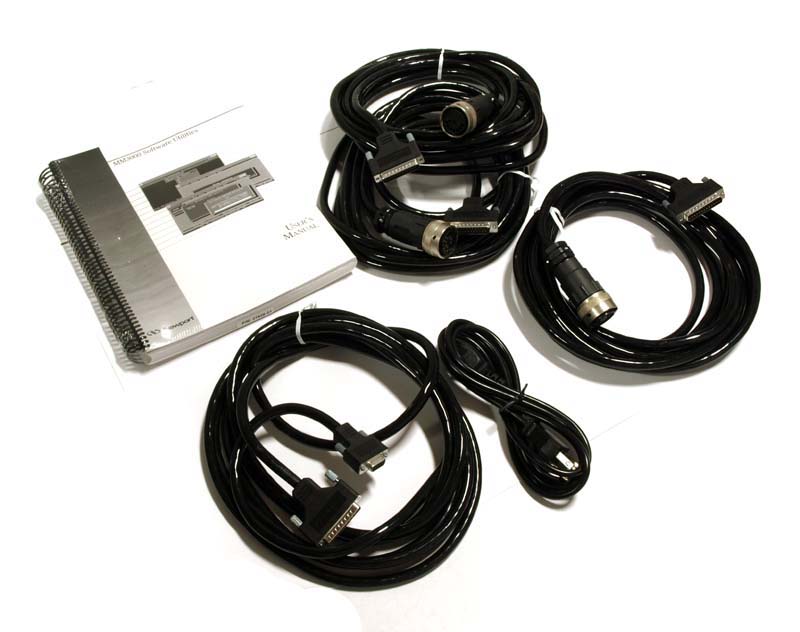

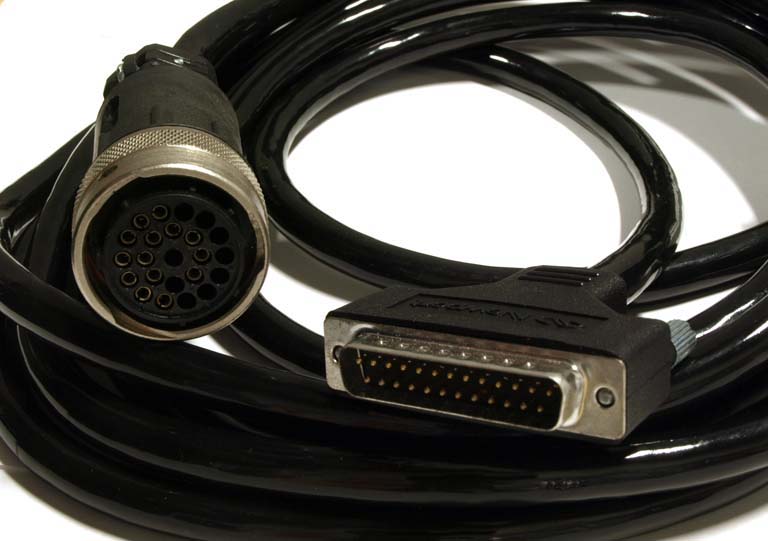

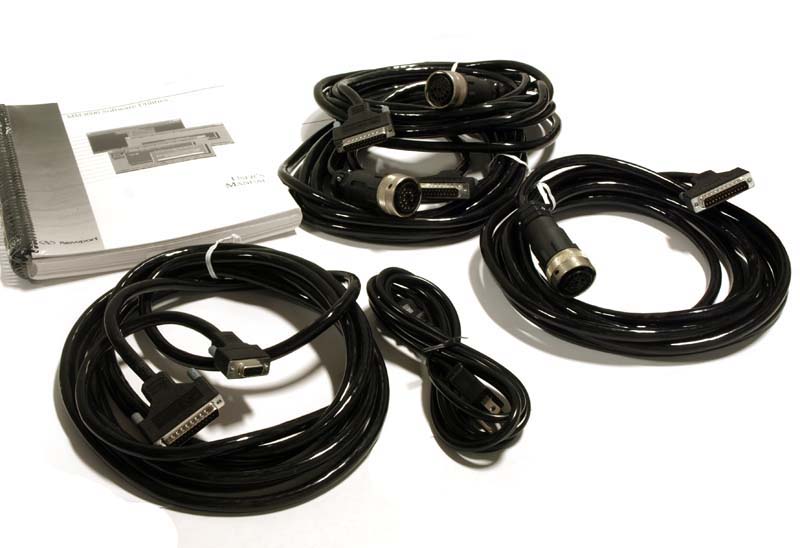

Cables for four drives
Power cable
Operations manual
Newport 3000 Utilities:
Start up ver. 4.0
Profile ver. 3.0
EX232 ver 2.1

Other Information

This controller made for LUCENT
Three drives rated 1.6Amp
Fourth drive is rated 0.2Amp
Axis #1, #2, #3 stepper motor driver boards p/n 21092-05
Axis #4 stepper motor driver boards p/n 21092-01
4 stepper motor modules p/n 070878
Motion master board p/n 070874
MM-3000 Lucent firmware ver 3.1L

Power Requirements 115/ 230 V     50/60 Hz     1¬†Phase
Condition New-Never Used
Exterior Dimensions
  Width 19.000  in  (48.3 cm)
  Depth 17.000  in  (43.2 cm)
  Height 7.000  in  (17.8 cm)
Weight 28  lb  (13 kg)
