in Comparators
Item ID: 139829

Offered 1 Offered at Best Price

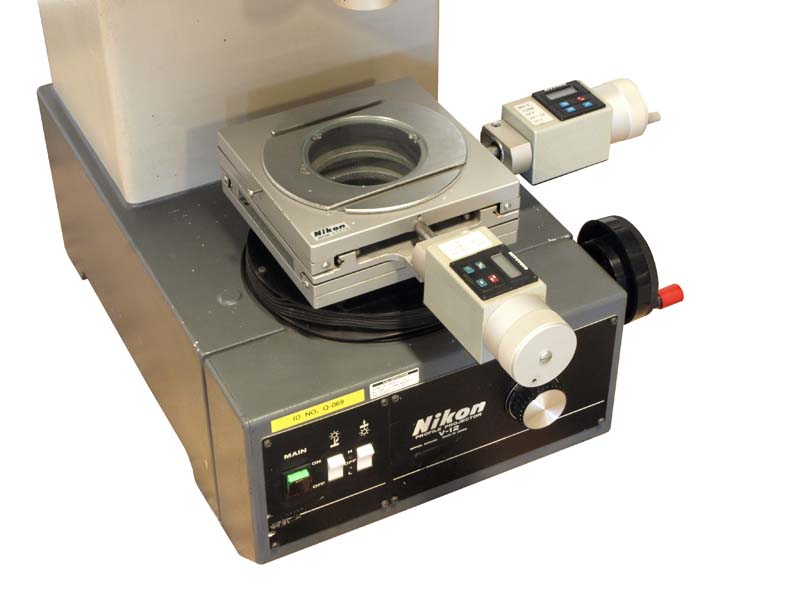

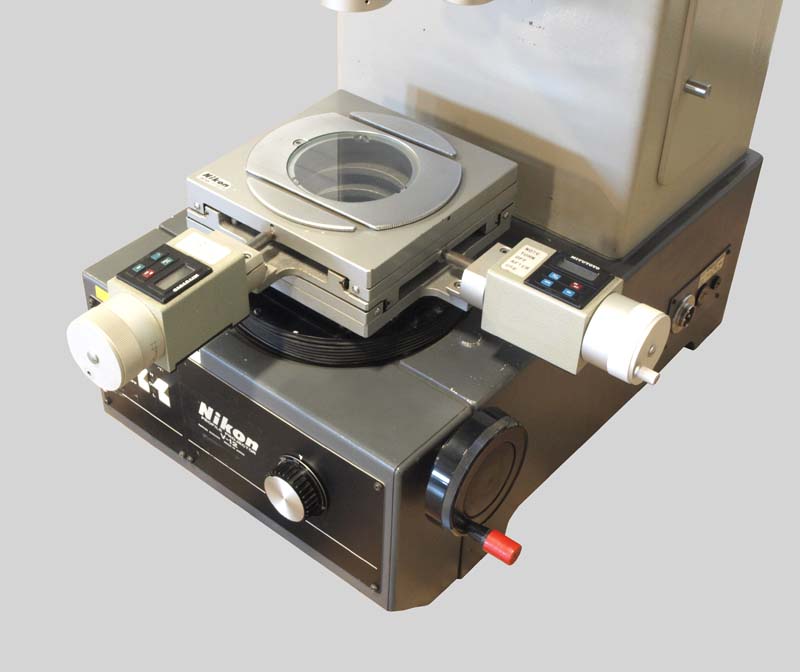

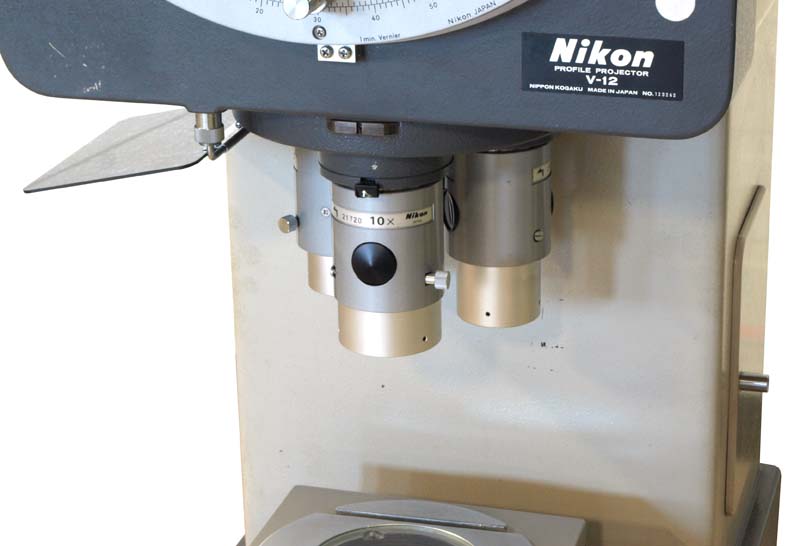

Optical Comparator

  Click to see additional image(s)... other images

Location: Scotia, New York, United States
Unit Price Unstated
Number of Units 1
Manufacturer Nikon
Model V12
Screen Diameter 12.000  in  (30.5 cm)
Illumination Type Reflected & Transmitted
Multiple Objectives Models

Objectves: 10X,20X,50X

Stage Type Coaxial X-Y, Rotary
X-Y-Z Stage Travel X: 83  mm  (3.268 in)     Y : 64  mm  (2.520 in)     Z : 76  mm  (2.992 in)
Measurement System

Manual micrometers/Digital readout

Other Information

Stage glass Dia. 3.75"
Stage revolving angle: 360 Deg.
Max specimen height: 0-75mm
Lamp: 24VAC 150 Watt

Power Requirements 120/240 V     5.0 A     3.0 A(2)     50/60 Hz     1 Phase
Exterior Dimensions
  Width 19.000  in  (48.3 cm)
  Depth 32.000  in  (81.3 cm)
  Height 43.000  in  (109.2 cm)
Weight 210  lb  (95 kg)

Shipping & Handling:

Unless otherwise stated, all items will be fully tested and sold with our standard ninety day warranty, which is described in our terms and conditions.
Our standard procedure is to service the equipment as orders are placed. Lead times can vary depending on the item.
Domestic and International shipments: Ex Works, Scotia, NY. All freight cost estimates are for dock to dock service only.
Any additional services, i.e. lift-gate, inside or residential delivery, must be requested at the time of sale and will be billed accordingly.
CBI is not responsible for any damage incurred during shipment. It is the buyer's responsibility to inspect packages for damage and to note any damage on bill of lading.
Please feel free to call us with any questions. (Phone: 518.346.8347, 844-833-8347, Fax: 518.381.9578).


Minimum order of $50 required.
We offer terms of net 30 days to all companies that have established credit with Capovani Brothers Inc. and have paid within terms.
All federal, state, local governments and their agencies, as well as institutions of higher learning automatically receive terms.
All other sales, including foreign sales, are prepayment only.
MasterCard, VISA, Discover and AMEX are accepted at sellers discretion.
