FULL DESCRIPTION of Item 10766

in Outer Lead Bonders
Item ID: 10766

Offered 1 Offered at $ 8,250.00

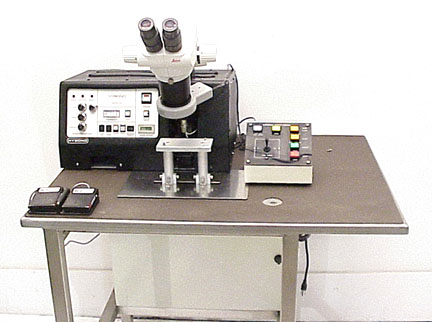

HYBOND 616-001

Ultrasonic Peg Bonder

HYBOND 616-001
  Click to see additional image(s)... other images

Location: Scotia, New York, United States
Unit Price $ 8,250.00
Number of Units 1
Manufacturer Hybond
Model 616-001
Description Ultrasonic Peg Bonder
Other Information

Ultrasonic system: PLL self-tuning, 62.5 KHz (±2.5KHz) nominal
Ultrasonic power range: 0-2 watt on Low setting (default), 0-4 watts on High setting
Bond time range: Low: 10 - 400 mSec High: 200 - 600 mSec
Bond force range: 25 - 200 grams
Bondable wire diameters: 0.5 to 2.0 mils (12,5 to 50 µm) insulated ; 0.5 to 2.0 mils (12,5 to 50 µm) bare
Bondable ribbon dimensions: Up to 2 x 20 mils (50 x 500 µm)
Bondable wire/ribbon materials: Gold, gold plated copper, and aluminum
Bond head movement: Semi-automatic / automatic
Bond actuation: Sensor at variable height, actuated by pushbutton or footswitch
Z axis travel: 1.5 in (3,81 cm)
Vertical bonding window: 1.4 in (3,55 cm)
Leica GZ 6 Stereozoom microscope:
10X/22 Eyepeices
Ring light
X-Y Motorized stage
Controller w/joy stick

Condition Excellent
Year of Manufacture 1997
Exterior Dimensions
  Width 36.000  in  (91.4 cm)
  Depth 10.236  in  (26.0 cm)
  Height 48.000  in  (121.9 cm)
