FULL DESCRIPTION of Item 119294

in Cluster Plasma Tools - Oxide
Item ID: 119294

Offered 1 Offered at Best Price

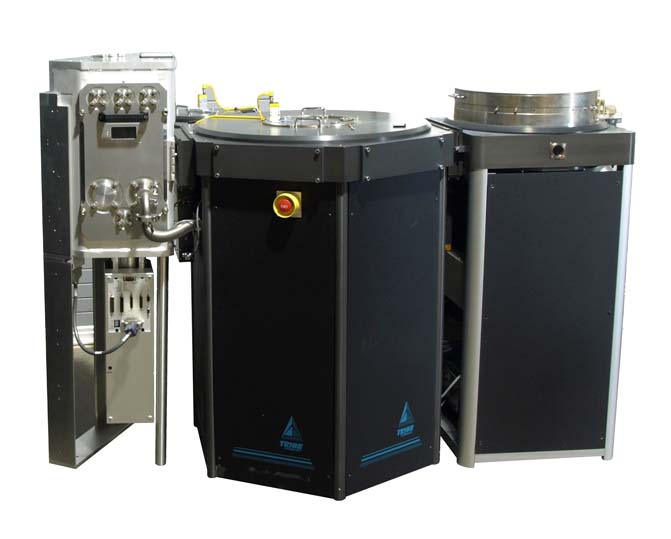

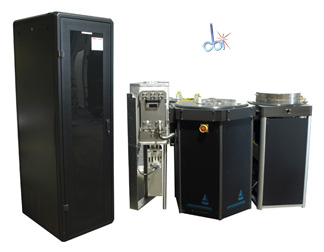

TRION TECHNOLOGY DIELECTRIC CLUSTER TOOL

Dielectric Cluster Tool


Trion Technology Oracle

TRION TECHNOLOGY DIELECTRIC CLUSTER TOOL
  Click to see additional image(s)... other images

Location: Scotia, New York, United States
Unit Price Unstated
Number of Units 1
Manufacturer Trion Technology
Model Oracle
Wafer Size Range
  Minimum 50 mm
  Maximum 200 mm
  Set Size 200 mm
Number of Chambers 1
Process Capabilities Oxide Etch
Chamber 1 Description

RIE Dielectric Etch

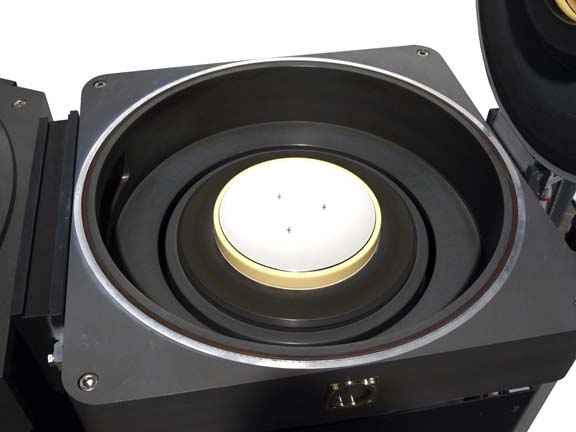

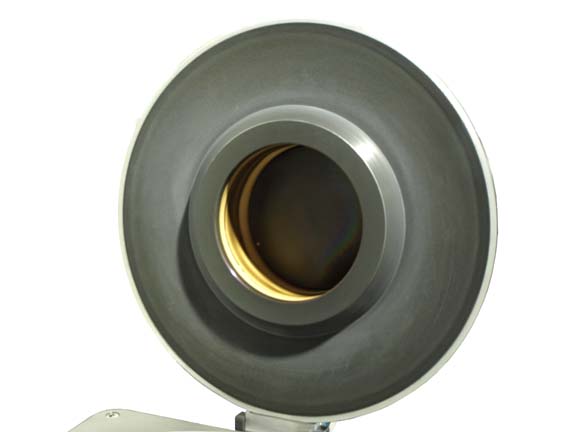

Phantom III RIE Reactor

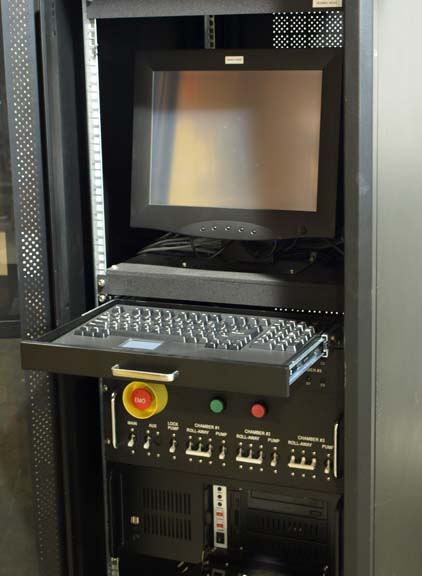

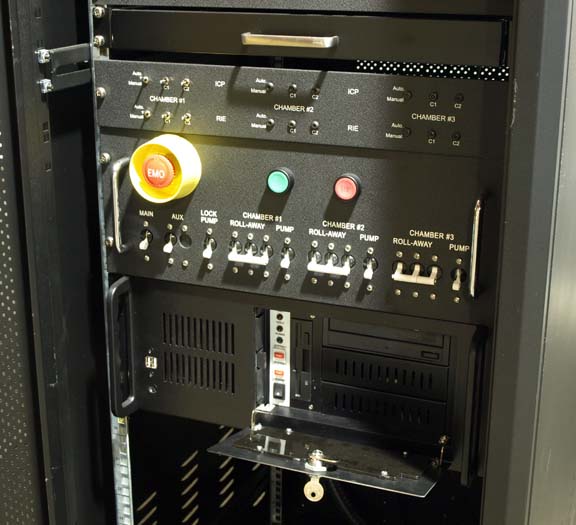

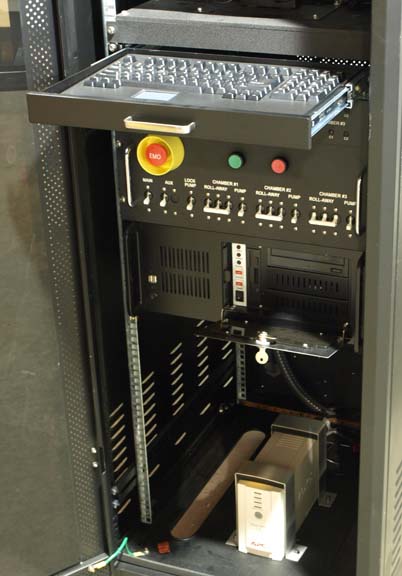

Controller Type PC Controller Type
Elevator Type Brooks Automation VCE 6
Process Gases CF4, CHF3, Ar, O2
Other Information

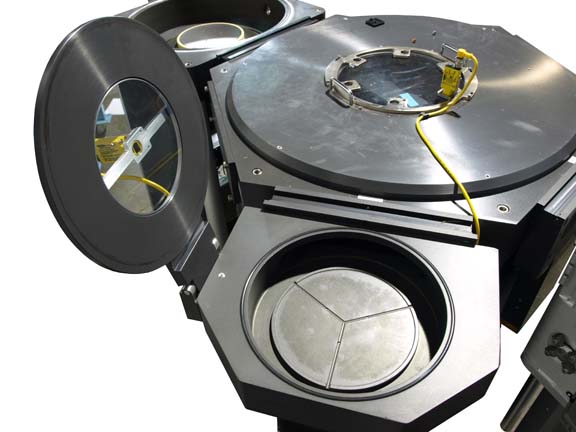

Central Vacuum
Transport (CVT) Platform
High Conductance Plenum and Vacuum System
Manual Wafer Load Port
Automatic Pressure Control
600 Watt, 13.56 MHz RF Generator
DC Bias Control

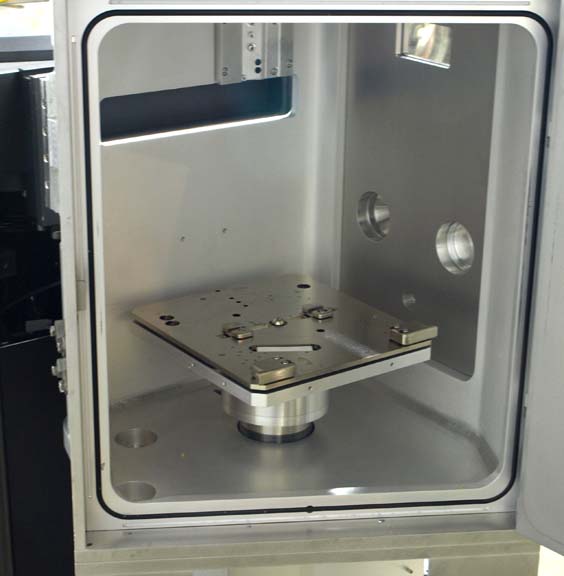

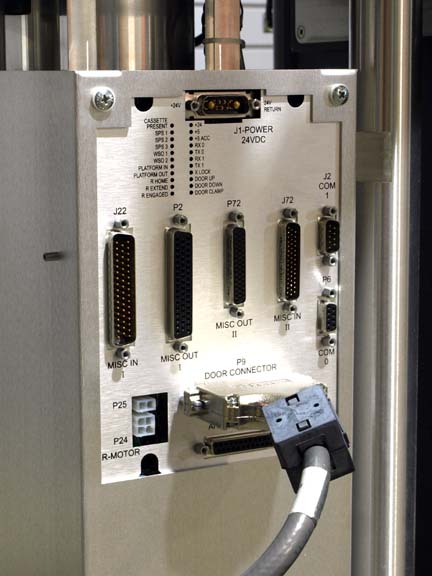

Brooks Automation VCE6 Vacuum Cassette Elevator

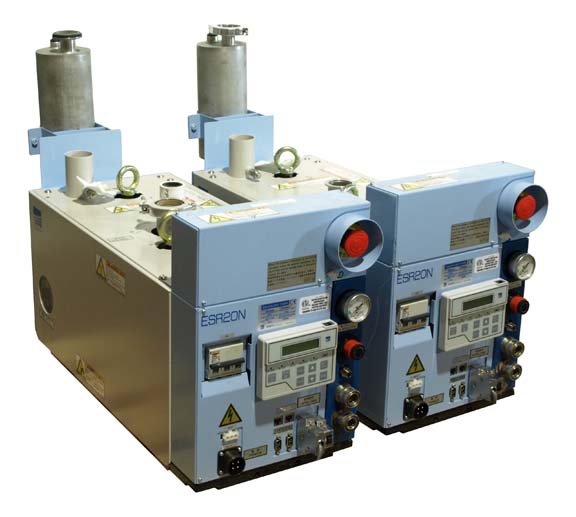

(2) Ebara ESR20N 2,000 LPM Dry Pumps,

Power Requirements 208 V     49.0 A     60 Hz     3 Phase
Year of Manufacture 2006
