FULL DESCRIPTION of Item 13227

in Ultrasonic Baths
Item ID: 13227

Offered 1 Offered at Best Price


CAE NEY AQUEOUS CLEANING SYSTEM 22.71 LITER

Aqueous Cleaning System

Cae Ney Model BCS-6-US

Cae Ney is now CAE Ultrasonics

CAE NEY AQUEOUS CLEANING SYSTEM 22.71 LITER
  Click to see additional image(s)... other images

Location: Scotia, New York, United States
Unit Price Unstated
Number of Units 1
Manufacturer CAE NEY
Model BCS-6-US
Bath/Tank Dimensions
  Length 15.5000  in  (39.37 cm, 393.7 mm)
  Width 8.0000  in  (20.32 cm, 203.2 mm)
  Depth 10.0000  in  (25.40 cm, 254.0 mm)
Capacity/Liquid 22.71  L  (6.00 gal)
Bath Material 316 Polished stainless steel
Generator Included YES
Heated Bath YES
Maximum Temperature 60  ºC  (140 ºF, 333 ºK)
Other Information

System Configuration:

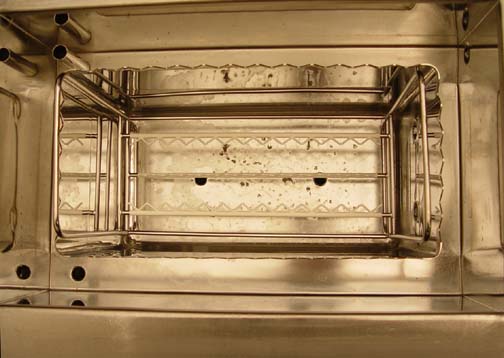

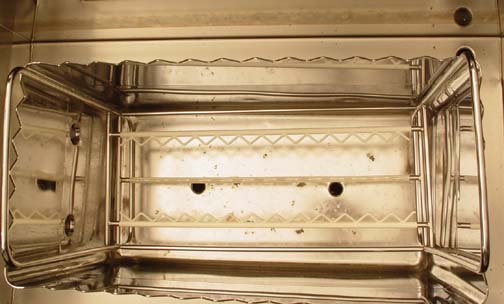

Process Tank:

  • 6 gallon capacity
  • (4) Sided overflow weir
  • Electropolished
  • Coved corners
  • 1000 watt heater w/PID controller
  • Low liquid sensor
  • 10" polypropylene filter w/pressure gauge
  • March seal-less magnetic drive pump

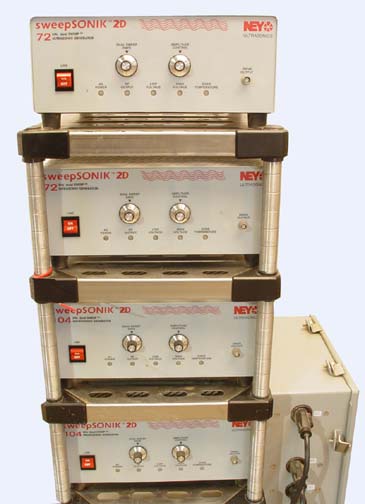

  • Dual frequency choice 72 or 104 KHz ultrasonic generators
    Rinse Tank:
  • 6 gallon capacity
  • (4) sided overflow weir
  • Electropolished
  • Coved corners
  • 2000 Watt heater w/PID controller
  • Low liquid sensor
  • Dual frequency choice 72 or 104 KHz ultrasonic generators
    Inline Water Heater:
  • 7,500 watts
  • Wetted parts are Kynar and NORYL
  • Thermostat control
  • Max temperature: 140°F

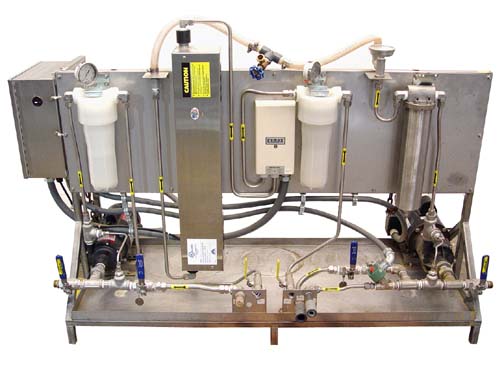

    DI Water Recycle Loop
  • High pressure pump
  • Inline UV light for bacteria inhibition
  • (1) micron filter after UV for pyrogen removal
  • Resistivity meter

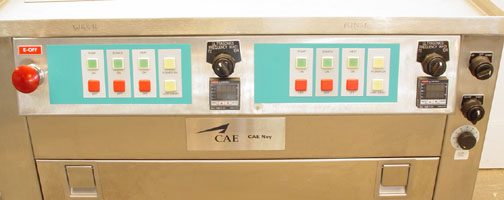

    Controls:
  • Frequency controls (Tank #1, #2)
  • Ultrasonic On/Off (Tank #1, #2)
  • Tank fluid temperarture (tank #1, #2)
  • Pump: On/Off (tank #1)
  • Emergency Off
Power Requirements 208 V     60.0 A     50/60 Hz     3 Phase
Year of Manufacture 1998
Condition Very Good
Exterior Dimensions
  Width 34.250  in  (87.0 cm)
  Depth 34.250  in  (87.0 cm)
  Height 43.000  in  (109.2 cm)
