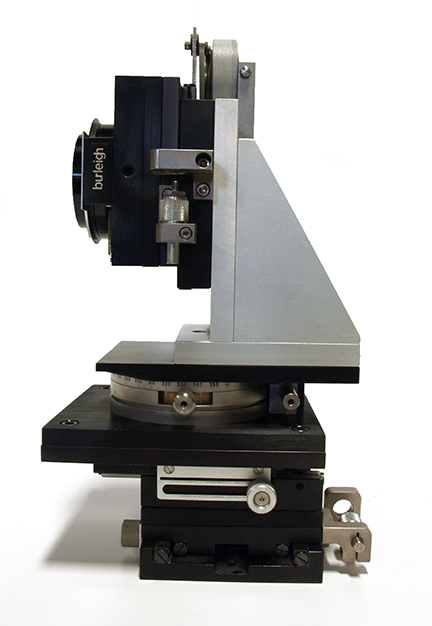

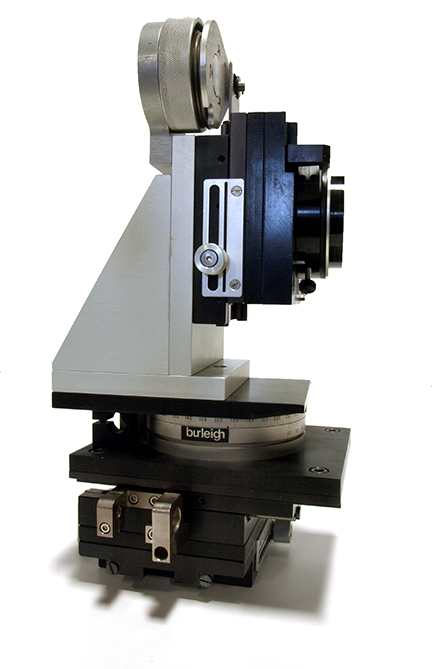

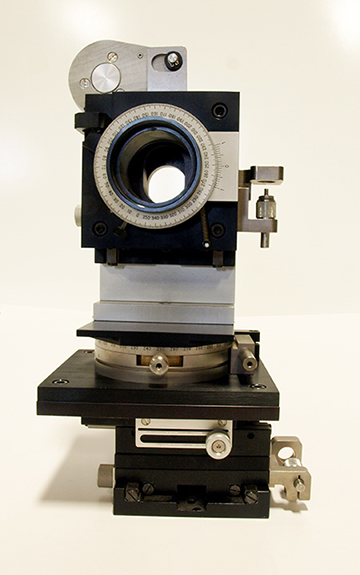

X Travel: 50mm Y Travel: 50mm Z Travel 50mm Rotary stage travel: 360 Deg. Rotary Z axis balanced stage travel: +- 15 degrees. (torsion spring balance) Rotary Z axis stage aperture: 44mm Rotary Z axis stage lense mount: 50mm diameter Strightness: 1 micron Max load: 1.5 Kg
Stage utilized Burliegh motorized linear actuators (Inch worm) actuators not included.
|
