FULL DESCRIPTION of Item 217522

in Measuring Microscopes
Item ID: 217522

Offered 1 Offered at Best Price


OLYMPUS TWO AXIS MEASURING MICROSCOPE 150MM X 100MM 0.5 MICRON

Olympus Measuring Microscope

In addition to this Olympus STM6-F00-3, Capovani Brothers Inc stocks a variety of used measuring microscopes. Typical manufacturers include Leitz, Mitutoyo, and Nikon. To view our complete stock of measuring microscopes visit our Measuring Microscopes category.

Learn about our Microscopes Refurbishment and Functional Testing Procedures

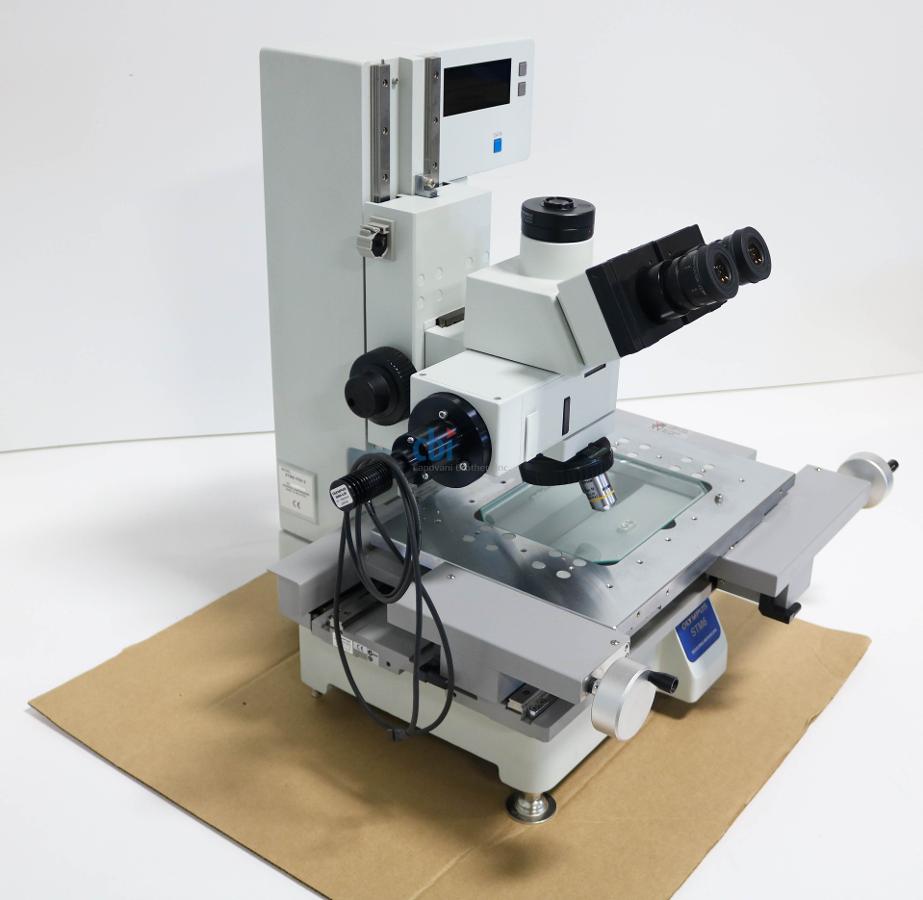

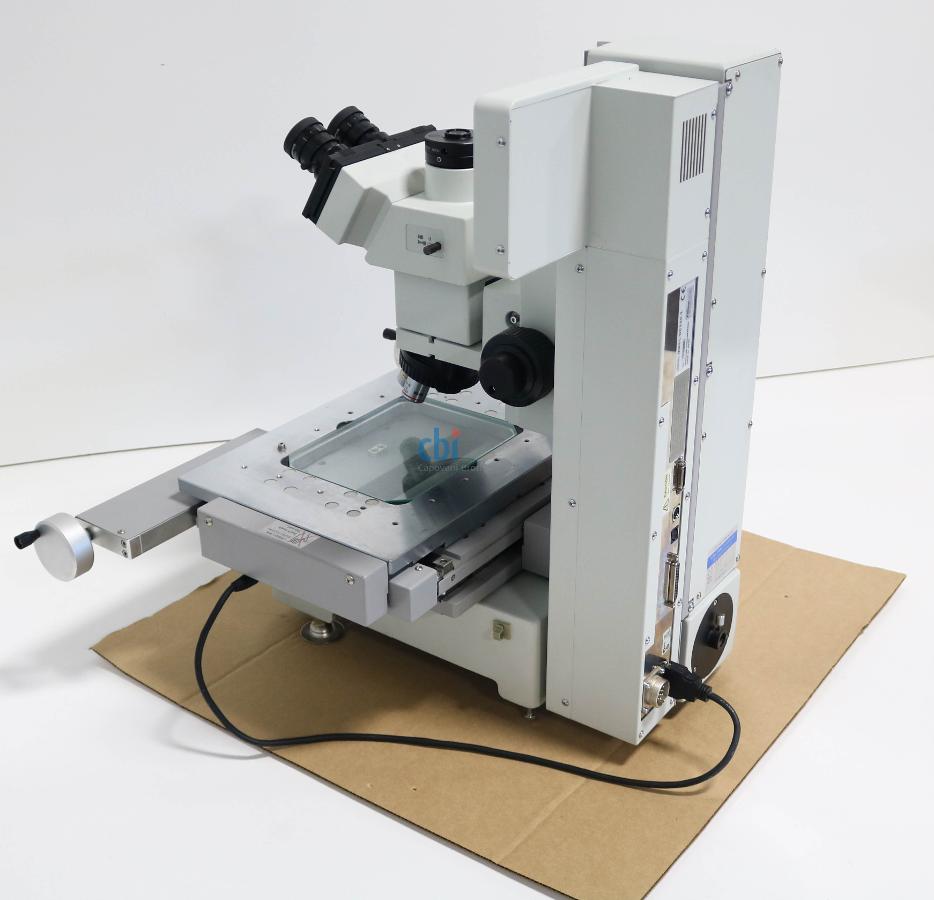

OLYMPUS TWO AXIS MEASURING MICROSCOPE 150MM X 100MM 0.5 MICRON
  Click to see additional image(s)... other images

Location: Scotia, New York, United States
Unit Price Unstated
Number of Units 1
Manufacturer Olympus
Model STM6-F00-3
Microscope Configuration Brightfield
Illumination Type Reflected Light
Binocular Angle 45°
Eyepieces
  Model MM6-OCC 10x/22
  Magnification 10 X
  Field Number 22 mm
  Focusing YES
Trinocular/Phototube Provided YES
Magnification Changer None
Multiple Objectives Models

MPlan N 5X/0.10 /-/FN22

MPlan N 10X/0.25 /-/FN22

Infinity Corrected Objectives YES
Power Supply Included YES
Stage Type Coaxial X-Y
X-Y-Z Stage Travel X: 150  mm  (5.906 in)     Y : 100  mm  (3.937 in)
Digital Readout System YES
Camera
  Type None
Other Information

MM6C-DC250-2 -- Two axis counter box, 0.5 micron accuracy

MM6C-CS150-3 XY Stage, 150mm x 100mm travel.

U-5RE-2 five place nosepiece

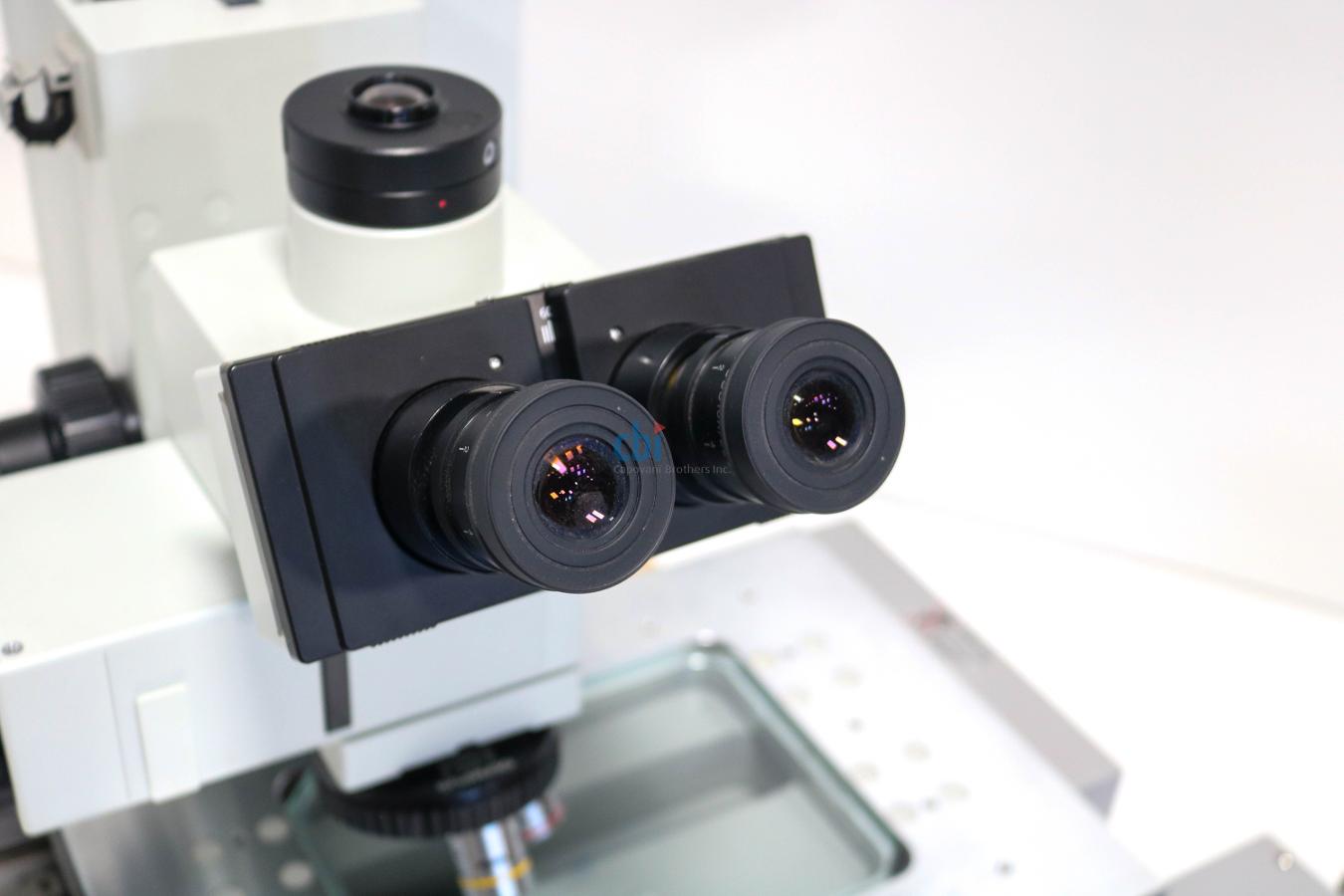

MM6-ETR-1-5 Erect image trinocular

MM6C-KMAS -- Reflected light illuminator for brightfield and DIC (no polarizer or  analyzer included)

MM6-ILPS-2 -- Light source power supply

MM6-ILW -- Light source

MM6C-PS-2 -- System power supply

MM6C-VI -- Isolators (3)



Extended Description  Details at Olympus STM6 Measuring Microscope.pdf
CE Marked YES
Exterior Dimensions
  Width 22.717  in  (57.7 cm)
  Depth 16.906  in  (42.9 cm)
  Height 23.307  in  (59.2 cm)
