in Contact/Proximity Mask Aligners
Item ID: 24564

Offered 1 Offered at Best Price

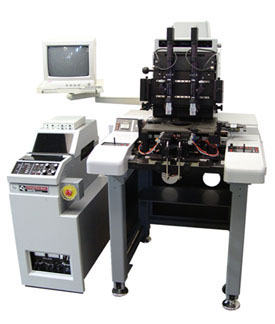

Mask Aligner with IR Backside Alignment

Quintel acquired by Neutronix

In addition to this Quintel UL 7000 IR, Capovani Brothers Inc. stocks a wide range of used mask aligners. Typical manufacturers include Canon, EV Group, Karl Suss, Optical Associates, and Quintel.

To view our complete stock of used mask aligners visit our Mask Aligners category.

This used mask aligner and all the other used and refurbished semiconductor, scientific, and laboratory equipment listed on this website are owned by Capovani Brothers Inc. and stored at our facility in Scotia, NY.

Sell us your used, surplus or idle assets! Send us your surplus list

  Click to see additional image(s)... other images

Location: Scotia, New York, United States
Unit Price Unstated
Number of Units 1
Manufacturer Quintel
Model UL 7000 IR
Wafer Size Range
  Minimum 50 mm
  Maximum 200 mm
  Set Size 100 mm
Mask Plate Size 5'' x 5''
Alignment Optics Splitfield Video
Proximity Alignment Capability YES
IR Backside Alignment  YES
Illuminator Model Number Q-500
Illuminator Power Rating 500 Watts
External Cooling Air Cooled
Other Information Split field video with MPLAN APO 5X objectives
Print Modes:
  • Vacuum
  • Pressure
  • Proximity
  • Vacuum calibration
  • Pressure calibration
Condition Like New
Year of Manufacture 2001
Power Requirements 120/240 V     50/60 Hz     1¬†Phase
CE Marked YES
Weight 1,134  lb  (514 kg)
