Item ID: 37447

Offered 1 Offered at Best Price


Excimer VUV/03 Cleaning Unit
UV Cleaning

  • Enhancement of wetability and adhesion of photoresist
  • Enhancement of wetability of SOG
  • Cleaning before deposition process
  • Soft ashing
  • High-speed removal of static electricity
  • Cleaning of reticles
  • Simple dry cleaning allows removal of most of organic matter
  • No charging damage
  • Instantaneous on/off operation suited to single-wafer process
  • Low-temperature process
  • Cleaning process can be performed under atmospheric air
  • USHIO SUS 55
      Click to see additional image(s)... other images

    Location: Scotia, NY, United States
    Unit Price Unstated
    Number of Units 1
    Manufacturer USHIO, Inc.
    Model SUS 55
    Description Excimer VUV/03 Cleaning Unit
    Lamp Type & Power Ultra-Violet/ 3 required
    Wavelength Maximum 172 nm
    Interface Other
    External Cooling Water Cooled

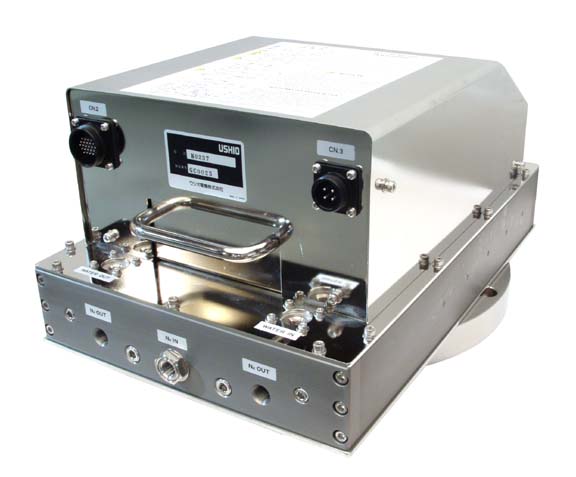

    Other Information Lamp House Model HO237:

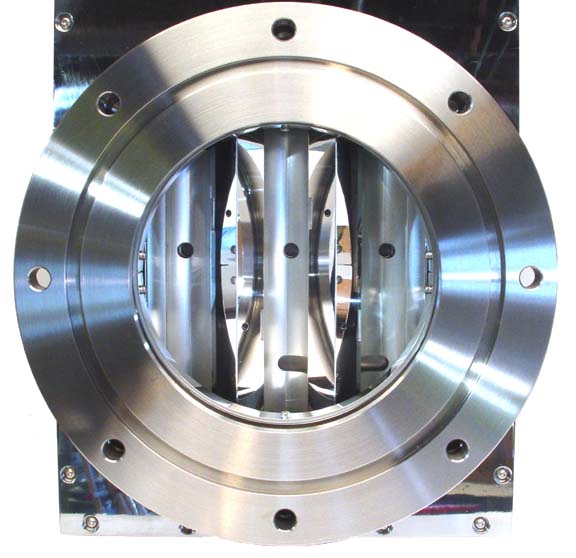

    Lamp house has vacuum flange attached
    Flange O.D.: 300 mm
    Flange I.D.: 170 mm
    Window size: 170 mm dia.
    O Ring groove: 240 mm
    Bolt circle: 270 mm x 8 holes x 12 mm
    Water cooled
    Lamp house dimensions: 300W x 404D x 220H mm

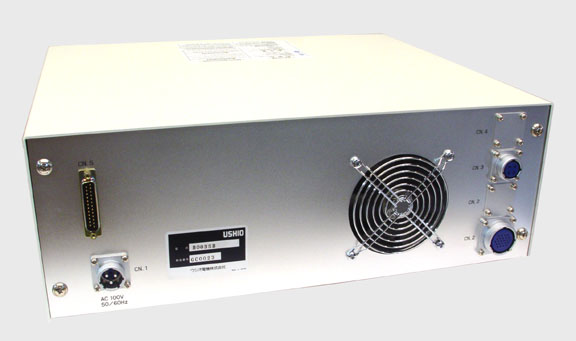

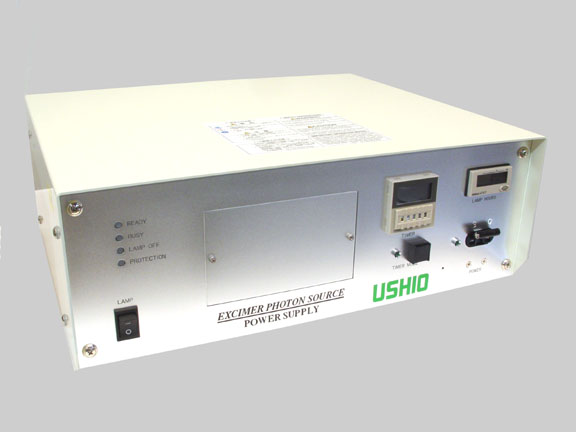

    Power Supply Model B0035B
    Lamp hour meter
    External interface connector
    Power Requirements 110 V     50/60 Hz     1¬†Phase
    Condition New-Never Used
    Weight 100  lb  (45 kg)
