| Unit Price |
Unstated |
| Number of Units |
1 |
| Manufacturer | Olympus |
| Model | BH2-UMA |
| Description | Disk Inspection Microscope/Motorized Stage |
| Microscope Type | Upright |
| Microscope Configuration | Brightfield, DIC & POL |
| Illumination Type | Reflected Light |
| Binocular Angle | Variable |
| Eyepieces |  |
| Model | WHK 10X/20L |
| Trinocular/Phototube Provided | YES |
| Multiple Objectives Models | Objectives
NEO SPLAN 5 NIC 0.13 F= 180
NEO SPLAN 10 NIC 0.25 F= 180
NEO SPLAN 20 NIC 0.40 F= 180
NEO SPLAN 50 NIC 0.70 F= 180
NEO SPLAN 100 NIC 0.90 F= 180
Nomarski prisms
UPO/NIC Polorizing/DIC Slider
|
| Infinity Corrected Objectives | YES |
| Polarizer | YES |
| Analyzer | YES |
| Power Supply Included | YES |

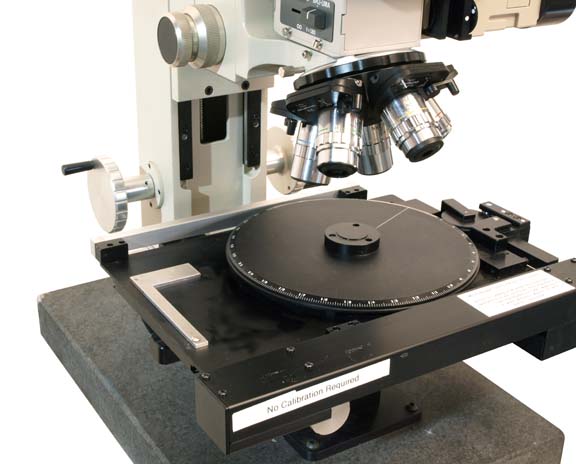

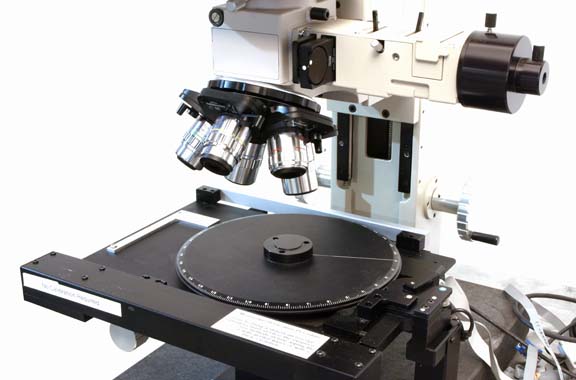

| Stage Type | Coaxial X-Y, Rotary |
| X-Y-Z Stage Travel |
Z : 67 mm (2.638 in)
|
| Rotary Stage Diameter | 203 mm (7.992 in) |
| Other Information | Stage
SEMPREX Model 12-9468.00
X Axis motorized
Y Axis manual
Rotory axis motorized
Joy stick control
Encoders X and rotory axis(readouts not included)
Scope mounted on precision granite base (Accuracy .0001) |
| Exterior Dimensions | |
| Width | 13.000 in (33.0 cm) |
| Depth | 19.000 in (48.3 cm) |
| Height | 25.500 in (64.8 cm) |
| Weight | 96 lb (44 kg) |
