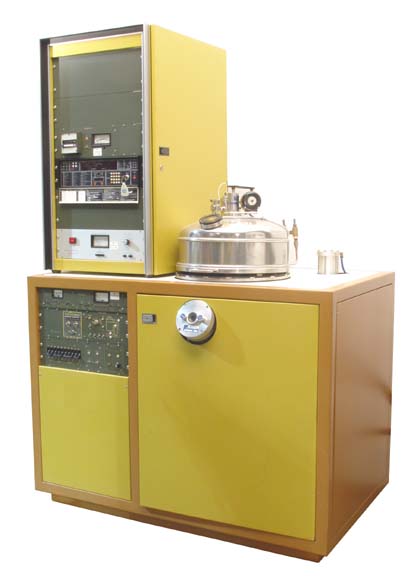

TEMESCAL FILAMENT EVAPORATOR

Resistance Evaporators

Filament Evaporator

1 unit @ Best Price

Make: Airco Temescal

Model: BJD-1800

Item ID: 52623

Manufacturer	Airco Temescal
Model	BJD-1800
Description	Filament Evaporator--Cryo Pumped
Vacuum System	Cryo Pumped
Vacuum System	CTI Cryotorr 8 CTI compressor, Water cooled Helium lines and CTI regeneration controller Base pressure in the clean chamber will be in 10^-8 Torr range after extended pump down time.
Film Thickness Monitor	No

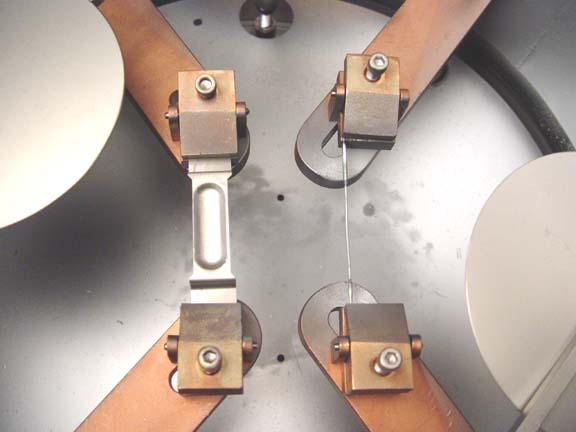

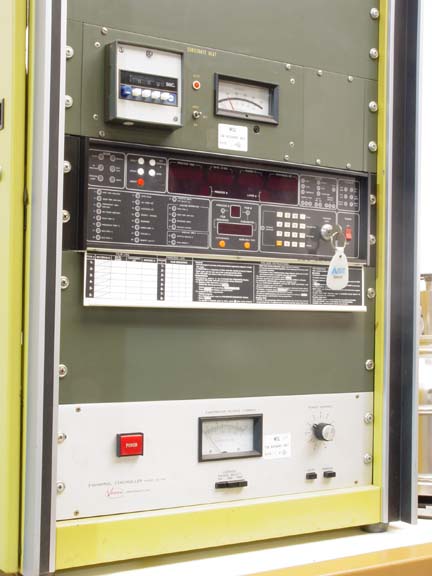

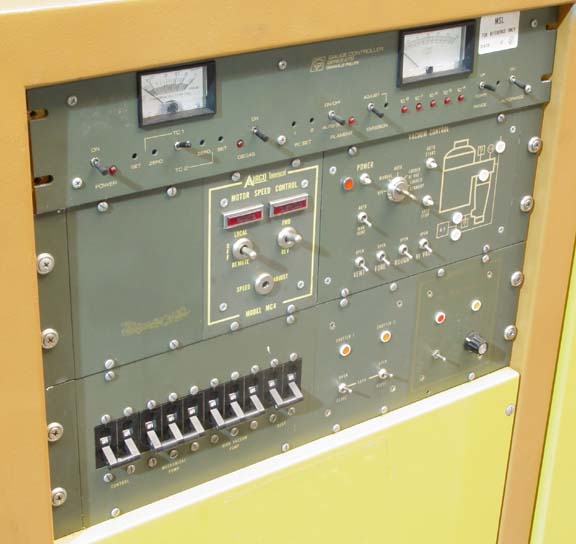

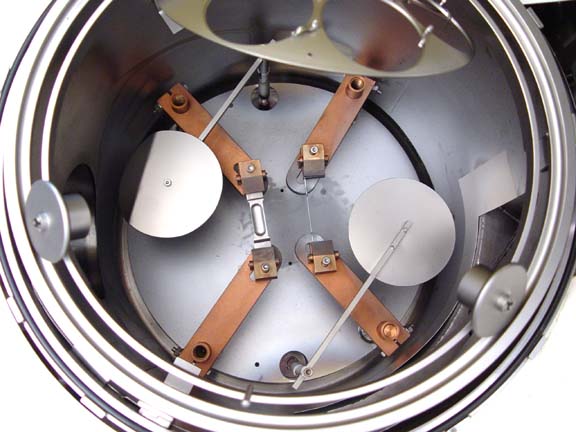

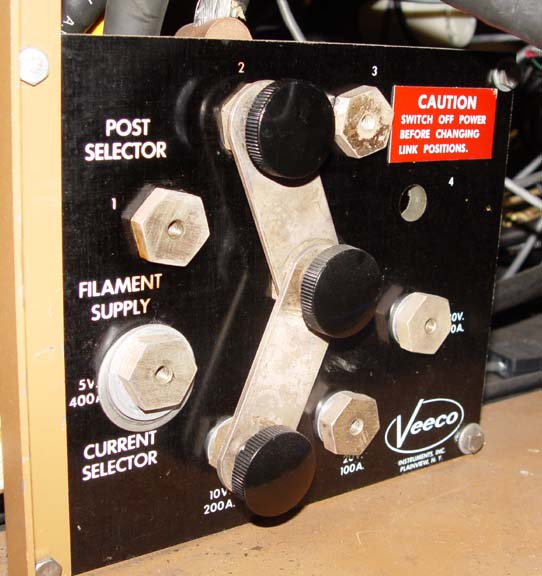

Other Information	Source Chamber 18" Dia x 18" High, water cooled, 304 stainless steel Source Tray 18" Dia flat plate with 10 1" dia. feedthrough ports 1 EMI EMS 7.5V 600A DC Power Supply Two filament boats - Sequential operation. Granville Philips 307 Gauge Controller with process control NB: Substrate domes not included. Film thickness monitor shown not included.
Power Requirements	208 V 70.0 A 60 Hz 3 Phase
Exterior Dimensions
Width	56.000 in (142.2 cm)
Depth	34.000 in (86.4 cm)
Height	89.000 in (226.1 cm)
Weight	1,322 lb (600 kg)
