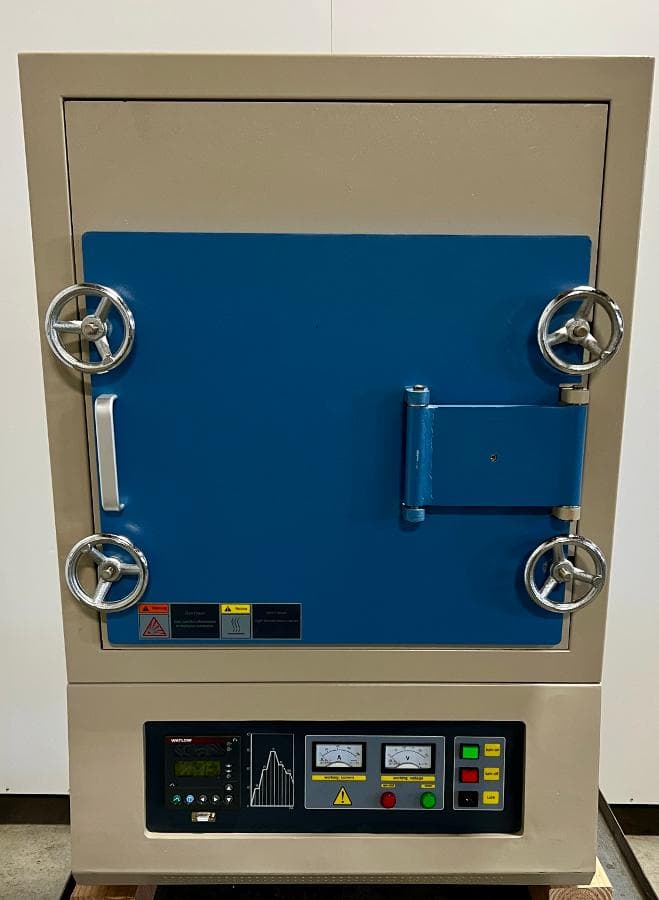

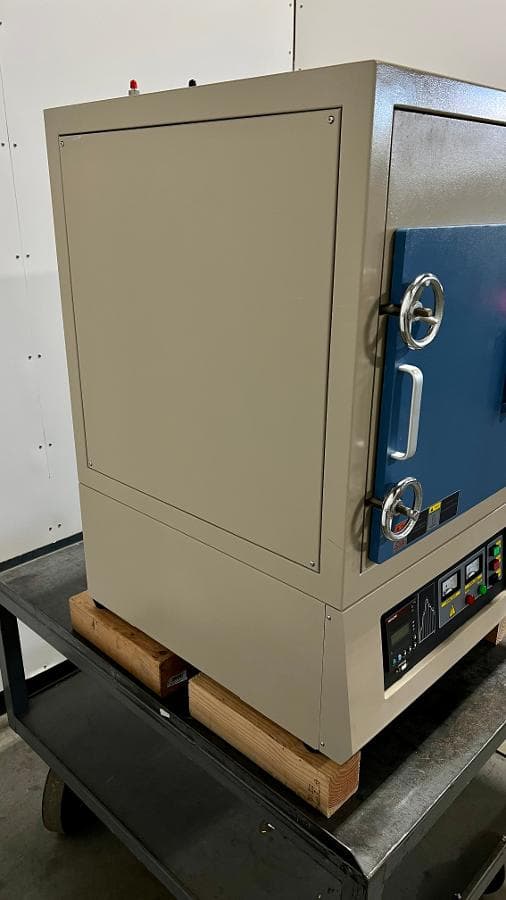

MTI Corporation 1700C Controlled Atmosphere Furnace 0.61 CUFT

Quoted on requestWorking & warranted
Condition
Used See details
Brand
Custom
MPN
Controlled Atmosphere
SKU
243618
Availability
1 in stock
Make Inquiry

Shipping, sale coverage & payments

Shipping:
Ships from Scotia, NY. Method, cost and timing confirmed on your quote. Shipping policy
Lead Time:
We’ll confirm exact timing when we send your quote.
Sale Coverage:
Working & Warranted: 90-day warranty. View terms
International Orders:
Case by case; export controls may affect eligibility. Contact us
Payments:
Credit card via Stripe, or purchase order. Payment Information
Independent Reseller:
Capovani is not an authorized distributor or representative of the original manufacturer.
Capovani Brothers Inc.

Shop with confidence

Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani

Item description

1600°C continuous operation

1700°C (3092°F) in air

1650°C (3002°F) in N2

Furnace is currently set for 1600°C maximum temperature in the controller configuration

Vacuum pump is not included

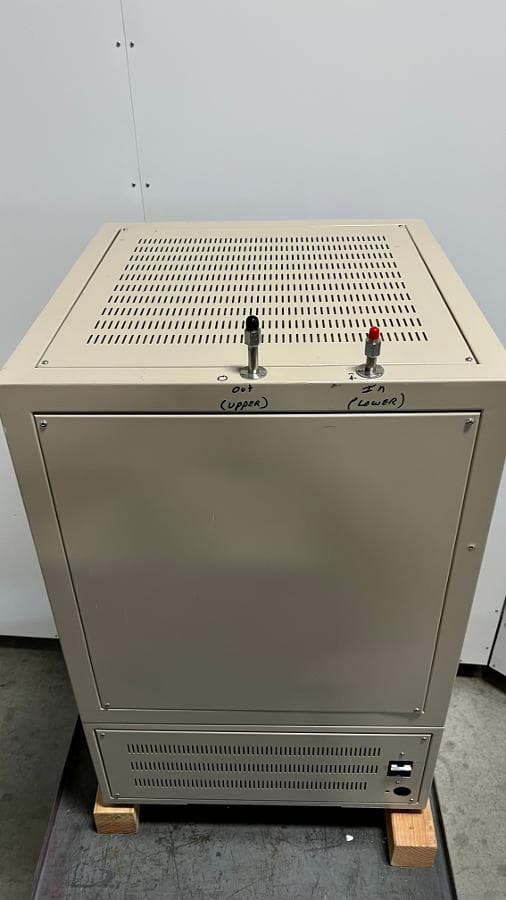

Evacuation port 3/8" Swagelok

Inert gas port 1/4" Swagelok

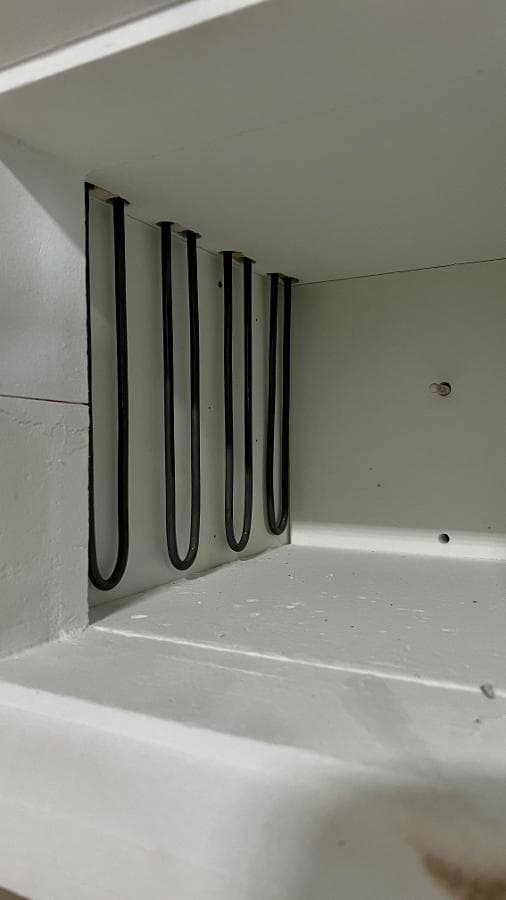

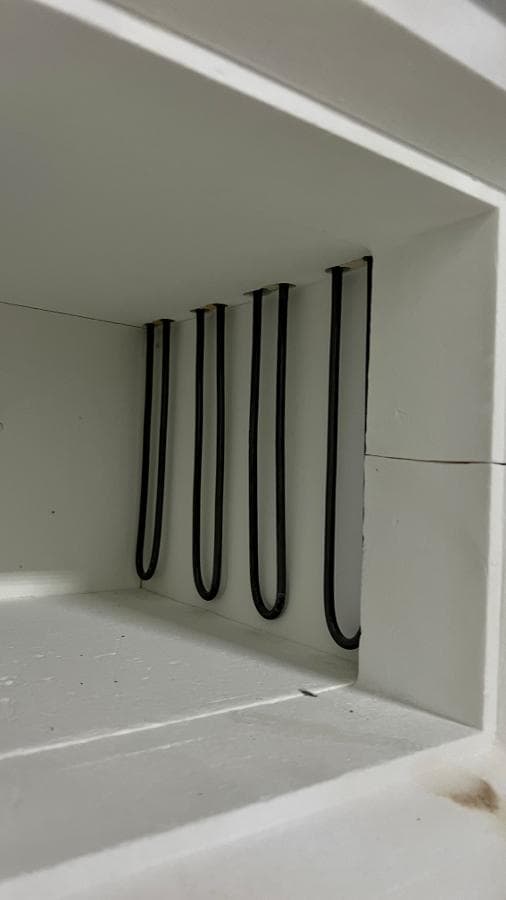

6x MoSi2 Heating Elements

Maximum heating/cooling rate 10°C/min up to 1400°C, 5°C/min 1400-1700°C

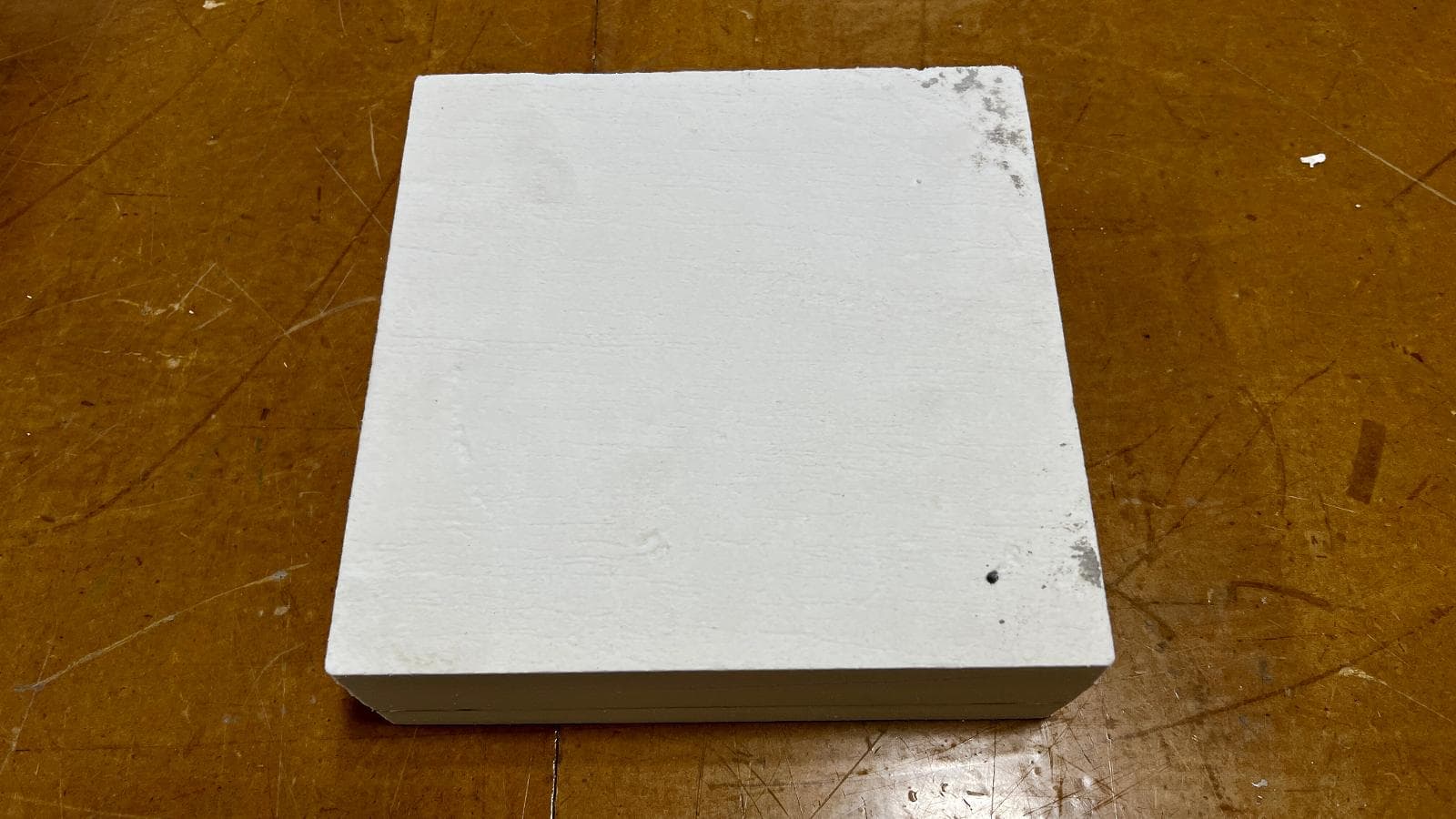

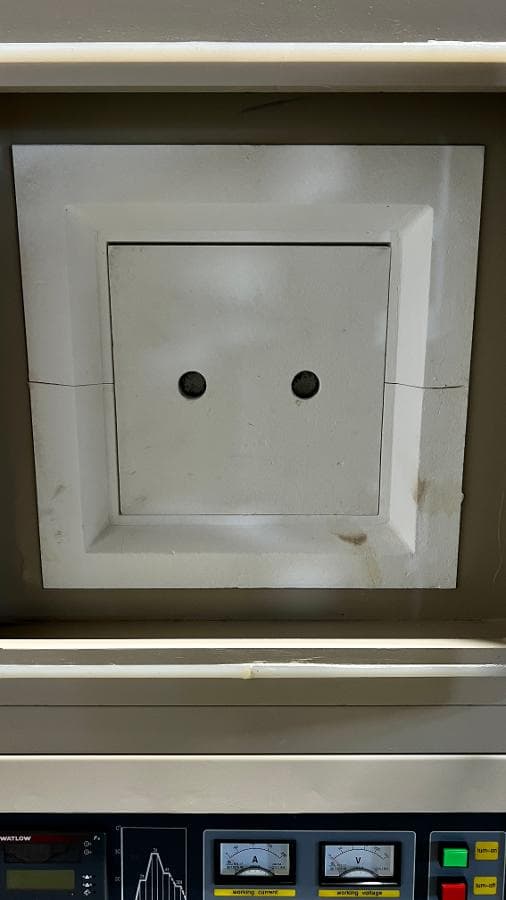

The refractory block must be installed before closing the door (included)

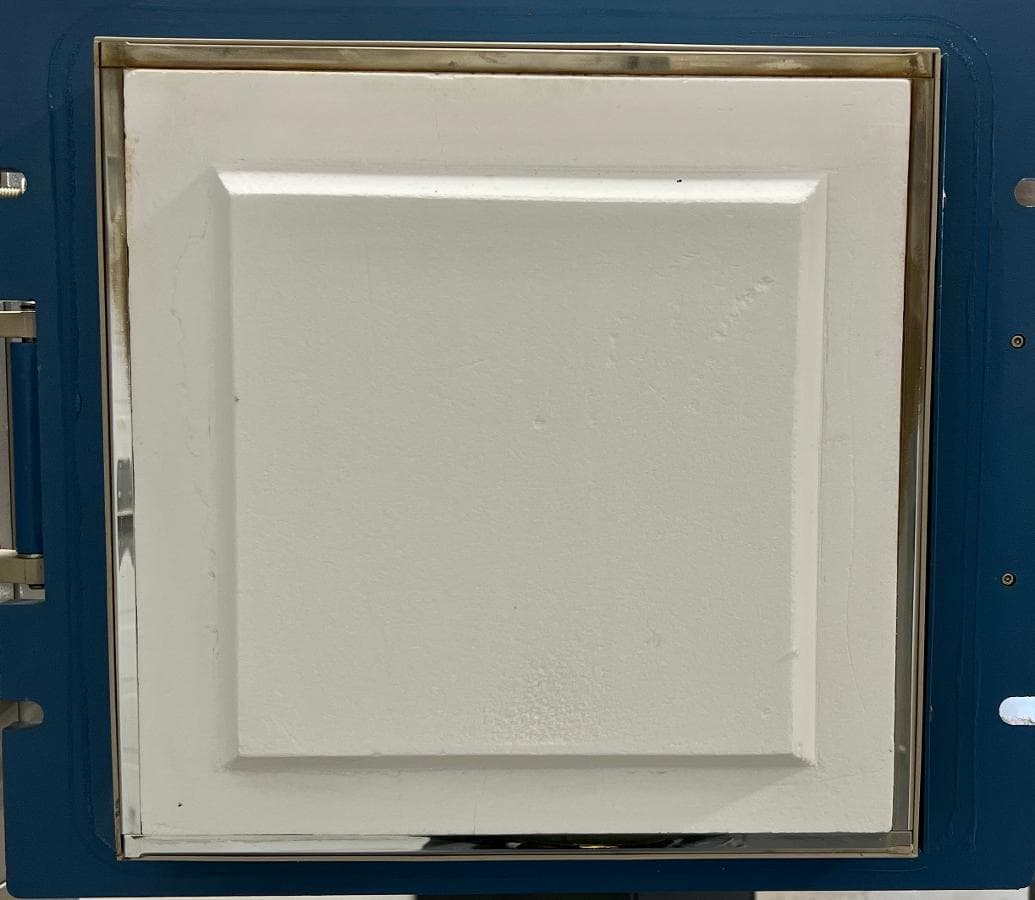

Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating

4 sample profiles preloaded into the controller

Technical specifications

Maximum Temperature1,700 ºC (3,092 ºF, 1,973 ºK)
External CoolingForced Air Cooled
Capacity/Volume Box0.61 cu ft (0.02 cu m)
Thermocouple TypeType B
Number of Gas Inputs2
Power Requirements200-240 V 50.0 A 1 Phase
Weight690 lb (313 kg)

Temperature Control

Control Stability± 1.000 ºC

Heat/Cool Controls

Control TypeProgrammable
InterfaceRS 232

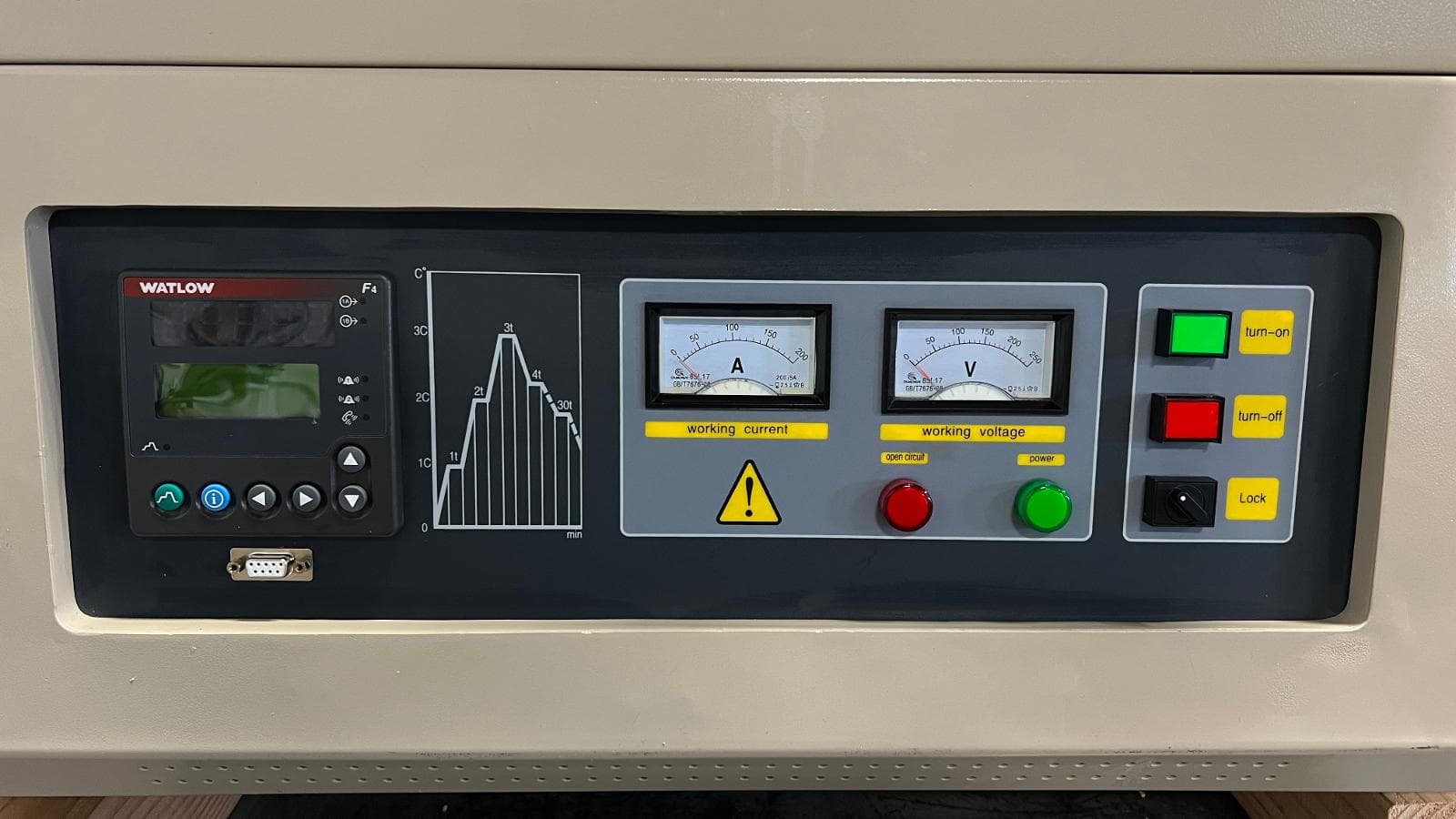

Controller Manufacturer/ModelWatlow F4

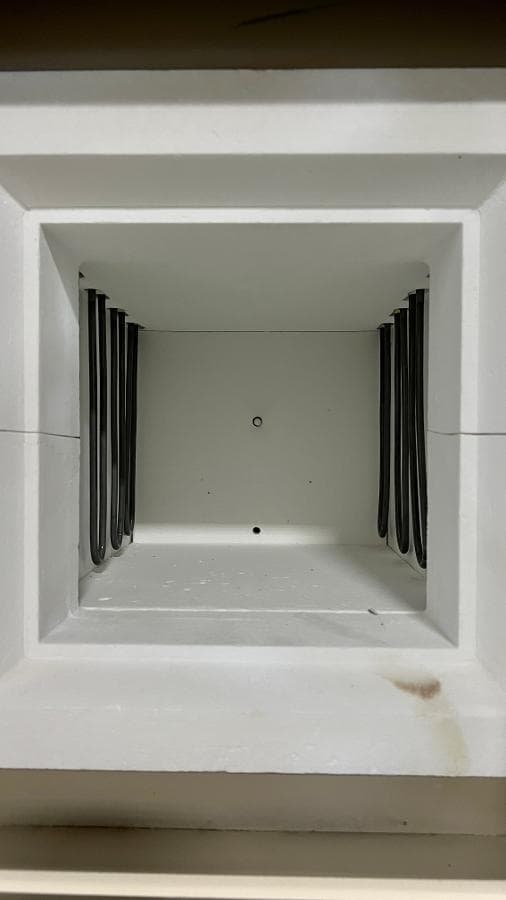

Chamber Size

Width9.45 in (24.00 cm)
Depth11.81 in (30.00 cm)
Height9.45 in (24.00 cm)

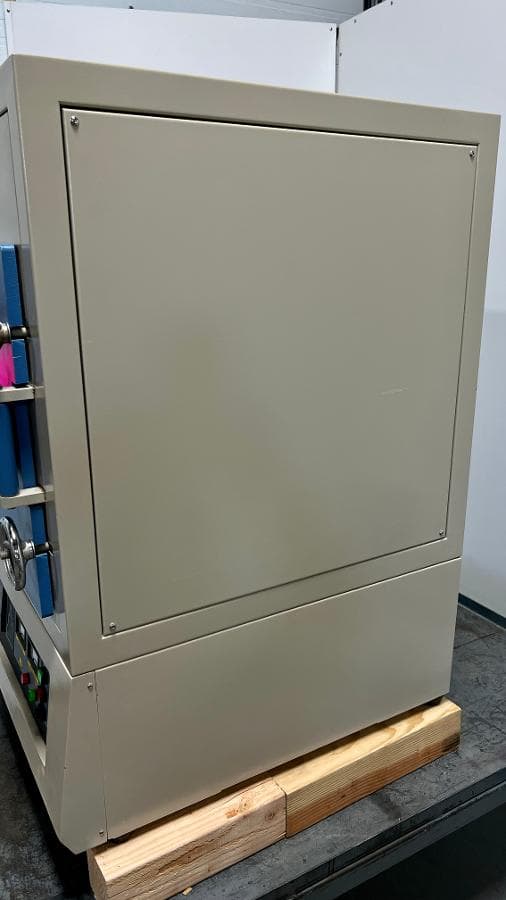

Exterior Dimensions

Width27.000 in (68.6 cm)
Depth31.000 in (78.7 cm)
Height40.500 in (102.9 cm)

Condition & testing notes

Previously in service and offered for secondary-market resale.
