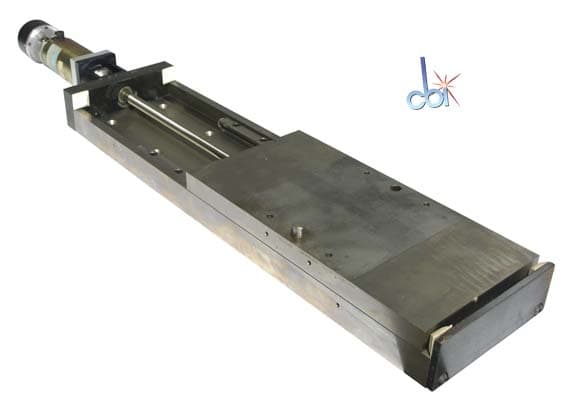

9.25" Travel Motorized Linear Stage
$350.00Working & warranted
- Condition
- Used See details
- MPN
- None
- SKU
- 1583
- Availability
- 1 in stock
Shipping, sale coverage & payments
- Shipping:
- Ships from Scotia, NY. Method, cost and timing confirmed on your quote. Shipping policy
- Lead Time:
- We’ll confirm exact timing when we send your quote.
- Sale Coverage:
- Working & Warranted: 90-day warranty. View terms
- International Orders:
- Case by case; export controls may affect eligibility. Contact us
- Payments:
- Credit card via Stripe, or purchase order. Payment Information
- Independent Reseller:
- Capovani is not an authorized distributor or representative of the original manufacturer.
Shop with confidence
Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani
Item description
Pittman 30 V DC motor
Dynamics Research Inc. encoder M/N 14204C223 (manuf. 9/12/90)
All stainless steel construction
Cross roller bearings
Technical specifications
| Configuration | Single Axis |
| Total Travel, XYZ | X: 9.25 in (235 mm) |
| Mechanical Drive System | Lead screw |
| Screw Pitch | 40 turns per inch |
| Stage Length | 23.00 in (584 mm) |
| Stage Width | 6.00 in (152 mm) |
| Table Length | 12.00 in (304.80 mm) |
| Table Width | 6.00 in (152.40 mm) |
| Tabletop Height | 1.50 in (38.10 mm) |
| Motor | Drive: Servo Motor Size: NEMA 23 |
| Cables Included | Yes |
| Weight | 50 lb (23 kg) |
Exterior Dimensions
| Width | 6.000 in (15.2 cm) |
| Depth | 33.000 in (83.8 cm) |
| Height | 2.000 in (5.1 cm) |
Condition & testing notes
Previously in service and offered for secondary-market resale.
