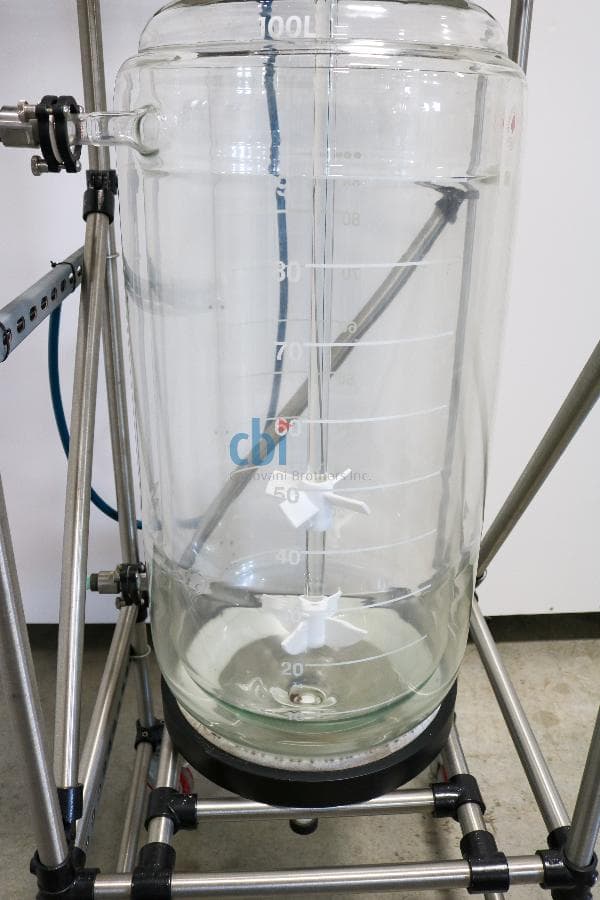

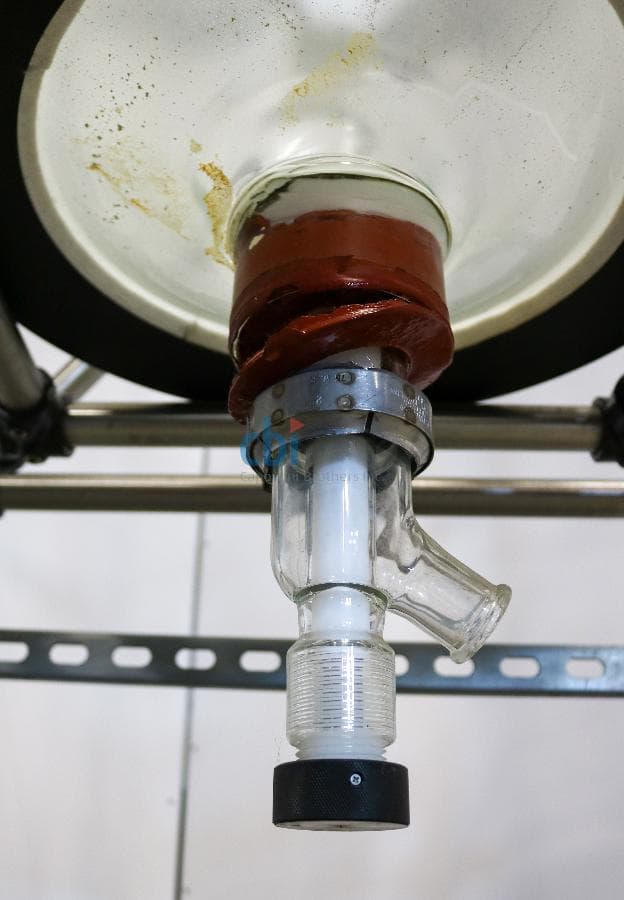

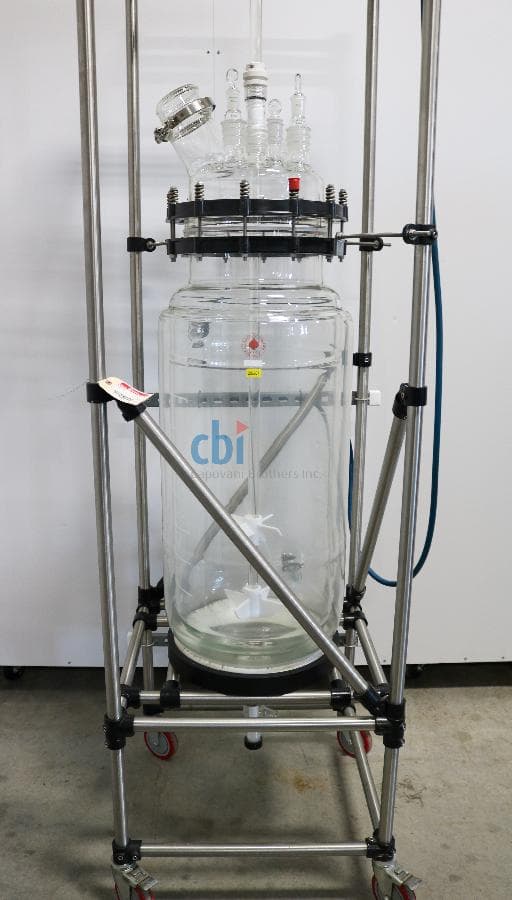

Ace Glass 100 L Jacketed Kilo Scale Reactor System
$18,500.00Working & warranted
- Condition
- Used See details
- Brand
- Ace Glass Inc.
- MPN
- Unknown
- SKU
- 206687
- Availability
- 1 in stock
Shipping, sale coverage & payments
- Shipping:
- Ships from Scotia, NY. Method, cost and timing confirmed on your quote. Shipping policy
- Lead Time:
- We’ll confirm exact timing when we send your quote.
- Sale Coverage:
- Working & Warranted: 90-day warranty. View terms
- International Orders:
- Case by case; export controls may affect eligibility. Contact us
- Payments:
- Credit card via Stripe, or purchase order. Payment Information
- Independent Reseller:
- Capovani is not an authorized distributor or representative of the original manufacturer.
Shop with confidence
Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani
Item description

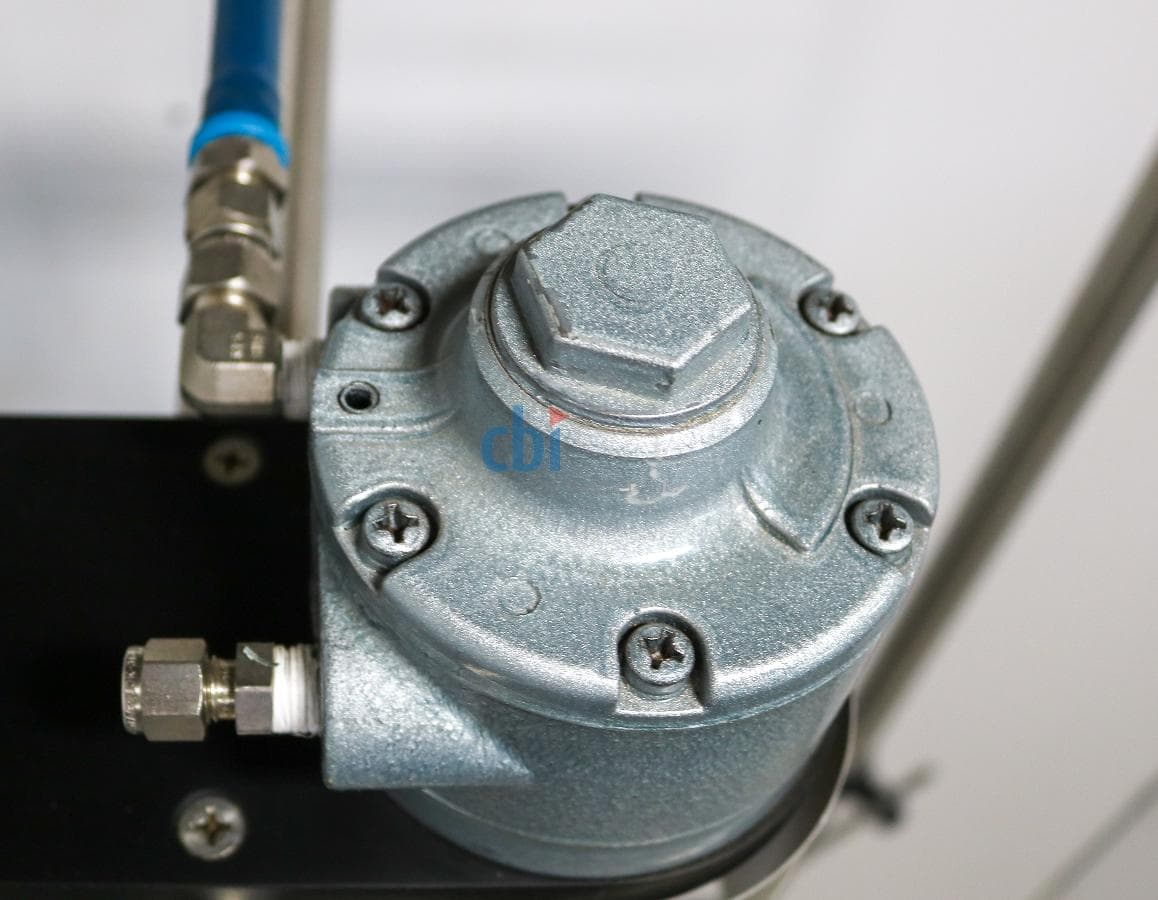

1.5 HP Gast 4AM-NRV-22B Pneumatic Stir Motor

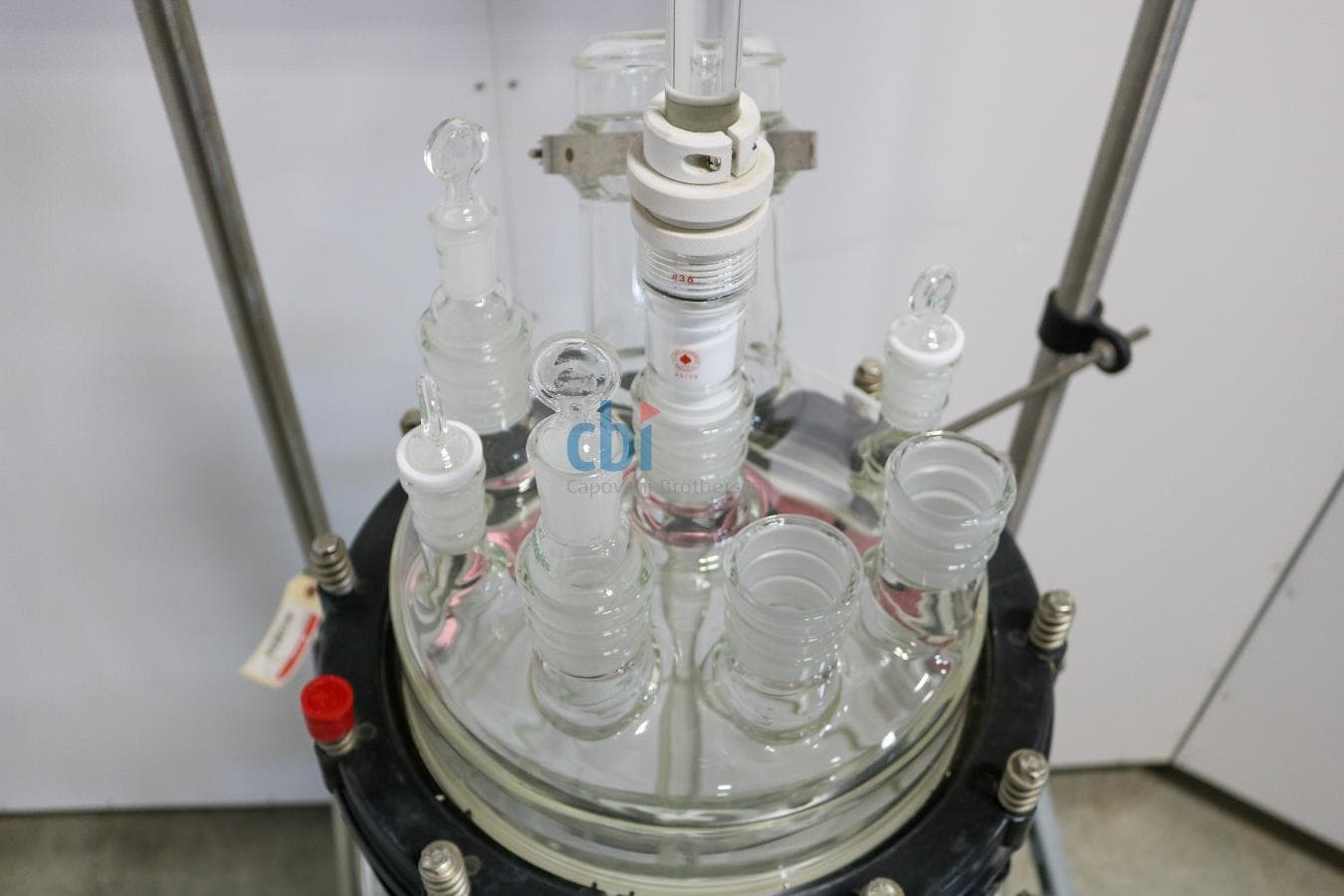

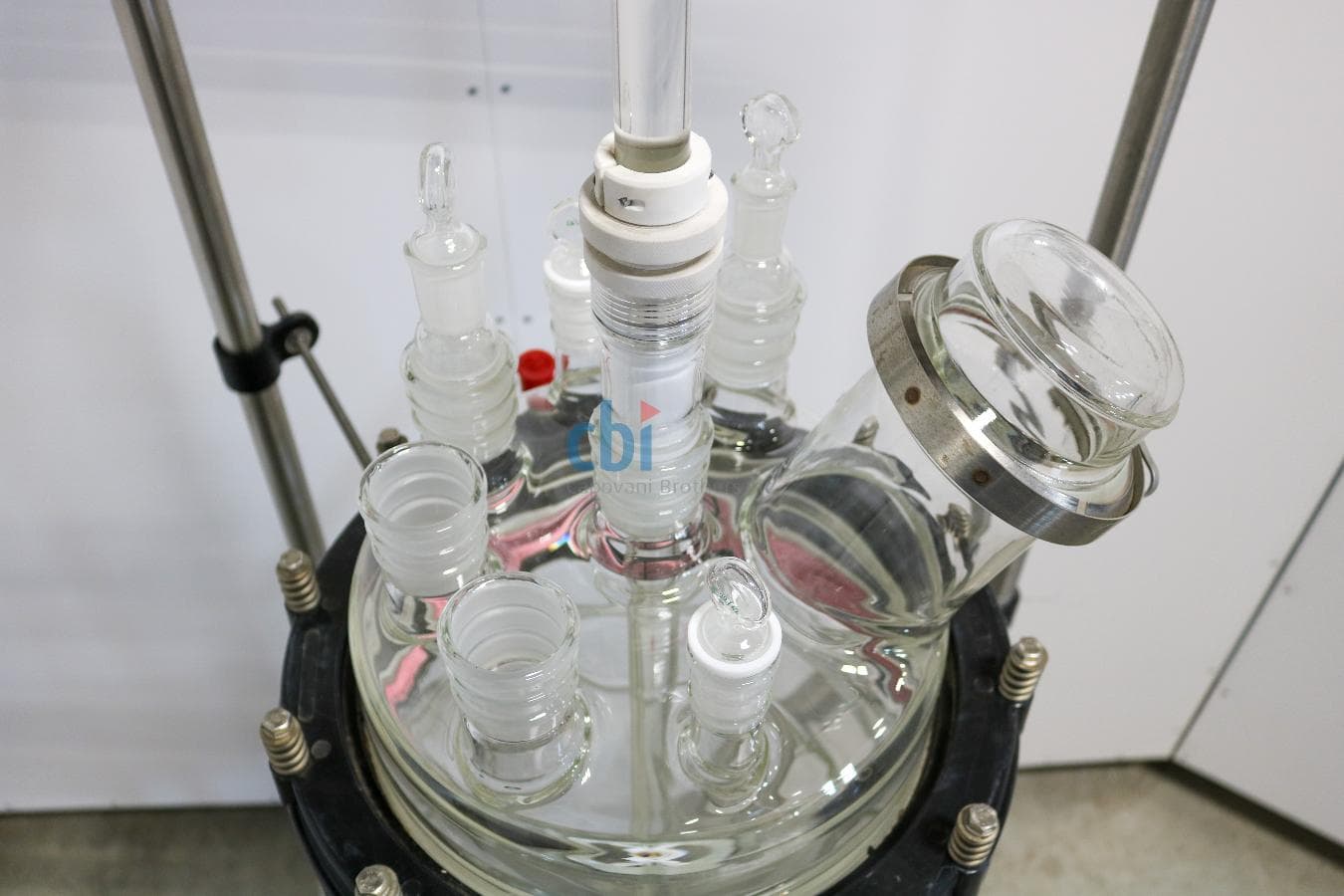

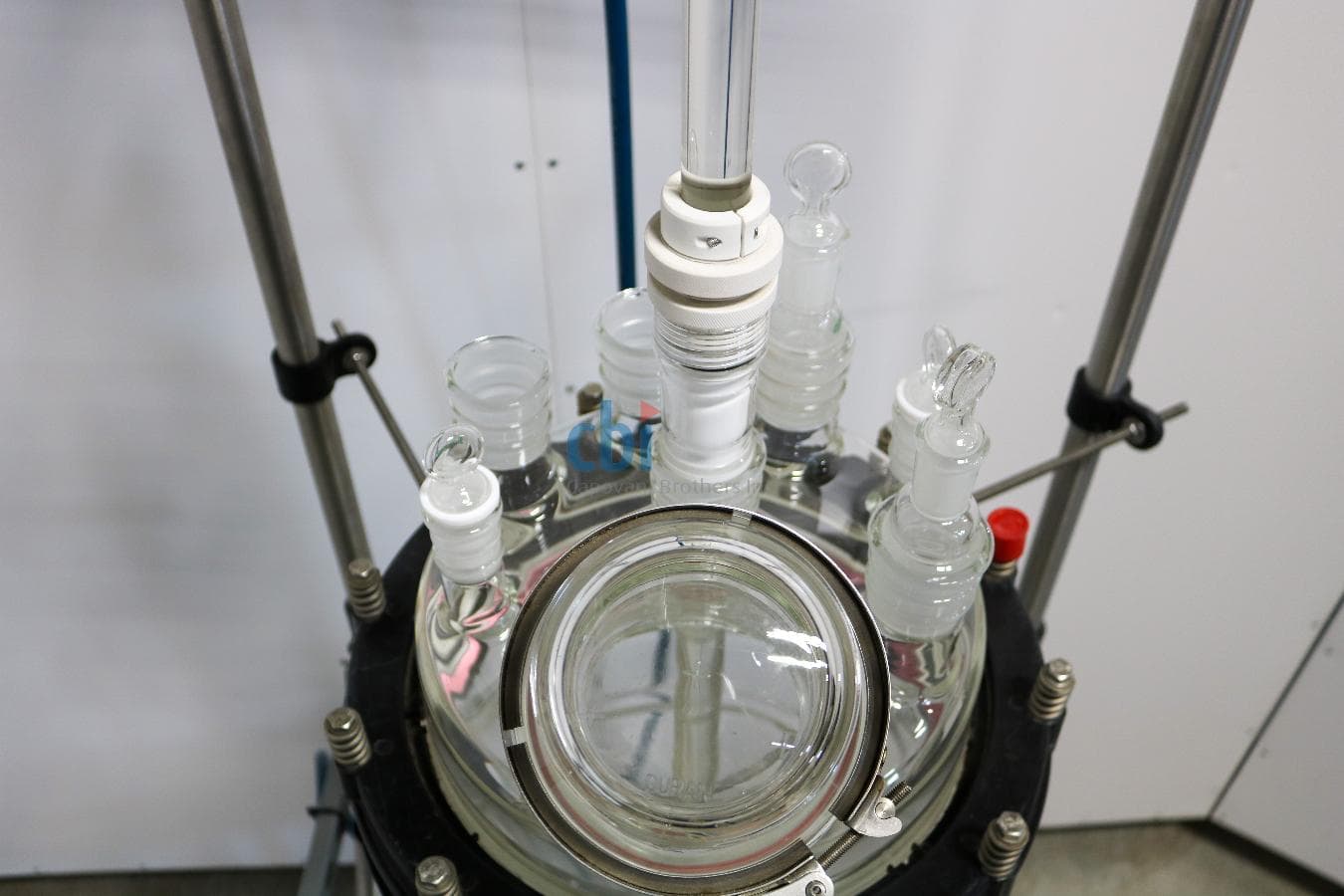

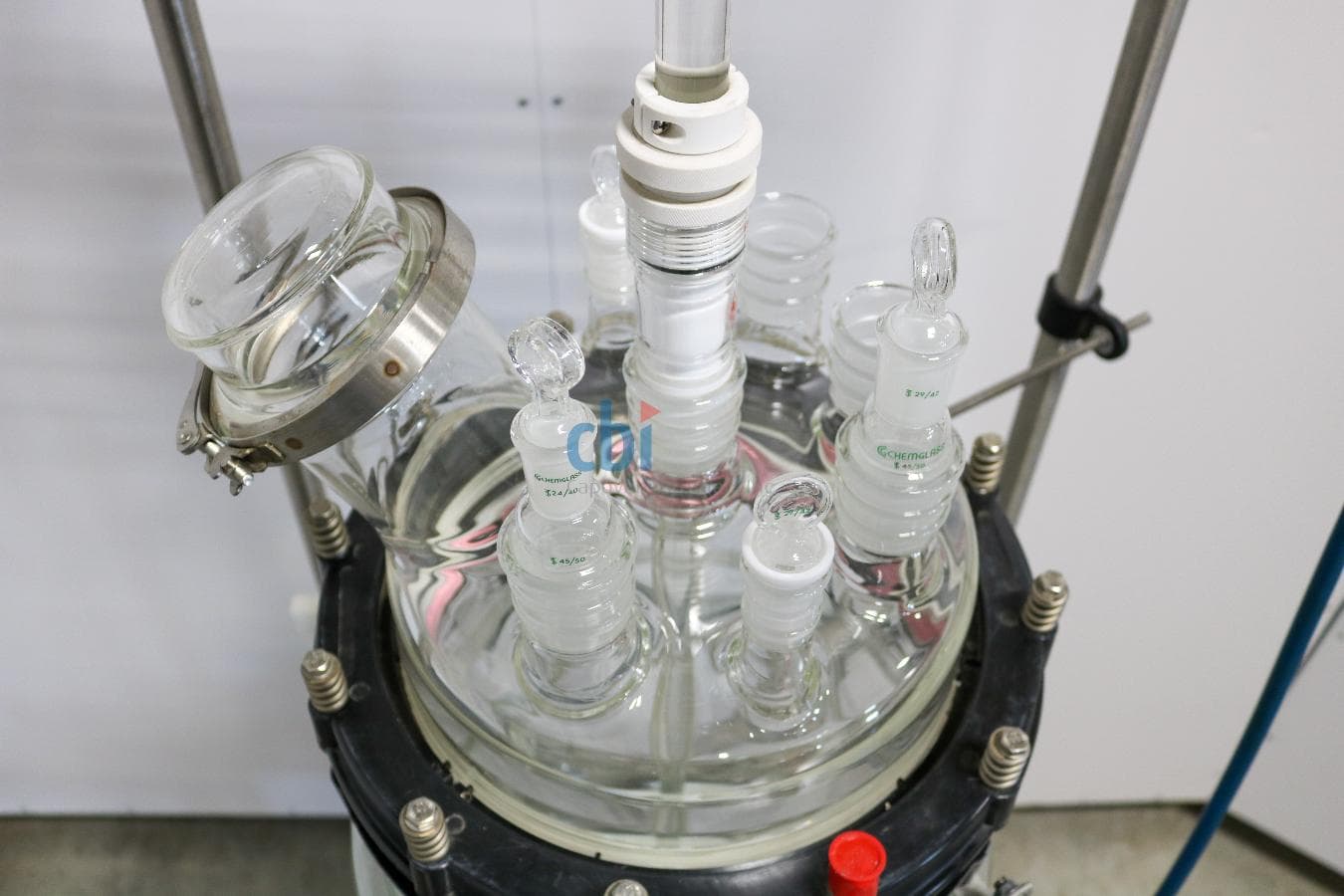

12" Flange Domed Head with 7 ports
4 - 45/50 ports
2 - 29/42 ports
Working Pressure Range (Torr): Atm to 200
Working Temp Range (°C): -60 to 200
Max Jacket Pressure (PSIG): 5
Technical specifications
| Weight | 324 lb (147 kg) |
Exterior Dimensions
| Width | 32.000 in (81.3 cm) |
| Depth | 28.000 in (71.1 cm) |
| Height | 98.000 in (248.9 cm) |
Condition & testing notes
Previously in service and offered for secondary-market resale.
