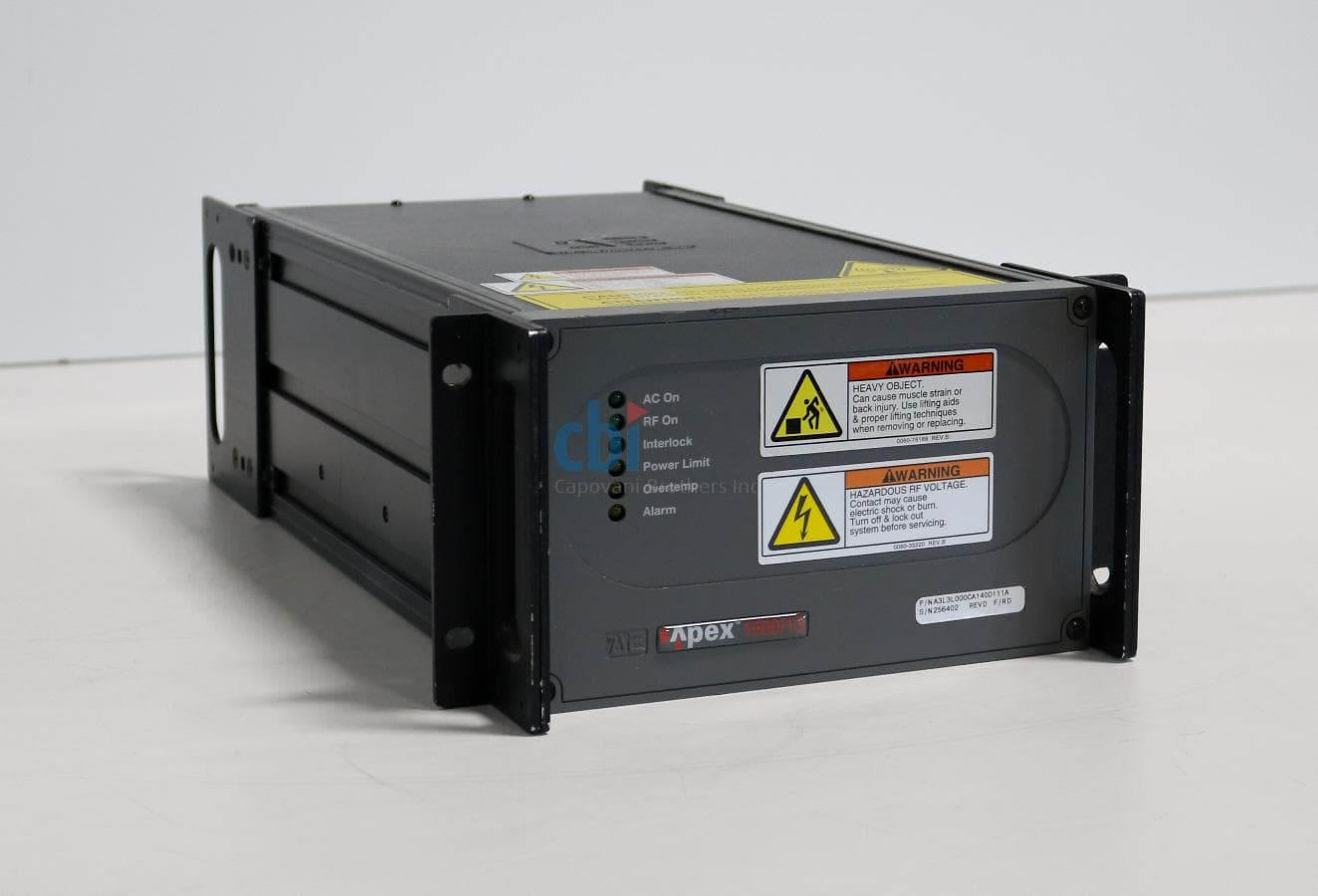

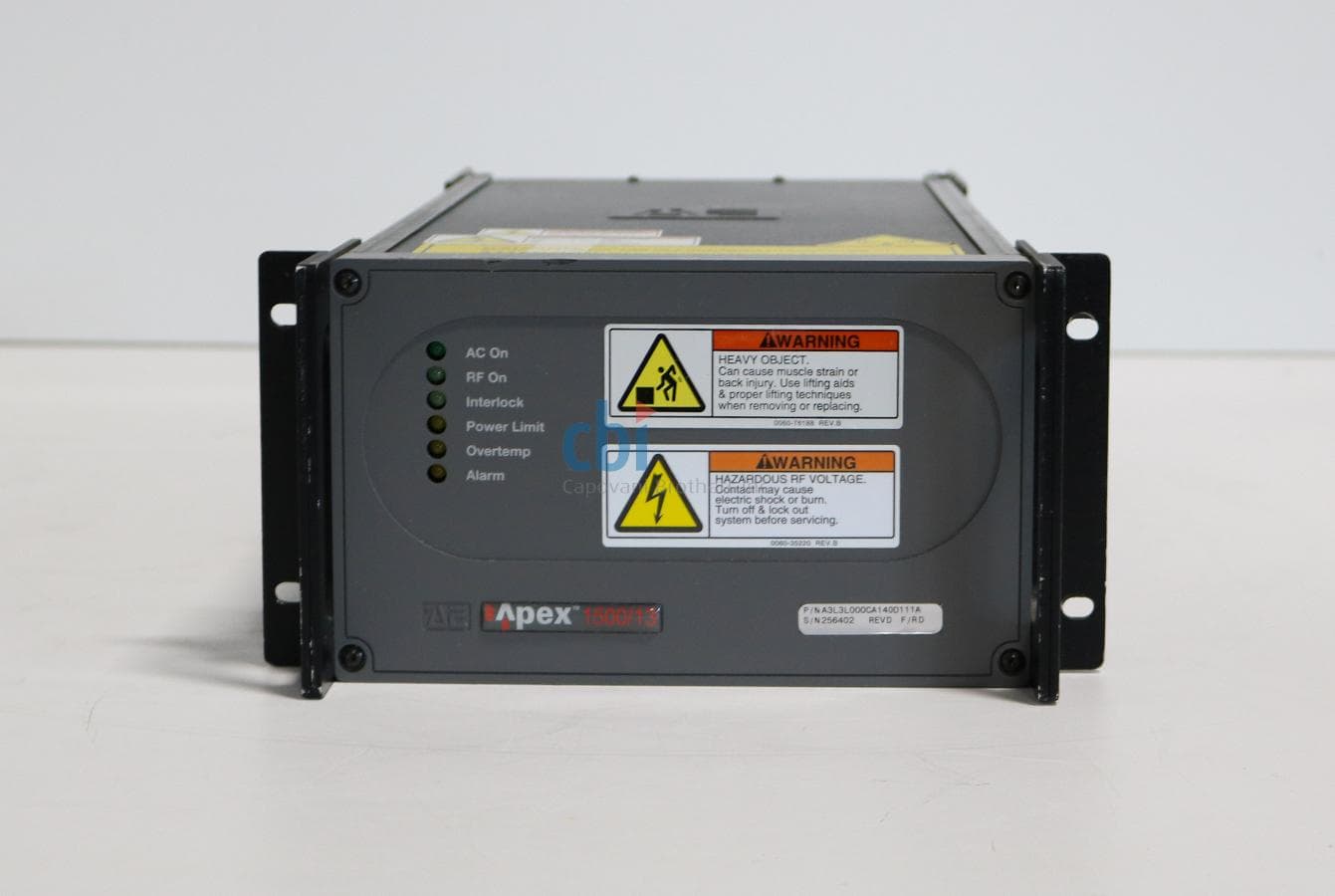

Advanced Energy Apex 1500/13 Half Rack RF Generator

Quoted on requestWorking & warranted
Condition
Used See details
Brand
Advanced Energy
MPN
Apex 1500/13
SKU
207153
Availability
1 in stock
Make Inquiry

Shipping, sale coverage & payments

Shipping:
Ships from Scotia, NY. Method, cost and timing confirmed on your quote. Shipping policy
Lead Time:
We’ll confirm exact timing when we send your quote.
Sale Coverage:
Working & Warranted: 90-day warranty. View terms
International Orders:
Case by case; export controls may affect eligibility. Contact us
Payments:
Credit card via Stripe, or purchase order. Payment Information
Independent Reseller:
Capovani is not an authorized distributor or representative of the original manufacturer.
Capovani Brothers Inc.

Shop with confidence

Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani

Item description

Power cord with Hubbell 30A 250V 3 phase 4 wire plug included

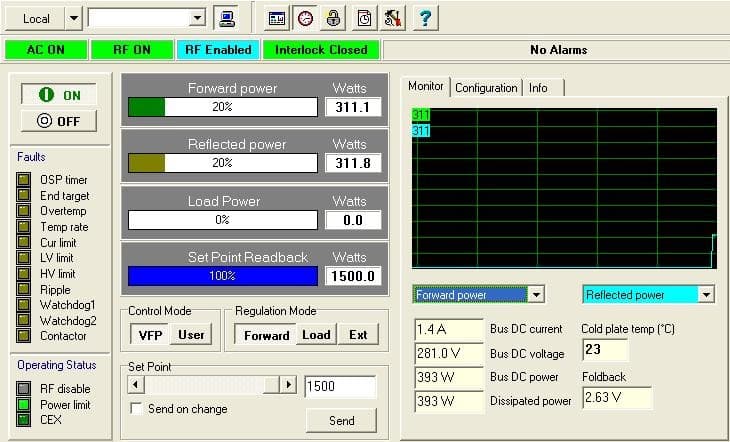

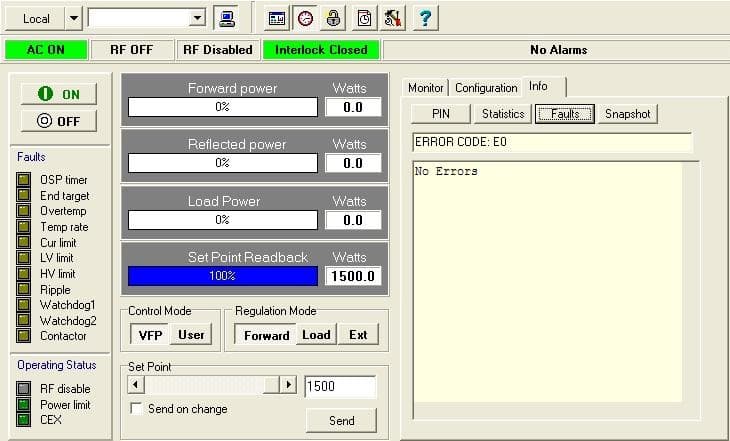

Tested, see last 6 pictures in the "... other images" link above

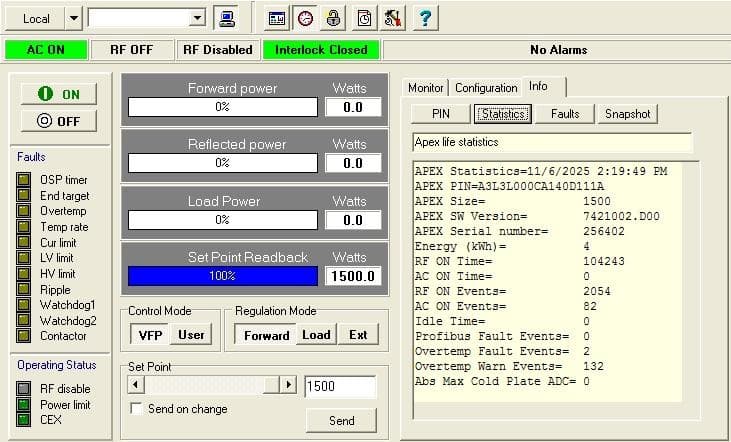

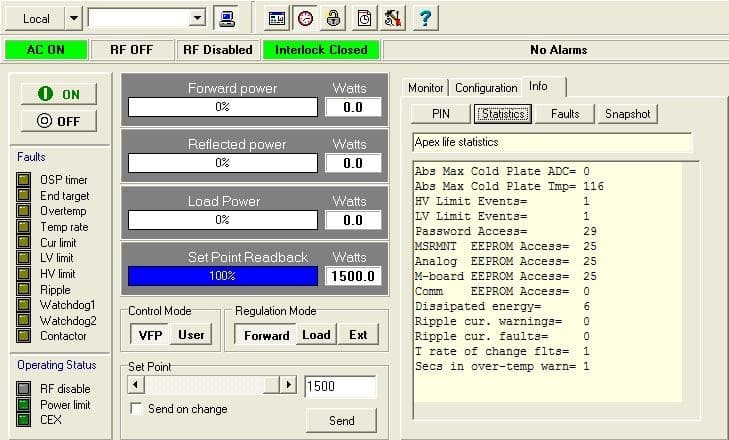

Time in statistic screen is in seconds.

On power-up 25 pin user port is always active, use AE BUS command 14 to change to host mode. The control mode setting is stored in volatile memory, so it will need to be set each time unit is powered up.

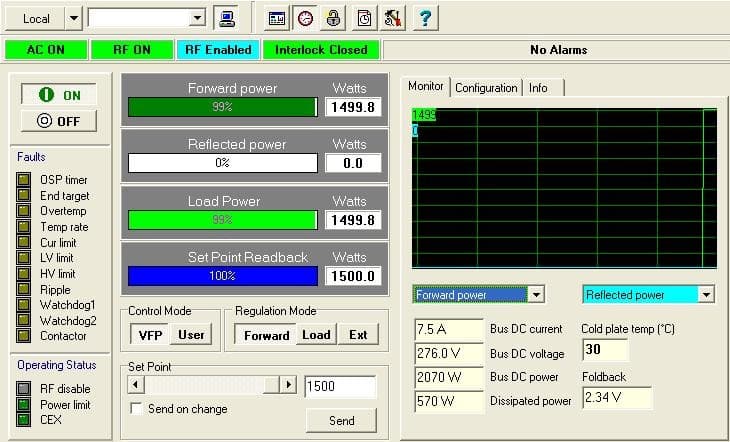

Windows 2000 Virtual Front Panel software available.

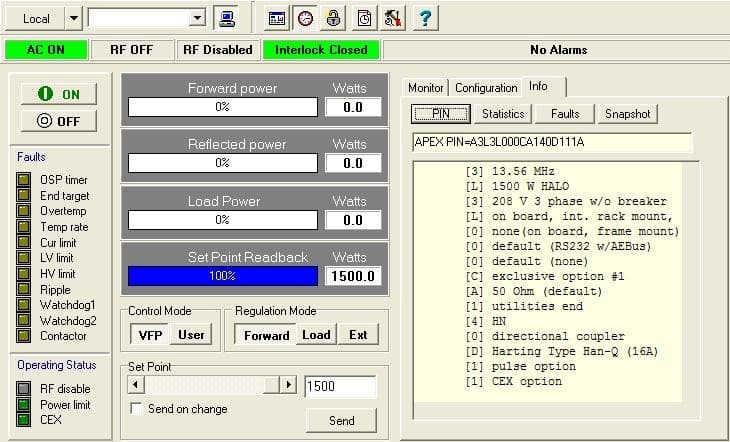

Full P/N: A3L3L000CA140D111A

Output frequency: [3] 13.56 MHz

Power output: [L] 1500 W HALO

Input voltage: [3] 208 V 3 phase w/o breaker

Package: [L] on board, int. rack mount, 4 handles (LED w/4H)

Panel: [0] none(on board, frame mount)

Serial I/O: [0] default (RS232 w/AEBus)

Serial port 2: [0] default (none)

Analog I/O: [C] exclusive option #1

Output Impedance: [A] 50 Ohm (default)

On-board RF con: [1] utilities end

Output Connector: [4] HN

RF Measurement: [0] directional coupler

AC Power Input: [D] Harting Type Han-Q (16A)

Pulsing: [1] pulse option

CEX: [1] CEX option

H2O Fittings: [1] 3/8 NTP female

Custom Config: [A] standard configuration

Manufacturer link https://www.advancedenergy.com/en-us/products/plasma-power-products/rf-plasma-generators/apex/

Technical specifications

Rated Power Output1500 Watts
Frequency13.56
ScaleMHz
InterfaceI/O Port
Interface 2RS 232
External CoolingWater Cooled
Power Requirements208 V 6.8 A 50/60 Hz 3 Phase
CE MarkedYES
Weight37 lb (17 kg)

Exterior Dimensions

Width10.500 in (26.7 cm)
Depth17.500 in (44.5 cm)
Height5.250 in (13.3 cm)

Condition & testing notes

Previously in service and offered for secondary-market resale.
