Airco Temescal BJD-1800 Filament Evaporator
Quoted on requestWorking & warranted
- Condition
- Used See details
- Brand
- Airco Temescal
- MPN
- BJD-1800
- SKU
- 52623
- Availability
- 1 in stock
Shipping, sale coverage & payments
- Shipping:
- Ships from Scotia, NY. Method, cost and timing confirmed on your quote. Shipping policy
- Lead Time:
- We’ll confirm exact timing when we send your quote.
- Sale Coverage:
- Working & Warranted: 90-day warranty. View terms
- International Orders:
- Case by case; export controls may affect eligibility. Contact us
- Payments:
- Credit card via Stripe, or purchase order. Payment Information
- Independent Reseller:
- Capovani is not an authorized distributor or representative of the original manufacturer.
Shop with confidence
Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani
Item description

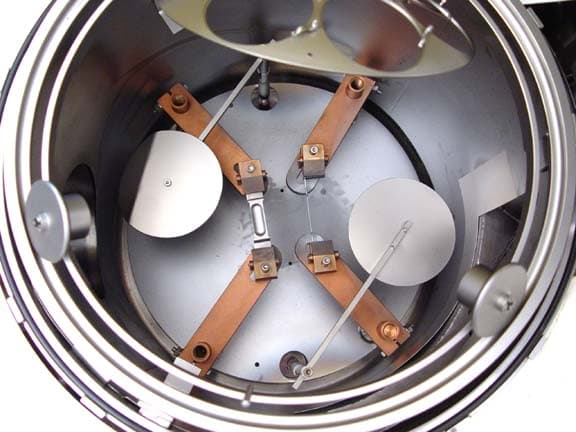

Source Chamber
18" Dia x 18" High, water cooled, 304 stainless steel
Source Tray
18" Dia flat plate with 10 1" dia. feedthrough ports

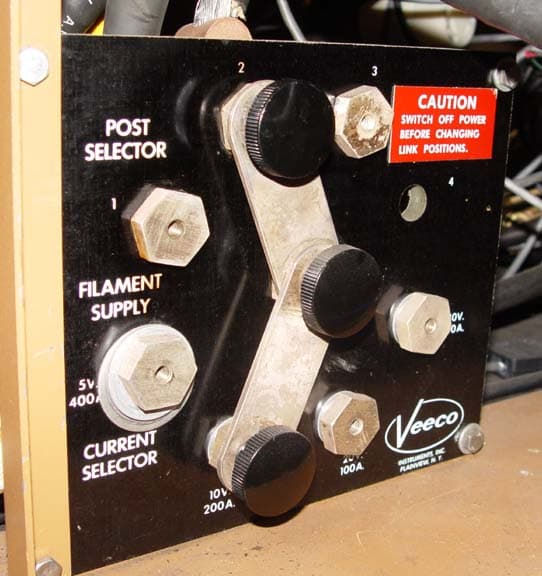

1 EMI EMS 7.5V 600A DC Power Supply

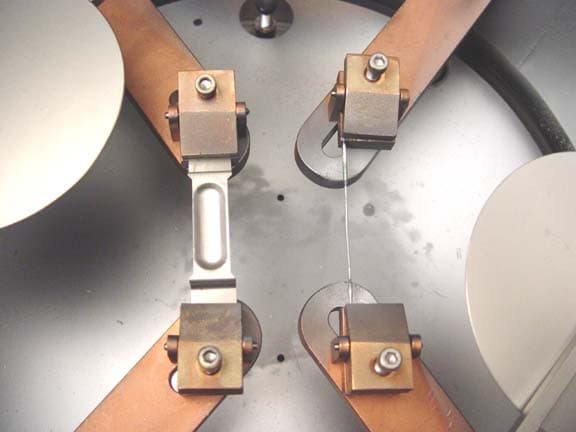

Two filament boats - Sequential operation.

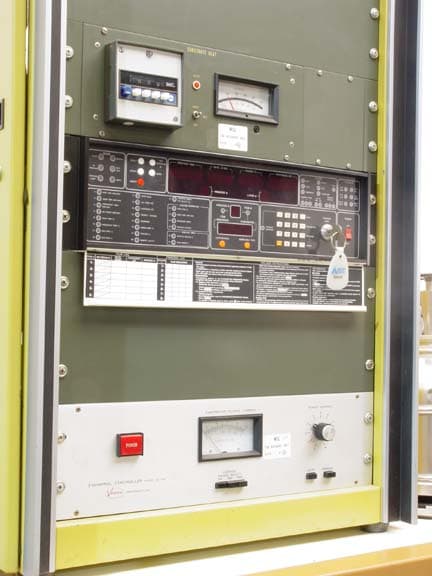

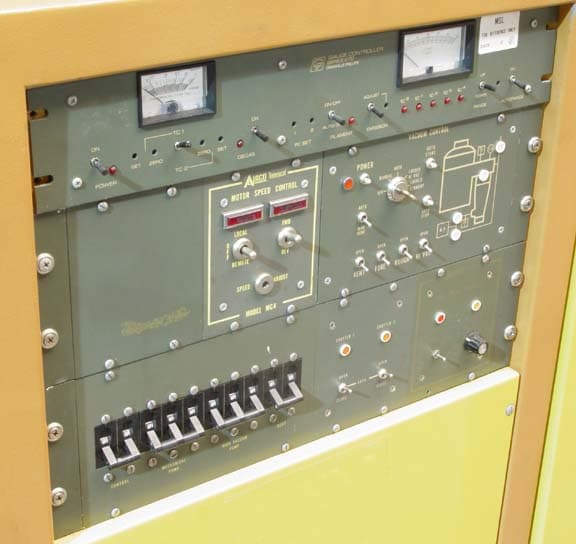

Granville Philips 307 Gauge Controller with process control
NB: Substrate domes not included. Film thickness monitor shown not included.
Technical specifications
| Vacuum System | Cryo Pumped |
| Vacuum System | CTI Cryotorr 8 CTI compressor, Water cooled Helium lines and CTI regeneration controller Base pressure in the clean chamber will be in 10-8 Torr range after extended pump down time. |
| Film Thickness Monitor | No |
| Power Requirements | 208 V 70.0 A 60 Hz 3 Phase |
| Weight | 1,322 lb (600 kg) |
Exterior Dimensions
| Width | 56.000 in (142.2 cm) |
| Depth | 34.000 in (86.4 cm) |
| Height | 89.000 in (226.1 cm) |
Condition & testing notes
Previously in service and offered for secondary-market resale.
