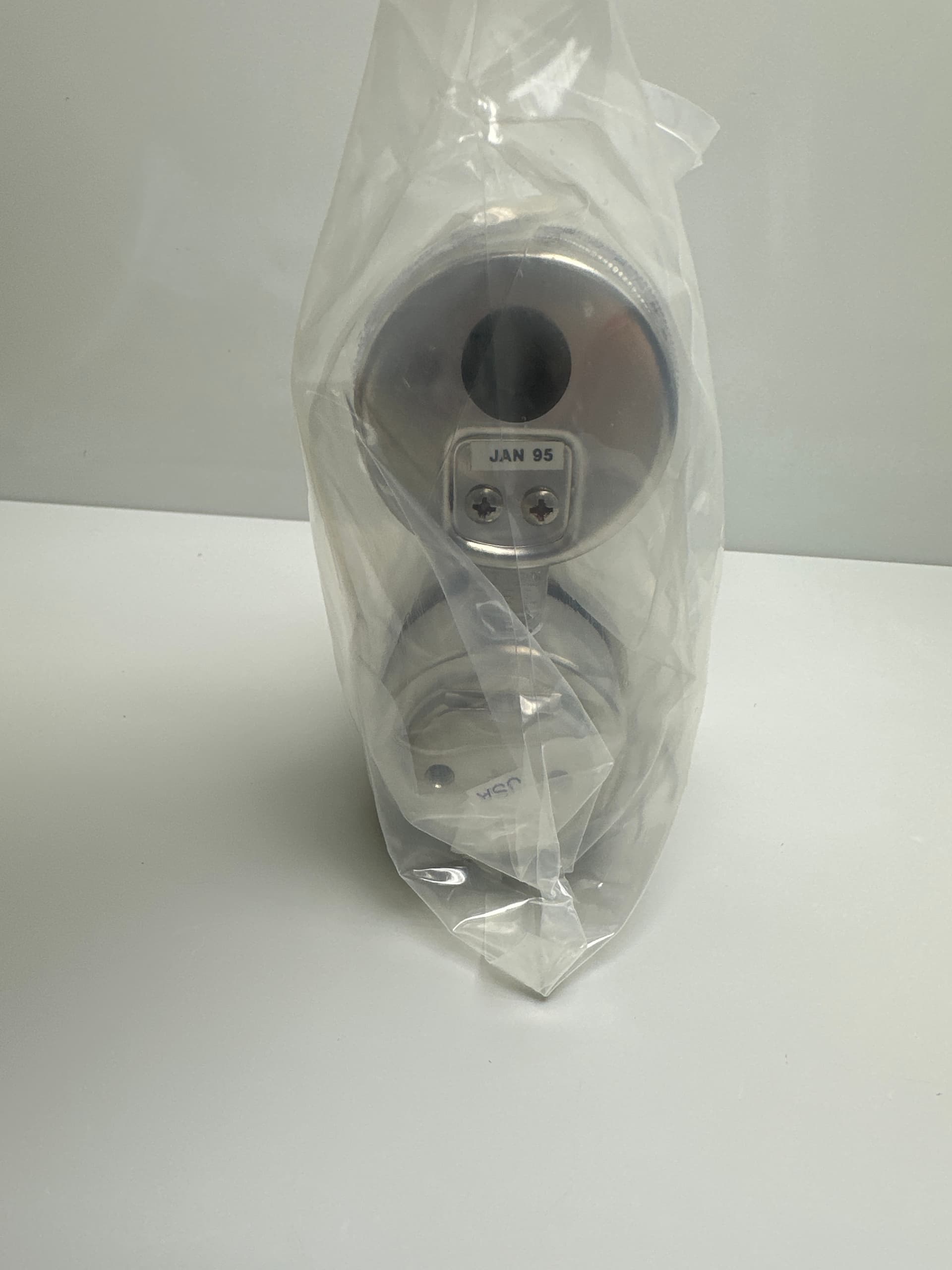

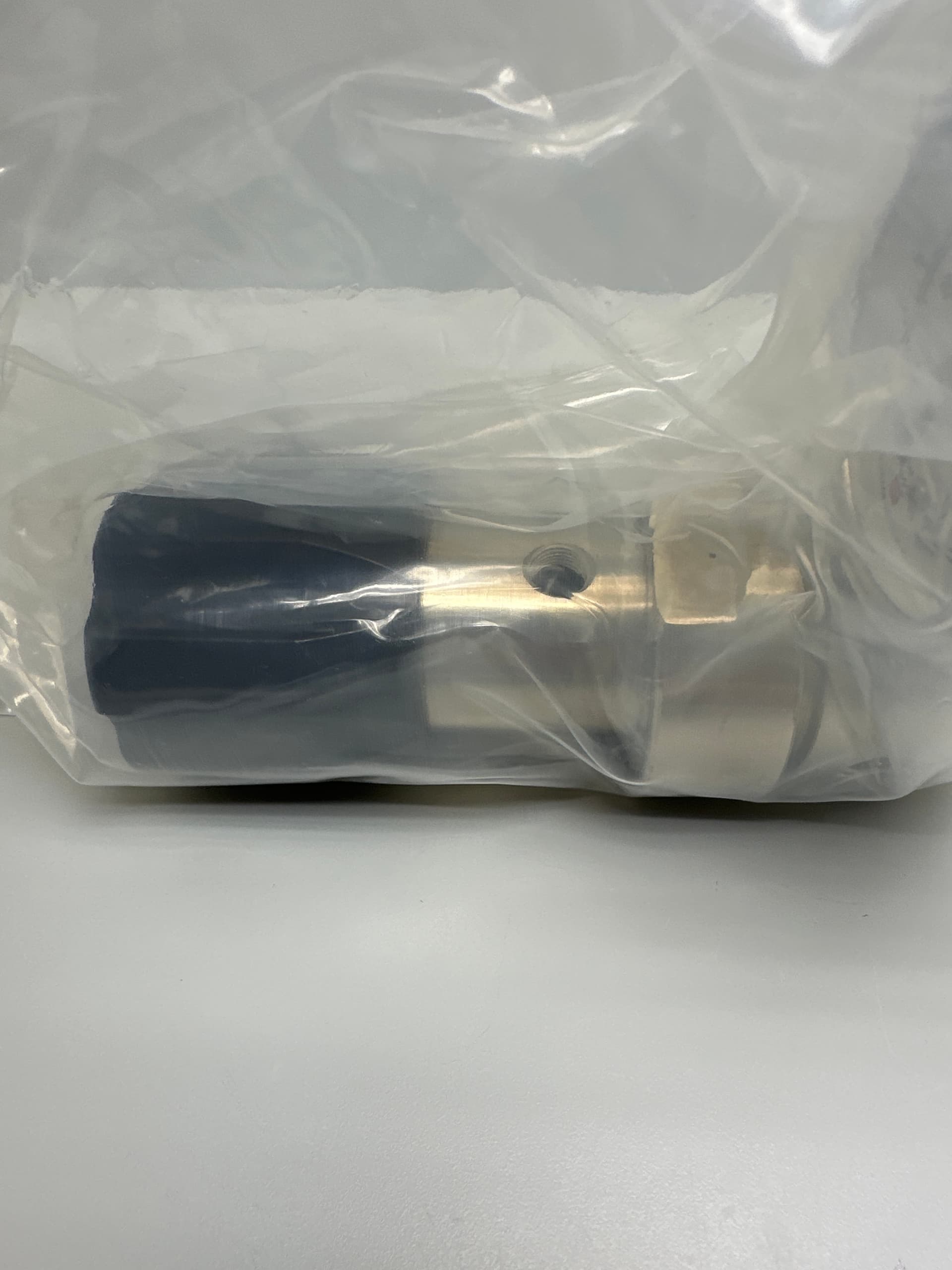

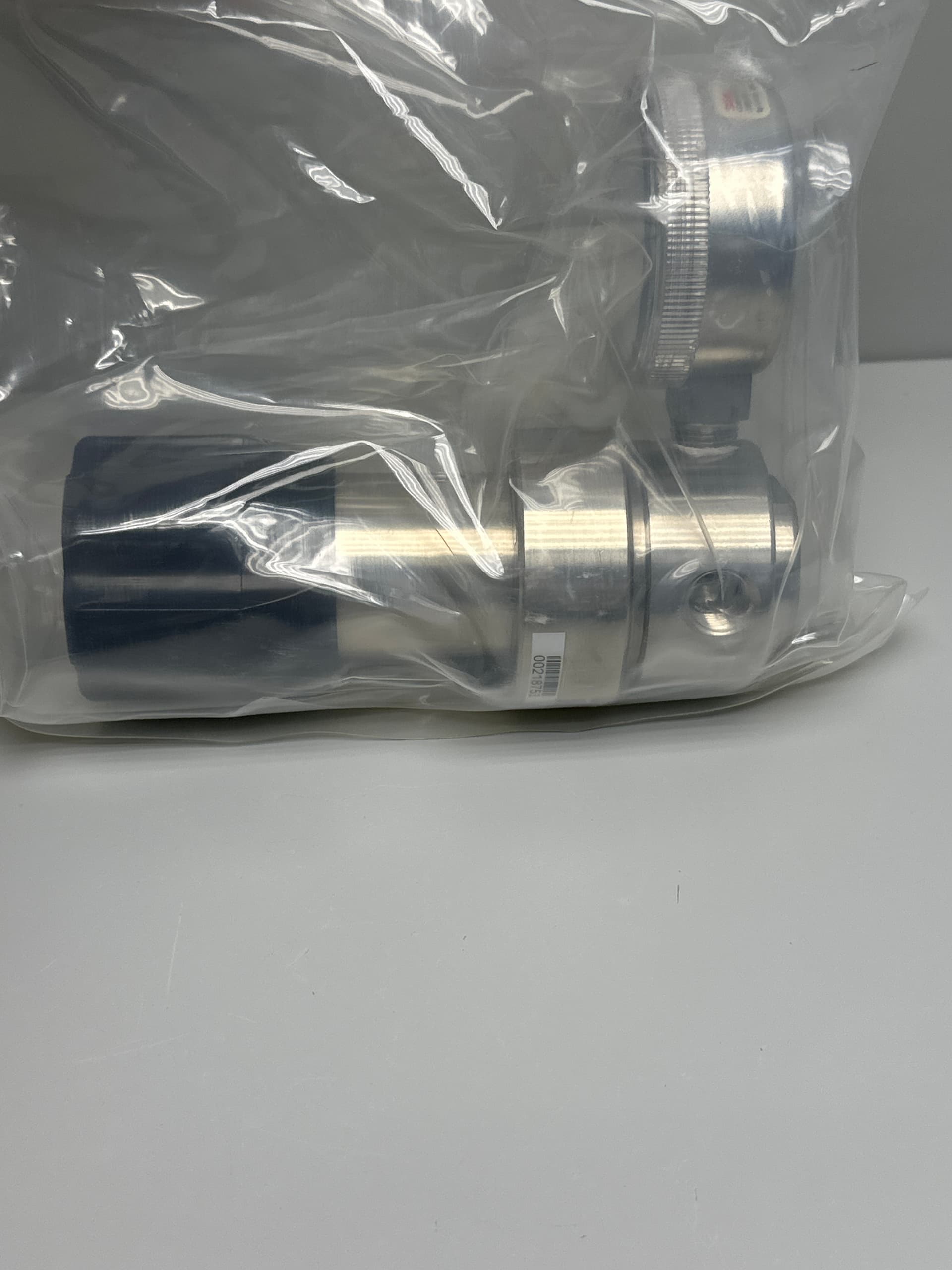

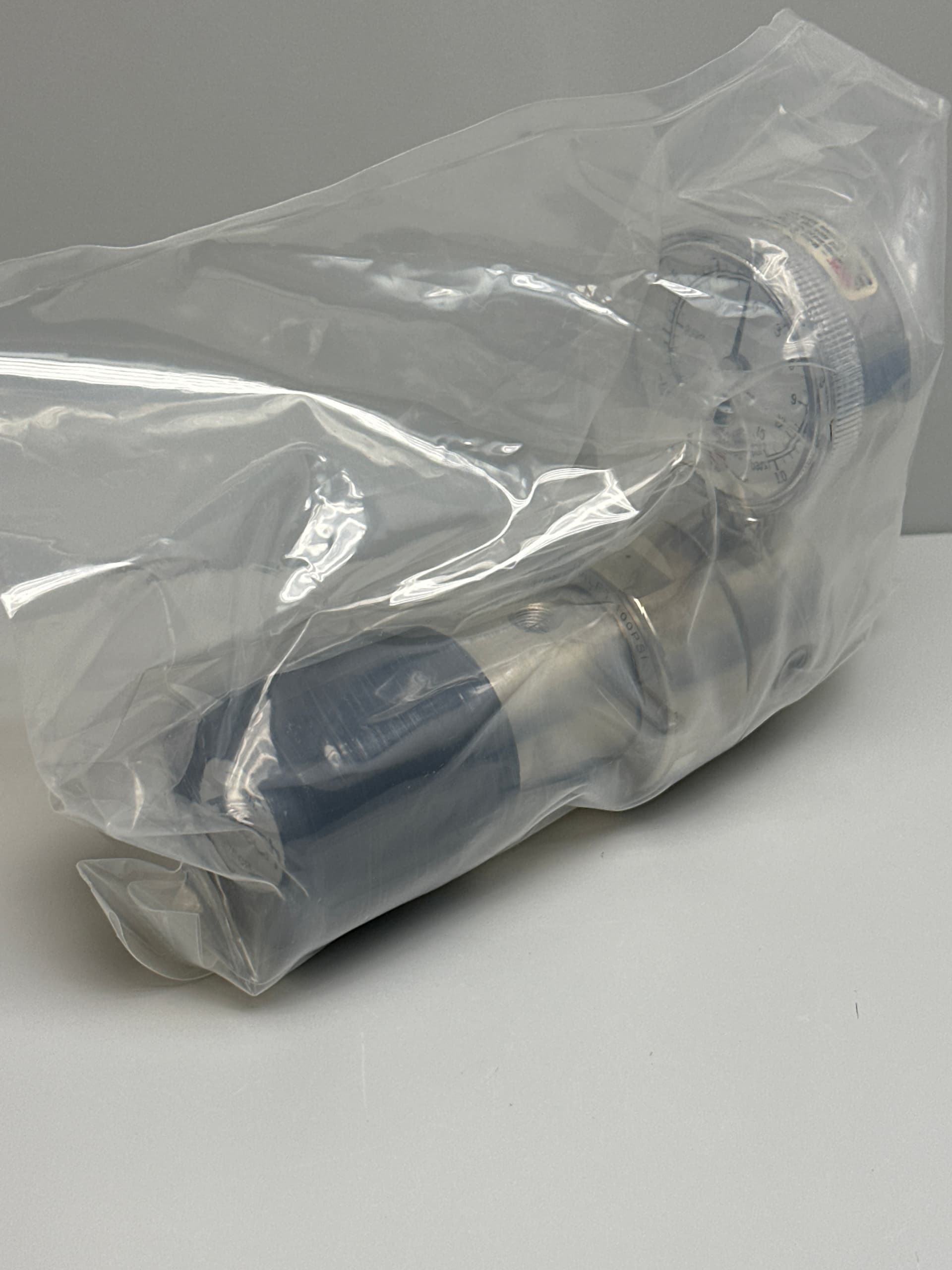

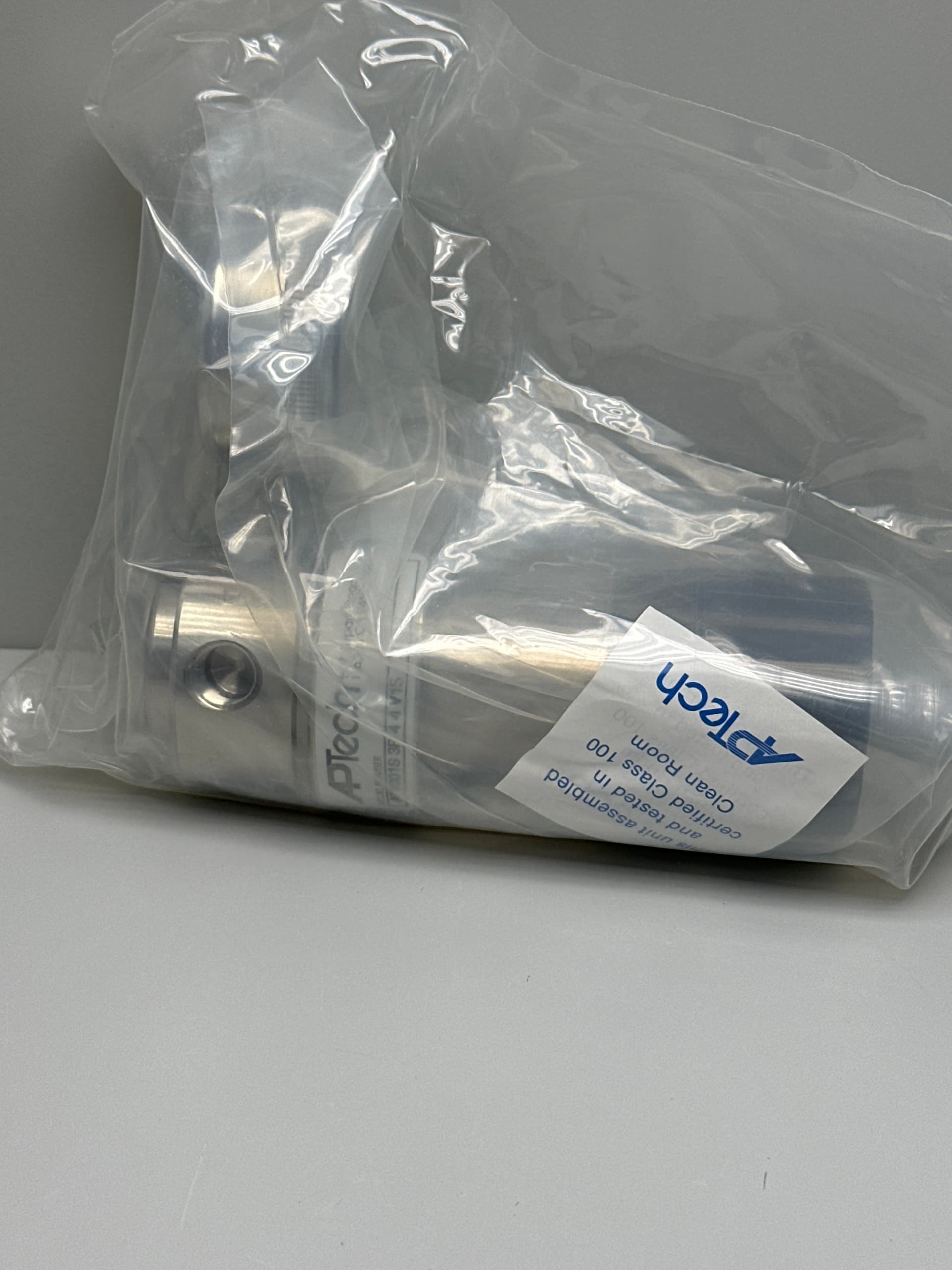

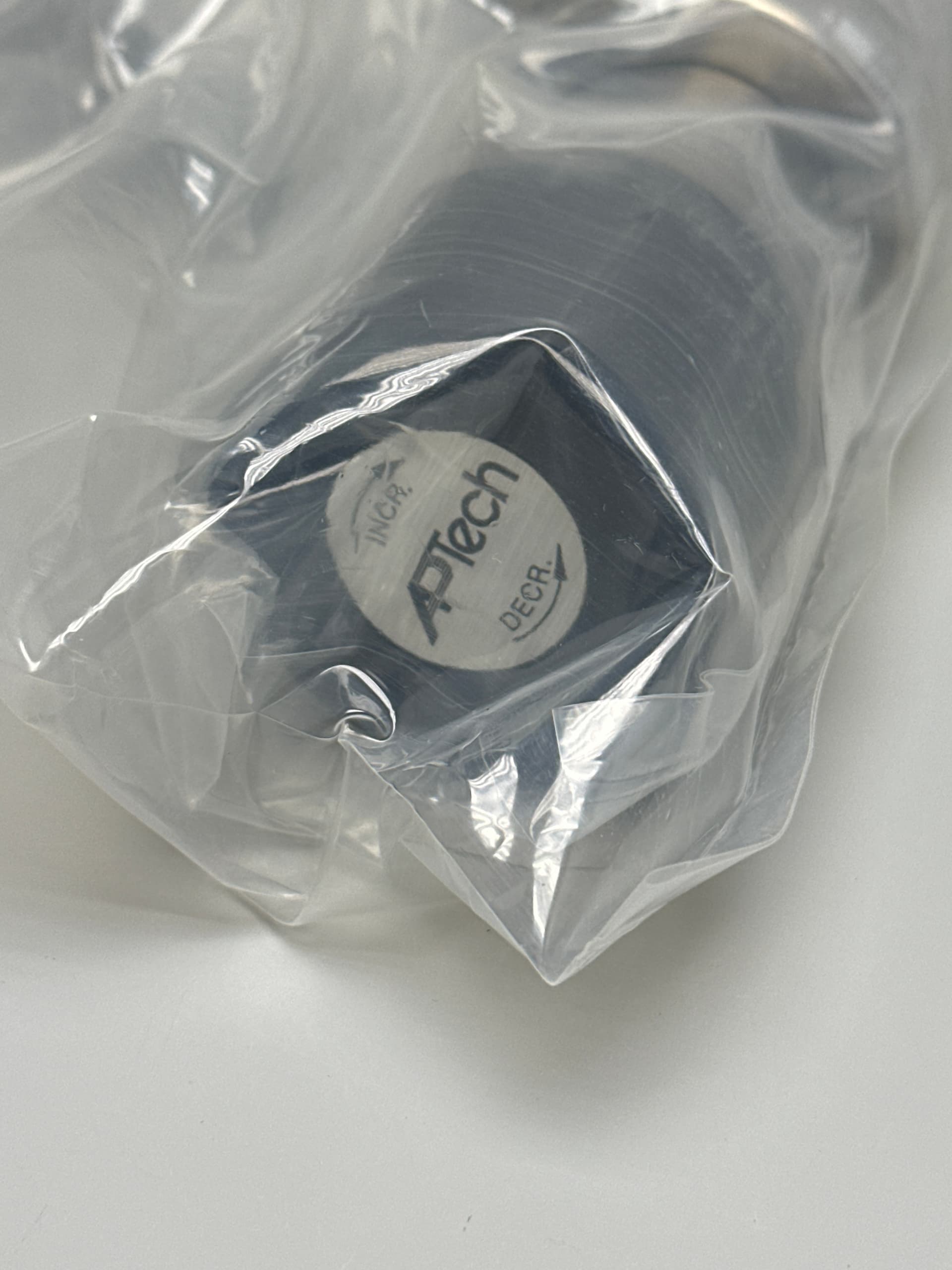

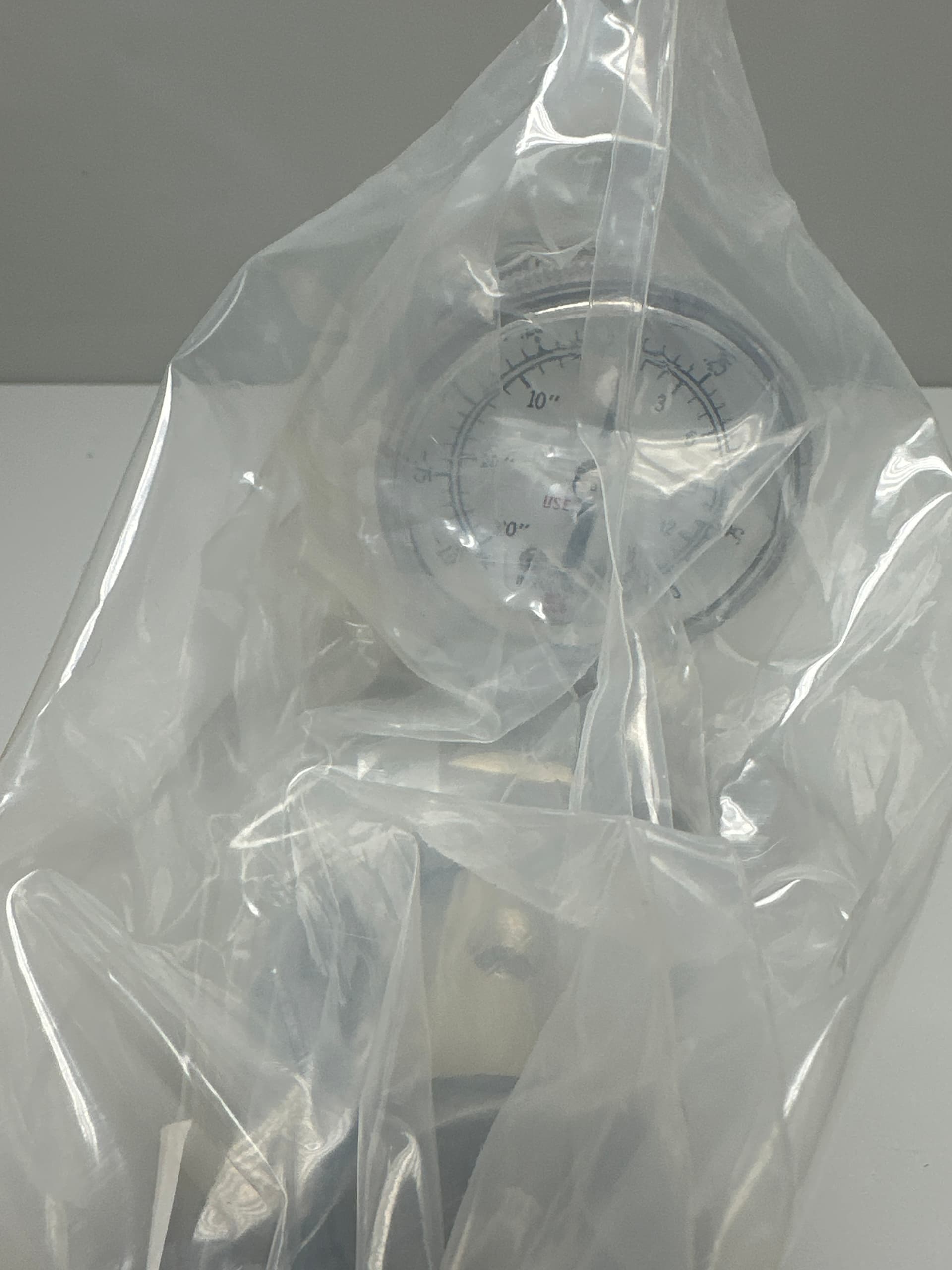

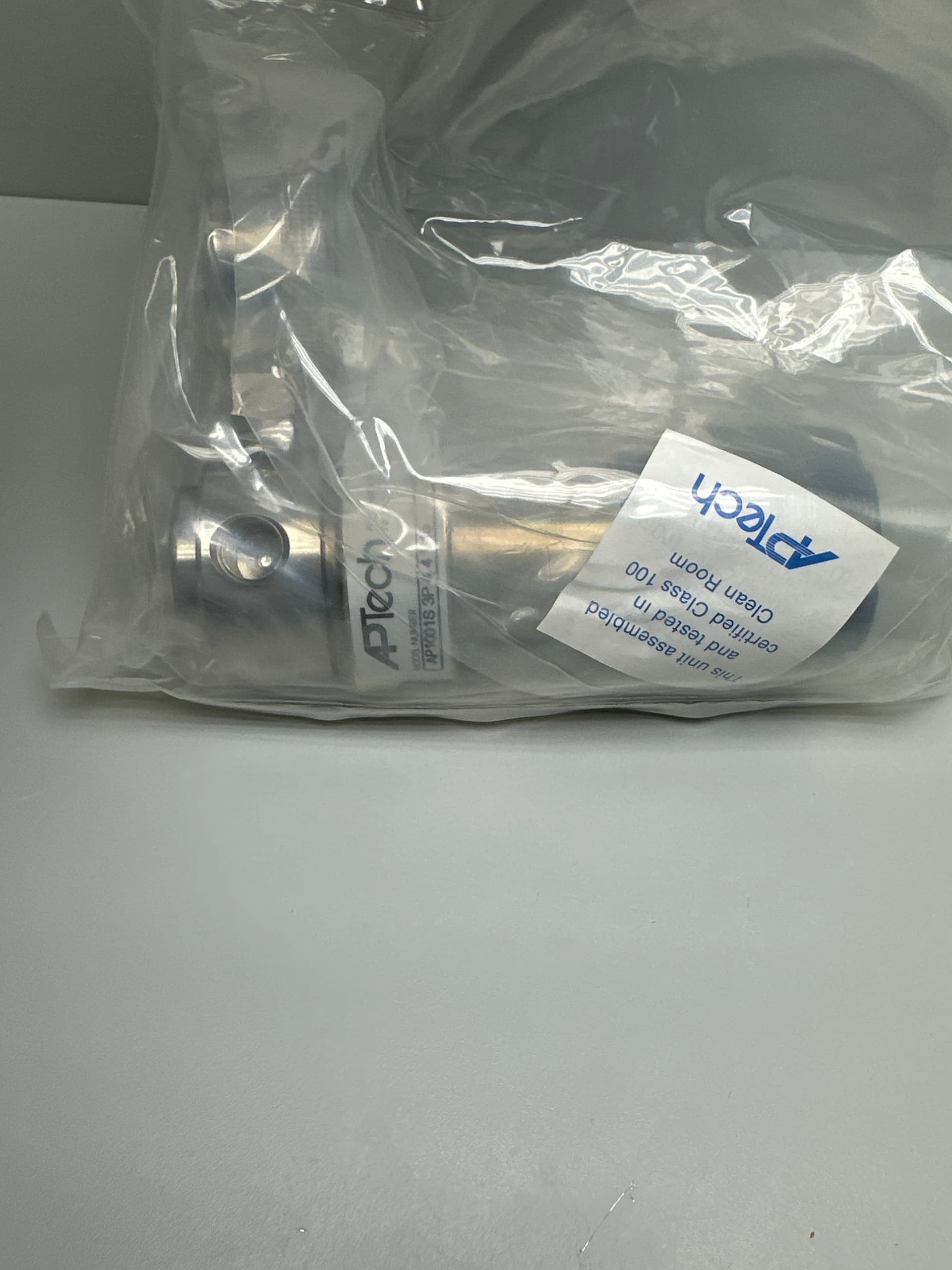

APTech AP1001S 3P 4 4 V15 Single Stage Regulator, UHP, 316L SS
$950.0030 day return
- Condition
- Brand new See details
- Brand
- APTech
- MPN

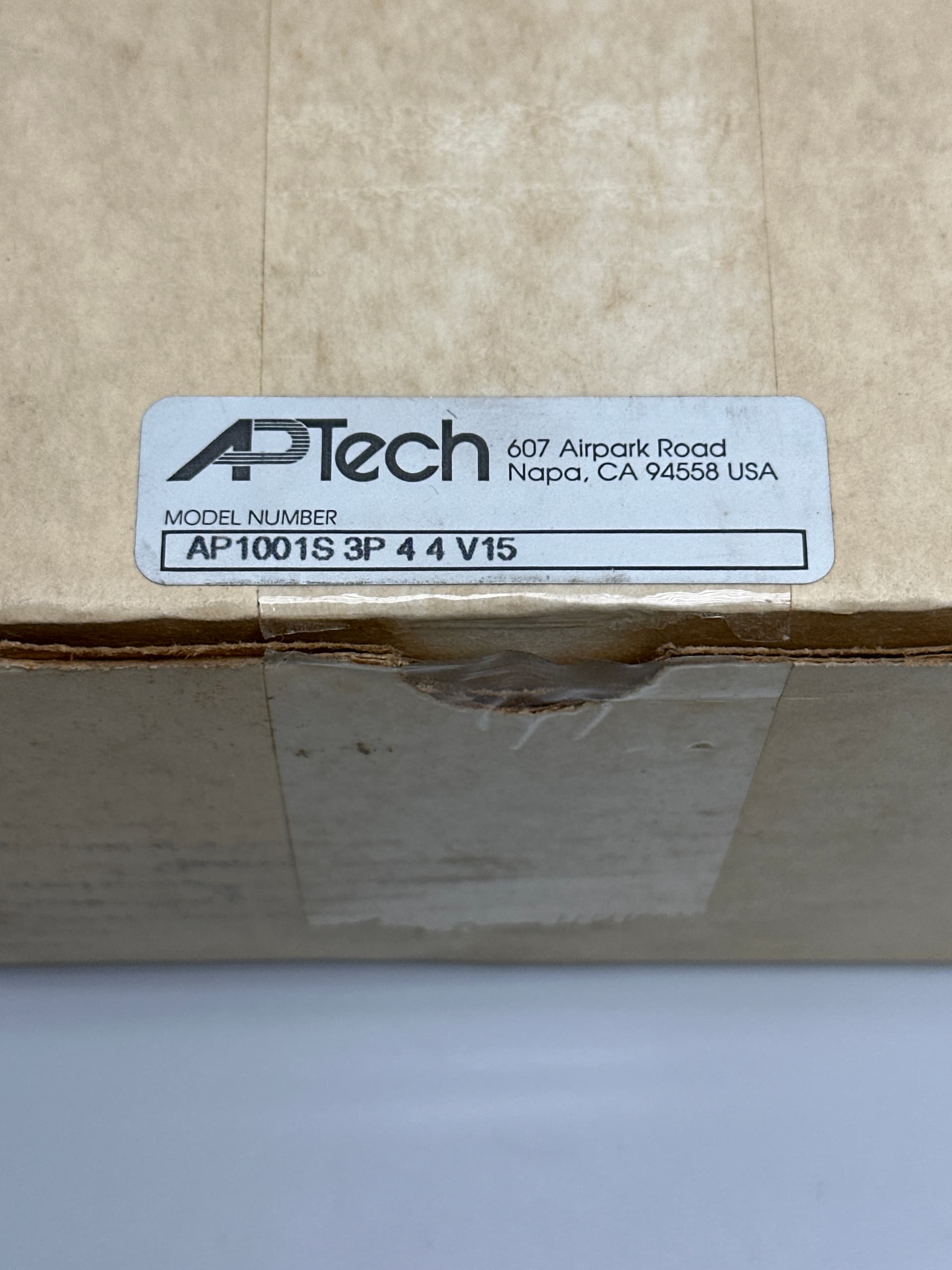

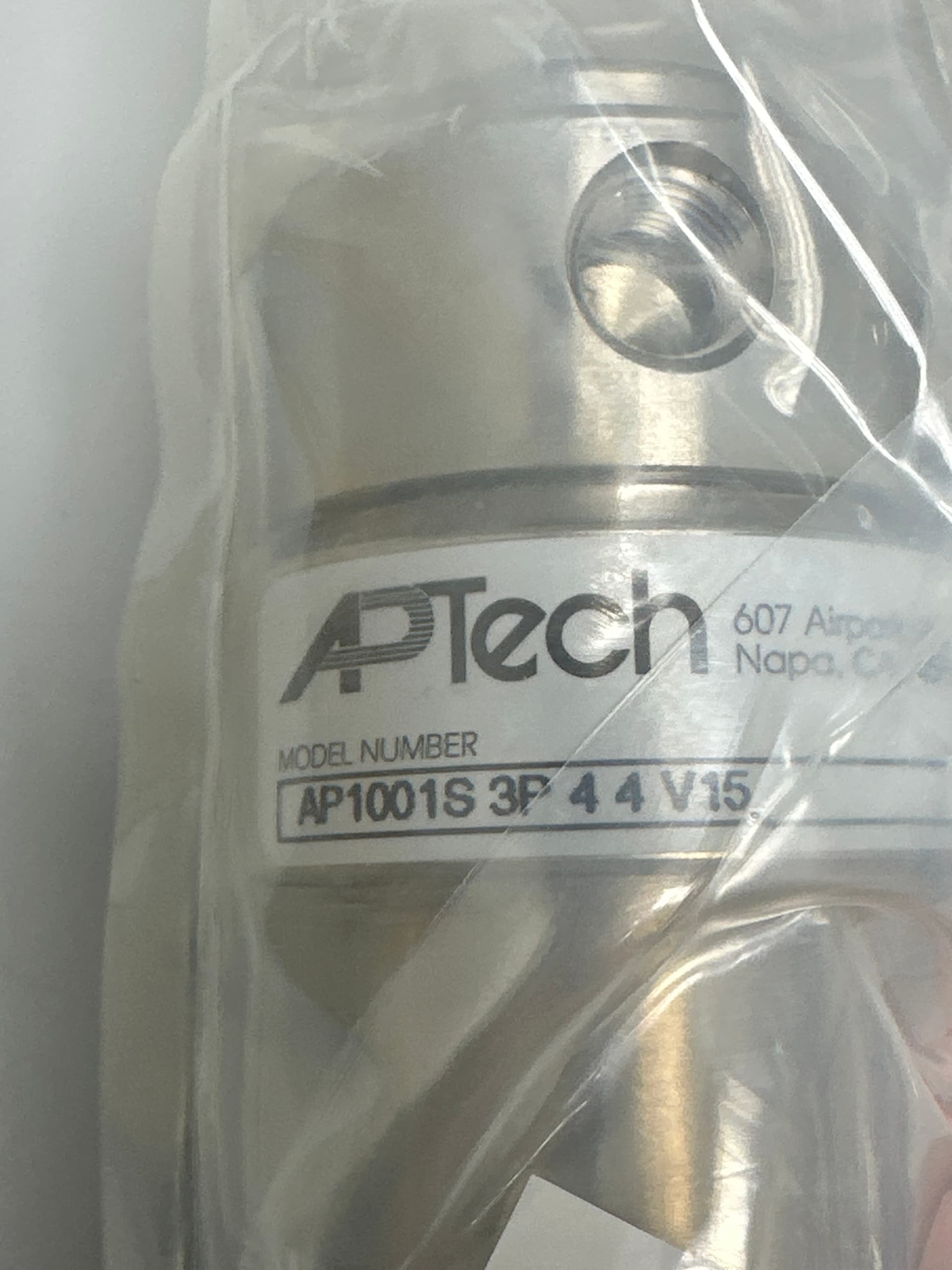

- AP1001S 3P 4 4 V15
- SKU
- CID1421
- Availability
- 1 in stock
Shipping, sale coverage & payments
- Shipping:
- Ships from Scotia, NY. UPS parcel within 3 business days of order confirmation; cost calculated at checkout. Shipping policy
- Sale Coverage:
- 30 Day Return: 30-day functional return. View terms
- International Orders:
- Case by case; export controls may affect eligibility. Contact us
- Payments:
- Credit card via Stripe, or purchase order. Payment Information
- Independent Reseller:
- Capovani is not an authorized distributor or representative of the original manufacturer.
Shop with confidence
Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani
Item description
1 to 10 psig delivery range, vacuum to 3500 psig source, Cv 0.09 standard. 316L SS secondary remelt body with PCTFE seat for UHP gas delivery; low-to-intermediate flow configuration.
Technical specifications
| Delivery pressure | 1 to 10 psig (0.007 to 0.07 MPa) |
| Source pressure | Vacuum to 3500 psig (24.1 MPa) |
| Cv | 0.09 |
| Body material | 316L SS secondary remelt |
| Seat material | PCTFE (standard) |
| Ambient and operating temperature | -40 to 160°F (-40 to 71°C), no freezing |
Regulator Specifications
| Delivery pressure | 1 to 10 psig (0.007 to 0.07 MPa) |
| Source pressure | Vacuum to 3500 psig (24.1 MPa) |
| Cv | 0.09 |
| Body material | 316L SS secondary remelt |
| Seat material | PCTFE (standard) |
| Ambient and operating temperature | -40 to 160°F (-40 to 71°C), no freezing |
Condition & testing notes
Never used inventory in brand new condition. The item is from old surplus stock.
