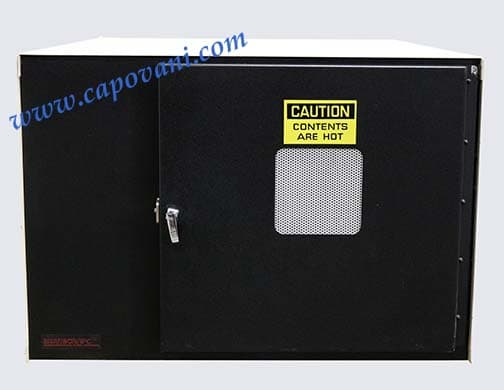

Branson 4155/2 Plasma Asher/Etcher

Quoted on requestWorking & warranted
Condition
Used See details
Brand
Branson/IPC
MPN
4155/2
SKU
189210
Availability
1 in stock
Make Inquiry

Shipping, sale coverage & payments

Shipping:
Ships from Scotia, NY. Method, cost and timing confirmed on your quote. Shipping policy
Lead Time:
We’ll confirm exact timing when we send your quote.
Sale Coverage:
Working & Warranted: 90-day warranty. View terms
International Orders:
Case by case; export controls may affect eligibility. Contact us
Payments:
Credit card via Stripe, or purchase order. Payment Information
Independent Reseller:
Capovani is not an authorized distributor or representative of the original manufacturer.
Capovani Brothers Inc.

Shop with confidence

Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani

Item description

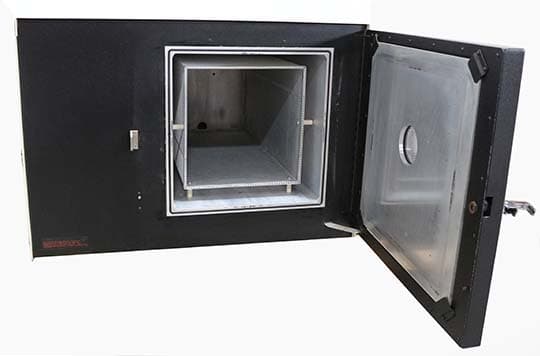

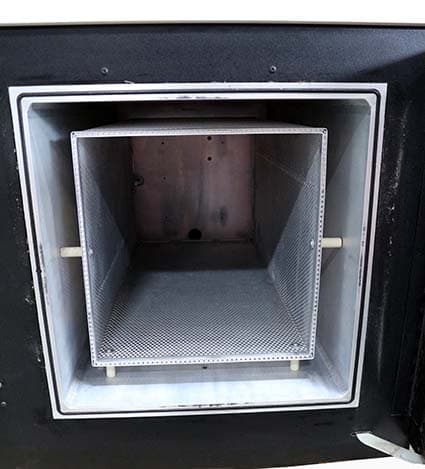

Faraday Cage (installed)

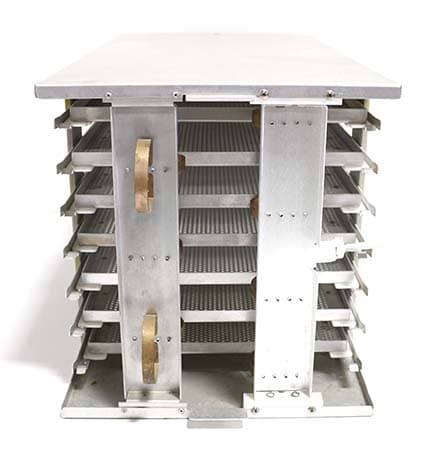

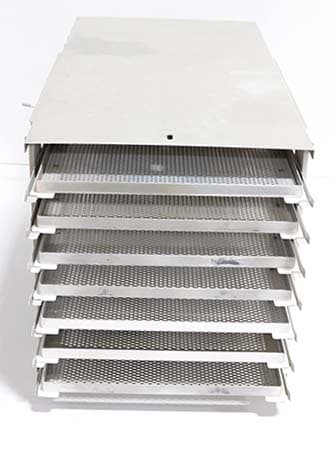

Seven shelf insert, 1.5" between shelves, see photos (option), inquire about price and availability

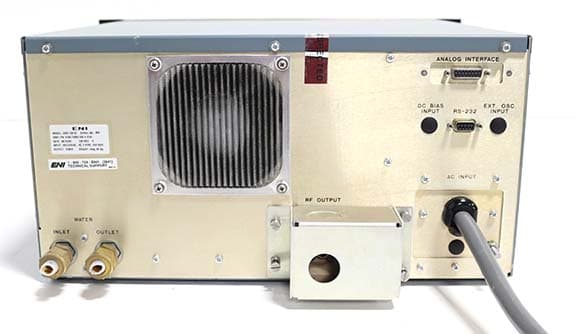

RF Generator

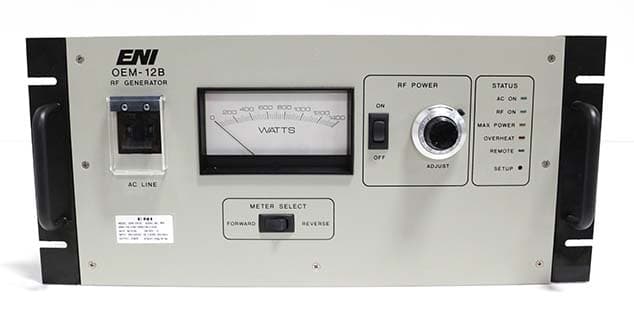

Solid state generator will be retrofitted, ENI model OEM12 water cooled

200-240V 20.0A 50/60Hz 1 Phase

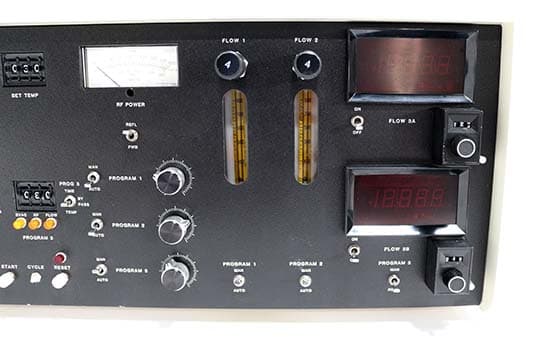

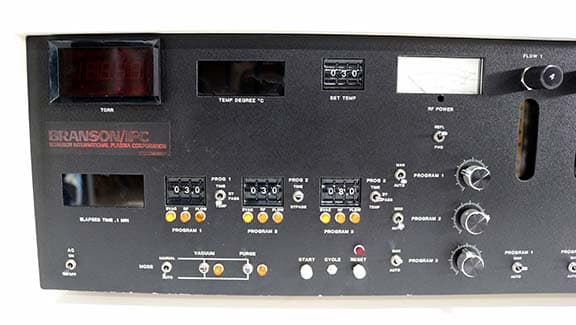

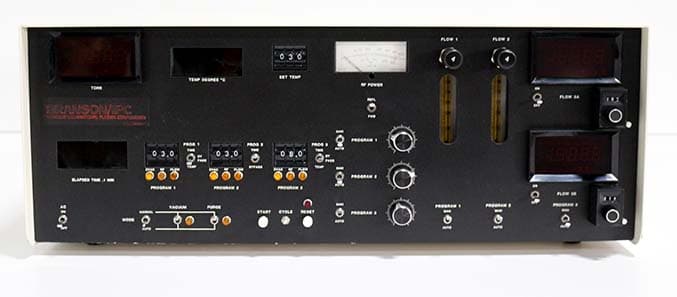

Controller

Model: S2000(Part No. 10462)

120V 6.0 A 50/60 Hz 1 Phase

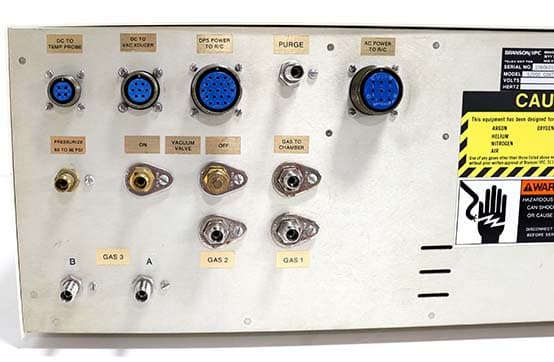

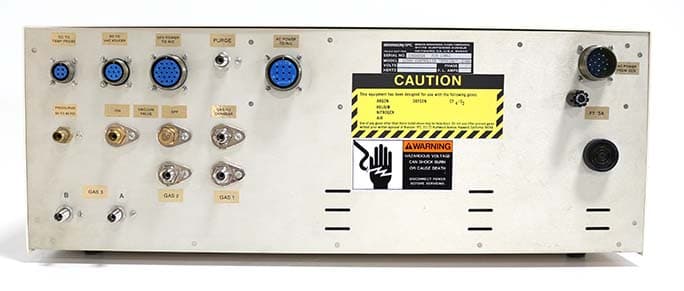

Has 6 gas ports

Dimensions: 25"W x 20"D x 9"H

Etch tunnel dimensions: 11.5"W x 26"D x 11.5"H

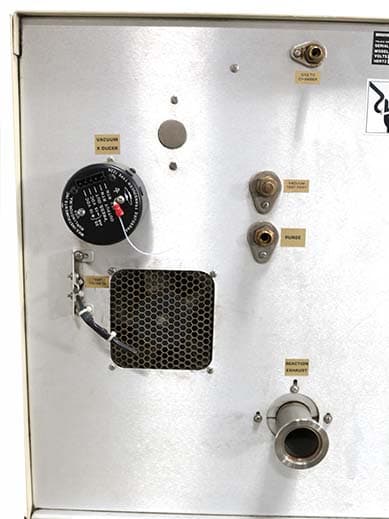

MKS pressure transducer--Type 122A

Vacuum port flange KF40

Technical specifications

Rated Power Output1000 Watts
Chamber ConstructionAluminum
Number of Gas InputsTwo Gas
Automatching Network IncludedYes
Vacuum Pump IncludedNo
RF Generator ModelOEM12
Panel MetersAnalog
External CoolingAir- OR Water-Cooled
Power Requirements200-240 V 20.0 A 1 Phase
Year of Manufacture1988
Weight440 lb (200 kg)

Chamber Size

Width14.75 in (37.47 cm)
Depth30.00 in (76.20 cm)
Height14.75 in (37.47 cm)

Exterior Dimensions

Width32.000 in (81.3 cm)
Depth43.000 in (109.2 cm)
Height36.000 in (91.4 cm)

Condition & testing notes

Previously in service and offered for secondary-market resale.
