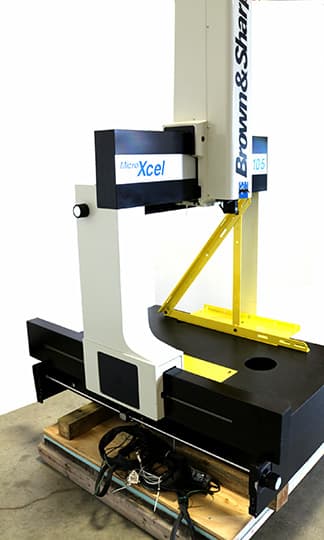

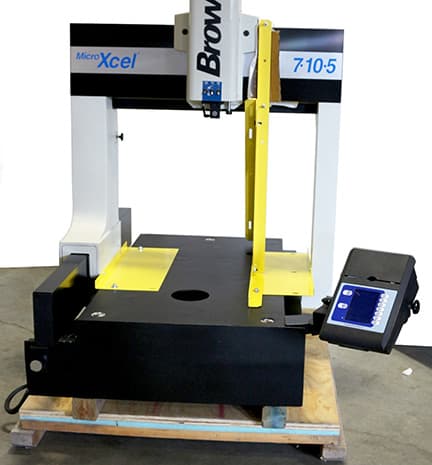

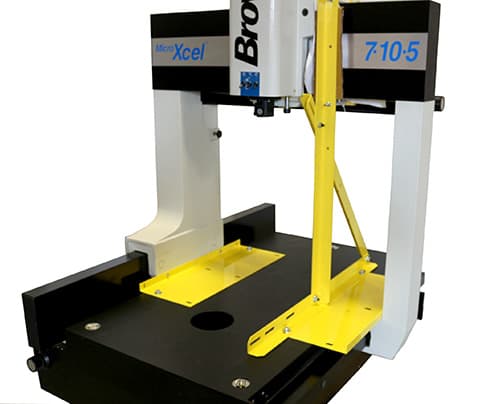

Brown & Sharpe MicroXcel 7105 Coordinate Measuring Machine

Name: Brown & Sharpe MicroXcel 7105 Coordinate Measuring Machine
Brand: Brown & Sharpe
SKU: 178063

Item description

Working capacity XYZ: 32.5" x 53" x 22.5

Volumetric performance: Performance/Ball Bar Lg.

0.0004" / 15"8"

Scale resolution: 0.0000025"

Display range: +/- 999.99999

Display resolution: 0.00001"

Linear Displacement Accuracy

X Axis: 0.00024"

Y Axis: 0.00024"

Z Axis: 0.00024"

The pdf within the extended description has additional specifications for this CMM.

Measuring Range: X: 29.50 in (74.93 cm) Y: 41.60 in (105.66 cm) Z: 19.70 in (50.04 cm)
Display Range: 999.99999 in (2,539.99997 cm)

Working & Warranted
Working & Warranted means the item has been inspected by Capovani engineers to confirm functional condition and is sold with a 90 day warranty.
Our standard procedure is to service the equipment as orders are placed. Lead times can vary depending on the item.
