Cae Ney Aqueous BCS-6-US Cleaning System

Quoted on requestWorking & warranted
Condition
Used See details
Brand
CAE NEY
MPN
BCS-6-US
SKU
13227
Availability
1 in stock
Make Inquiry

Shipping, sale coverage & payments

Shipping:
Ships from Scotia, NY. Method, cost and timing confirmed on your quote. Shipping policy
Lead Time:
We’ll confirm exact timing when we send your quote.
Sale Coverage:
Working & Warranted: 90-day warranty. View terms
International Orders:
Case by case; export controls may affect eligibility. Contact us
Payments:
Credit card via Stripe, or purchase order. Payment Information
Independent Reseller:
Capovani is not an authorized distributor or representative of the original manufacturer.
Capovani Brothers Inc.

Shop with confidence

Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani

Item description

System Configuration

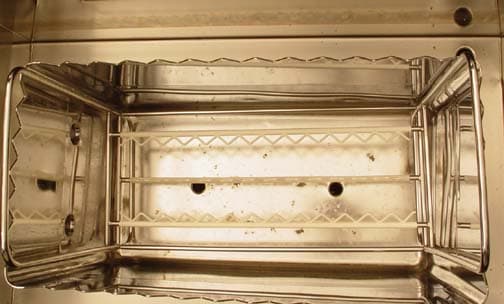

Process Tank

  • 6 gallon capacity

  • (4) Sided overflow weir

  • Electropolished

  • Coved corners

  • 1000 watt heater w/PID controller

  • Low liquid sensor

  • 10" polypropylene filter w/pressure gauge

  • March seal-less magnetic drive pump

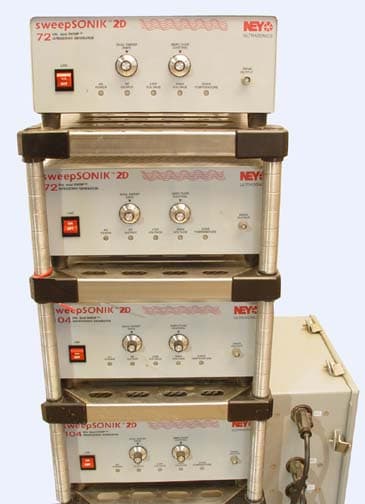

  • Dual frequency choice 72 or 104 KHz ultrasonic generators

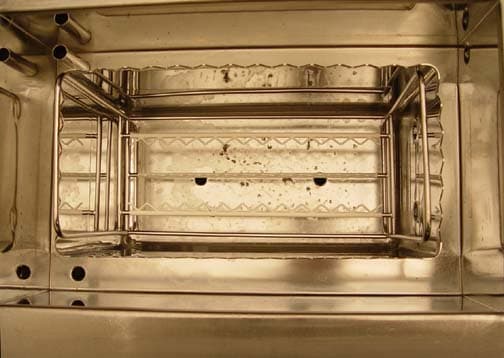

Rinse Tank

  • 6 gallon capacity

  • (4) sided overflow weir

  • Electropolished

  • Coved corners

  • 2000 Watt heater w/PID controller

  • Low liquid sensor

  • Dual frequency choice 72 or 104 KHz ultrasonic generators

Inline Water Heater

  • 7,500 watts

  • Wetted parts are Kynar and NORYL

  • Thermostat control

Max temperature: 140°F

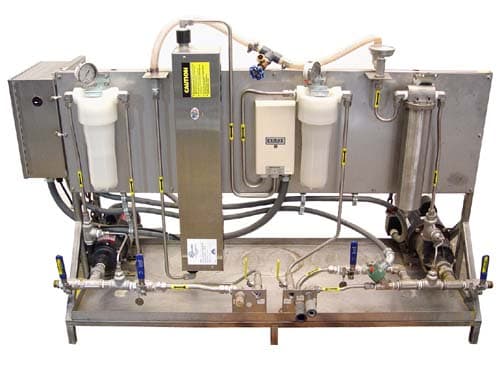

DI Water Recycle Loop

High pressure pump

Inline UV light for bacteria inhibition

(1) micron filter after UV for pyrogen removal

Resistivity meter

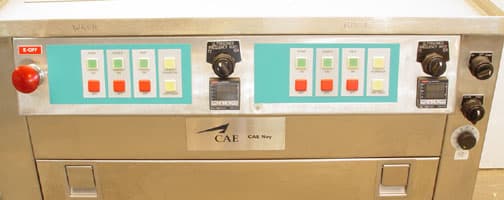

Controls

  • Frequency controls (Tank #1, #2)

  • Ultrasonic On/Off (Tank #1, #2)

  • Tank fluid temperarture (tank #1, #2)

Pump: On/Off (tank #1)

Emergency Off

Technical specifications

Capacity/Liquid22.71 L (6.00 gal)
Bath Material316 Polished stainless steel
Generator IncludedYES
Heated BathYES
Maximum Temperature60 ºC (140 ºF, 333 ºK)
Power Requirements208 V 60.0 A 50/60 Hz 3 Phase
Year of Manufacture1998

Bath/Tank Dimensions

Length15.5000 in (39.37 cm, 393.7 mm)
Width8.0000 in (20.32 cm, 203.2 mm)
Depth10.0000 in (25.40 cm, 254.0 mm)

Exterior Dimensions

Width34.250 in (87.0 cm)
Depth34.250 in (87.0 cm)
Height43.000 in (109.2 cm)

Condition & testing notes

Previously in service and offered for secondary-market resale.
