Cascade Tek TVO-2 with Auto-Pumpdown

Quoted on requestWorking & warranted
Condition
Used See details
Brand
Cascade TEK
MPN
TVO-2
SKU
239781
Availability
3 in stock
Quantity
Make Inquiry

Shipping, sale coverage & payments

Shipping:
Ships from Scotia, NY. Method, cost and timing confirmed on your quote. Shipping policy
Lead Time:
We’ll confirm exact timing when we send your quote.
Sale Coverage:
Working & Warranted: 90-day warranty. View terms
International Orders:
Case by case; export controls may affect eligibility. Contact us
Payments:
Credit card via Stripe, or purchase order. Payment Information
Independent Reseller:
Capovani is not an authorized distributor or representative of the original manufacturer.
Capovani Brothers Inc.

Shop with confidence

Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani

Item description

Minimum temperature 5º C above ambient

Compressed air 60 psi required for operation

Vent solenoid (push button controlled)

Profile stop button (to abort running profile)

Over-Temperature Safety Thermostat

Mechanical vacuum gauge

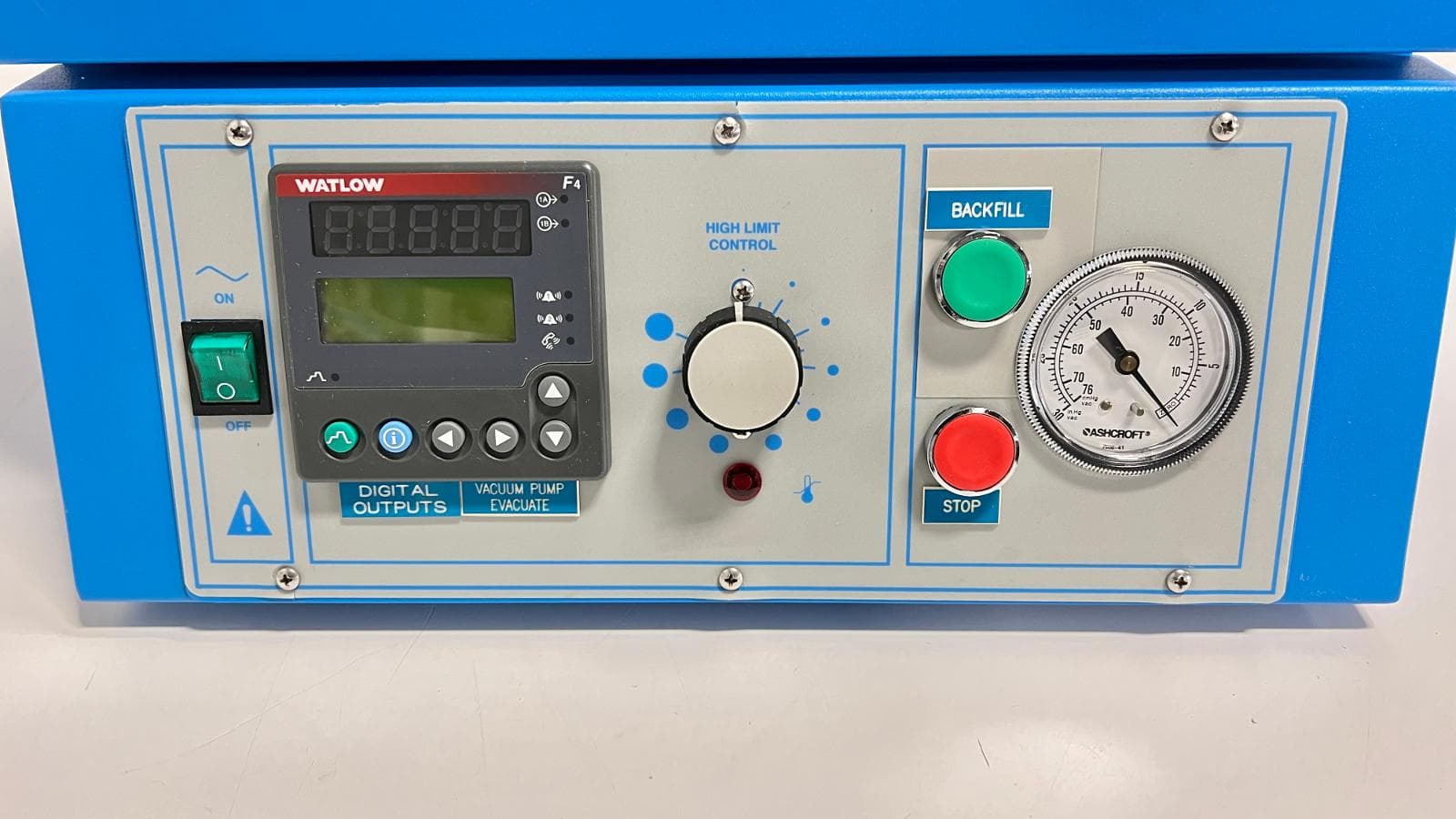

F4S controller capable of 256 possible ramp steps in as many as 40 variable-length, nameable profiles. Guided setup and programming software Watview for Windows XP https://www.watlow.com/-/media/documents/software-and-demos/executables/watview0906.ashx

Profile controlled vacuum pump outlet

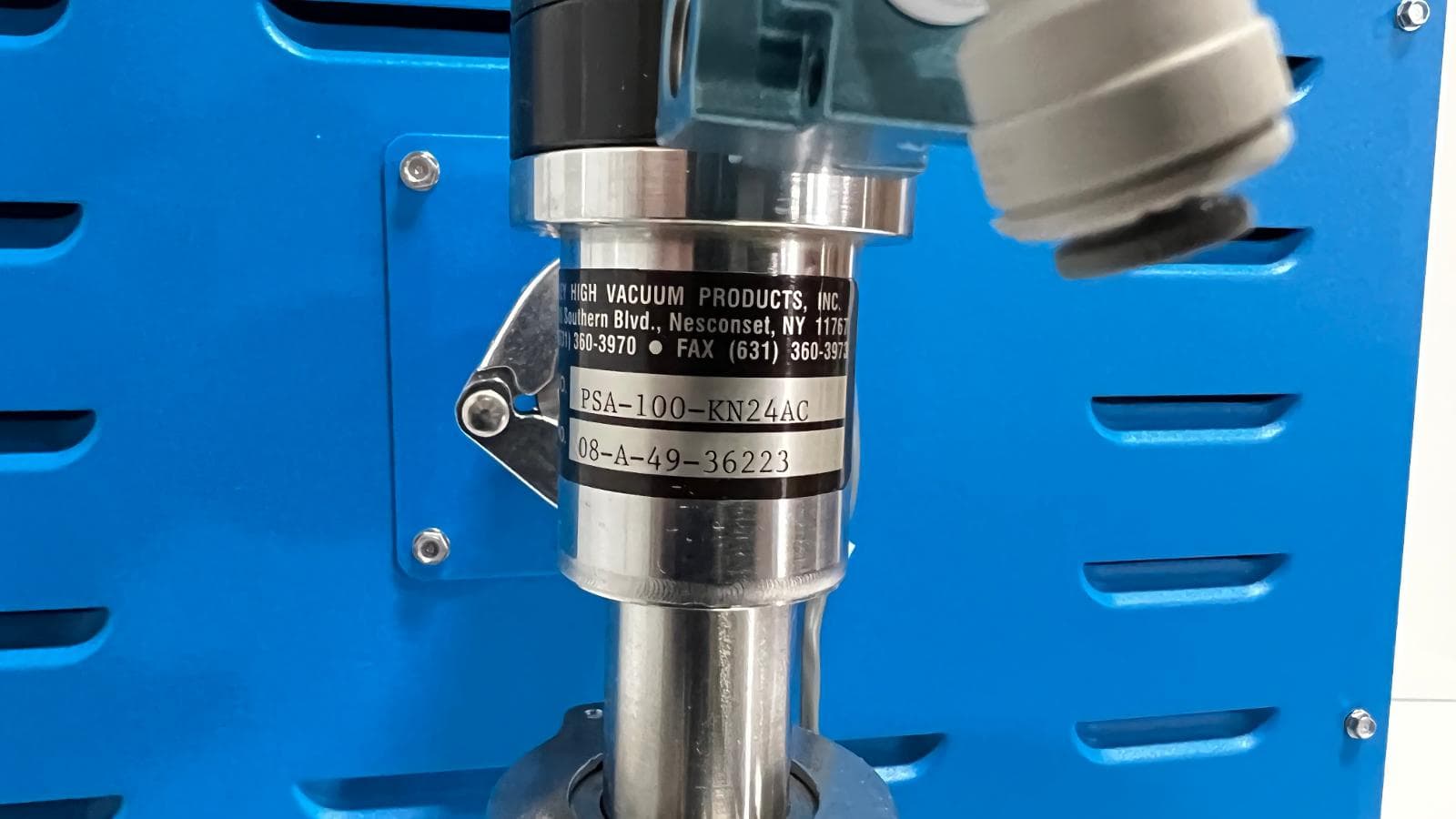

Profile controlled vacuum electro-pneumatic valve, 1"

Optional vacuum pump (not included)

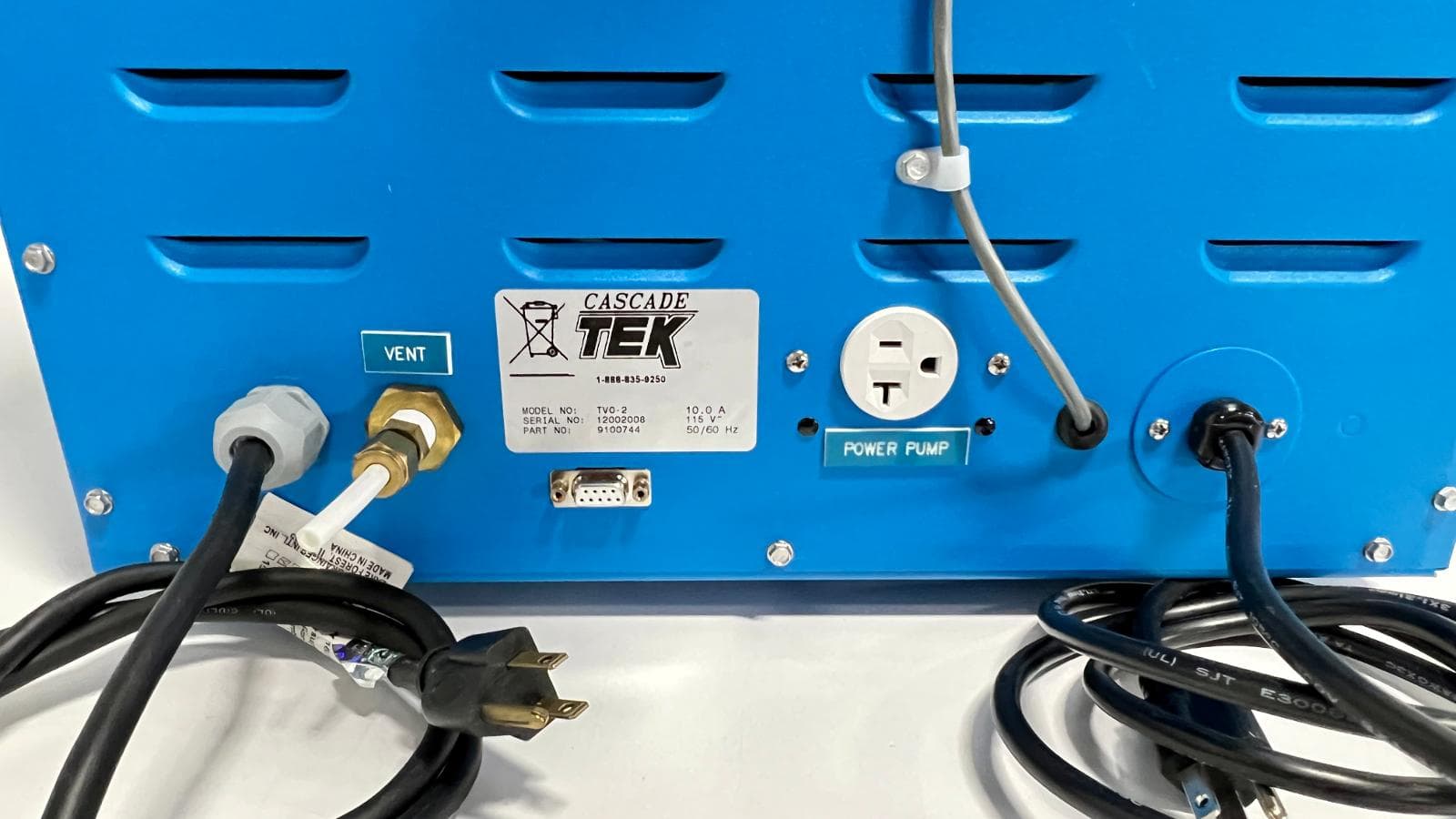

Oven has two power cords- one for the oven, another for the vacuum pump

Technical specifications

Maximum Temperature220 ºC (428 ºF, 493 ºK)
Capacity/Volume Box1.70 cu ft (0.05 cu m)
Power Requirements115 V 10.0 A 13.0 A(2) 50/60 Hz 1 Phase

Heat/Cool Controls

Control TypeProgrammable
Overtemperature ProtectionYES
InterfaceRS 232
Controller Manufacturer/ModelWatlow F4S

Chamber Size

Width12.00 in (30.48 cm)
Depth20.00 in (50.80 cm)
Height12.00 in (30.48 cm)

Chamber Characteristics

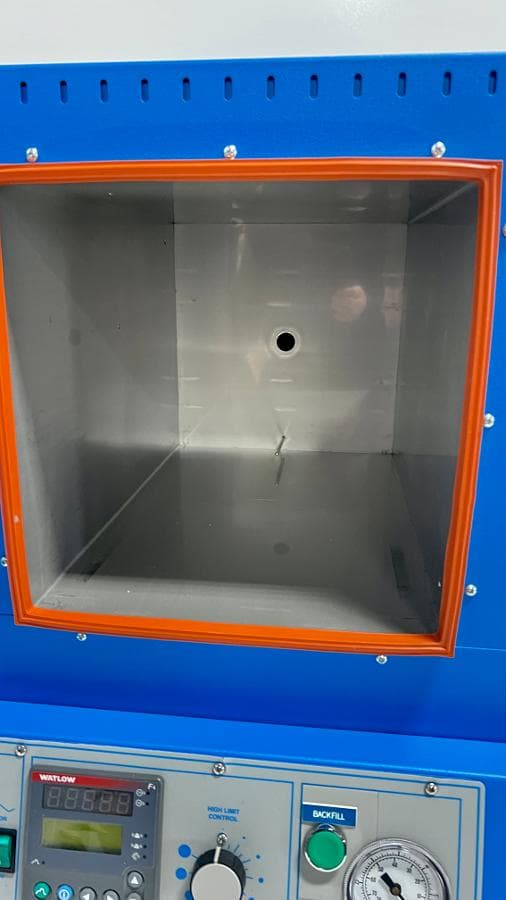

Chamber ConstructionStainless steel
Viewing WindowYES

Exterior Dimensions

Width18.750 in (47.6 cm)
Depth26.500 in (67.3 cm)
Height24.500 in (62.2 cm)

Condition & testing notes

Previously in service and offered for secondary-market resale.
