Cincinnati ZH-32-305-SCT/AC Temp & Humidity Chamber
Quoted on requestWorking & warranted
- Condition
- Used See details
- Brand
- Cincinnati Sub-Zero
- MPN
- ZH-32-305-SCT/AC
- SKU
- 135516
- Availability
- 1 in stock
Shipping, sale coverage & payments
- Shipping:
- Ships from Scotia, NY. Method, cost and timing confirmed on your quote. Shipping policy
- Lead Time:
- We’ll confirm exact timing when we send your quote.
- Sale Coverage:
- Working & Warranted: 90-day warranty. View terms
- International Orders:
- Case by case; export controls may affect eligibility. Contact us
- Payments:
- Credit card via Stripe, or purchase order. Payment Information
- Independent Reseller:
- Capovani is not an authorized distributor or representative of the original manufacturer.
Shop with confidence
Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani
Item description
Viewing window 12.75 H X 19.75 W
Interior light with switch

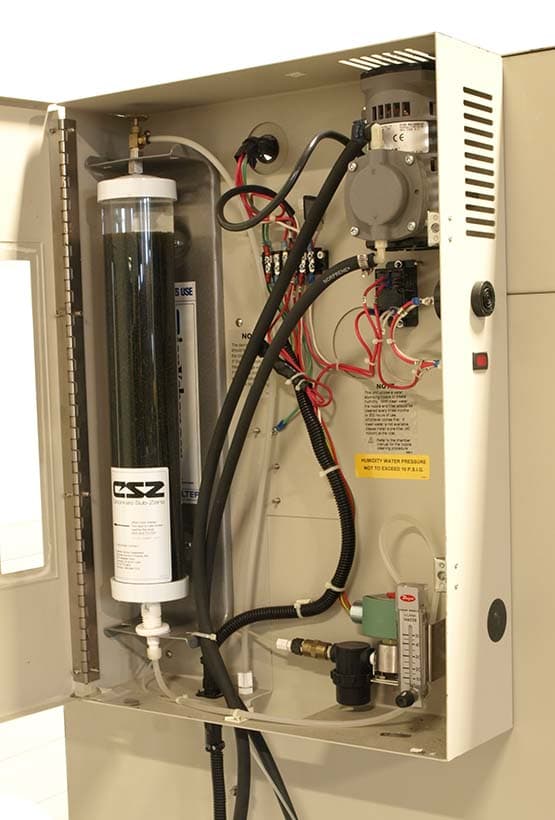

Humidity water demineralizer

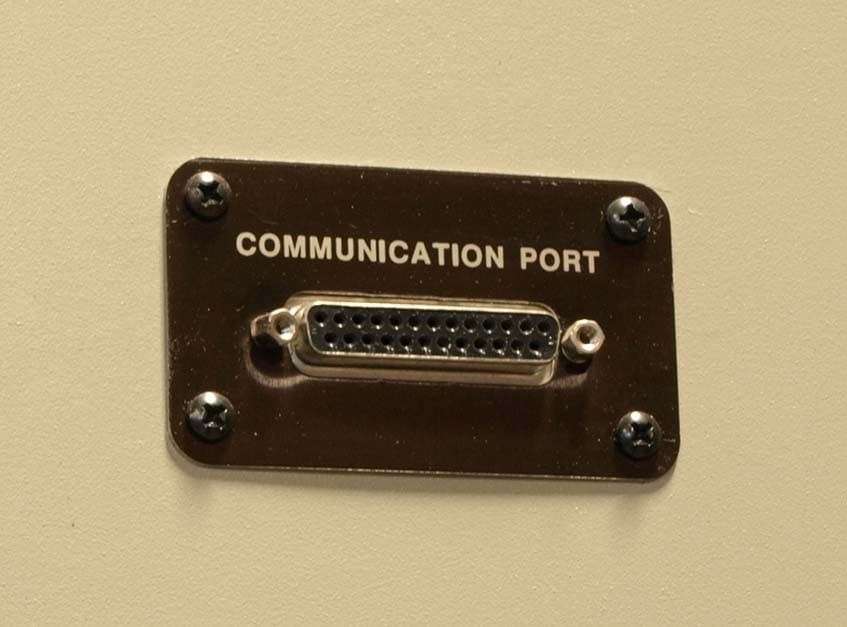

Communications port
Watlow F-97 Hi limit controller
Refrigerant R-410A 7-lbs

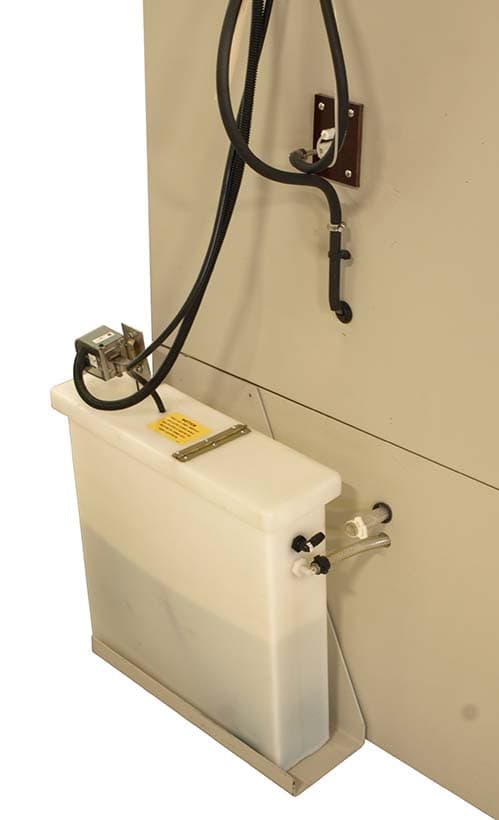

Humidity flow system with reservoir
Recirculating water supply
Technical specifications
| Minimum Temperature | -34 ºC (-29 ºF, 239.00 ºK) |
| Maximum Temperature | 190 ºC (374 ºF, 463 ºK) |
| Humidity Range | 95% |
| Capacity/Volume Box | 32.00 cu ft (0.91 cu m) |
| External Cooling | Forced Air Cooled |
| Refrigerant Type & Quantity | Suva R-410A |
| Power Requirements | 208 V 45.0 A 60 Hz 3 Phase |
| Weight | 1,412 lb (640 kg) |

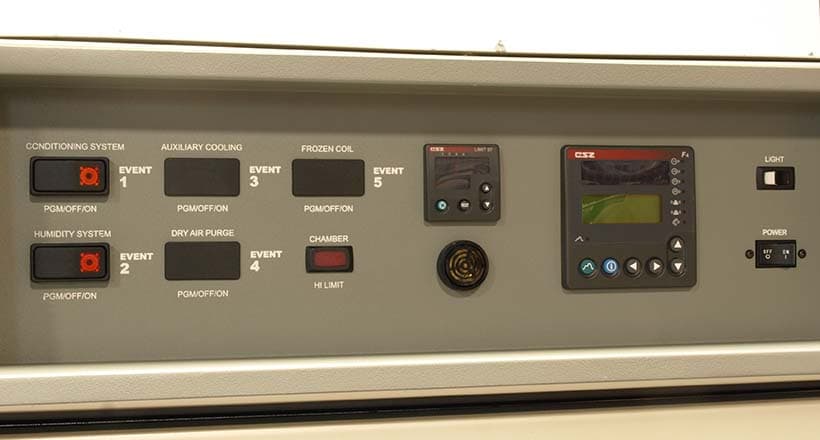

Heat/Cool Controls
| Control Type | Programmable |
| Overtemperature Protection | YES |
| Controller Manufacturer/Model | Watlow F-4 |

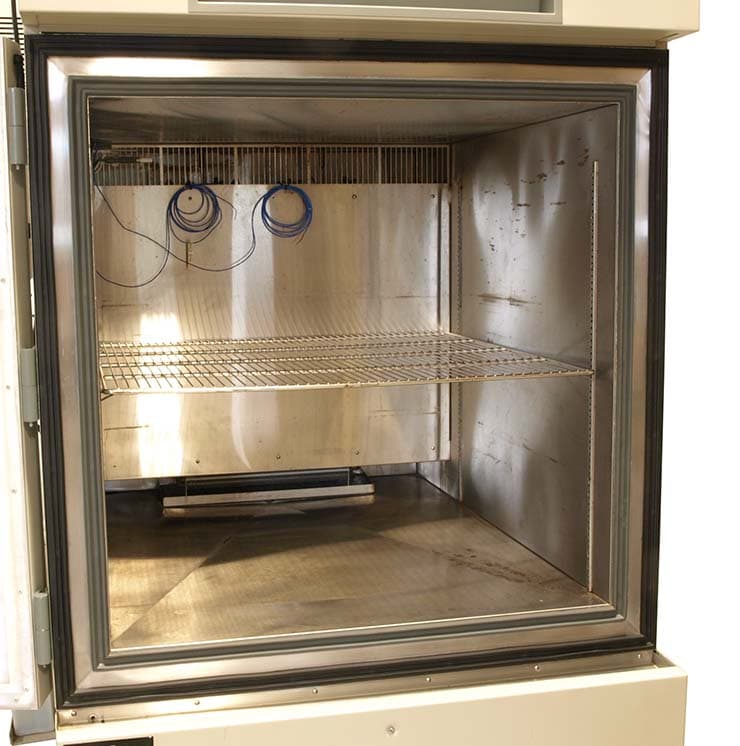

Chamber Characteristics
| Chamber Construction | Stainless Steel |
| Number of Shelves Provided | 2 |
| Number and Size of Access Ports | 1-2.875" left side |
| Viewing Window | YES |
Chamber Size
| Width | 38.00 in (96.52 cm) |
| Depth | 38.00 in (96.52 cm) |
| Height | 38.00 in (96.52 cm) |
Exterior Dimensions
| Width | 54.000 in (137.2 cm) |
| Depth | 66.000 in (167.6 cm) |
| Height | 78.000 in (198.1 cm) |
Condition & testing notes
Previously in service and offered for secondary-market resale.
