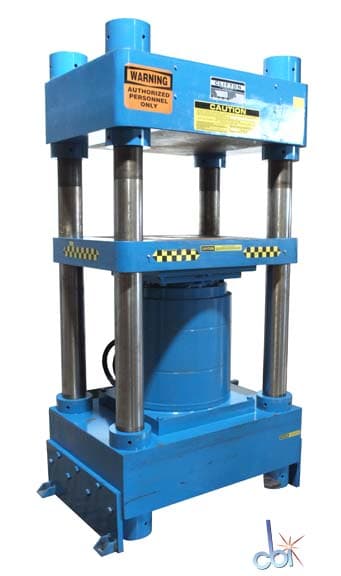

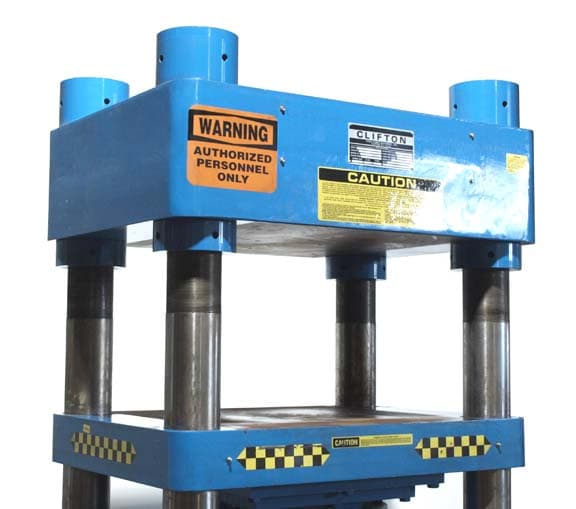

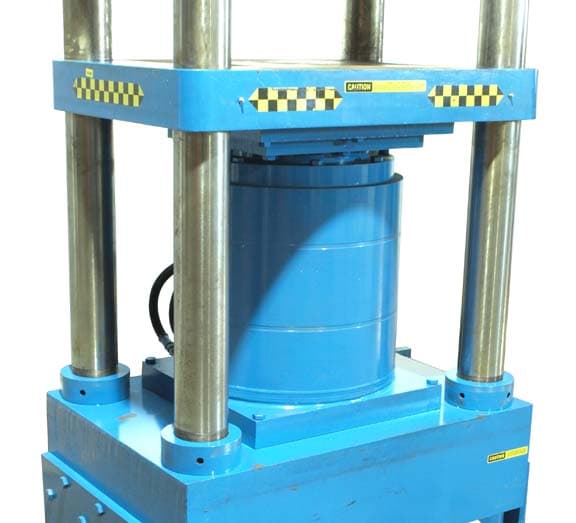

Clifton 522 SPL APP Molding Press

Item description

Capacity: 400 Tons

Platen size: 30 LR x 29 FB

Stroke: 14" Max.

Maximum Hydraulic Pressure: 3500 P.S.I.

Water cooled

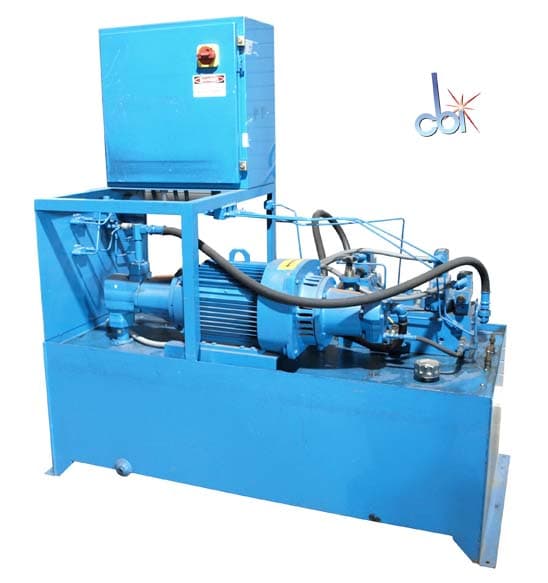

Main Motor Power: 10 HP

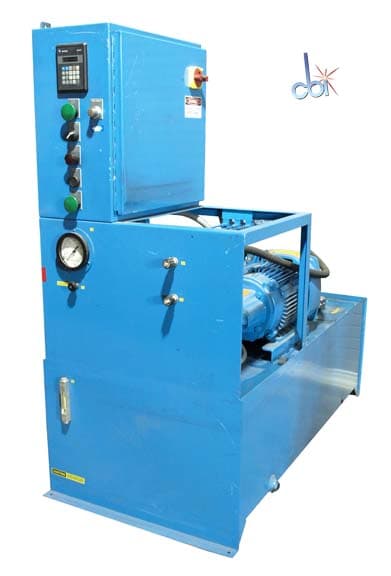

Allen Bradely Microview Controller

Power Requirements

230/460 volt, 28/14 amp, 3 phase, 60 Hz

208/415 volt, 32/16 amp, 3 phase, 50 Hz

Year of Manufacturer 2000

Working & Warranted
Inspected by Capovani engineers to confirm function. Sold with a 90 day warranty covering function. Full warranty terms
Lead time varies, confirmed in your quote
These items are inspected and serviced after your order is confirmed. Typical lead time is 1 to 3 weeks. We will confirm exact timing when we send your quote.
