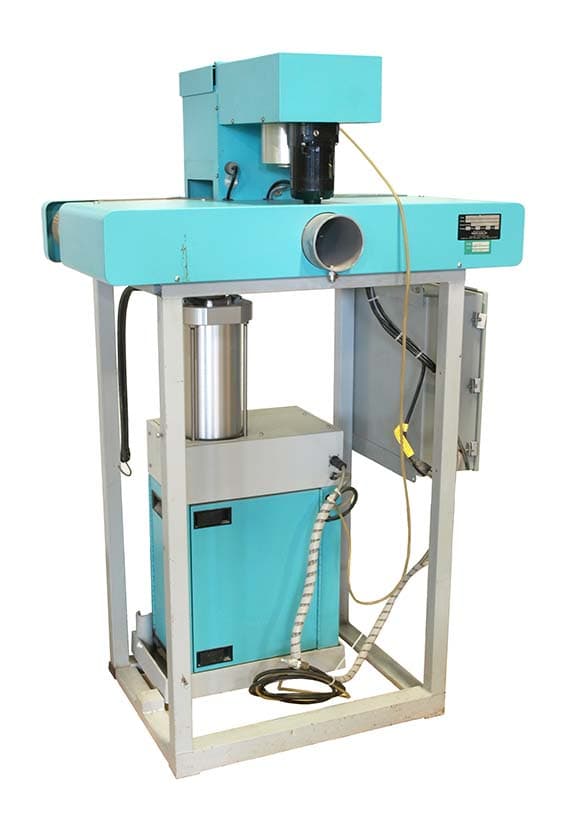

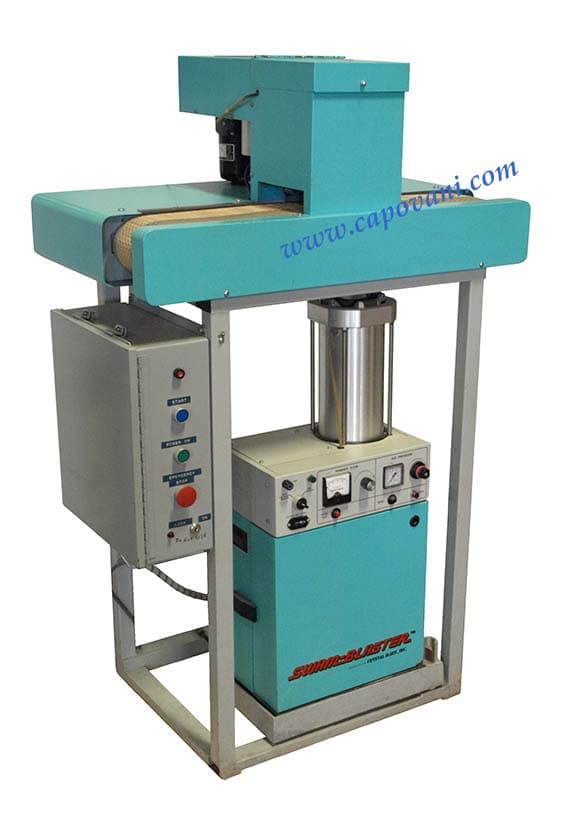

The SWAM C-115 Belt Abrading Machine is a system
for removing oxides and junctions from silicon and germanium slices.
It is also used for texturing, etching, and back-lapping wafers, as well as frosting quartz and glass.
These objectives are accomplished by the
interfacing of four separate components

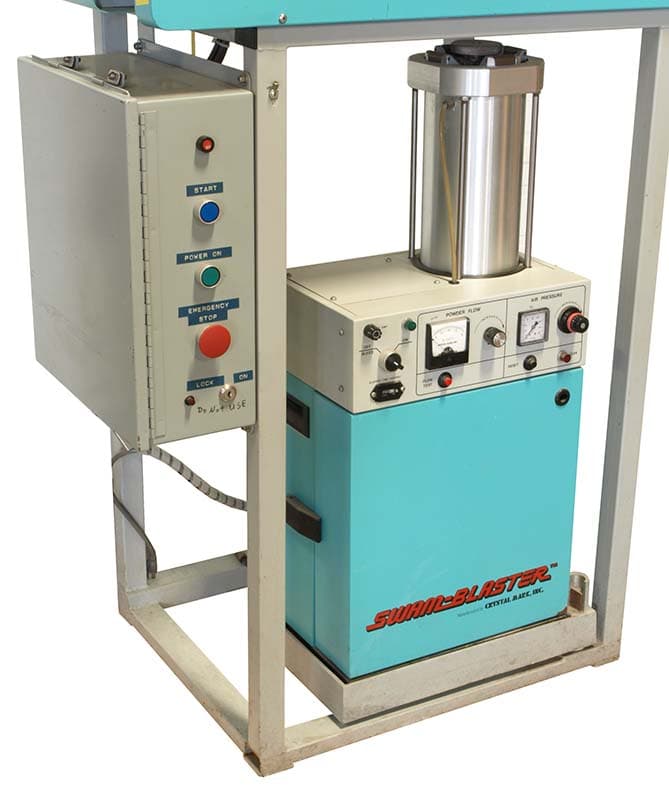

1) The SWAM-BLASTER Model C-115 Precision Sandblaster.
2) A reciprocator to move the nozzle back and forth over the belt.

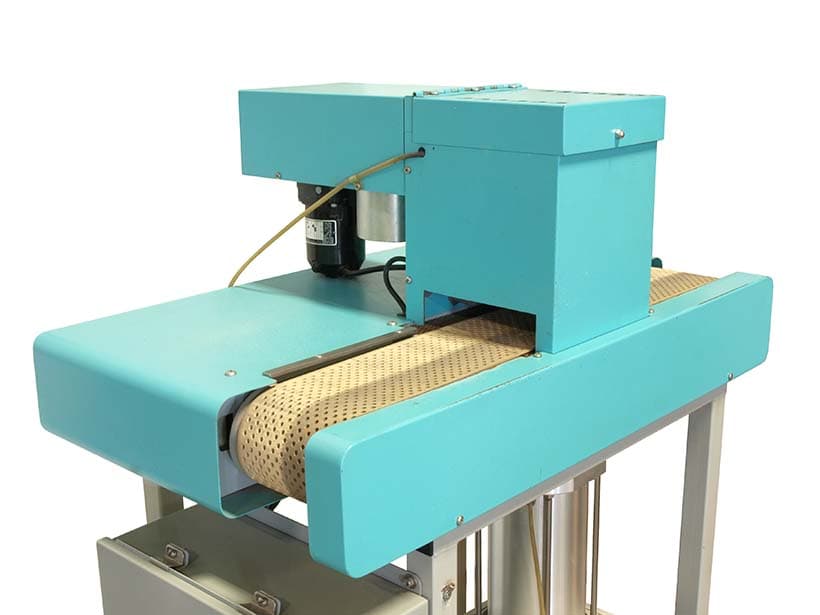

3) A conveyor belt system that transports substrates under the reciprocator nozzle(s).
4) A dust collector to remove spent media from the work area
Dust collection system requirements
22,650 L/M at 14 cm E.S.P.W.G. at a velocity of 1370 M/M.
Dust collector model DC-100 not included available from Crystal Mark
