Despatch MT300 Magnetic Vacuum Annealing Oven
Quoted on requestWorking & warranted
- Condition
- Used See details
- Brand
- Despatch
- MPN
- MT300
- SKU
- 90869
- Availability
- 1 in stock
Shipping, sale coverage & payments
- Shipping:
- Ships from Scotia, NY. Method, cost and timing confirmed on your quote. Shipping policy
- Lead Time:
- We’ll confirm exact timing when we send your quote.
- Sale Coverage:
- Working & Warranted: 90-day warranty. View terms
- International Orders:
- Case by case; export controls may affect eligibility. Contact us
- Payments:
- Credit card via Stripe, or purchase order. Payment Information
- Independent Reseller:
- Capovani is not an authorized distributor or representative of the original manufacturer.
Shop with confidence
Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani
Item description
Handles 3" to 6" wafers
15 wafers maximum
Variable heat soak
Solvents allowed: none
Heater: electric
Heater capacity: 15kW
Heater: 42 amp
Total amps 68FLA
Control voltage 120-1-60

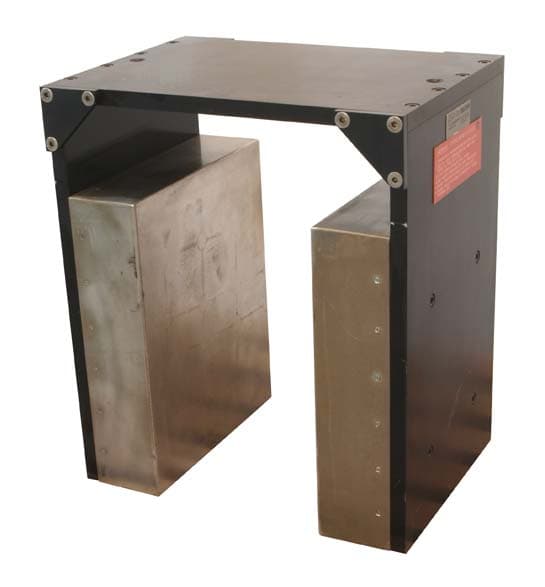

Dexter Permanent Magnet Part no. PMW97-0514-1, Field Strength: 250 gauss
Shelf dimensions: 6.25 x 6.25"
Vacuum 10-5 Torr as configured
Technical specifications
| Maximum Temperature | 300 ºC (572 ºF, 573 ºK) |
| External Cooling | Water Cooled |
| Power Requirements | 208 V 68.0 A 60 Hz 3 Phase |
| Year of Manufacture | 1998 |
Temperature Control
| Control Stability | ± 0.500 ºC |
Heat/Cool Controls
| Control Type | Programmable |
| Chart Recorder | None |
| Controller Manufacturer/Model | Honeywell UDC 2000 |
Chamber Size
| Width | 6.25 in (15.88 cm) |
| Depth | 12.25 in (31.12 cm) |
| Height | 9.00 in (22.86 cm) |
Chamber Characteristics
| Chamber Construction | Stainless Steel |
| Maximum Number of Shelves | 15 |
| Number of Shelves Provided | 15 |
Condition & testing notes
Previously in service and offered for secondary-market resale.
