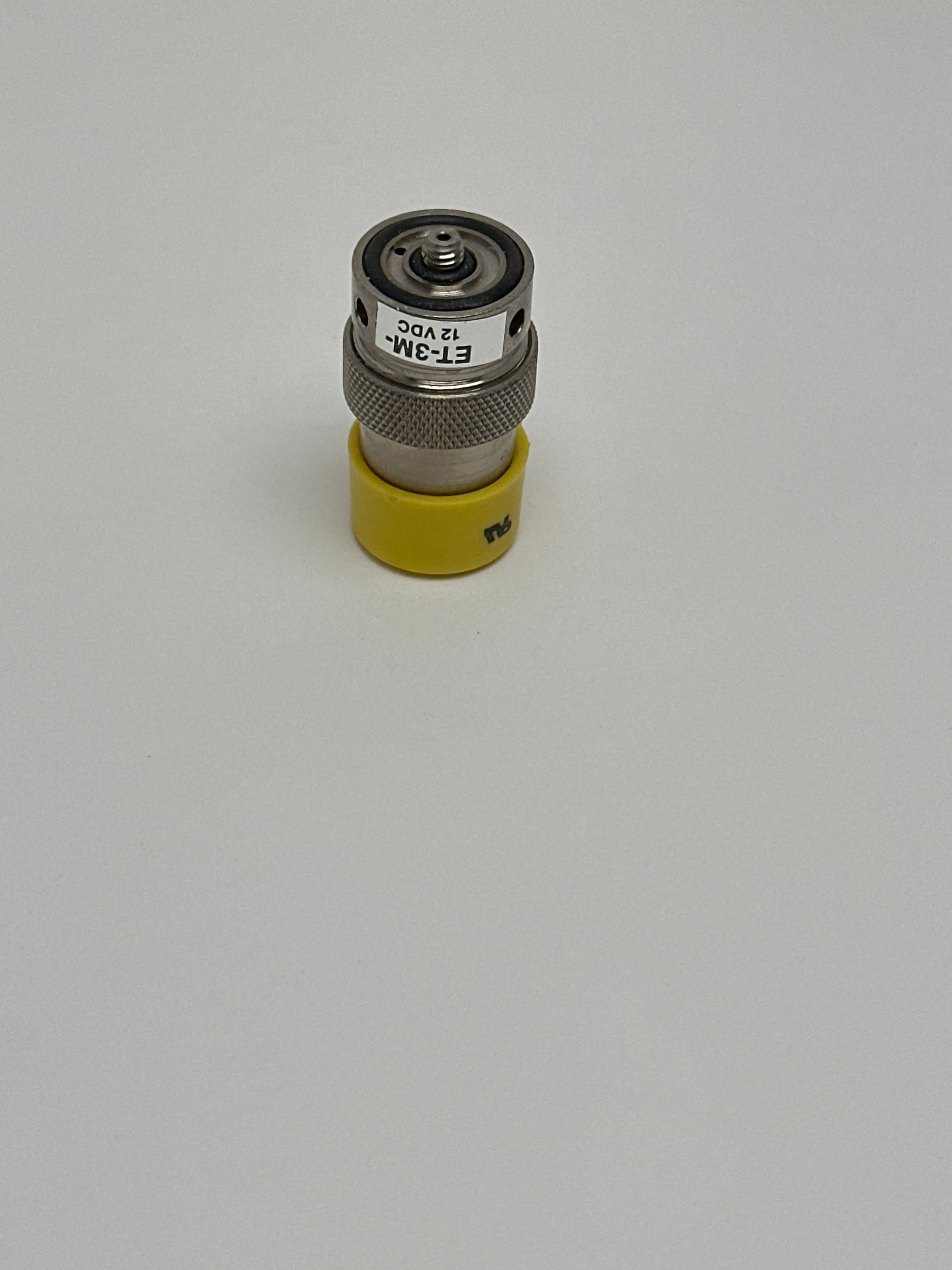

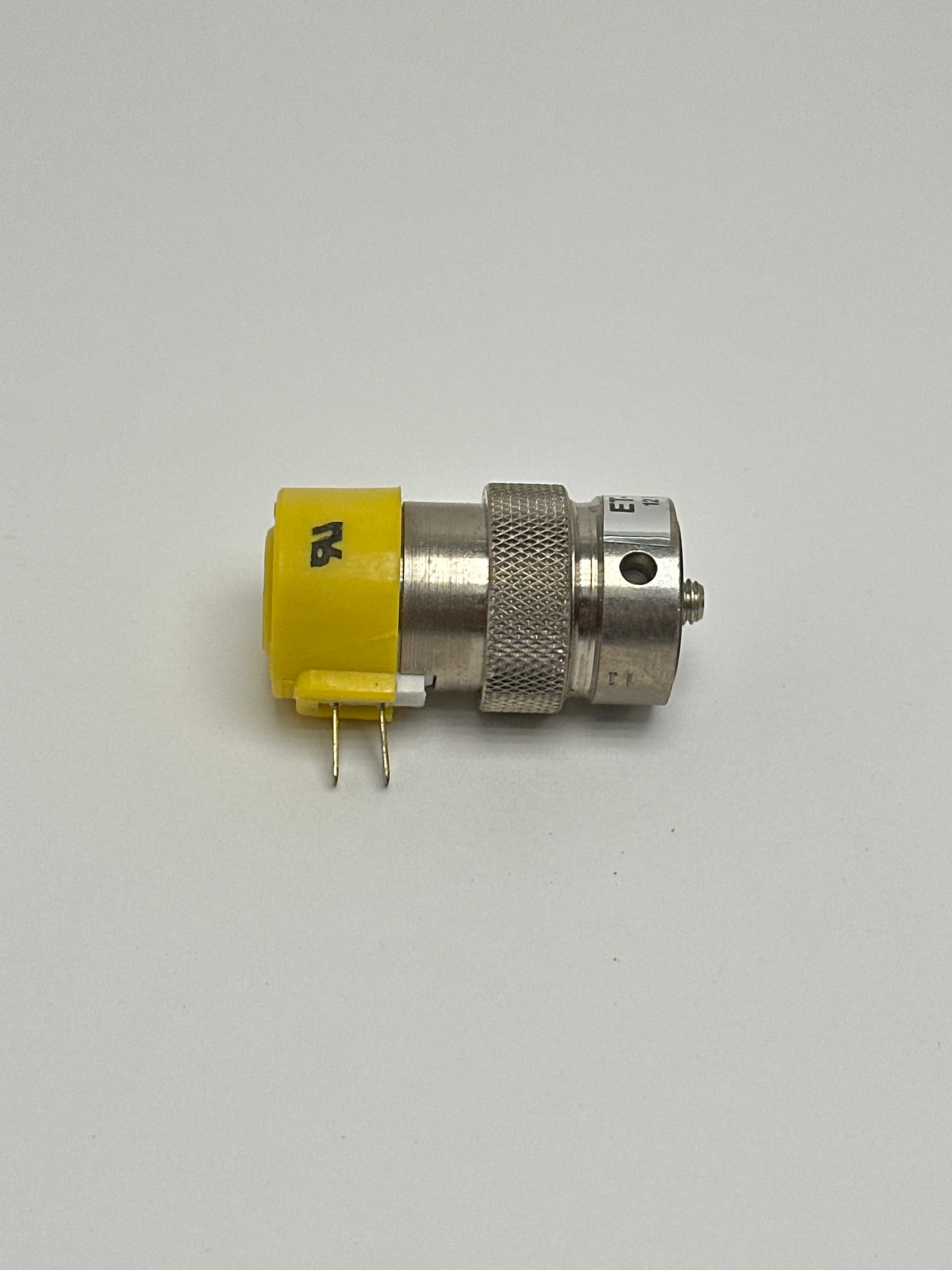

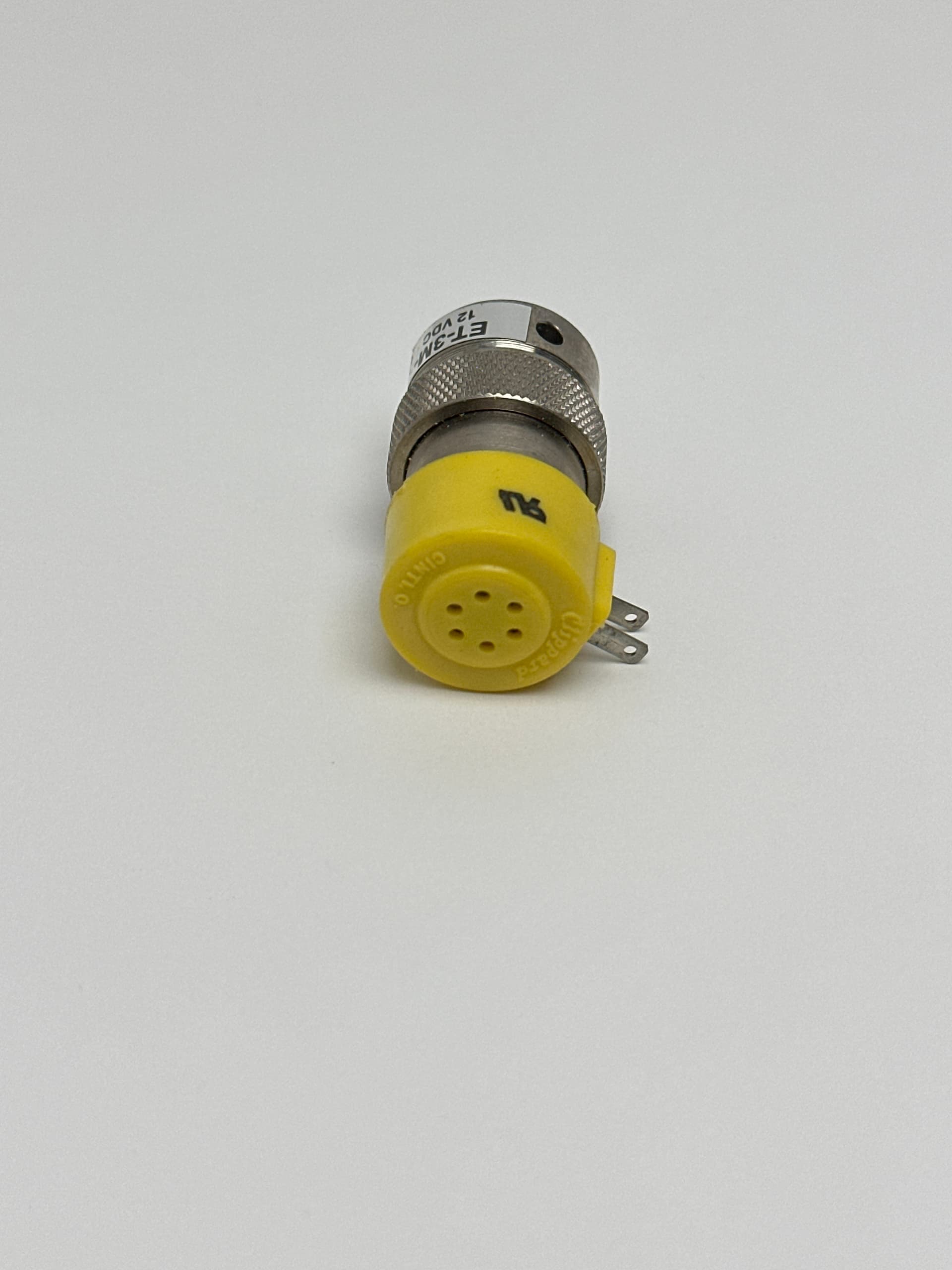

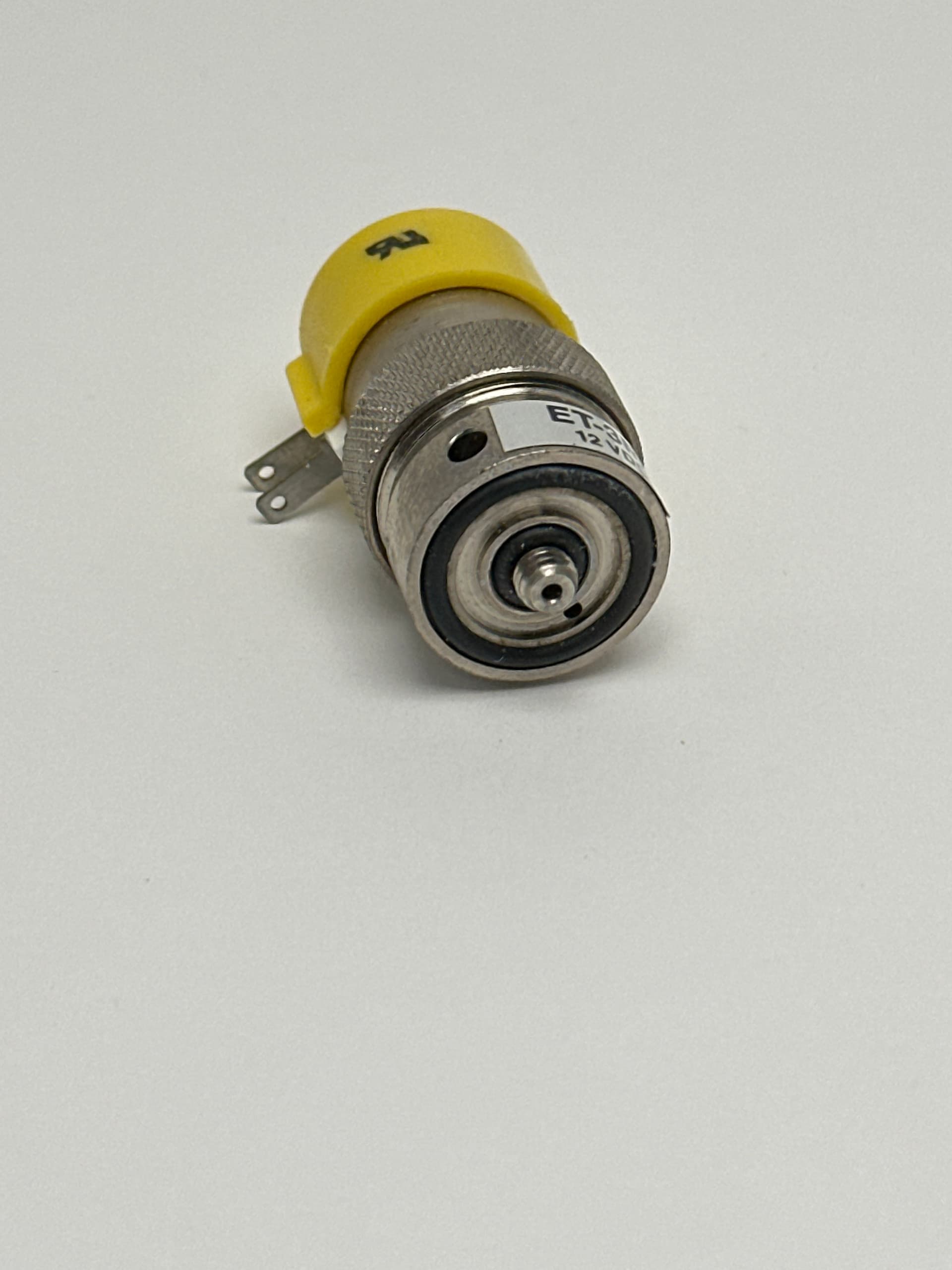

Clippard ET-3M-12 Electronic Valve, 3-Way NC, 12 VDC, Manifold
$40.0030 day return
- Condition
- Brand new See details
- Brand
- Clippard
- MPN
- ET-3M-12
- SKU
- CID1450
- Availability
- 2 in stock
Quantity
Shipping, sale coverage & payments
- Shipping:
- Ships from Scotia, NY. UPS parcel within 3 business days of order confirmation; cost calculated at checkout. Shipping policy
- Sale Coverage:
- 30 Day Return: 30-day functional return. View terms
- International Orders:
- Case by case; export controls may affect eligibility. Contact us
- Payments:
- Credit card via Stripe, or purchase order. Payment Information
- Independent Reseller:
- Capovani is not an authorized distributor or representative of the original manufacturer.
Shop with confidence
Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani
Item description

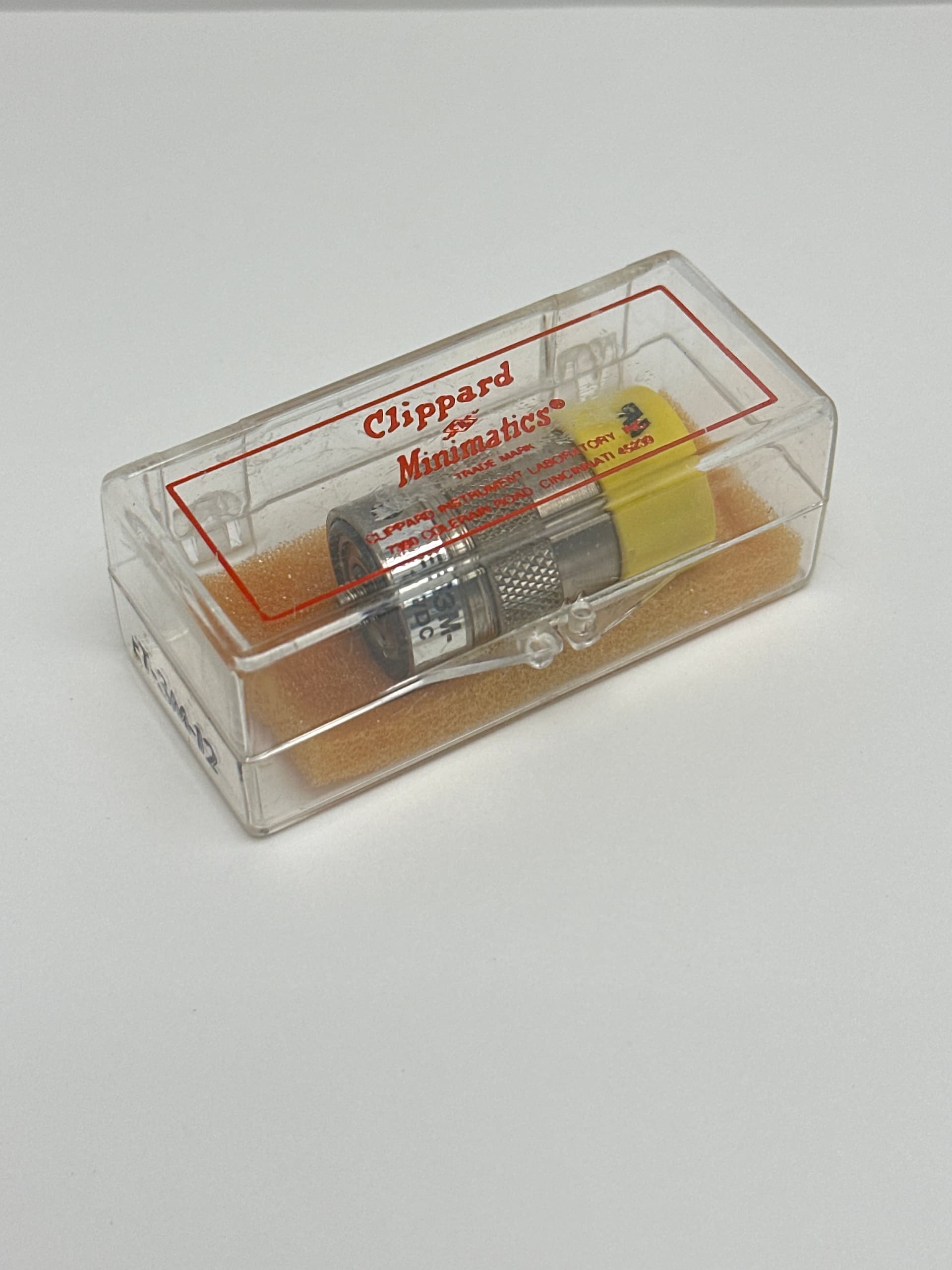

3-way normally-closed, manifold mount, 12 VDC. 105 psig max, 17 l/min at 100 psig, 0.110" spade terminals, nitrile seals. Includes yellow protective caps and original Clippard Minimatic cases.
Technical specifications
| Voltage | 12 VDC |
| Product Line | EV Electronic Valves |
| Function | 3-Way Normally-Closed |
| Mount | Manifold |
| Connection | Spade Terminal, 0.110" |
| Operating Pressure | 105 psig (17 l/min @ 100 psig) |
| Max PSI | 105 |
| Max. Flow | 17 l/min @ 100 psig |
| Operating Temperature Range | 30 - 180 F |
| Current | 0.055A |
| Wattage | 0.67 Watts (nominal) |
| Material, Seals | Nitrile |
| Medium | Clean, Dry Air & Compatible Gases |
Valve Specifications
| Voltage | 12 VDC |
| Product Line | EV Electronic Valves |
| Function | 3-Way Normally-Closed |
| Mount | Manifold |
| Connection | Spade Terminal, 0.110" |
| Operating Pressure | 105 psig (17 l/min @ 100 psig) |
| Max PSI | 105 |
| Max. Flow | 17 l/min @ 100 psig |
| Operating Temperature Range | 30 - 180 F |
| Current | 0.055A |
| Wattage | 0.67 Watts (nominal) |
| Material, Seals | Nitrile |
| Medium | Clean, Dry Air & Compatible Gases |
Condition & testing notes
Never used inventory in brand new condition. The item is from old surplus stock.
