You may not receive the exact item shown in photos, but all items are in similar condition unless otherwise specified.

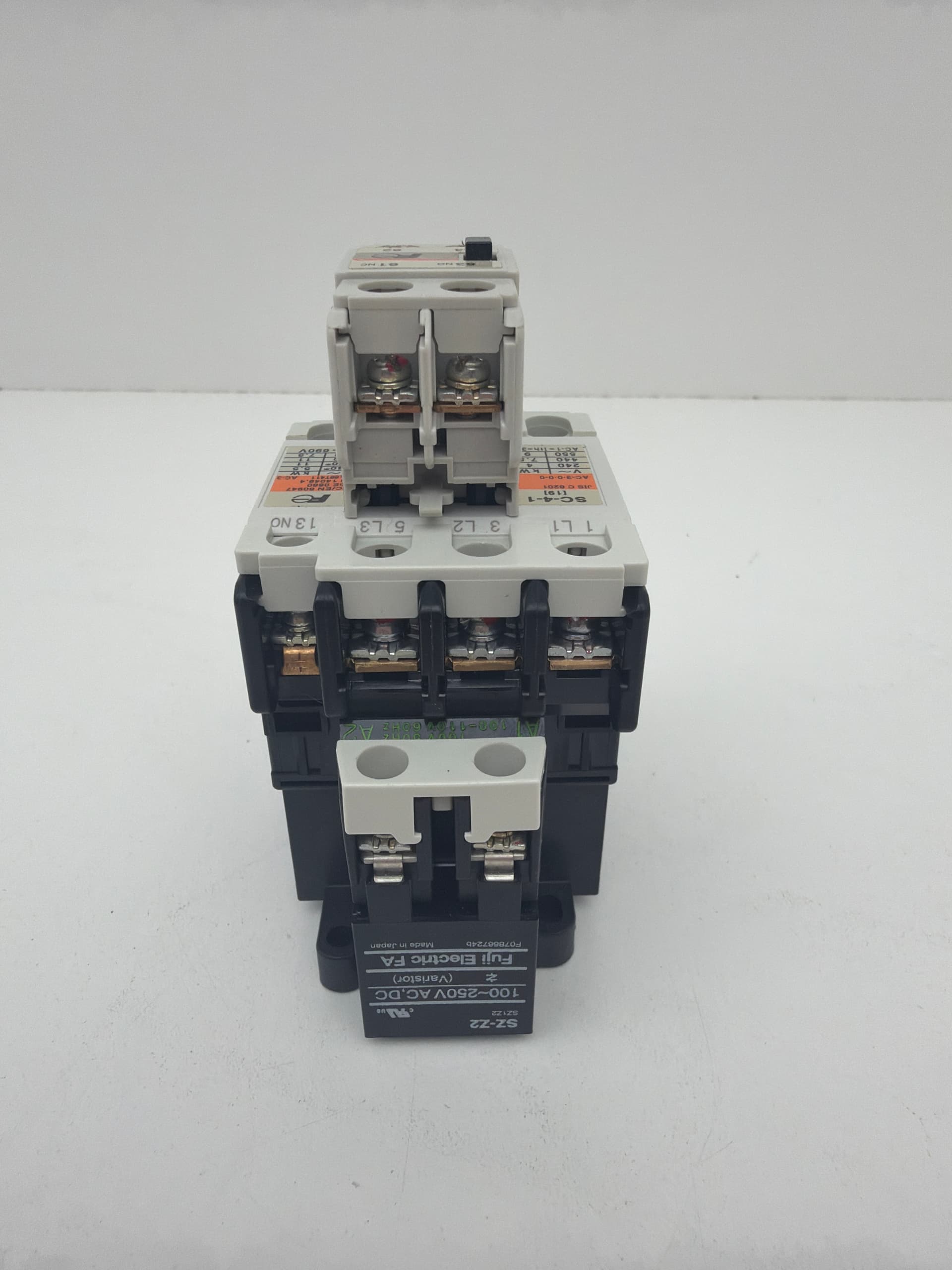

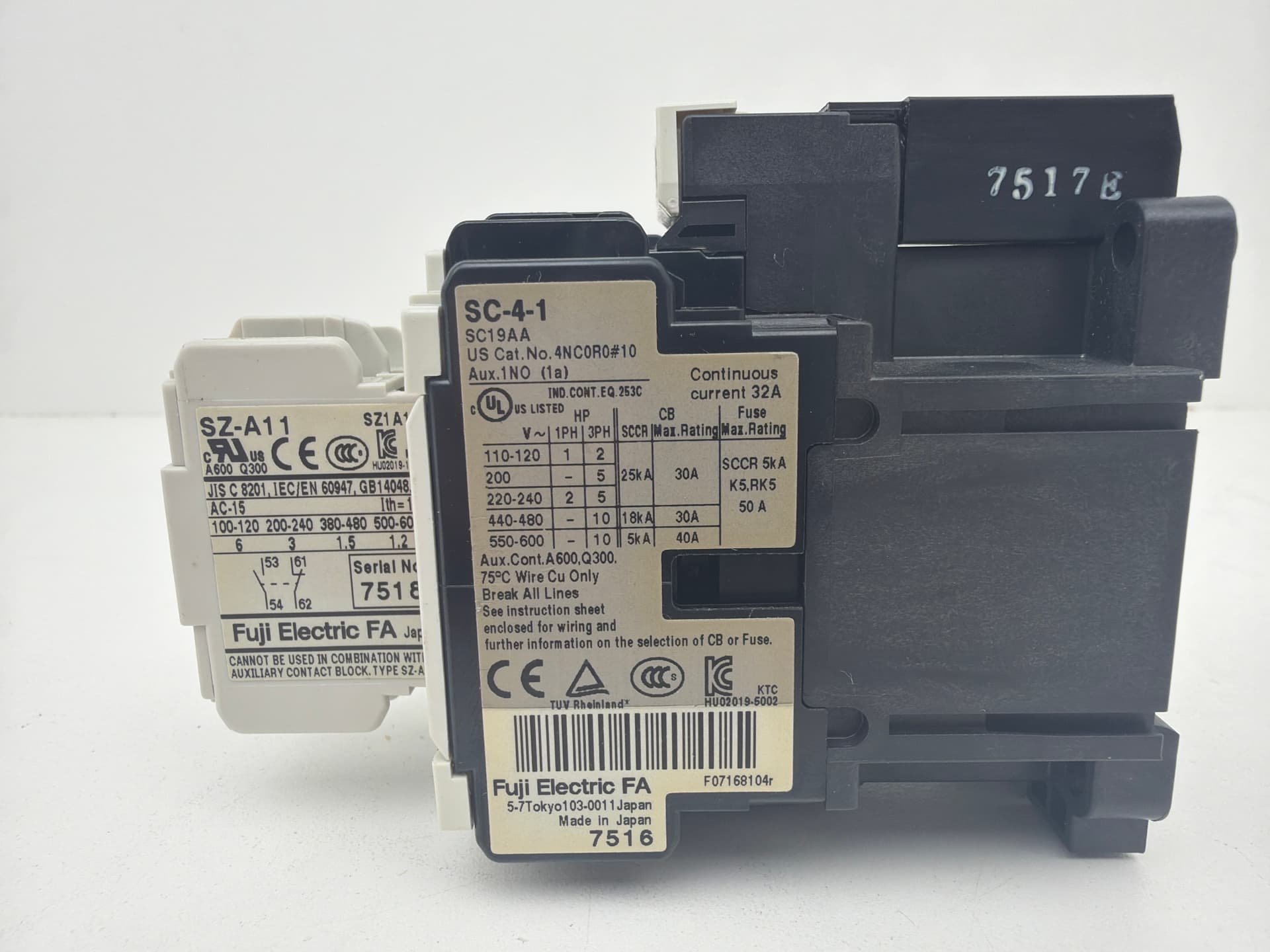

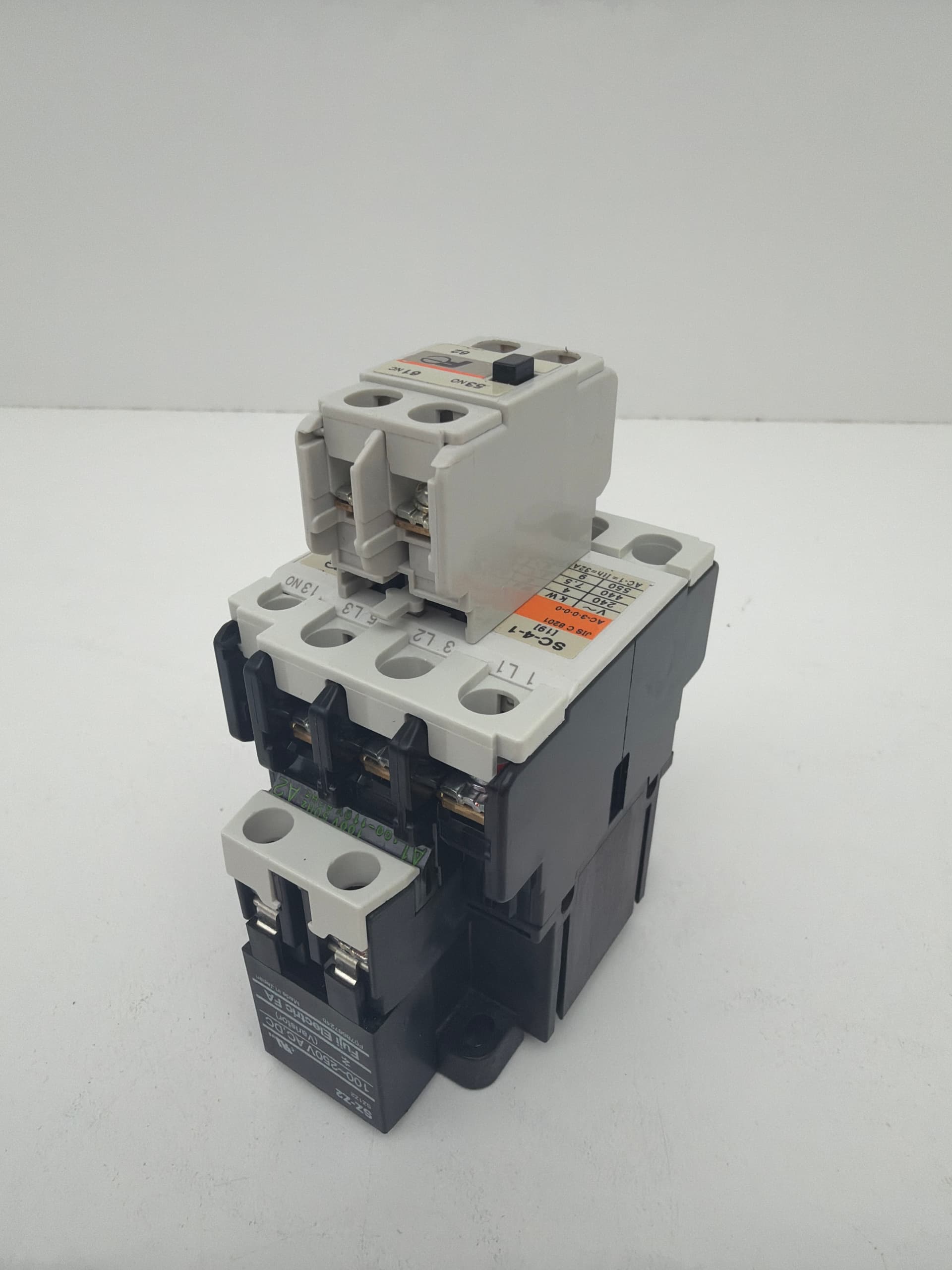

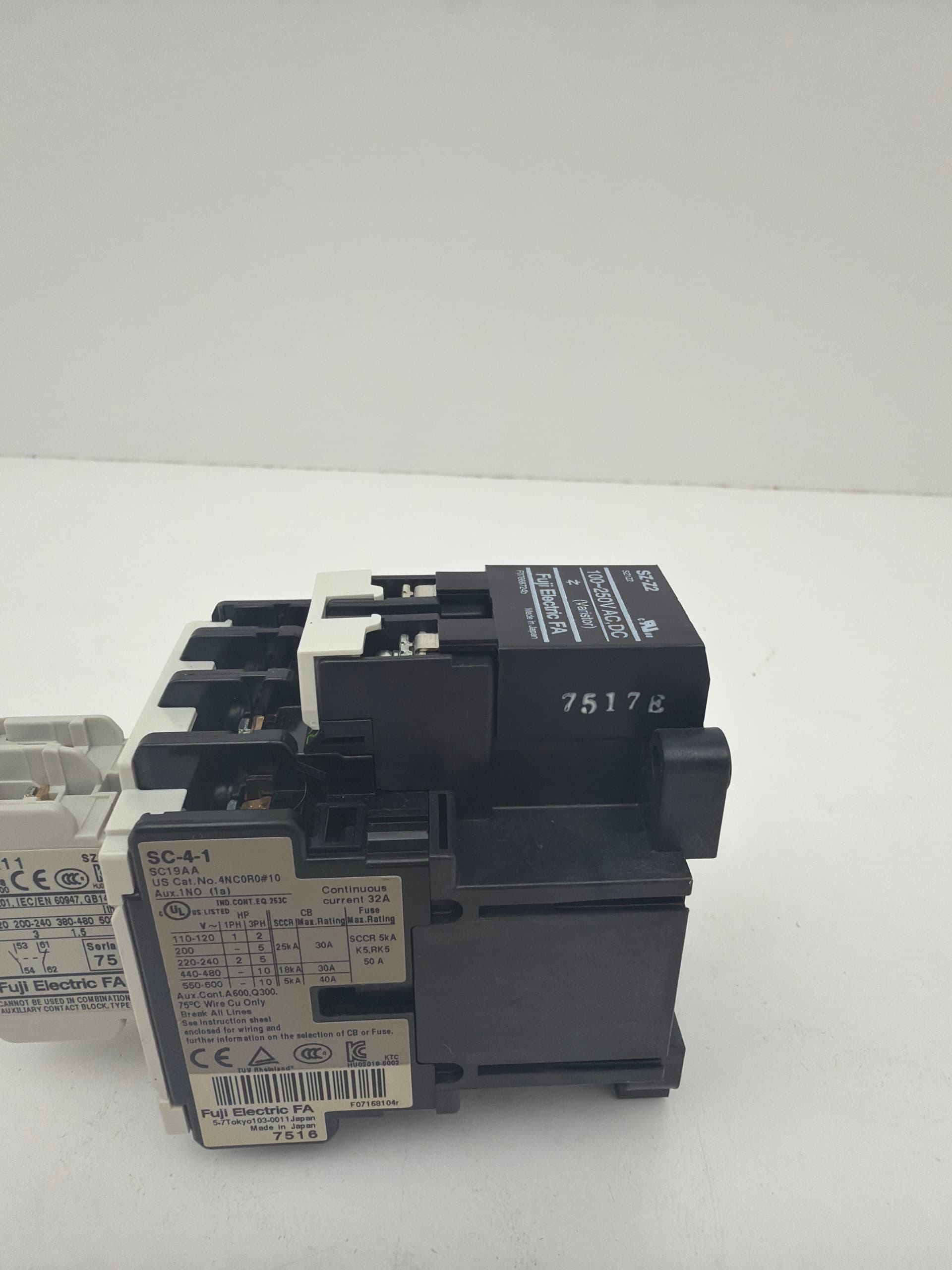

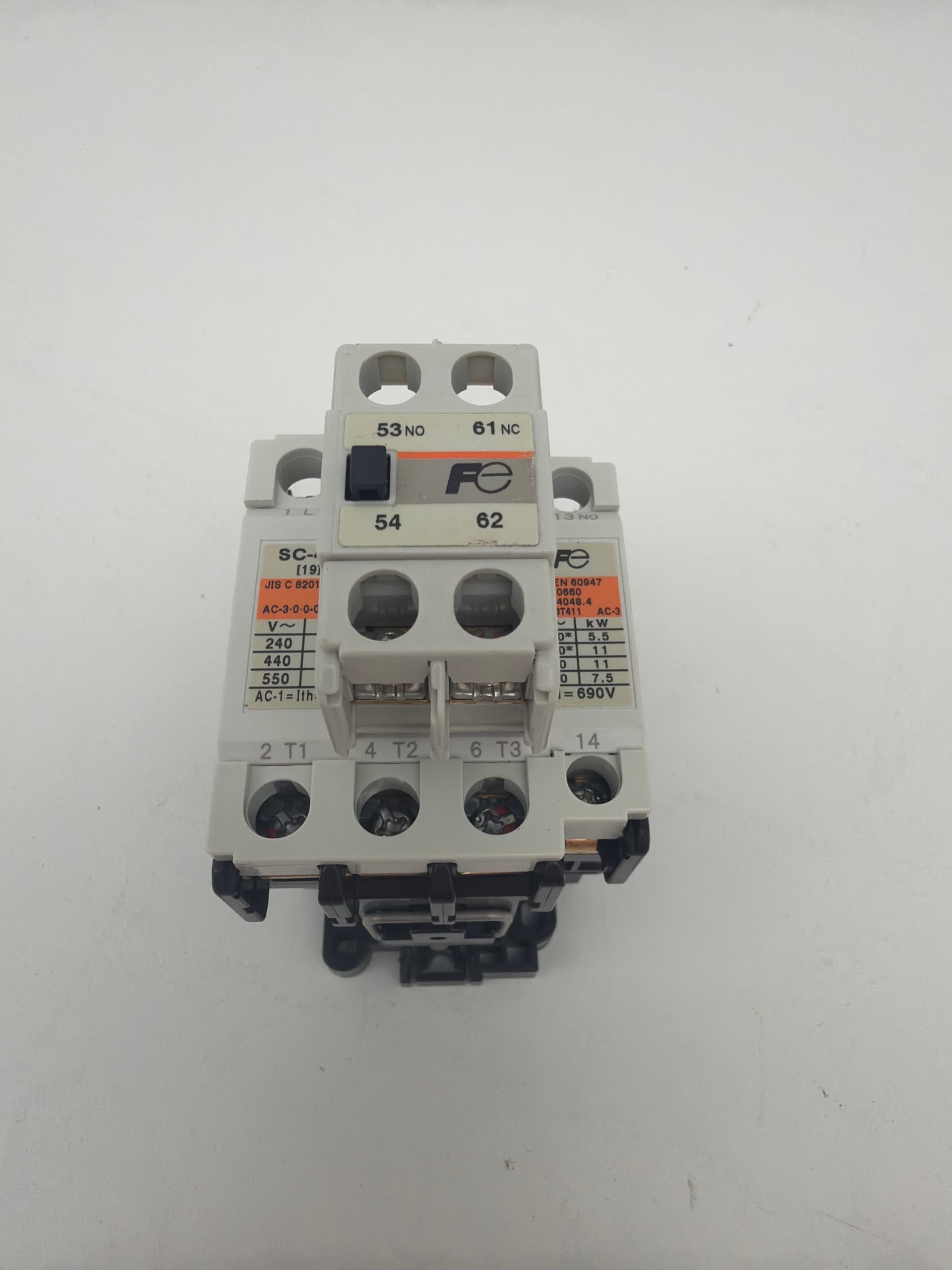

Fuji Electric FA 4NC0R0#10 SC-4-1 Magnetic Contactor, SC19AA, 32A, SZ-A11 Aux
$60.0030 day return
- Condition
- New (open box) See details
- Brand
- Fuji Electric FA
- MPN
- 4NC0R0#10
- SKU
- CID1405
- Availability
- 3 in stock
Quantity
Shipping, sale coverage & payments
- Shipping:
- Ships from Scotia, NY. UPS parcel within 3 business days of order confirmation; cost calculated at checkout. Shipping policy
- Sale Coverage:
- 30 Day Return: 30-day functional return. View terms
- International Orders:
- Case by case; export controls may affect eligibility. Contact us
- Payments:
- Credit card via Stripe, or purchase order. Payment Information
- Independent Reseller:
- Capovani is not an authorized distributor or representative of the original manufacturer.
Shop with confidence
Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani
Item description
Continuous current 32A, Aux. Cont. A600/Q300, 75C Cu wire only, SCCR 5kA. Includes SZ-A11 front auxiliary contact block, 1NO+1NC, Ith 10A, AC-15 ratings 100-120/200-240/380-480/500-600V at 6/3/1.5/1.2A, and SZ-Z2 varistor coil surge suppression unit, 100-250 VAC/DC.
Technical specifications
| Continuous current | 32A |
| Aux.Cont. | A600,Q300 |
| Aux.Cont. | 1NO (1a) |
| 75°C Wire | Cu Only |
| SCCR | 5kA |
| Max.Fuse | K5.RK5 50A |
| Product type | Standard magnetic contactor |
| Series | New SC/NEO SC Series |
| Rated current (JIS, AC-3 200-240V) | 19A |
| Motor capacity (AC-3) 200-240V | 4kW |
| Motor capacity (AC-3) 380-440V | 7.5kW |
| Main terminal screw size | M4 |
| External Dimensions W × H × D (AC operating) | 53×81×81 mm |

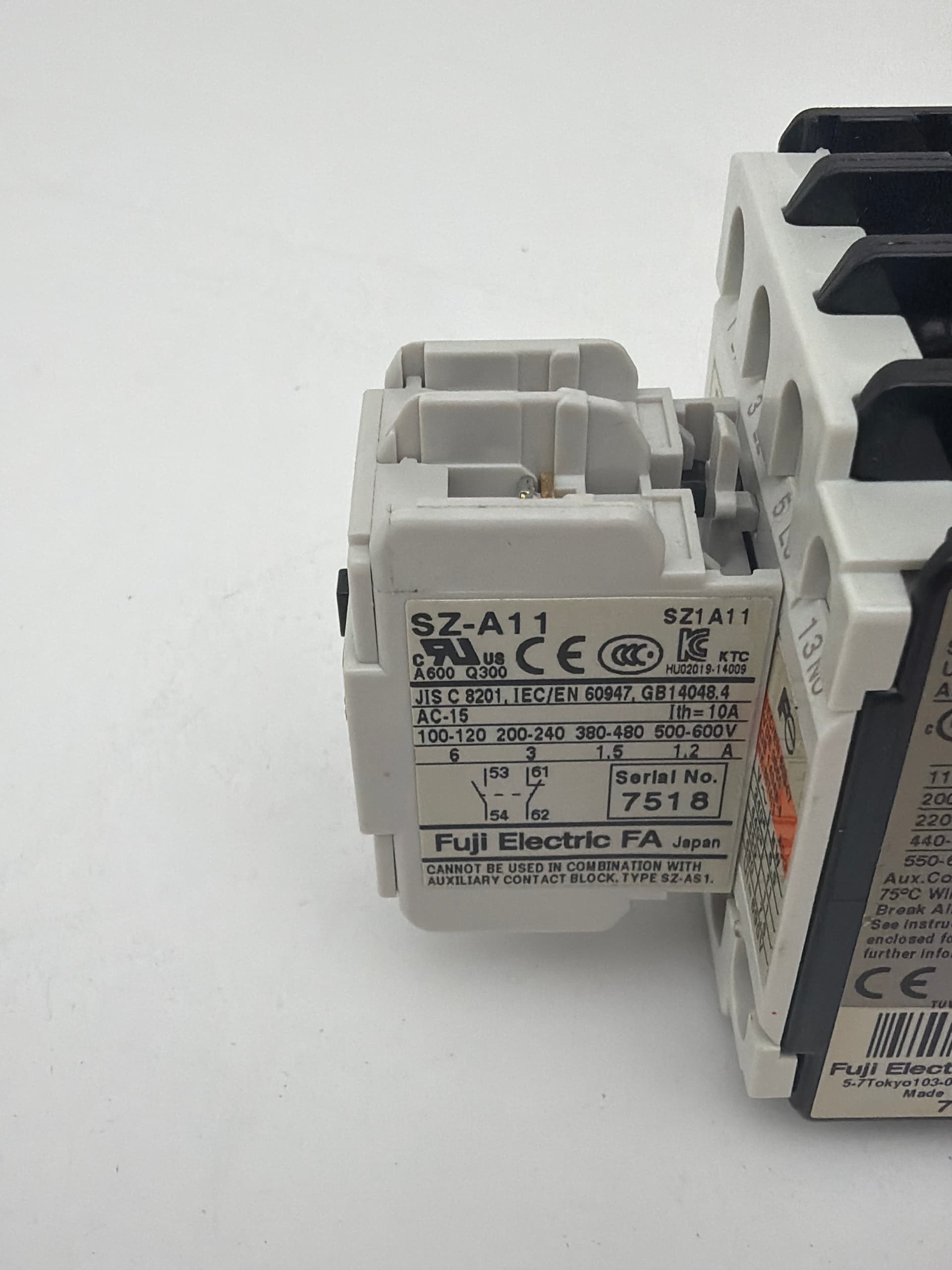

SZ-A11 Auxiliary Contact Block Specifications
| A600 Q300 | A600 Q300 |
| AC-15 | 100-120V 6A; 200-240V 3A; 380-480V 1.5A; 500-600V 1.2A |
| Ith | 10A |
| Terminals | 53/54, 61/62 |
| Standards | JIS C 8201, IEC/EN 60947, GB14048.4 |

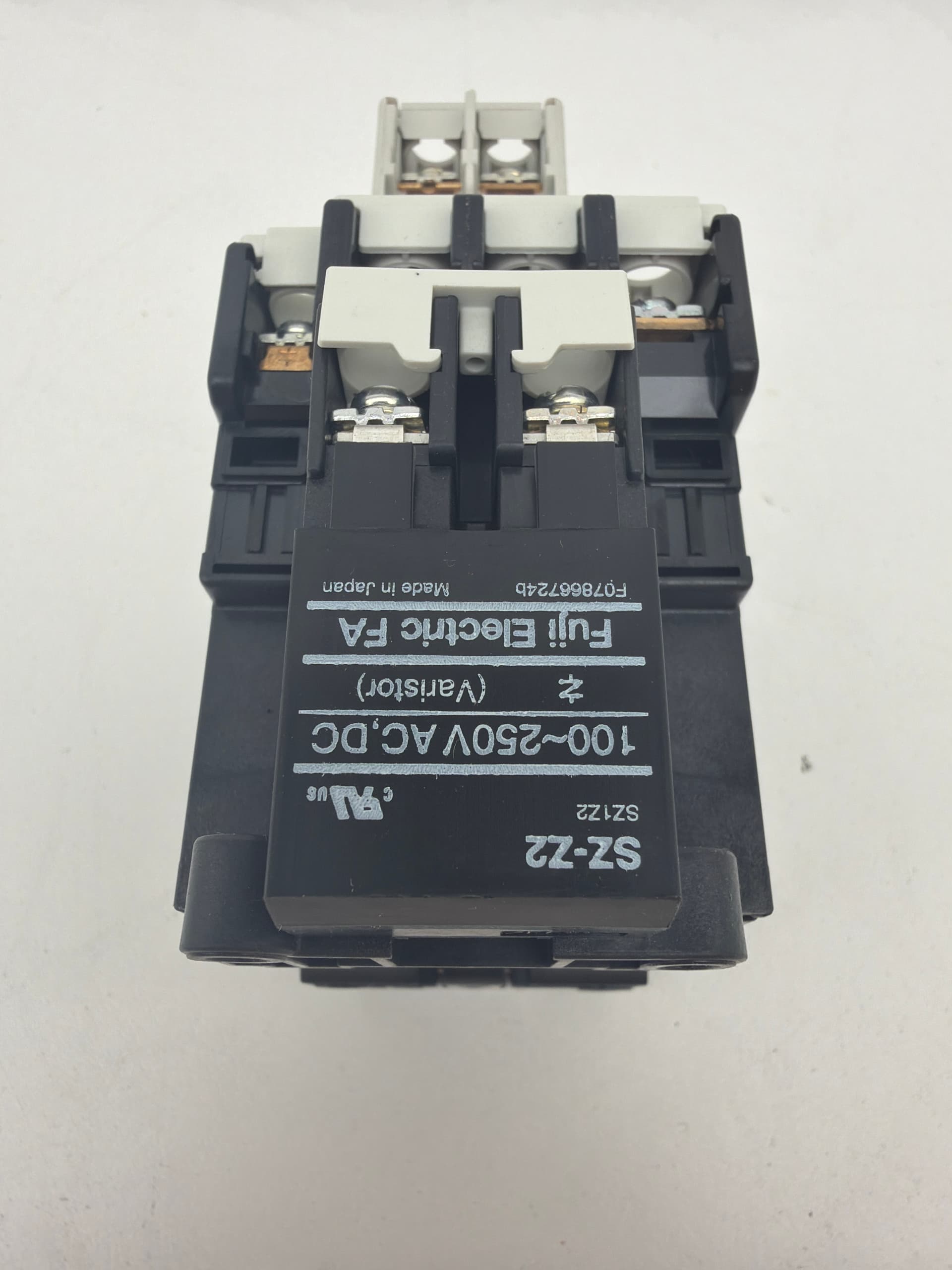

SZ-Z2 Coil Surge Suppression Unit Specifications
| Voltage | 100-250V AC,DC |
| Suppression device | Varistor |
Condition & testing notes
Unused inventory opened for inspection or photography. Item has been removed from new equipment that was never commissioned.
