Heraeus TUF5060230 Class 100 Clean Room Oven
Quoted on requestWorking & warranted
- Condition
- Used See details
- Brand
- Heraeus
- MPN
- TUF5060230
- SKU
- 276
- Availability
- 1 in stock
Shipping, sale coverage & payments
- Shipping:
- Ships from Scotia, NY. Method, cost and timing confirmed on your quote. Shipping policy
- Lead Time:
- We’ll confirm exact timing when we send your quote.
- Sale Coverage:
- Working & Warranted: 90-day warranty. View terms
- International Orders:
- Case by case; export controls may affect eligibility. Contact us
- Payments:
- Credit card via Stripe, or purchase order. Payment Information
- Independent Reseller:
- Capovani is not an authorized distributor or representative of the original manufacturer.
Shop with confidence
Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani
Item description
Polished stainless steel finish
Vertical laminar flow; inert gas atmosphere
Nitrogen purge
Compressed air required
Technical specifications
| Maximum Temperature | 230 ºC (446 ºF, 503 ºK) |
| Minimum Temperature | 50 ºC (122 ºF, 323.00 ºK) |
| Clean Room Class | Class 100 |
| Capacity/Volume Box | 2.60 cu ft (0.07 cu m) |
| Power Requirements | 208/230 V 36.0 A 3 Phase |
| Year of Manufacture | 1988 |
| Weight | 1,042 lb (473 kg) |
Heat/Cool Controls
| Overtemperature Protection | YES |
Chamber Size
| Width | 26.00 in (66.04 cm) |
| Depth | 16.00 in (40.64 cm) |
| Height | 11.00 in (27.94 cm) |

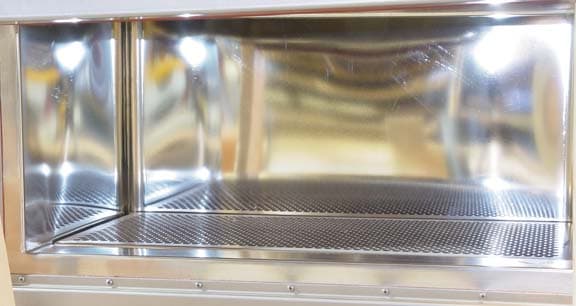

Chamber Characteristics
| Chamber Construction | Stainless steel |
Exterior Dimensions
| Width | 41.000 in (104.1 cm) |
| Depth | 50.000 in (127.0 cm) |
| Height | 78.000 in (198.1 cm) |
Condition & testing notes
Previously in service and offered for secondary-market resale.
