Hughes VTA 90 Weld Head & HTT 600 Power Supply

Quoted on requestWorking & warranted
Condition
Used See details
Brand
Hughes
MPN
VTA90
SKU
586
Availability
1 in stock
Make Inquiry

Shipping, sale coverage & payments

Shipping:
Ships from Scotia, NY. Method, cost and timing confirmed on your quote. Shipping policy
Lead Time:
We’ll confirm exact timing when we send your quote.
Sale Coverage:
Working & Warranted: 90-day warranty. View terms
International Orders:
Case by case; export controls may affect eligibility. Contact us
Payments:
Credit card via Stripe, or purchase order. Payment Information
Independent Reseller:
Capovani is not an authorized distributor or representative of the original manufacturer.
Capovani Brothers Inc.

Shop with confidence

Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani

Item description

Flexline foot pedal

Electrode stroke: 0.25"

Electrode holder: 0.125 x 0.078"

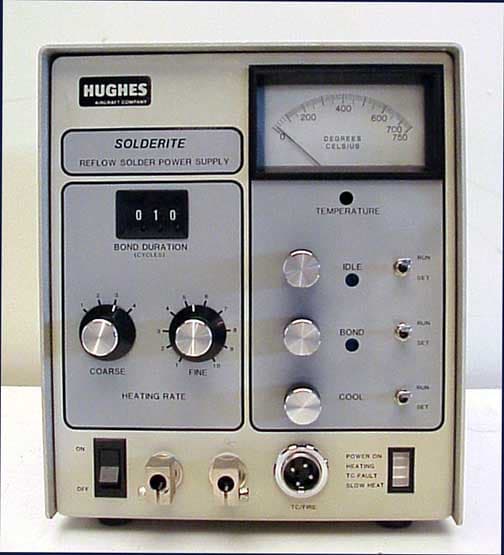

Digital thumbwheel duration timer

Coarse and fine temperature heat rate adjustment

0 to 750°C analog temperature meter

Does not come with base plate.

Soldering tip is NOT included

Technical specifications

Maximum Rating.17 KVA
Maximum Rating20 watt-sec
Weld Force Minimum0.22 lb (0.10 kg)
Weld Force Maximum2.01 lb (0.91 kg)
Weld Head TypeOpposed
Electrode Holder TypeParallel Gap
Power LeadsOpposed
Power Supply IncludedYES
Power Supply ModelHTT-600
Foot Pedal IncludedYES
Power Requirements115 V 8.0 A 50/60 Hz 1 Phase
Weight12 lb (5 kg)

Exterior Dimensions

Width2.500 in (6.4 cm)
Depth7.500 in (19.1 cm)
Height4.000 in (10.2 cm)

Condition & testing notes

Previously in service and offered for secondary-market resale.

How our listings work

AMADA Miyachi Peco MG3 D W Color Digital Weld Monitor

SKU: 207721

1 in stock
AMADA Miyachi Peco MG3 D W Color Digital Weld Monitor
Working & Warranted
Used
Request Pricing

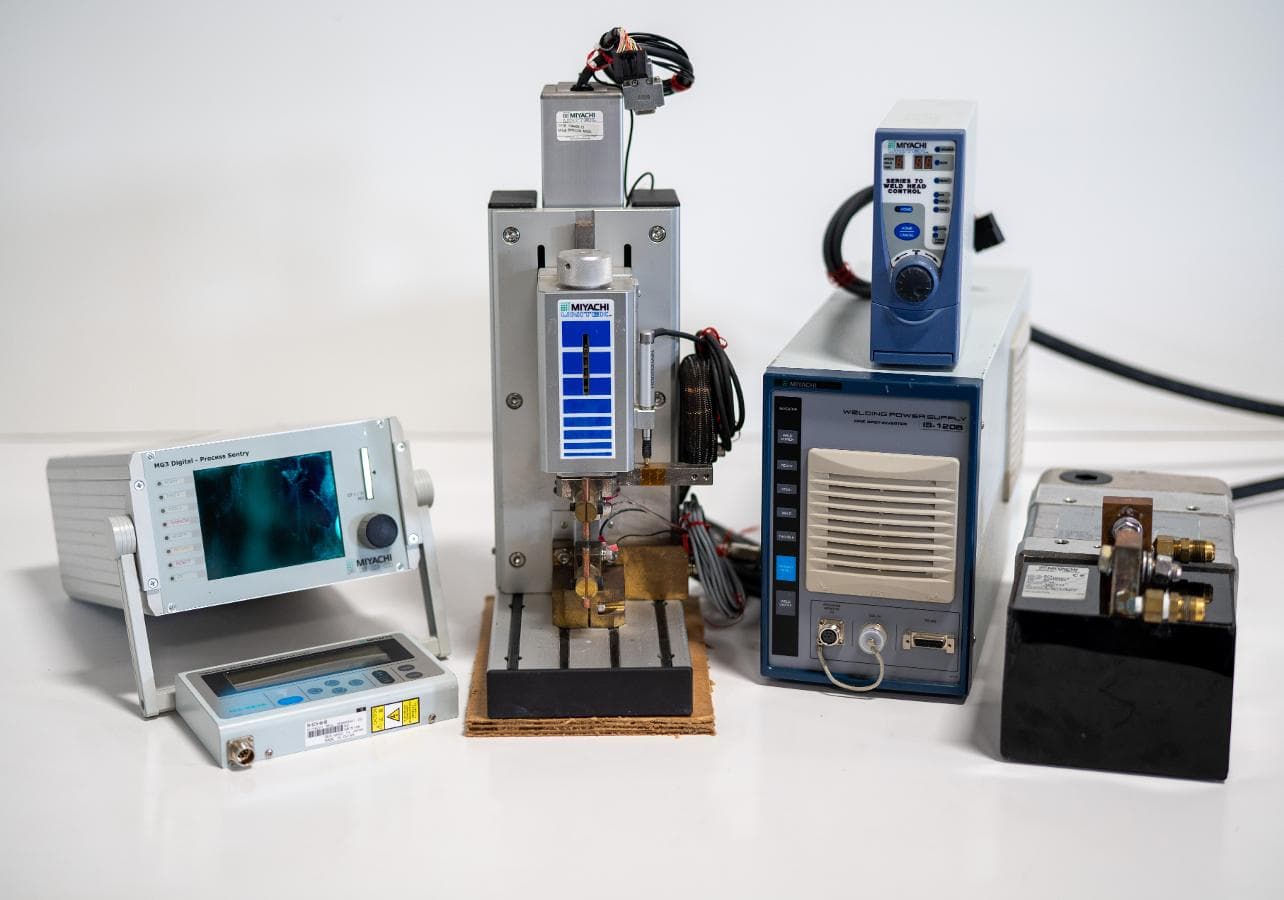

Amada Miyachi IS-120B Spot Welding System

SKU: 207686

1 in stock
Amada Miyachi IS-120B Spot Welding System
Working & Warranted
Used
Request Pricing

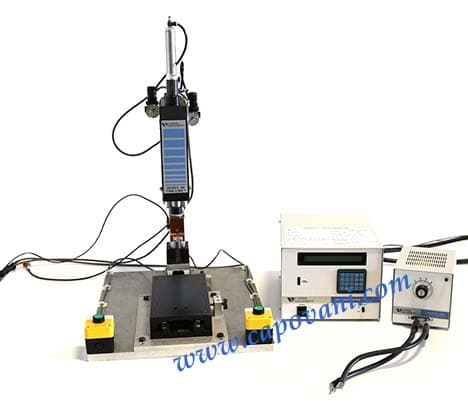

Unitek Thin-Line 90RA Phasemaster IV Solder Reflow System

SKU: 185839

1 in stock
Unitek Thin-Line 90RA Phasemaster IV Solder Reflow System
Working & Warranted
Used
Request Pricing

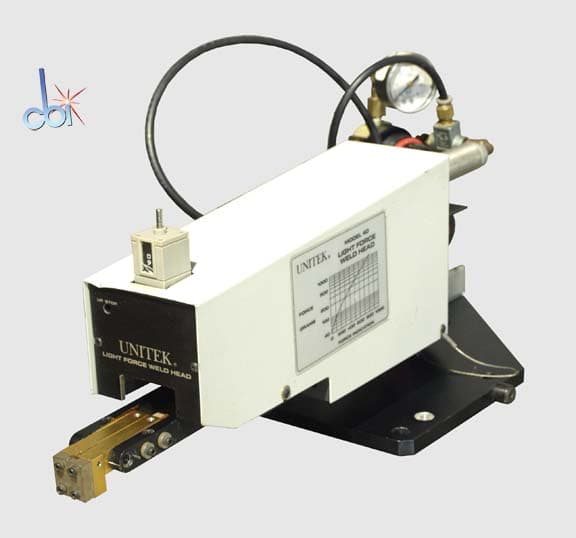

Unitek Model 40 Light Force Weld Head
