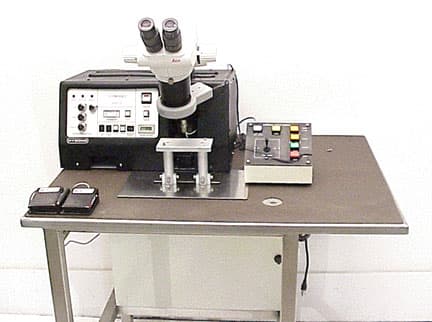

Hybond 616-001 Ultrasonic Peg Bonder

Condition
Used See details
Brand
Hybond
MPN
616-001
SKU
10766
Availability
1 in stock
Make Inquiry

Shipping, sale coverage & payments

Shipping:
Ships from Scotia, NY. Method, cost and timing confirmed on your quote. Shipping policy
Lead Time:
We’ll confirm exact timing when we send your quote.
Sale Coverage:
Working & Warranted: 90-day warranty. View terms
International Orders:
Case by case; export controls may affect eligibility. Contact us
Payments:
Credit card via Stripe, or purchase order. Payment Information
Independent Reseller:
Capovani is not an authorized distributor or representative of the original manufacturer.
Capovani Brothers Inc.

Shop with confidence

Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani

Item description

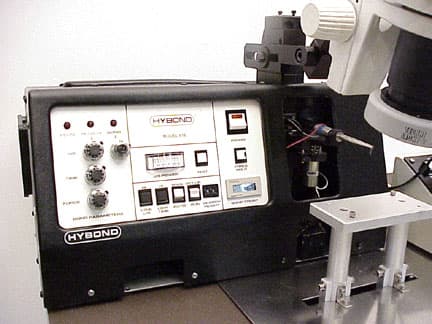

Ultrasonic system: PLL self-tuning, 62.5 KHz (±2.5KHz) nominal

Ultrasonic power range: 0-2 watt on Low setting (default), 0-4 watts on High setting

Bond time range: Low: 10 - 400 mSec High: 200 - 600 mSec

Bond force range: 25 - 200 grams

Bondable wire diameters: 0.5 to 2.0 mils (12,5 to 50 µm) insulated ; 0.5 to 2.0 mils (12,5 to 50 µm) bare

Bondable ribbon dimensions: Up to 2 x 20 mils (50 x 500 µm)

Bondable wire/ribbon materials: Gold, gold plated copper, and aluminum

Bond head movement: Semi-automatic / automatic

Bond actuation: Sensor at variable height, actuated by pushbutton or footswitch

Z axis travel: 1.5 in (3,81 cm)

Vertical bonding window: 1.4 in (3,55 cm)

Leica GZ 6 Stereozoom microscope

10X/22 Eyepeices

Ring light

X-Y Motorized stage

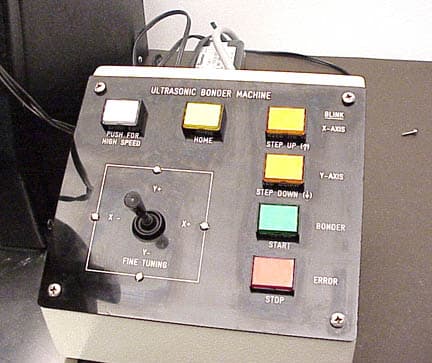

Controller w/joy stick

Technical specifications

Year of Manufacture1997

Exterior Dimensions

Width36.000 in (91.4 cm)
Depth10.236 in (26.0 cm)
Height48.000 in (121.9 cm)

Condition & testing notes

Previously in service and offered for secondary-market resale.
