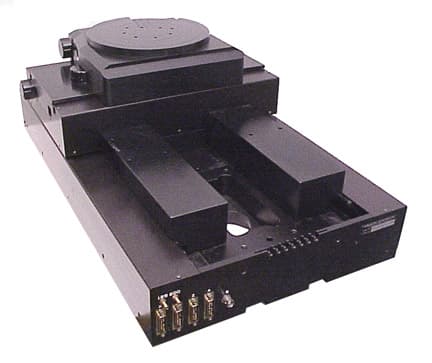

Kensington MS4 XY Theta Motorized Stage
Quoted on requestWorking & warranted
- Condition
- Used See details
- Brand
- Kensington Labs
- MPN
- MS4
- SKU
- 570
- Availability
- 1 in stock
Shipping, sale coverage & payments
- Shipping:
- Ships from Scotia, NY. Method, cost and timing confirmed on your quote. Shipping policy
- Lead Time:
- We’ll confirm exact timing when we send your quote.
- Sale Coverage:
- Working & Warranted: 90-day warranty. View terms
- International Orders:
- Case by case; export controls may affect eligibility. Contact us
- Payments:
- Credit card via Stripe, or purchase order. Payment Information
- Independent Reseller:
- Capovani is not an authorized distributor or representative of the original manufacturer.
Shop with confidence
Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani
Item description
Theta 360 degrees continuos
8" vacuum wafer chuck
Wafer chuck parallel to x-y axis to less than 3 microns
Bi directional repeatability: .05 um(X-Y) and .01um(Z)
Focus wheel provides smooth high resolution manual positioning
DC servo motors
Model 4000 controller
GPIB interface card Four axis Cables included
Configured for Reichert Poly Var scope (Can be adapted for many scopes)
Technical specifications
| Configuration | X-Y-Z |
| Total Travel, XYZ | X: 8.27 in (210 mm) Y: 8.27 in (210 mm) Z: 0.39 in (10 mm) |
| Mechanical Drive System | Lead screw |
| Stage Bearing Type | Cross Roller Bearing |
| Stage Length | 26.00 in (660 mm) |
| Stage Width | 14.00 in (356 mm) |
| Tabletop Height | 9.00 in (228.60 mm) |
| Motor | Drive: Servo Motor |
| Weight | 180 lb (82 kg) |
Exterior Dimensions
| Width | 14.000 in (35.6 cm) |
| Depth | 26.000 in (66.0 cm) |
| Height | 9.000 in (22.9 cm) |
Condition & testing notes
Previously in service and offered for secondary-market resale.
