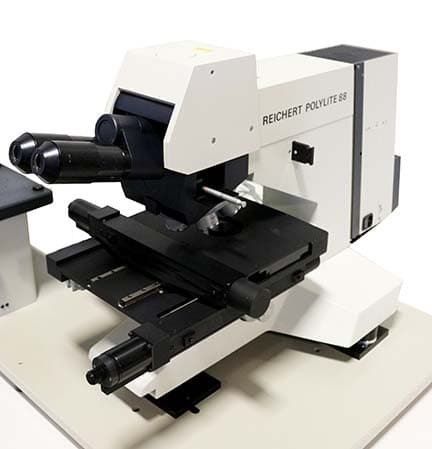

Leica/Reichert Polylite 88 Wafer Inspection Microscope
Quoted on requestWorking & warranted
- Condition
- Used See details
- Brand
- Leica
- MPN
- POLYLITE 88
- SKU
- 186518
- Availability
- 1 in stock
Shipping, sale coverage & payments
- Shipping:
- Ships from Scotia, NY. Method, cost and timing confirmed on your quote. Shipping policy
- Lead Time:
- We’ll confirm exact timing when we send your quote.
- Sale Coverage:
- Working & Warranted: 90-day warranty. View terms
- International Orders:
- Case by case; export controls may affect eligibility. Contact us
- Payments:
- Credit card via Stripe, or purchase order. Payment Information
- Independent Reseller:
- Capovani is not an authorized distributor or representative of the original manufacturer.
Shop with confidence
Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani
Item description

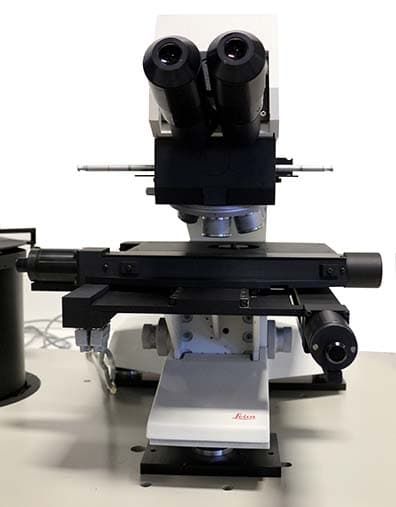

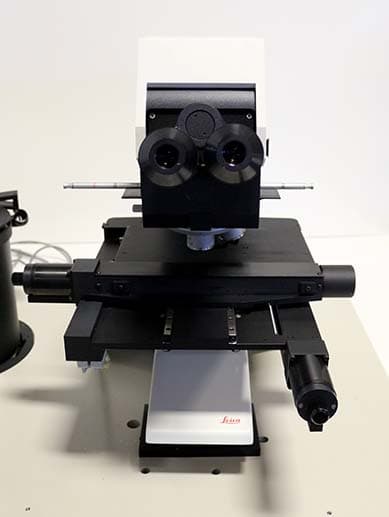

Leica brightfield/darkfield microscope M/N: 302313

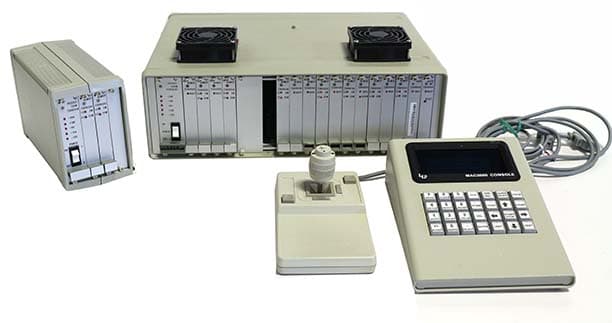

LEP motorized X-Y stage controller M/N: 73000100
LEP wobbler control M/N: 73000102
LEP MAC2000 interface console M/N: 73000352
LEP Joystick
Keyence LX-132T Laser (Notch/ Edge Finder) (included, but not shown in the photo)
Adustable aperture and field diaphragm
Power requirements (Scope): 115/220 V, 50/60 Hz, 100 W
Power requirements (stage controller): 100-240 V, 50/60 Hz, 300 W
Technical specifications
| Microscope Type | Upright |
| Microscope Configuration | Brightfield & Darkfield |
| Illumination Type | Reflected Light |
| Binocular Angle | Variable |
| Wafer Size | 200.00 mm (7.87 in) |
| Magnification Changer | 1.0,2.5 |
| Motorized Nosepiece | YES |

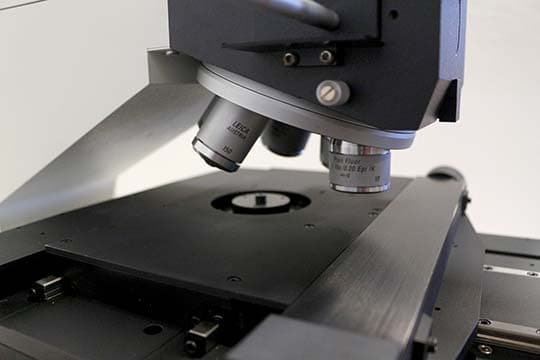

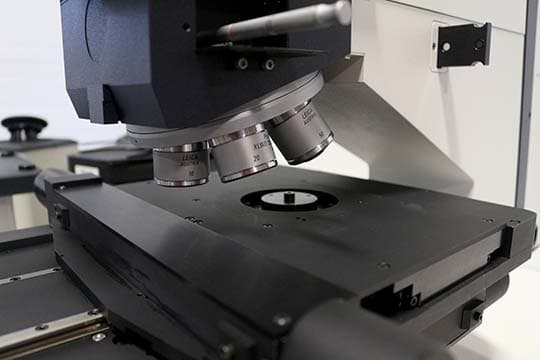

| Multiple Objectives Models | PLAN FLUOR LWD 10X/0.20 EPI IK PLAN FLUOR XLWD 20X/0.40 EPI IK PLAN FLUOR 50X/0.60 EPI PLAN FLUOR 100X/0.70 EPI PLAN APO 150X/0.95 EPI IK |
| Infinity Corrected Objectives | YES |
| Illumination Power | Volts: 14 Watts: 85 |
| Power Supply Included | YES |
| Stage Type | Coaxial X-Y |
| Stage Area | Length: 140 mm (5.512 in) Width: 261.0 mm (10.276 in) |
Eyepieces
| Magnification | 10 X |
| Field Number | 20 mm |
| Focusing | YES |
Wafer Stage/Loader
| Wafer Size | 200.00 mm (7.87 in) |
Condition & testing notes
Previously in service and offered for secondary-market resale.
