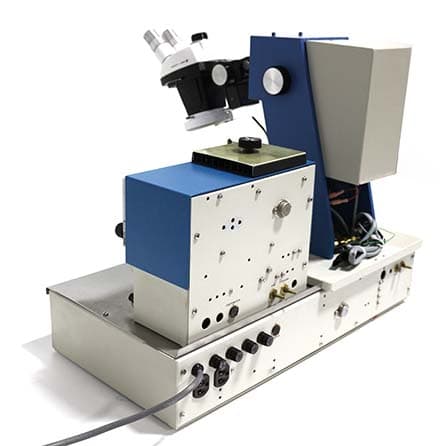

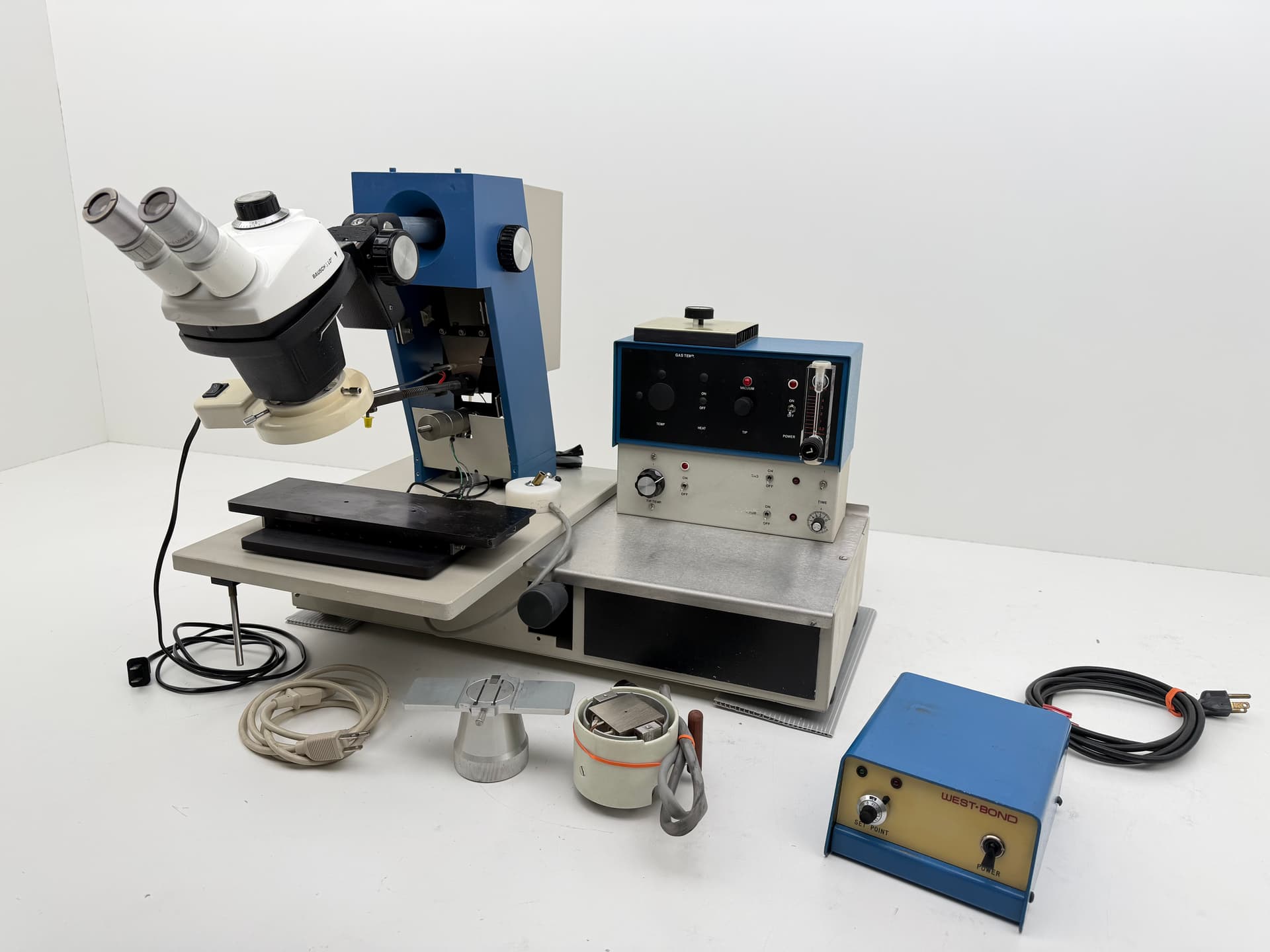

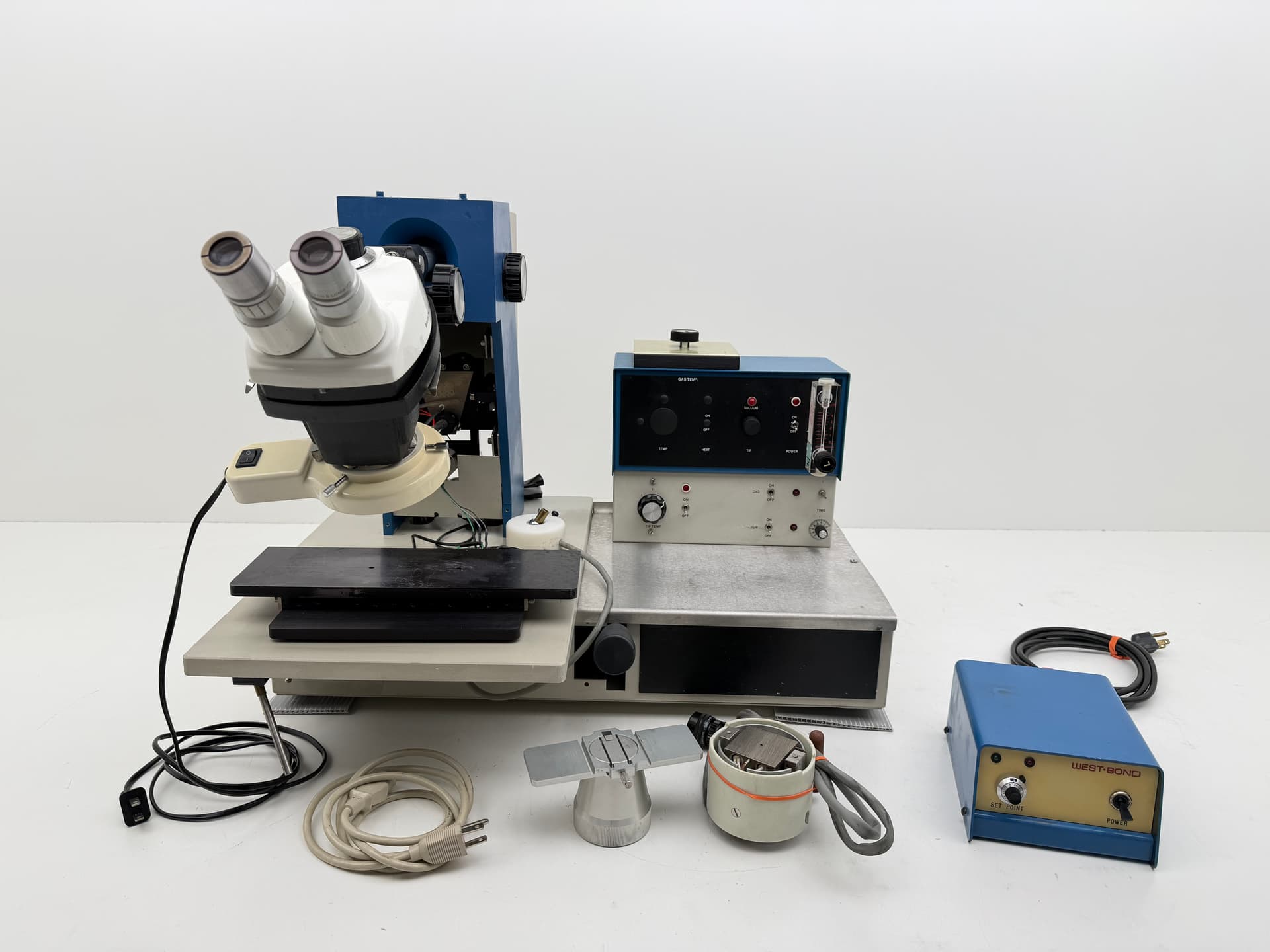

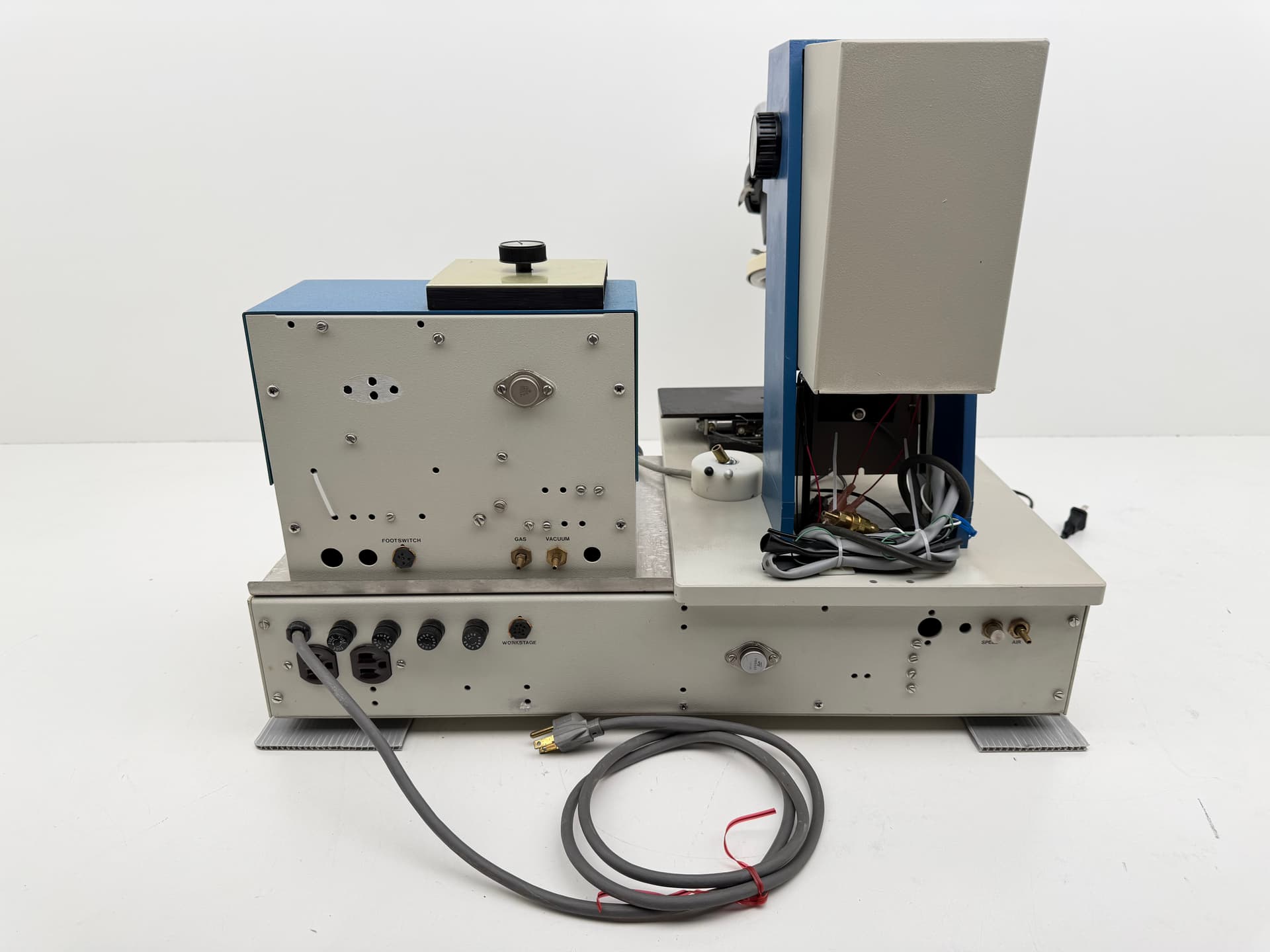

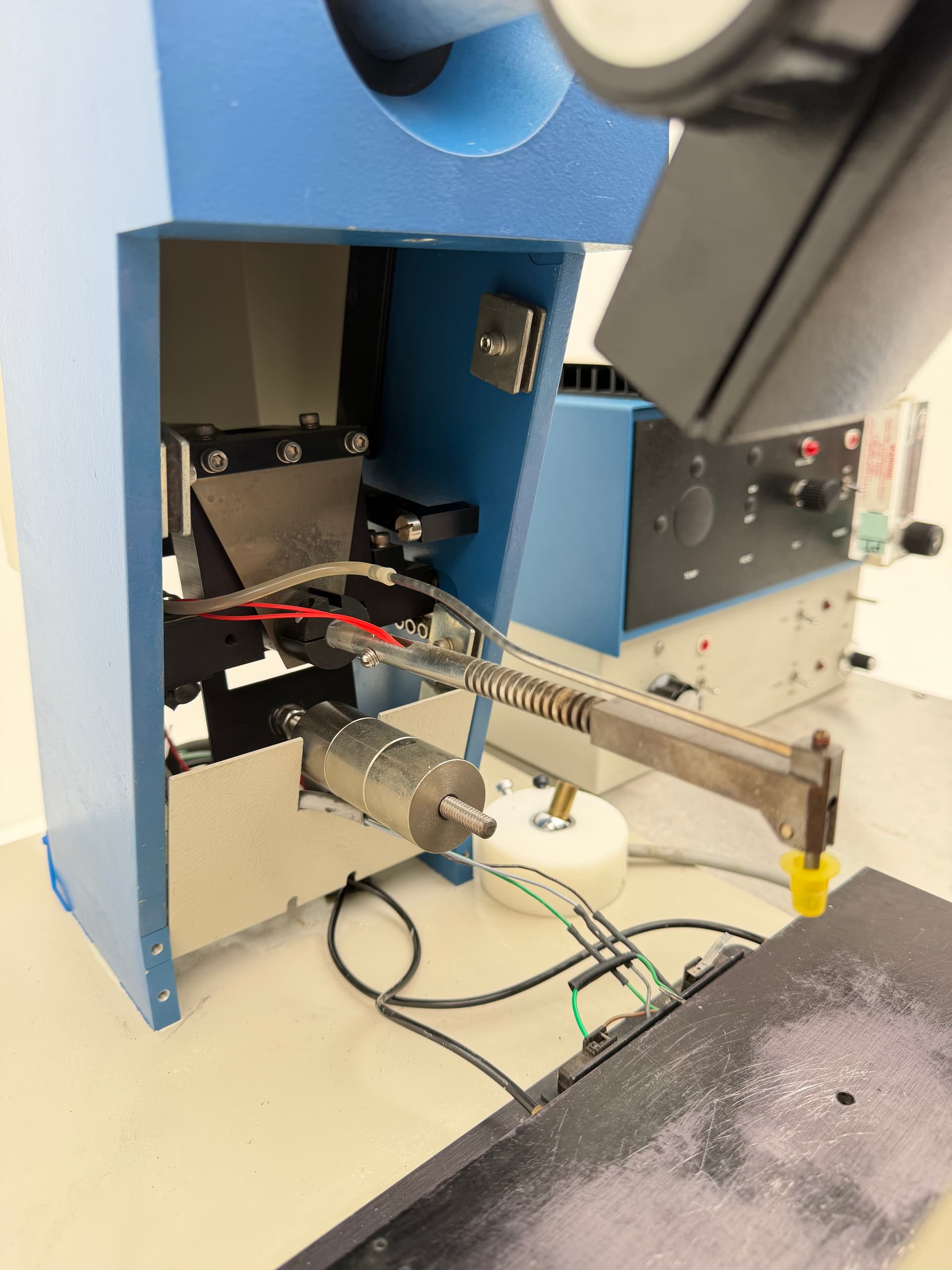

Mech-El 709 Eutectic Die Attacher

Condition
For parts See details
Brand
Mech-El
MPN
709
SKU
189121
Availability
1 in stock
Make Inquiry

Shipping, sale coverage & payments

Shipping:
Ships from Scotia, NY. UPS parcel within 3 business days of order confirmation; cost calculated at checkout. Shipping policy
Sale Coverage:
As-is No Return: No return; final sale. View terms
International Orders:
Case by case; export controls may affect eligibility. Contact us
Payments:
Credit card via Stripe, or purchase order. Payment Information
Independent Reseller:
Capovani is not an authorized distributor or representative of the original manufacturer.
Capovani Brothers Inc.

Shop with confidence

Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani

Item description

Features

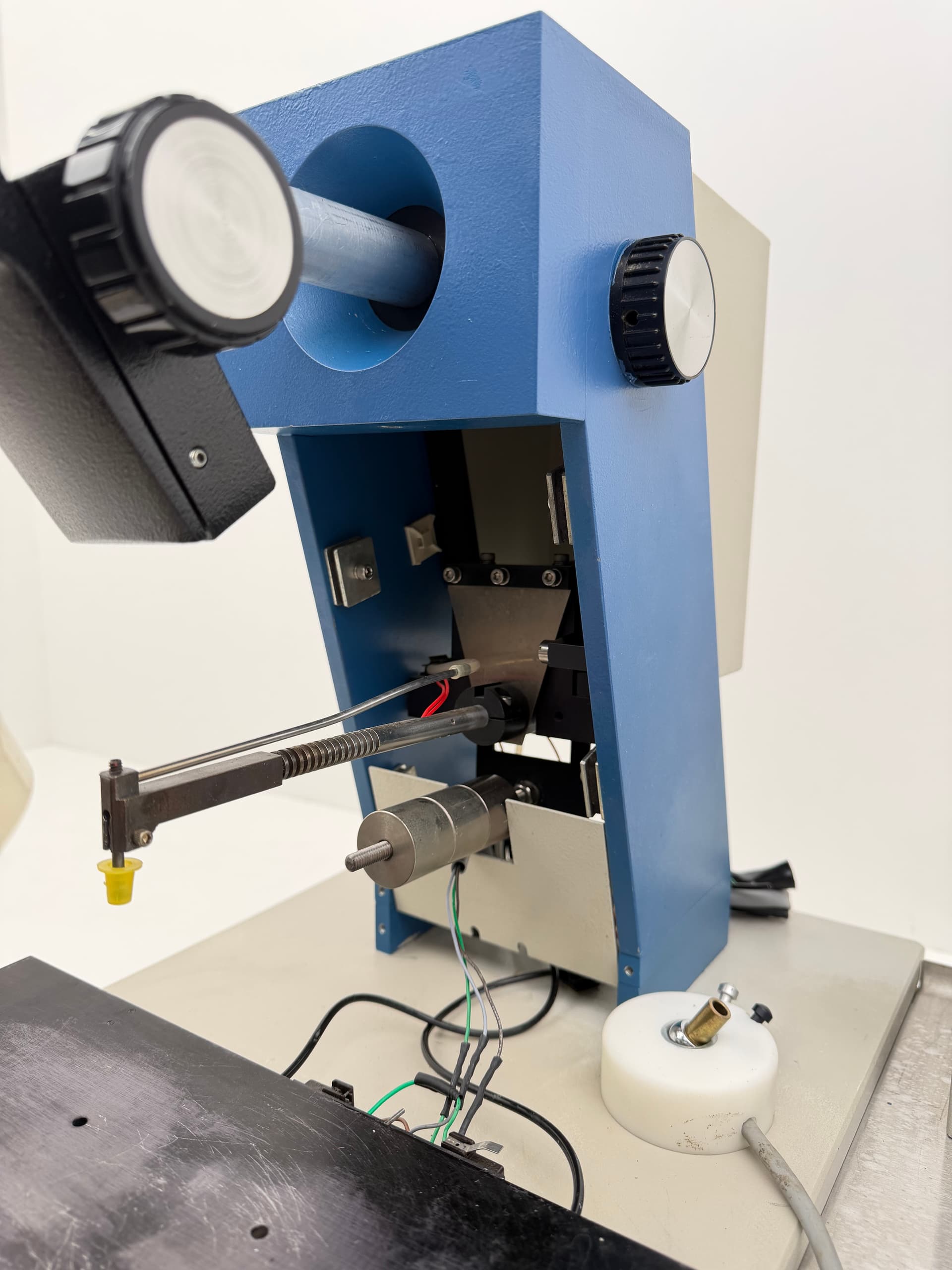

Mechanical Scrub : Scrub frequency adjustable from 0 to 100 CPS. Scrub amplitude adjustable from 0 to 100 mils (0 to 2.54 mm)

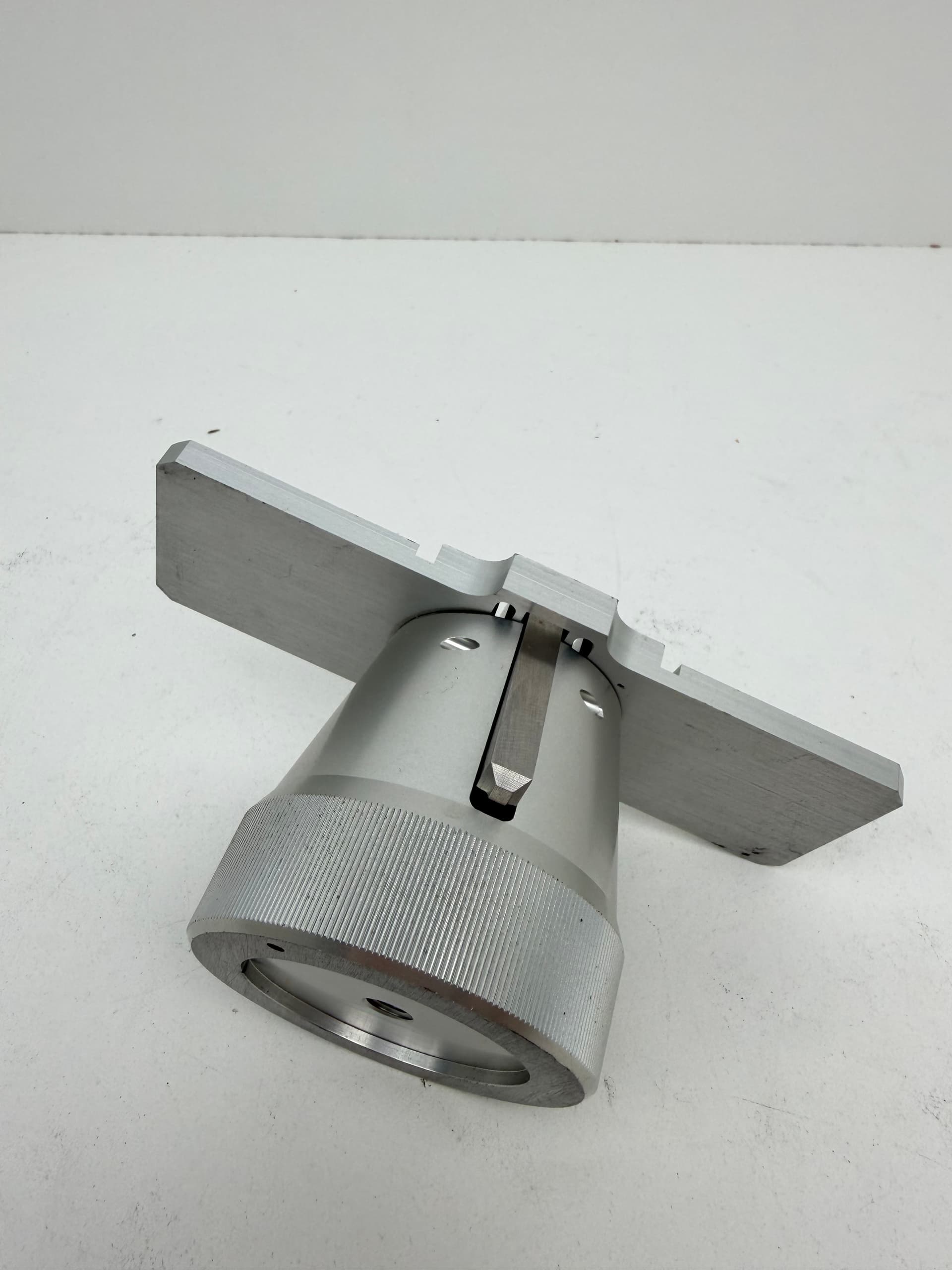

Collet Mount: Cold or heated tool holder. Tool temperature from 25 to 400°C.

Micropositioner: 6:1 standard.

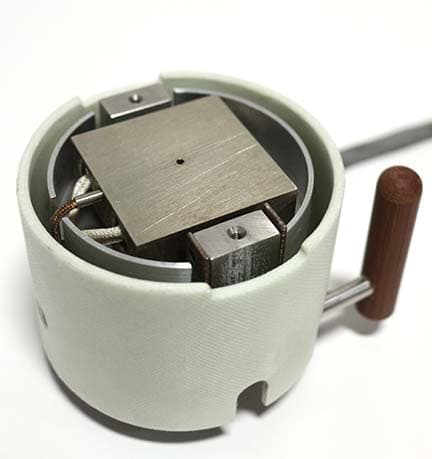

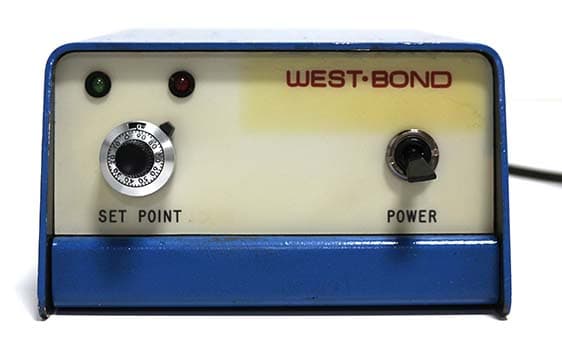

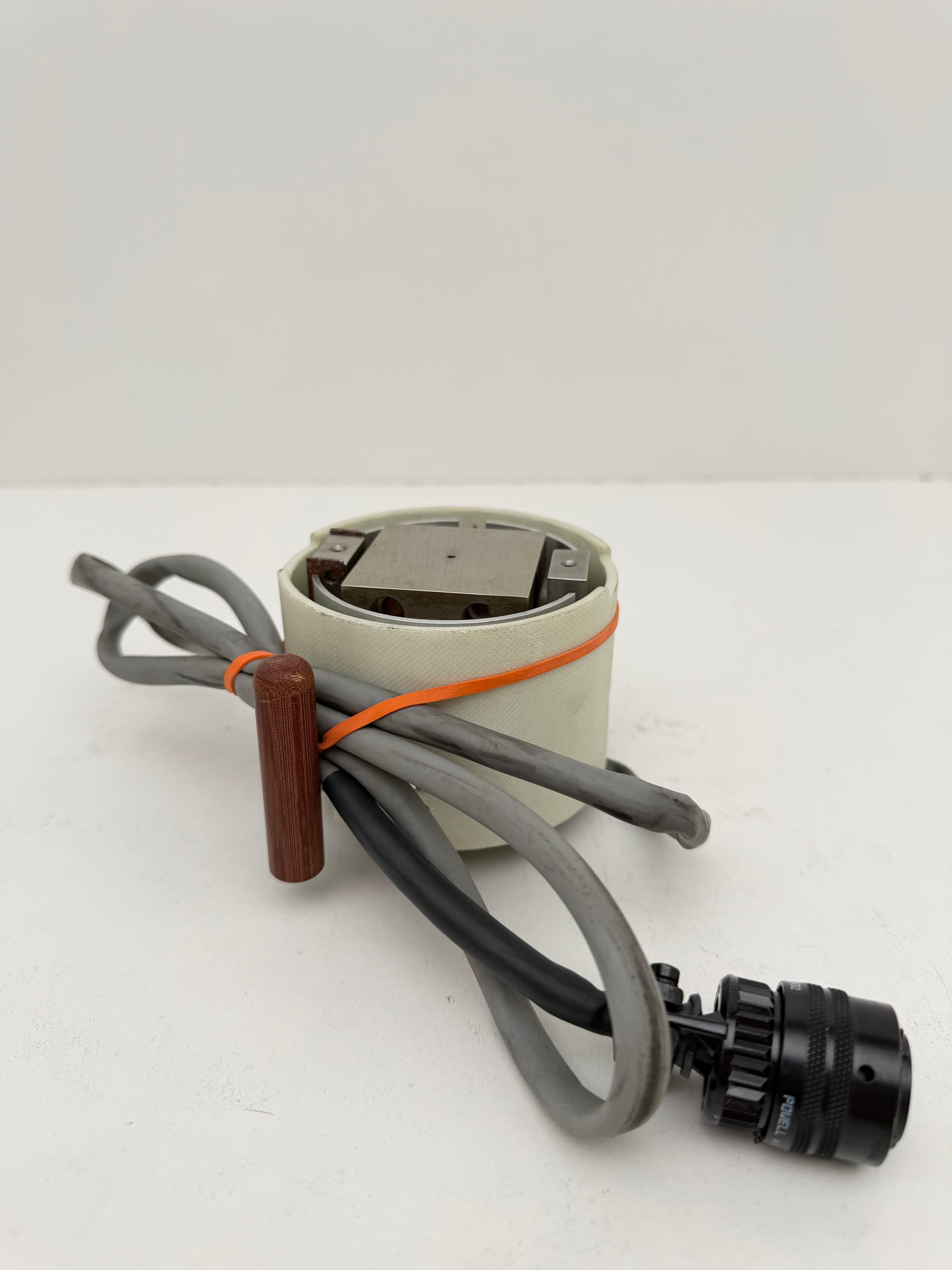

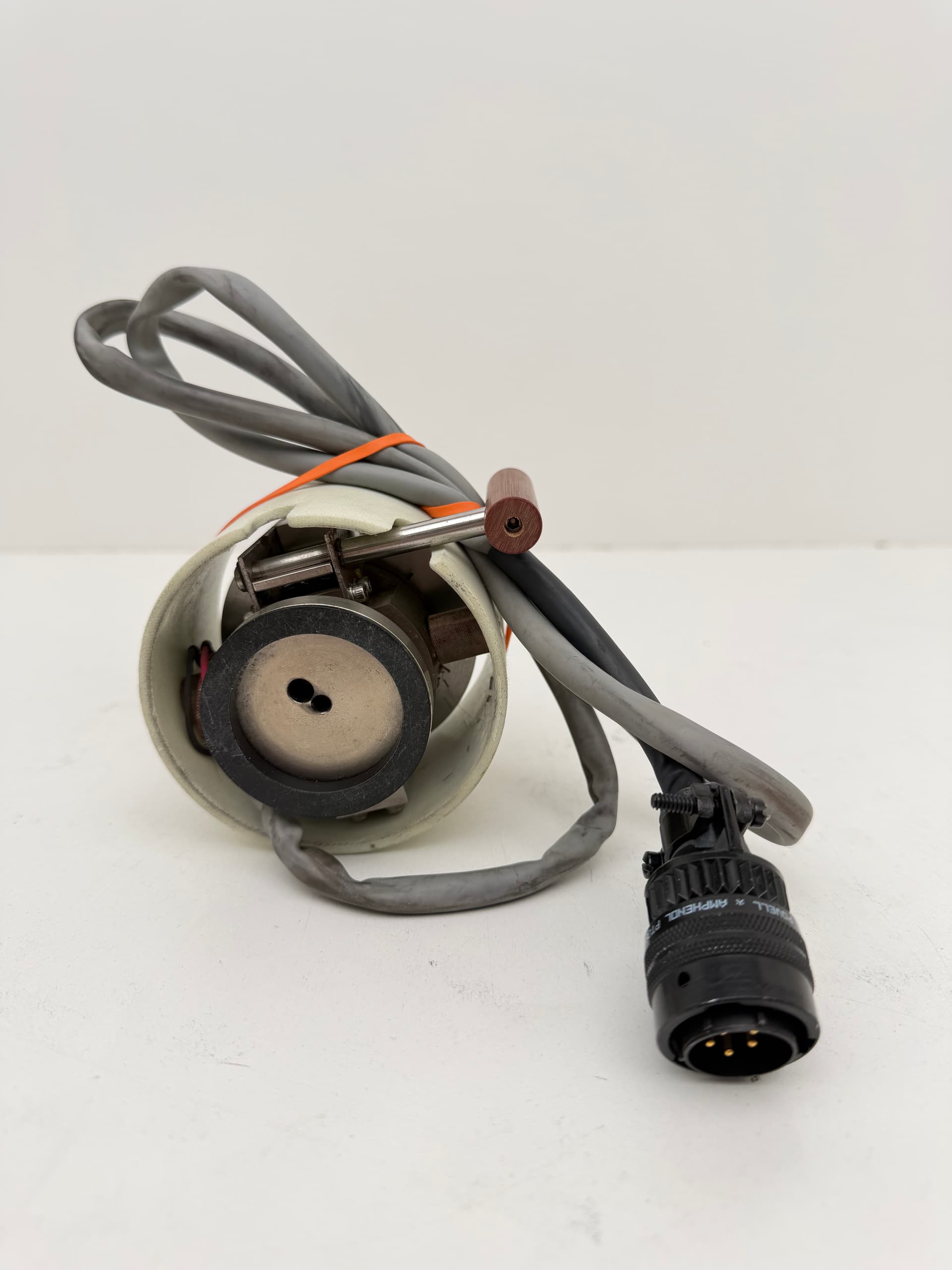

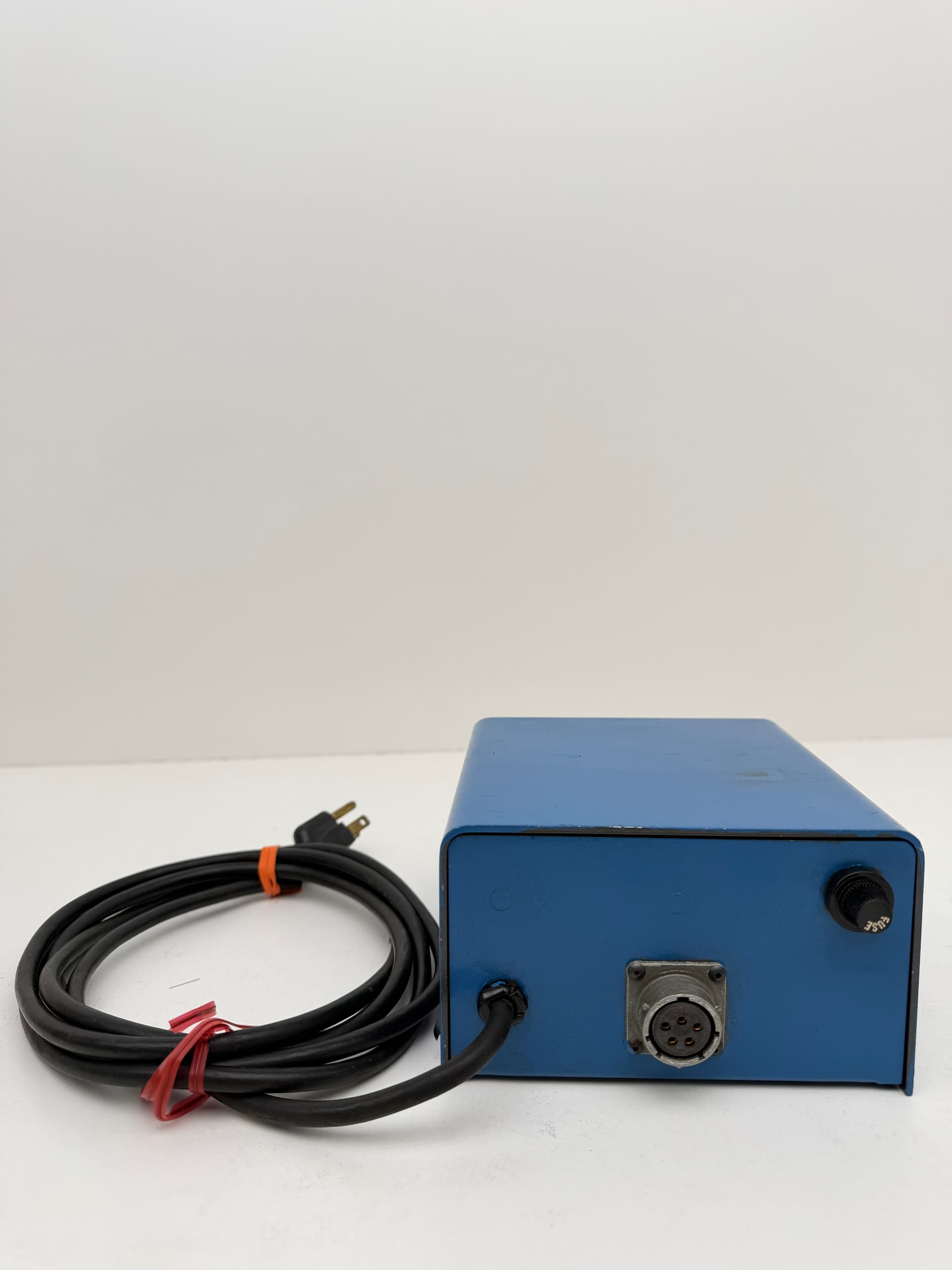

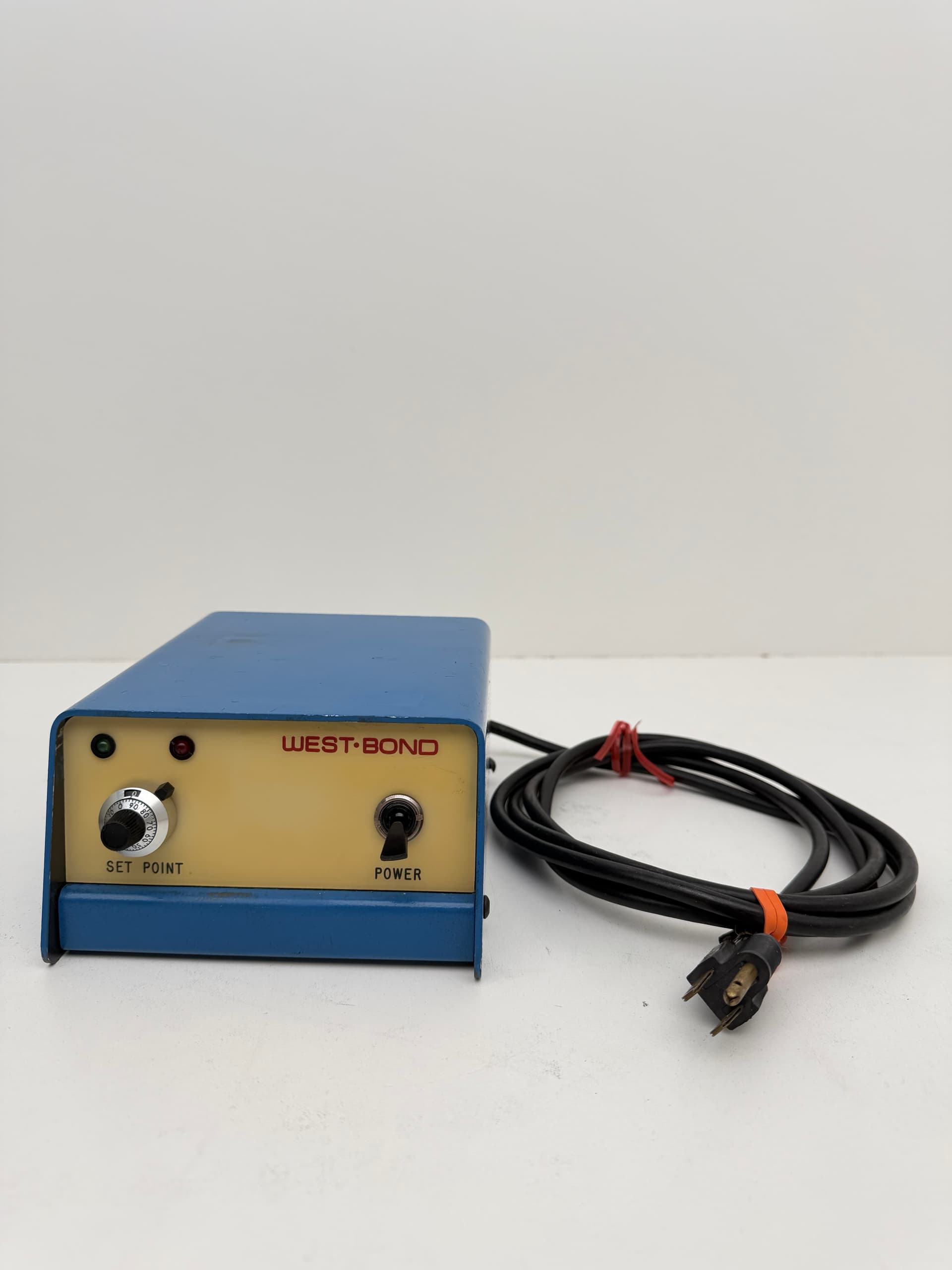

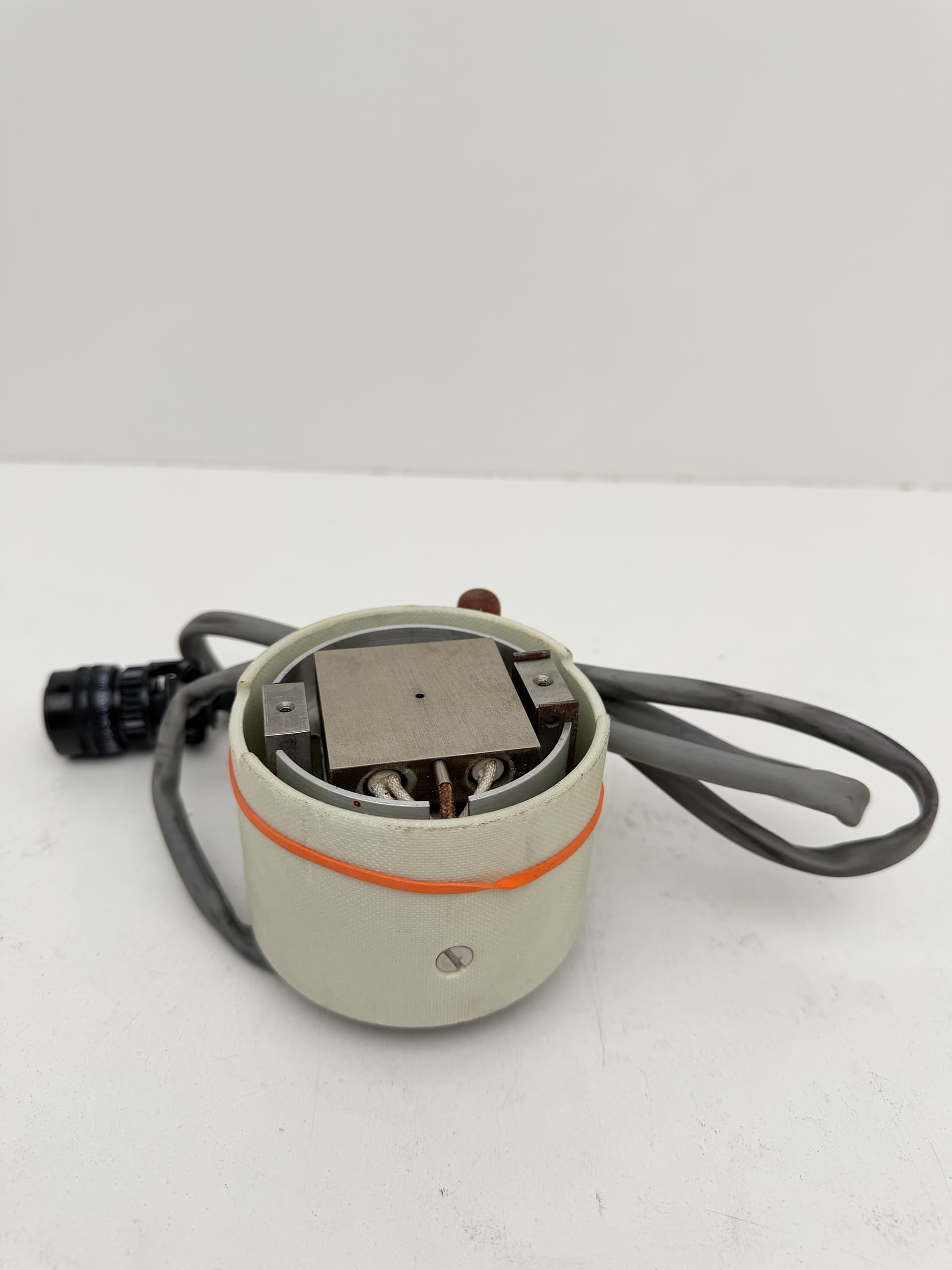

Heated Workstage: Regulated temperature from ambient to 500 degrees C (Westbond brand)
Services: Air: 20-80 PSI (50-230 kg/cm2) (Filtered)
Vacuum: 20" (510 mm) Hg minimum

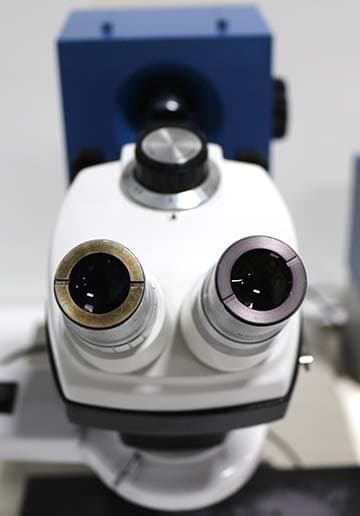

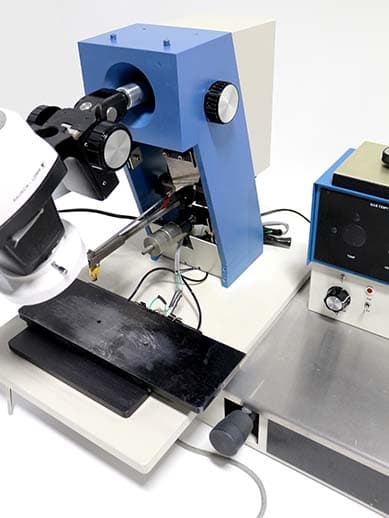

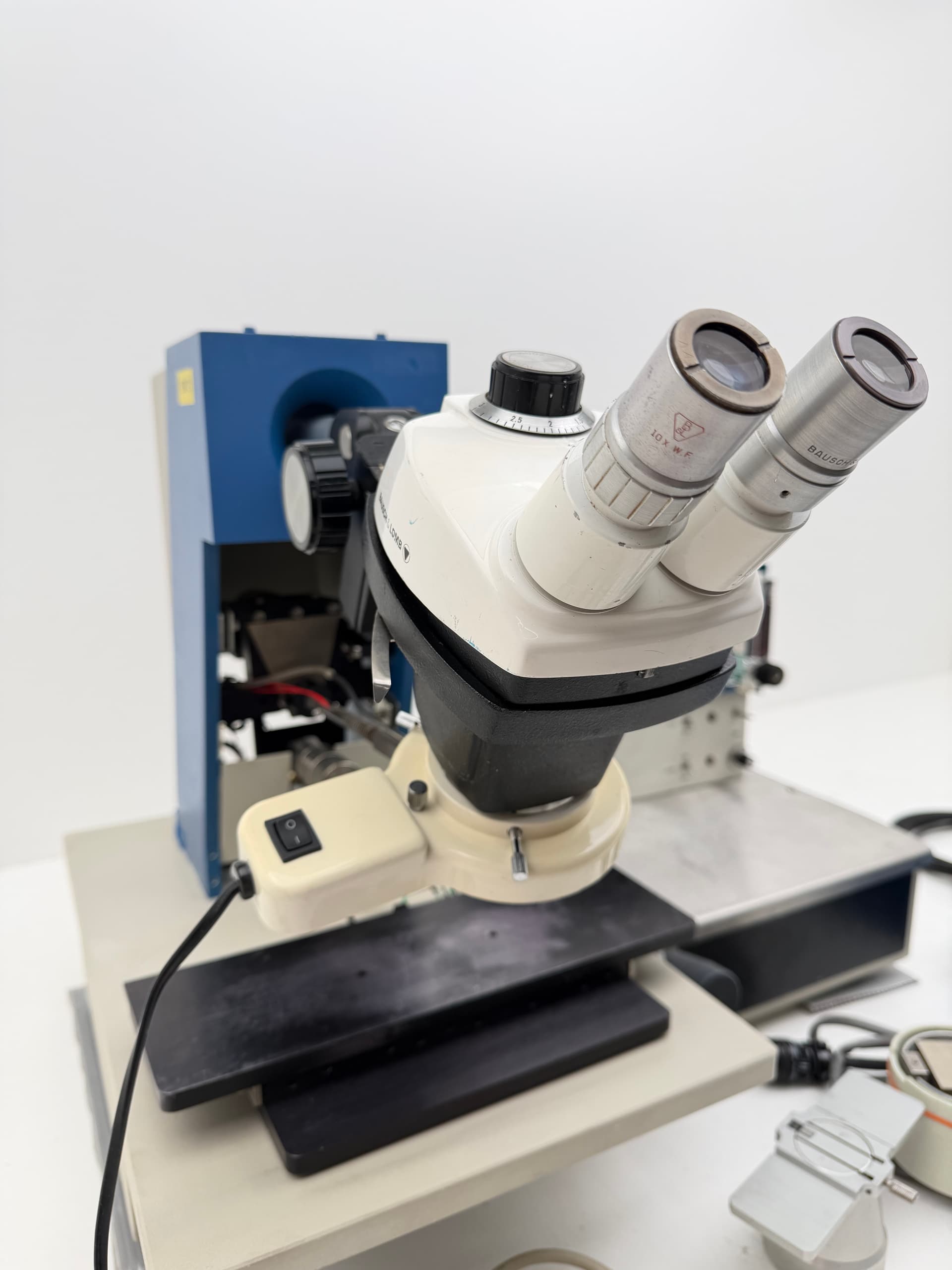

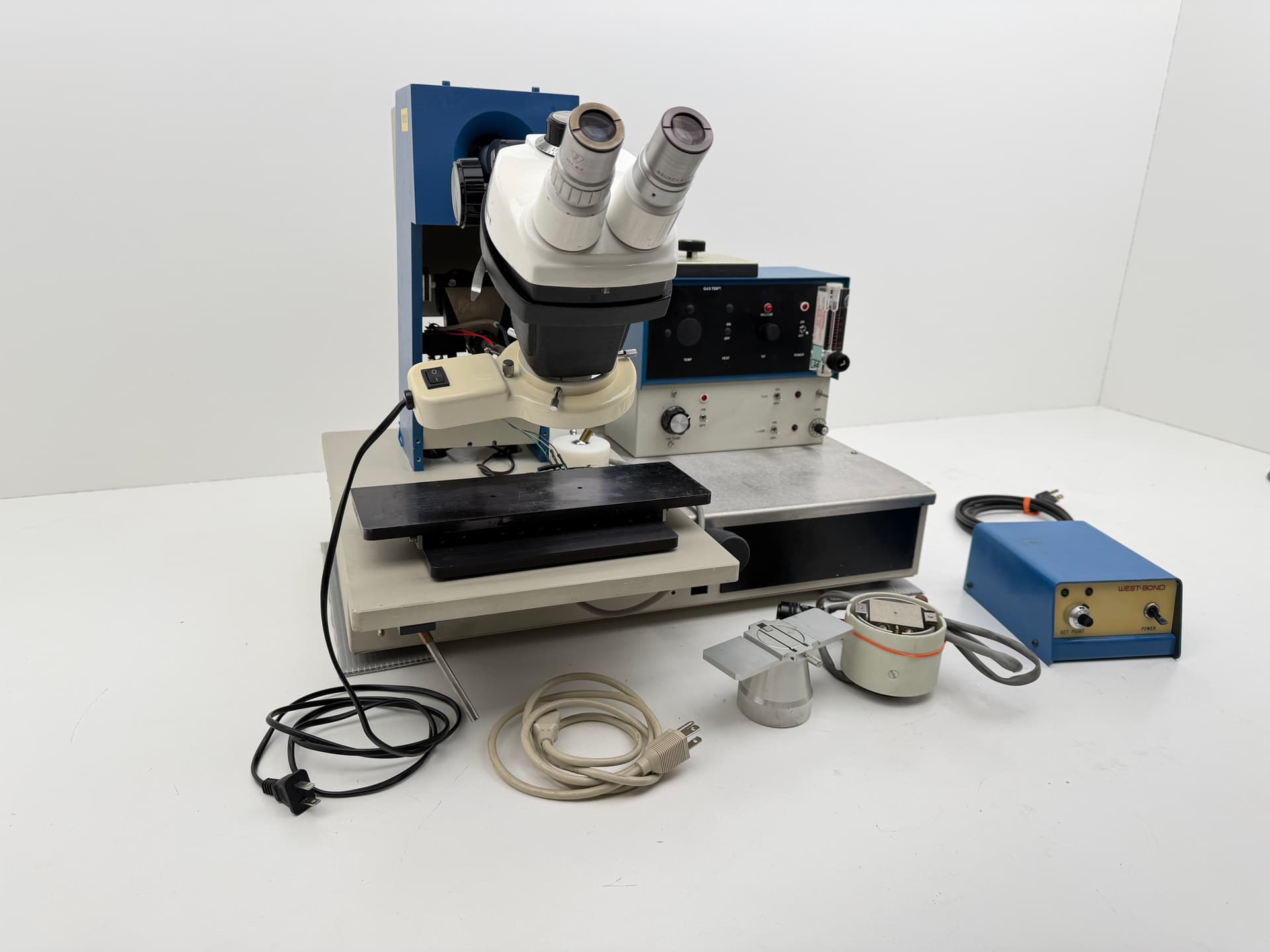

Microscope has the fluorescent ring light as shown, B&L Stereozoom 4
Die tip is 3.4 mm square

—

Technical specifications

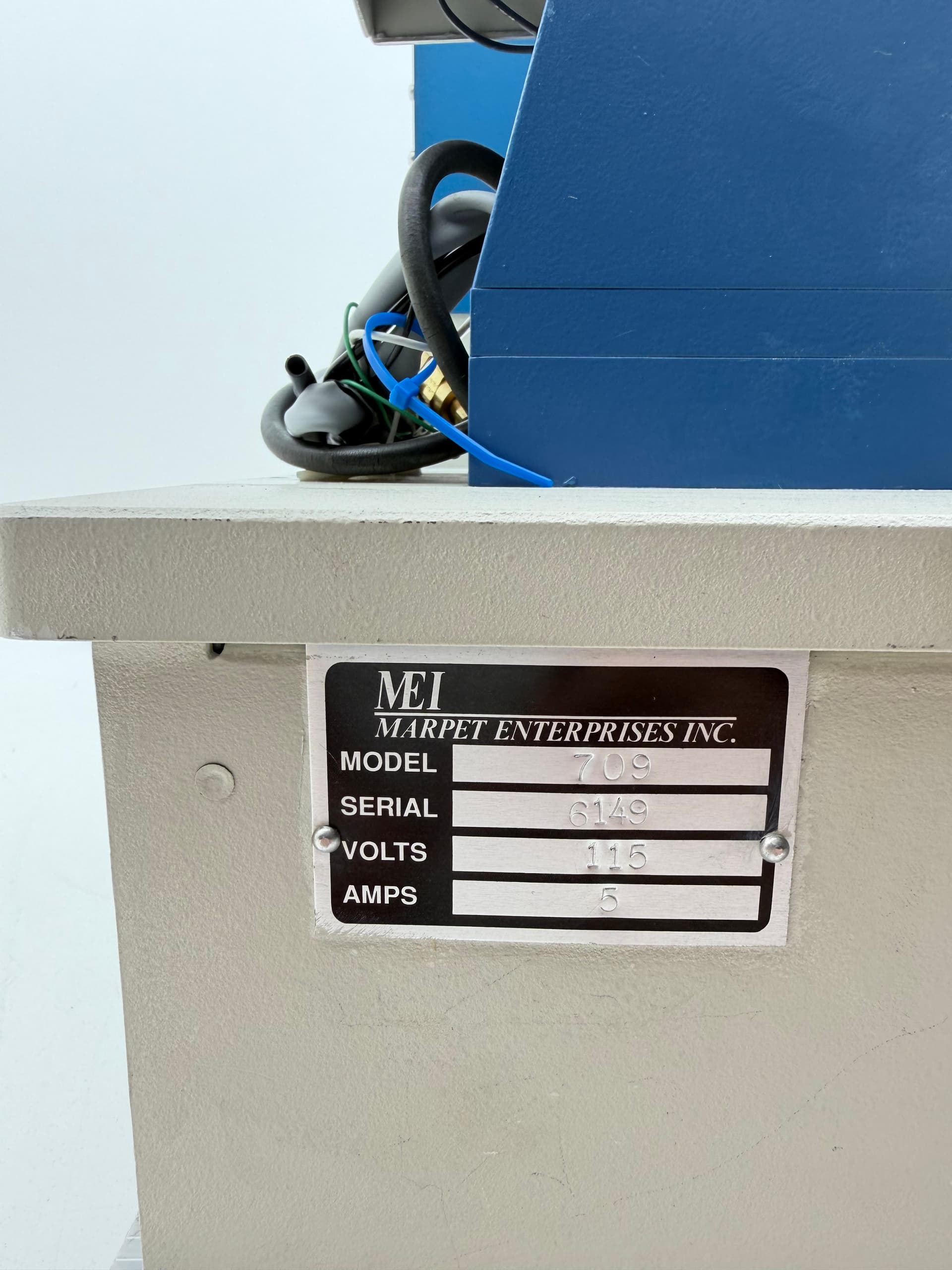

Power Requirements115 V 5.0 A(2) 50/60 Hz 1 Phase
Weight40 lb (18 kg)

Exterior Dimensions

Width18.000 in (45.7 cm)
Depth23.000 in (58.4 cm)
Height17.750 in (45.1 cm)

Condition & testing notes

Inventory intended for repair, parts harvesting, or non-working use cases. It is not tested.
