Melles Groit Nanomover Actuator with Controller

Item description

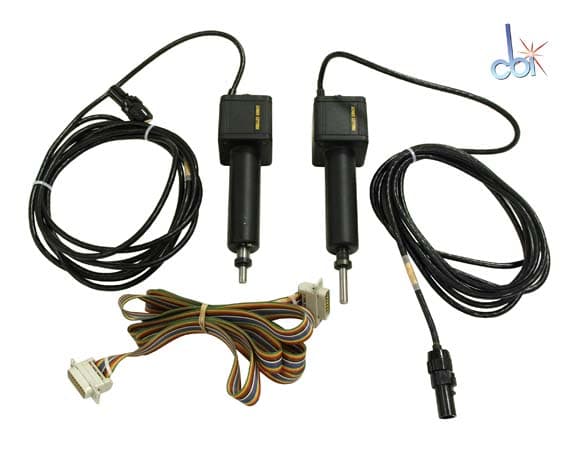

Actuator Model Nanomover 11NCM001

Resolution: 50 Nanometers

Bidrectional repeatability: +- 100 Nanometers

Absolute accuracy: 1 Micron

Cardinal step size: 1.25 microns

Travel: 25 mm

Max load: 10Kg

Max velocity: 2.5mm/second

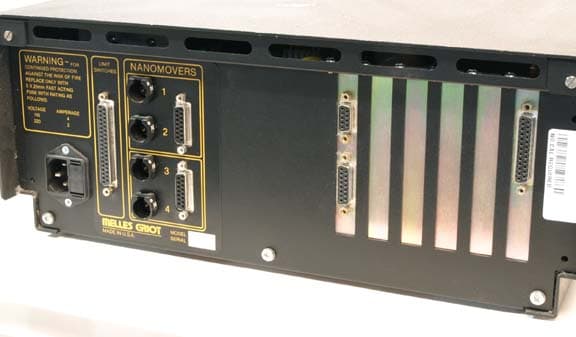

Controller Model 11NC001

Four channel

Power Requirements	115 V 50/60 Hz 1 Phase
Weight	32 lb (15 kg)

Used

Previously in service and offered for secondary-market resale.

Working & Warranted
Inspected by Capovani engineers to confirm function. Sold with a 90-day warranty covering function. Warranty terms
Lead time varies, confirmed in your quote
These items are inspected and serviced after your order is confirmed. Typical lead time is 1 to 3 weeks. We’ll confirm exact timing when we send your quote.
Logistics confirmed at quotation
Shipping method, cost, and timing are confirmed on your quote before an order is placed. Shipping policy
International orders
Available on a case-by-case basis. Some items may be subject to export control regulations affecting eligibility. Contact us for details.
Payment & purchase orders
Credit card payments via Stripe. Purchase orders accepted. See our Payment Information page for more details.
