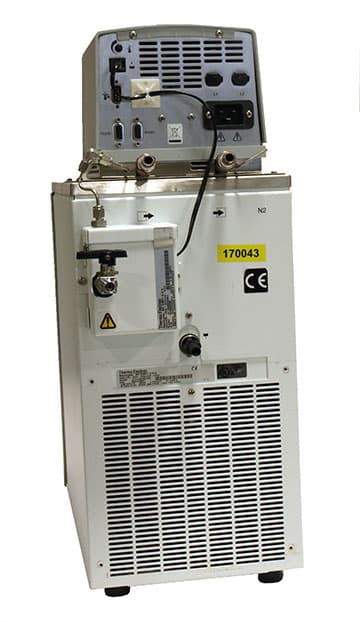

Neslab RTE-7 Digital Refrigerated Bath Circulator

Condition: Used
Brand: Neslab
MPN: RTE-7 Digital Plus with Automatic Refill 50-Hz
SKU: 170043
Availability: 1 in stock

Item description

RS-232/485 interface, 1/8" nitrogen purge, timer, temperature offset, adjustable temperature cut off, connector for optional external RTD sensor, auto refill option installed.

2000W heater, 500W cooling capacity.

Tested.

230VAC 50 Hz only.

BOM# 271125200100 CE label

Specifications

Minimum Temperature	-25 ºC (-13 ºF, 248.00 ºK)
Maximum Temperature	150 ºC (302 ºF, 423 ºK)
Cooling Capacity	500 W (1,705 BTU/hr)
Heating Capacity	2,000 BTU/hr (0.59 kW, 0.79 HP)
External Cooling	Forced Air Cooled
Pump type/Model	Z
Max Flow	4 GPM (15.20 l/m)
Inlet Connection	1/4-npt
Outlet Connection	1/4-npt
Capacity/Liquid	7.20 L (1.90 gal)
Refrigerant Type & Quantity	Suva-R-134A -6-oz
Power Requirements	230 V 12.0 A 50 Hz 1 Phase
CE Marked	YES
Weight	64 lb (29 kg)

Temperature Control

Control Stability

± 0.010 ºC

Heat/Cool Controls

Control Type	Programmable
Interface	RS 232

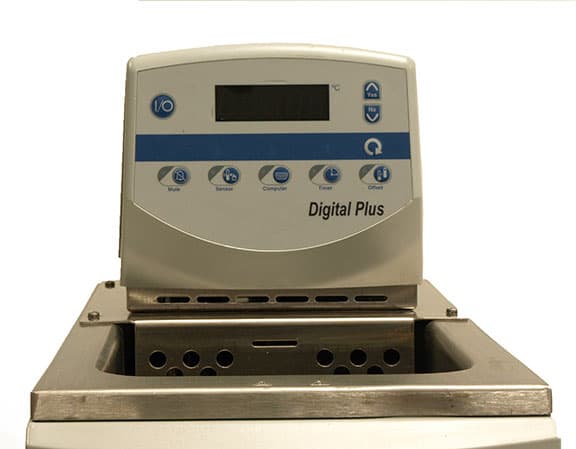

Controller Manufacturer/Model	Neslab Digital Plus

Bath/Tank Dimensions

Length	7.2500 in (18.42 cm, 184.2 mm)
Width	6.5000 in (16.51 cm, 165.1 mm)
Depth	6.0000 in (15.24 cm, 152.4 mm)

Exterior Dimensions

Width	9.250 in (23.5 cm)
Depth	19.000 in (48.3 cm)
Height	23.750 in (60.3 cm)

Working & Warranted
