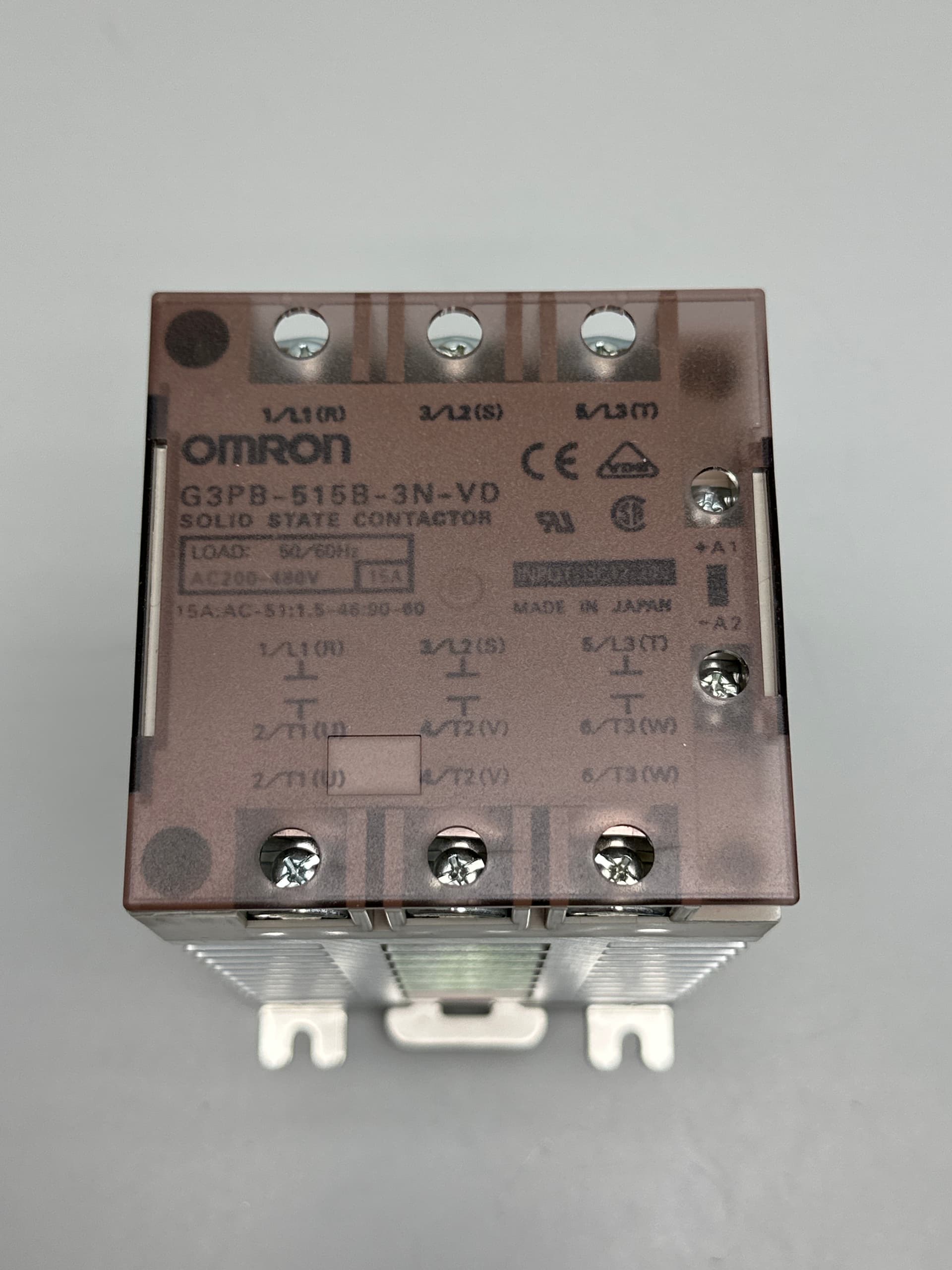

OMRON G3PB-515B-3N-VD Solid State Contactor, 15 A, 480 VAC, 3-Pole
$385.0030 day return
- Condition
- Brand new See details
- Brand
- OMRON
- MPN
- G3PB-515B-3N-VD
- SKU
- CID1418
- Availability
- 1 in stock
Shipping, sale coverage & payments
- Shipping:
- Ships from Scotia, NY. UPS parcel within 3 business days of order confirmation; cost calculated at checkout. Shipping policy
- Sale Coverage:
- 30 Day Return: 30-day functional return. View terms
- International Orders:
- Case by case; export controls may affect eligibility. Contact us
- Payments:
- Credit card via Stripe, or purchase order. Payment Information
- Independent Reseller:
- Capovani is not an authorized distributor or representative of the original manufacturer.
Shop with confidence
Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani
Item description

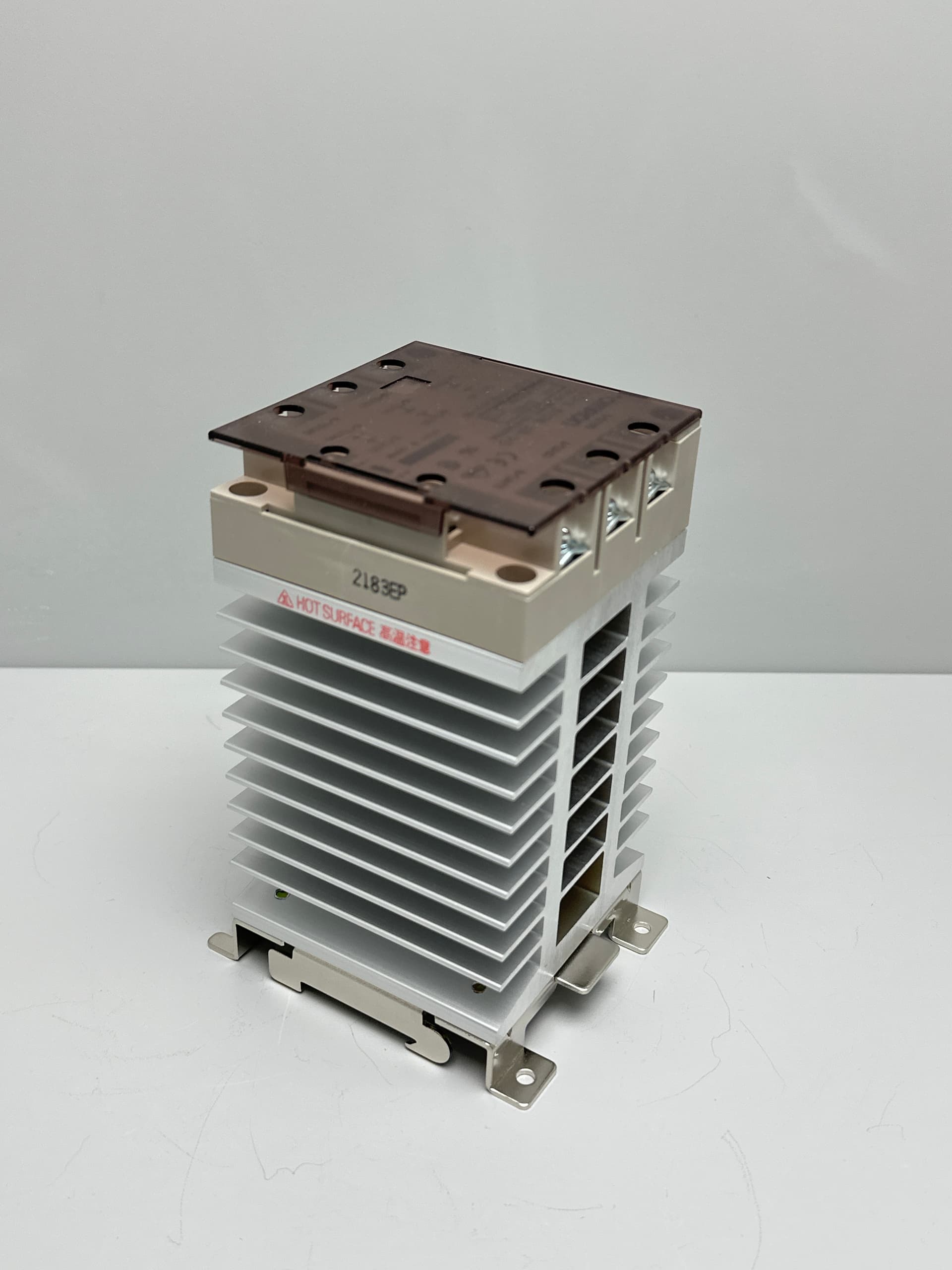

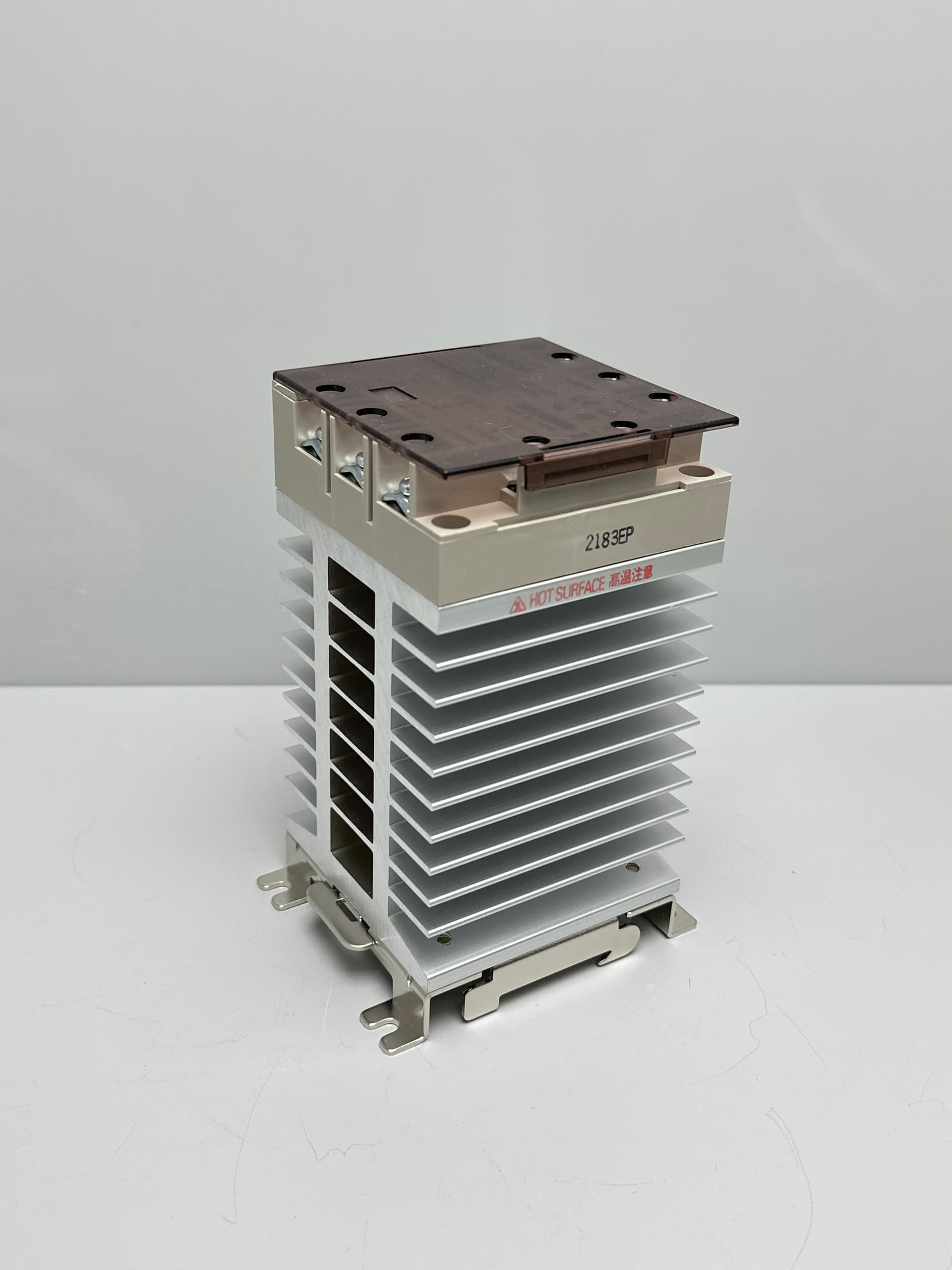

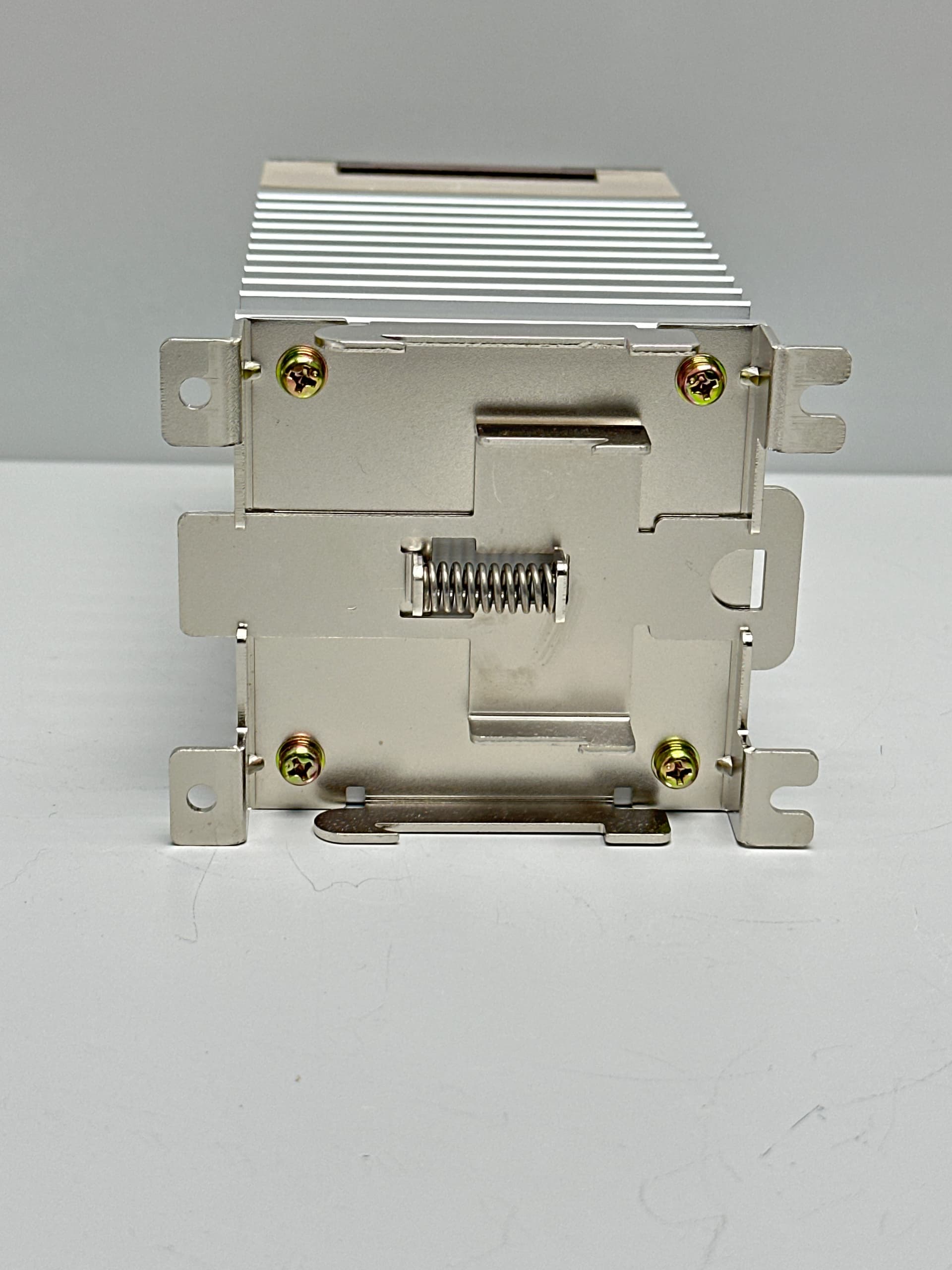

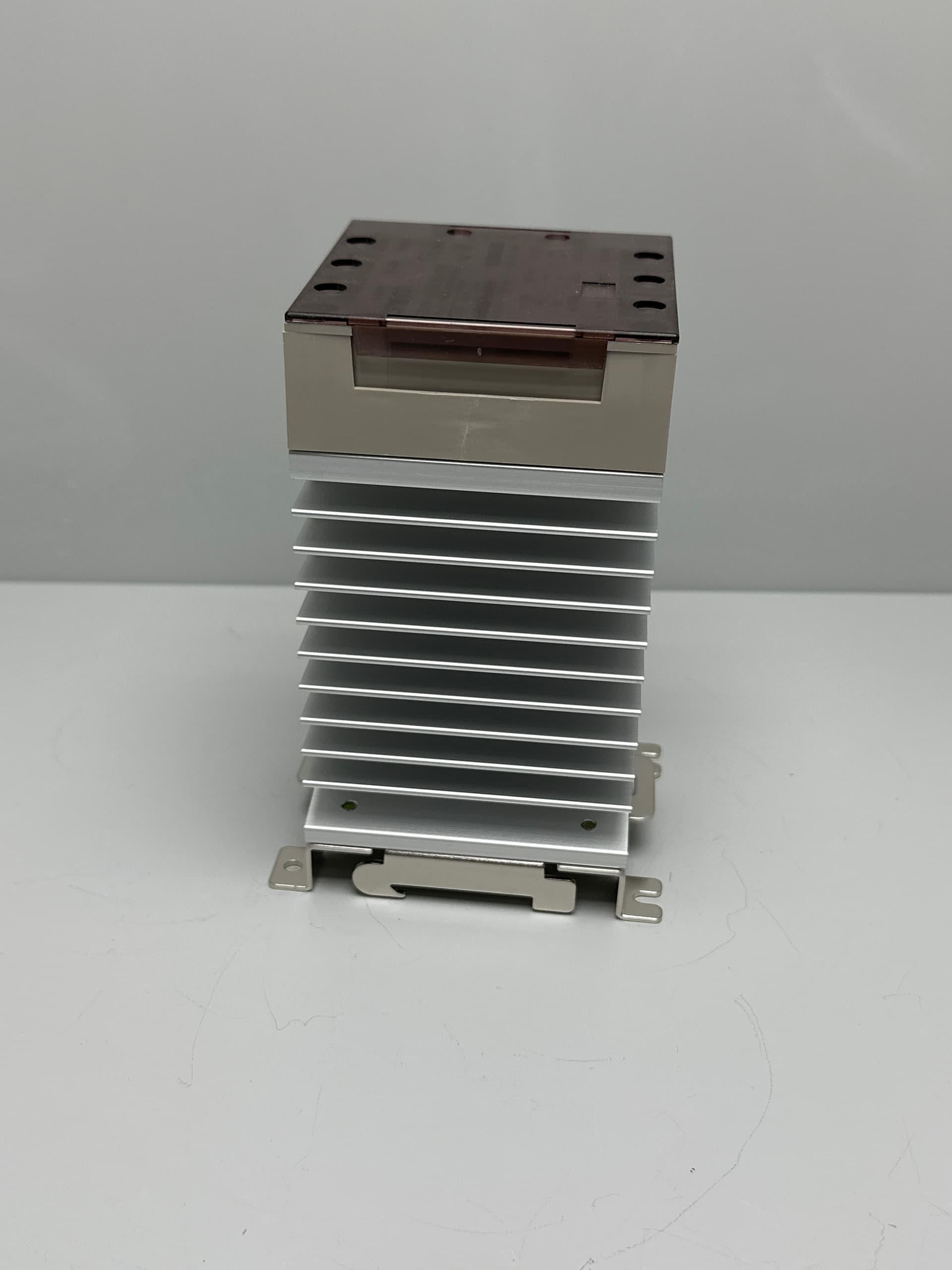

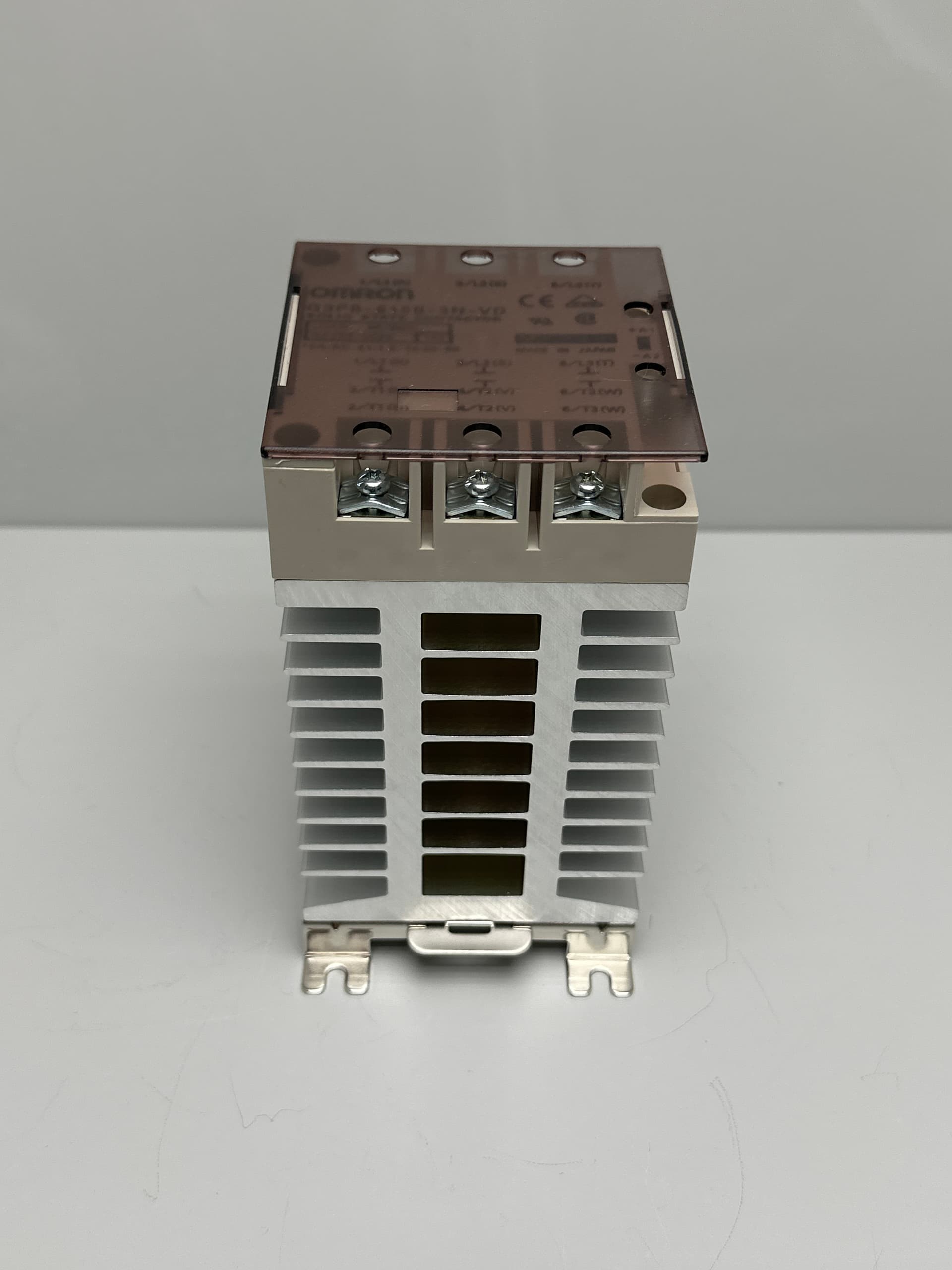

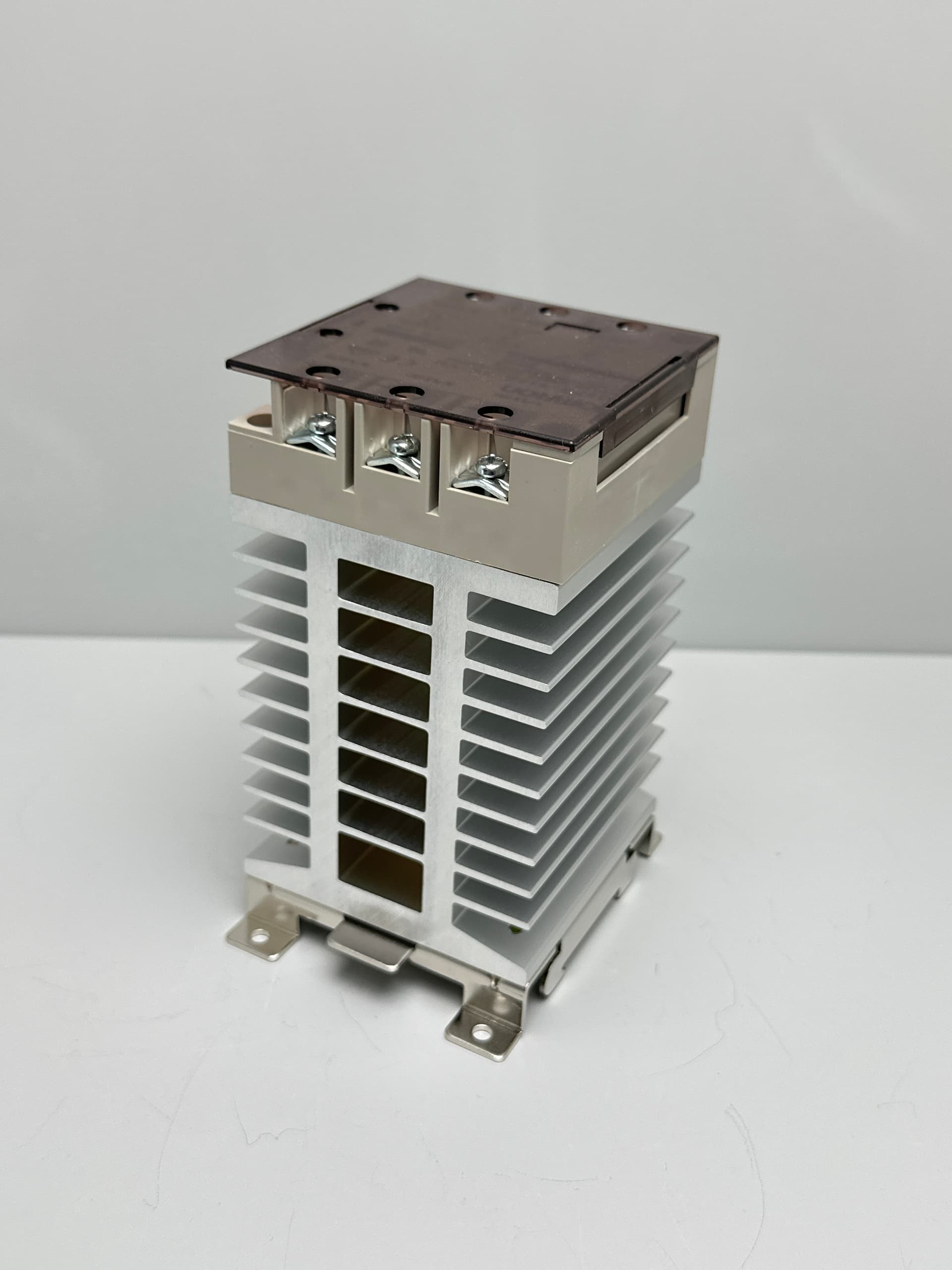

DC12-24V control input. 3-phase, 3-pole, 200 to 480 VAC main circuit, 0.5 to 15 A load current, 12.5 kW max Class-1 AC resistive heater load, zero-cross switching, DIN-track mounting with built-in heat sink.
Technical specifications

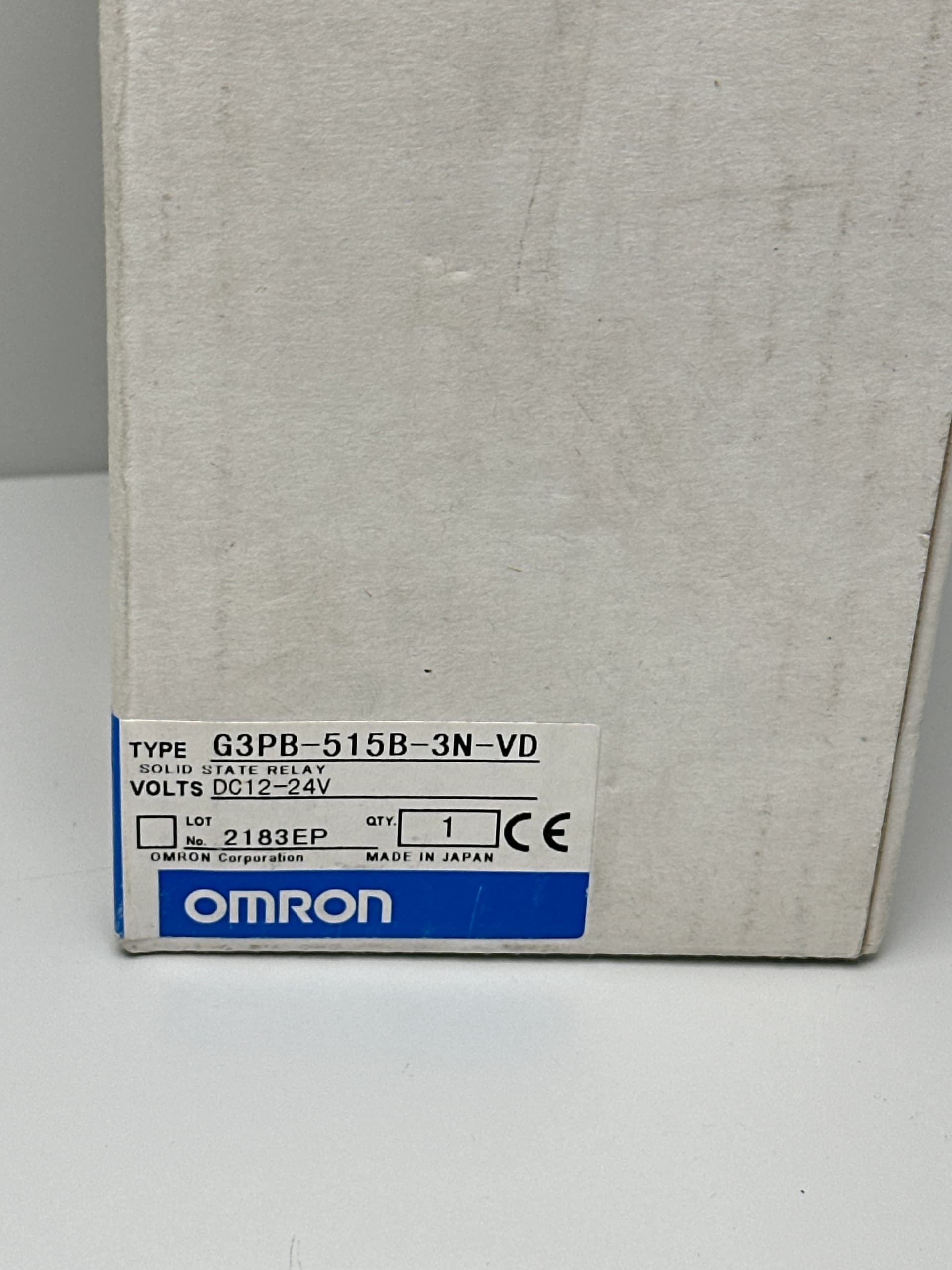

| VOLTS | DC12-24V |
| Applicable phase | 3 |
| Main circuit voltage | 200 to 480 VAC |
| Zero cross function | Yes |
| Applicable heater capacity (with Class-1 AC resistive load) | 12.5 kW max. (15 A) |
| Number of poles | 3 |
| Load voltage range | 180 to 528 VAC |
| Applicable load current | 0.5 to 15 A |
| Inrush current resistance (peak value) | 220 A (60 Hz, 1 cycle) |
| Operating voltage range | 9.6 to 30 VDC |
| Rated input current (Impedance) | 10 mA max. (at 24 VDC) |
Condition & testing notes

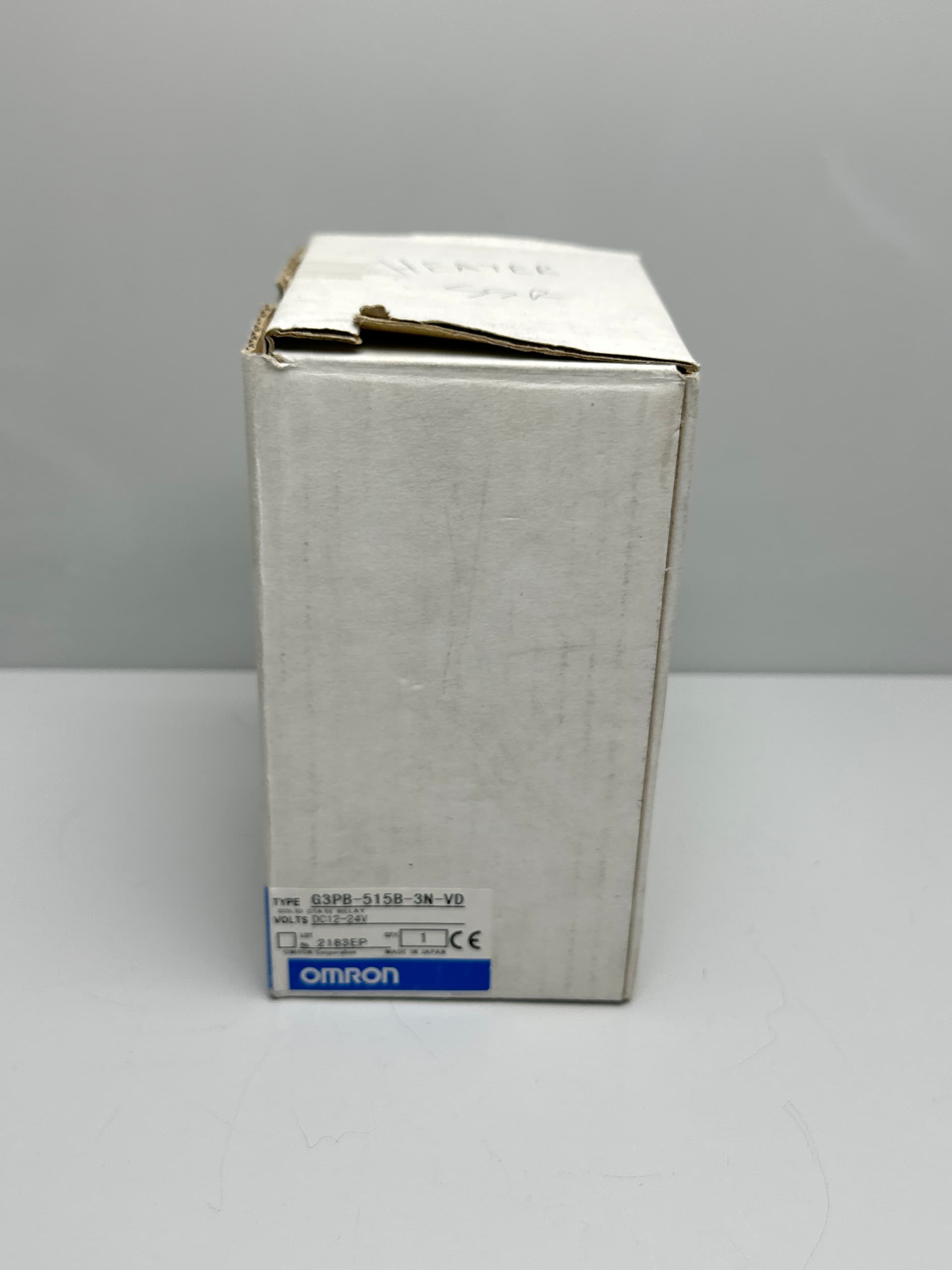

Never used inventory in brand new condition. The item is from old surplus stock.
