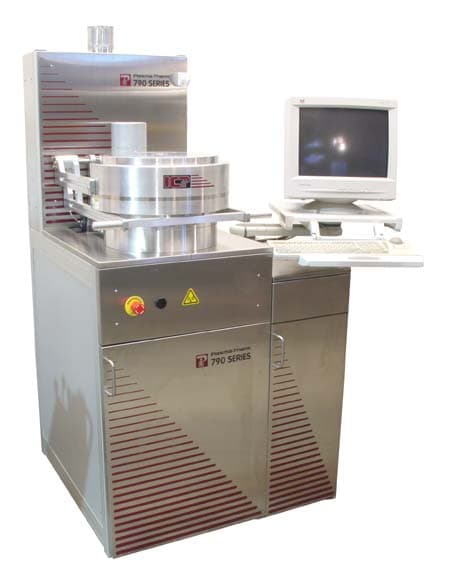

Plasma-Therm 790 ICP Plasma Etcher
Quoted on requestWorking & warranted
- Condition
- Used See details
- Brand
- Plasma-Therm
- MPN
- 790 ICP
- SKU
- 45428
- Availability
- 1 in stock
Shipping, sale coverage & payments
- Shipping:
- Ships from Scotia, NY. Method, cost and timing confirmed on your quote. Shipping policy
- Lead Time:
- We’ll confirm exact timing when we send your quote.
- Sale Coverage:
- Working & Warranted: 90-day warranty. View terms
- International Orders:
- Case by case; export controls may affect eligibility. Contact us
- Payments:
- Credit card via Stripe, or purchase order. Payment Information
- Independent Reseller:
- Capovani is not an authorized distributor or representative of the original manufacturer.
Shop with confidence
Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani
Item description

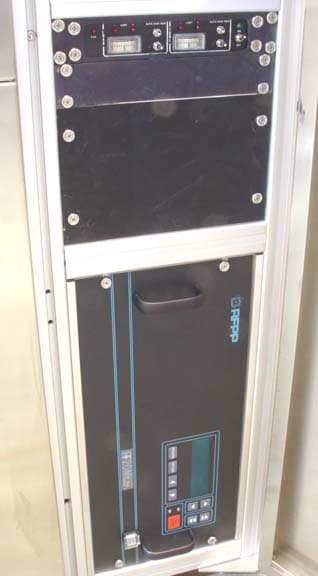

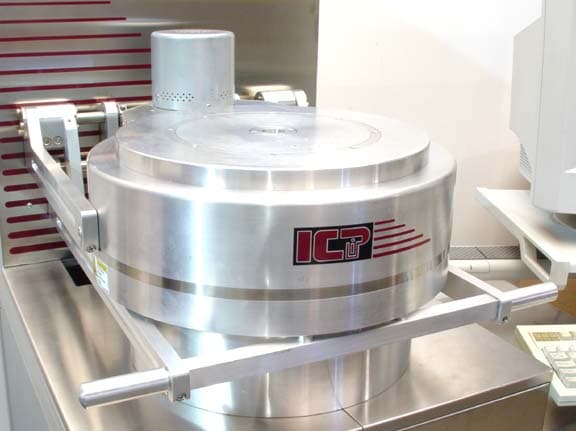

The top coil is supplied 2 MHz RF at 1000 watt max. RFPP Model RF20M
The bottom electrode is supplied 13.56 MHz RF at 500 Watts. RFPP Model RF5S
Technical specifications

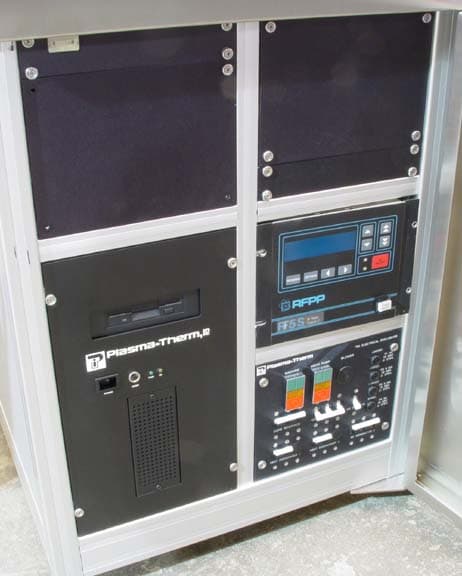

| Controller Type | PC Controller Type |
| High Vacuum Pump | Leybold 361C |
| Roughing Pump | Leybold D40BCS |
| RF Generator Model | RFPP RF20M & RF5S |
| Automatch Text | RFPP AM-20 & AM-5 |
| Number of Gas Inputs | Three Gas |
| Process Gases | TBD |
| Power Requirements | 208 V 60.0 A 60 Hz 3 Phase |
| Year of Manufacture | 1998 |
Wafer Size Range
| Minimum | 50 mm |
| Maximum | 200 mm |
Condition & testing notes
Previously in service and offered for secondary-market resale.
