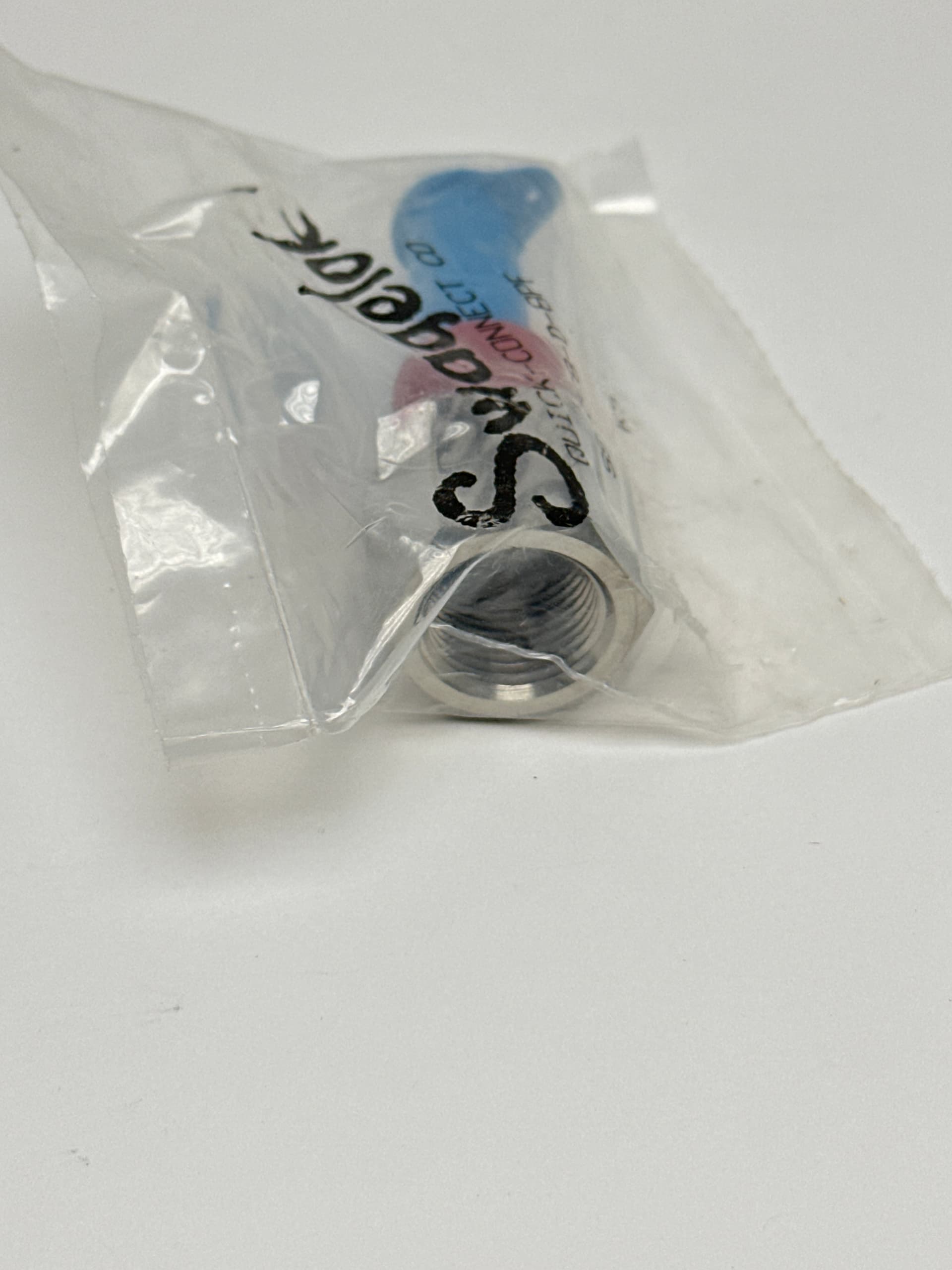

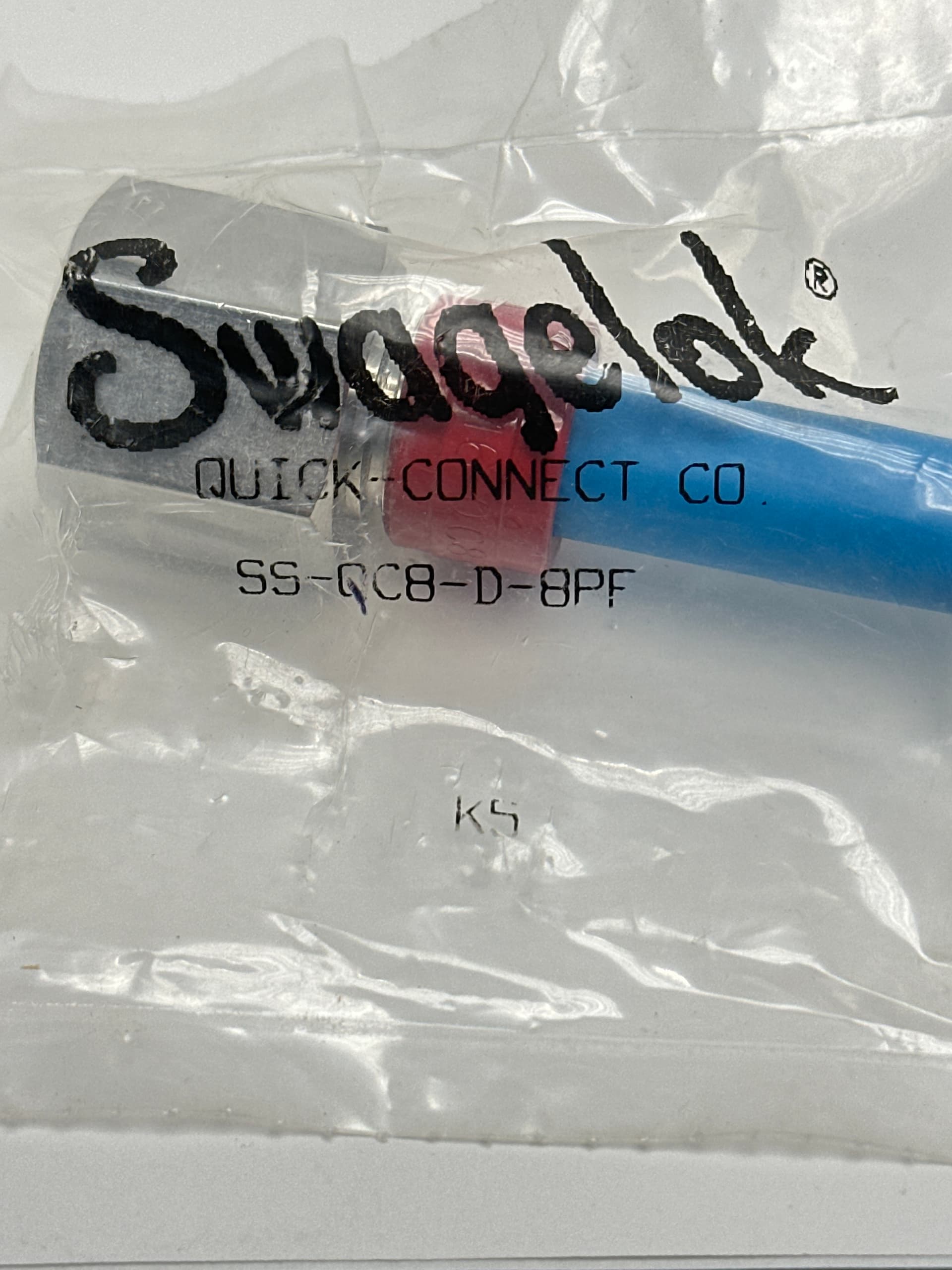

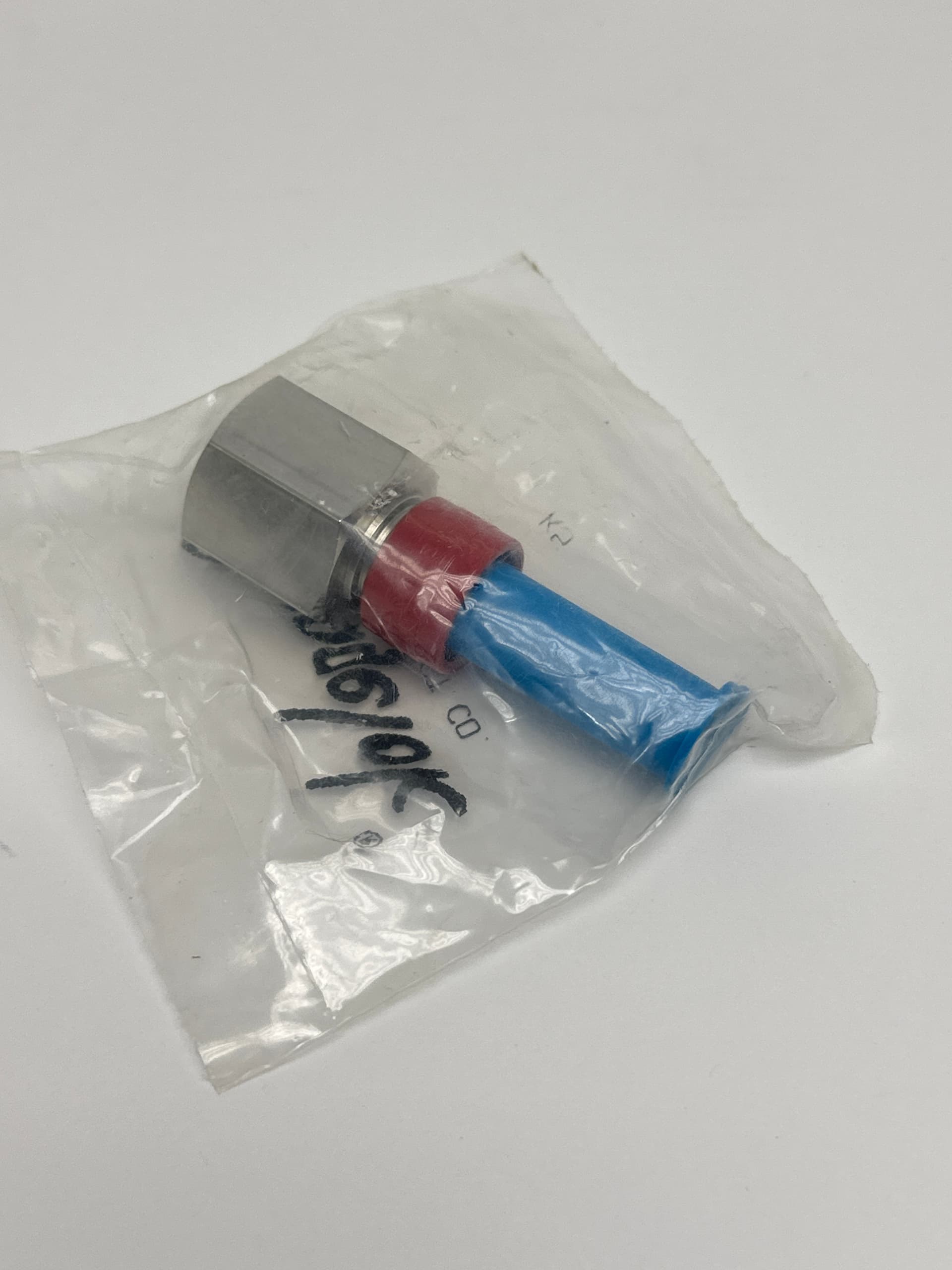

Swagelok SS-QC8-D-8PF Quick Connect Stem, 316 SS, 1/2 in Female NPT

Condition
Brand new See details
Brand
Swagelok
MPN
SS-QC8-D-8PF
SKU
CID1455
Availability
1 in stock
Make Inquiry

Shipping, sale coverage & payments

Shipping:
Ships from Scotia, NY. UPS parcel within 3 business days of order confirmation; cost calculated at checkout. Shipping policy
Sale Coverage:
30 Day Return: 30-day functional return. View terms
International Orders:
Case by case; export controls may affect eligibility. Contact us
Payments:
Credit card via Stripe, or purchase order. Payment Information
Independent Reseller:
Capovani is not an authorized distributor or representative of the original manufacturer.
Capovani Brothers Inc.

Shop with confidence

Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani

Item description

316 stainless QC8 DESO stem with valve, 1/2 in. Female NPT, 1.3 Cv with standard or reverse-flow body. Fluorocarbon FKM O-ring, SC-10 cleaning, 750 PSIG coupled at 70 F, 250 PSIG uncoupled/coupling-uncoupling at 70 F.

Technical specifications

Body Material316 Stainless Steel
Cleaning ProcessStandard Cleaning and Packaging (SC-10)
Connection 1 Size1/2 in.
Connection 1 TypeFemale NPT
CV Maximum1.3 - If coupled with a standard or reverse flow body
O-Ring MaterialFluorocarbon FKM
LubricantDow Corning 111
Pressure Rating Coupled at Room Temp750 PSIG @ 70 °F /51.6 BAR @ 21 °C
Pressure Rating Coupled at Max Temp250 PSIG @ 400 °F /17.2 BAR @ 204 °C
Pressure Rating Uncoupled at Room Temp250 PSIG @ 70 °F /17.2 BAR @ 21 °C
Pressure/Temp Rating (Coupling and Uncoupling)250 PSIG @ 70 °F /17.2 BAR @ 21 °C
SeriesQC8

Main Specifications

Body Material316 Stainless Steel
Cleaning ProcessStandard Cleaning and Packaging (SC-10)
Connection 1 Size1/2 in.
Connection 1 TypeFemale NPT
CV Maximum1.3 - If coupled with a standard or reverse flow body
O-Ring MaterialFluorocarbon FKM
LubricantDow Corning 111
Pressure Rating Coupled at Room Temp750 PSIG @ 70 °F /51.6 BAR @ 21 °C
Pressure Rating Coupled at Max Temp250 PSIG @ 400 °F /17.2 BAR @ 204 °C
Pressure Rating Uncoupled at Room Temp250 PSIG @ 70 °F /17.2 BAR @ 21 °C
Pressure/Temp Rating (Coupling and Uncoupling)250 PSIG @ 70 °F /17.2 BAR @ 21 °C
SeriesQC8

Condition & testing notes

Never used inventory in brand new condition. The item is from old surplus stock.
